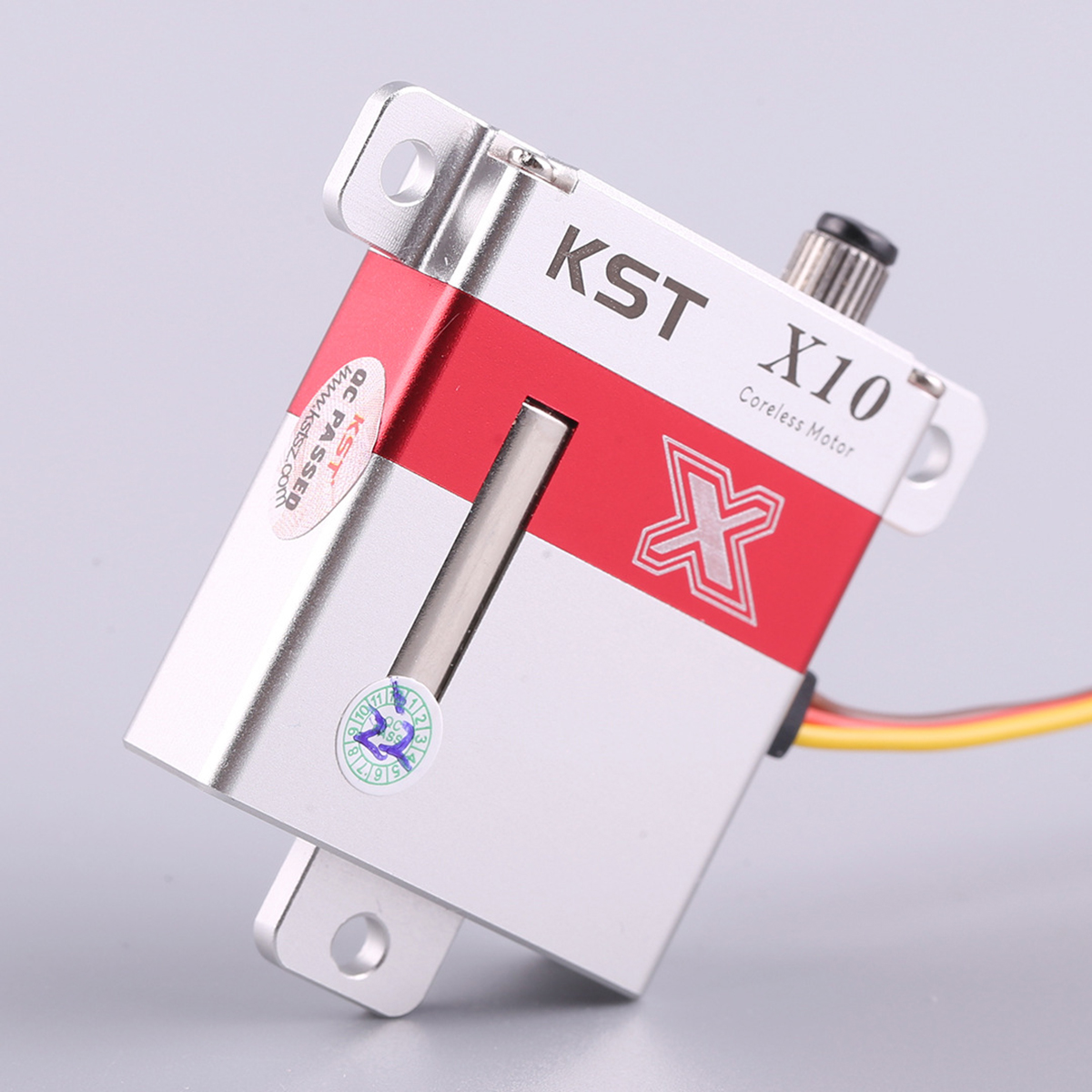

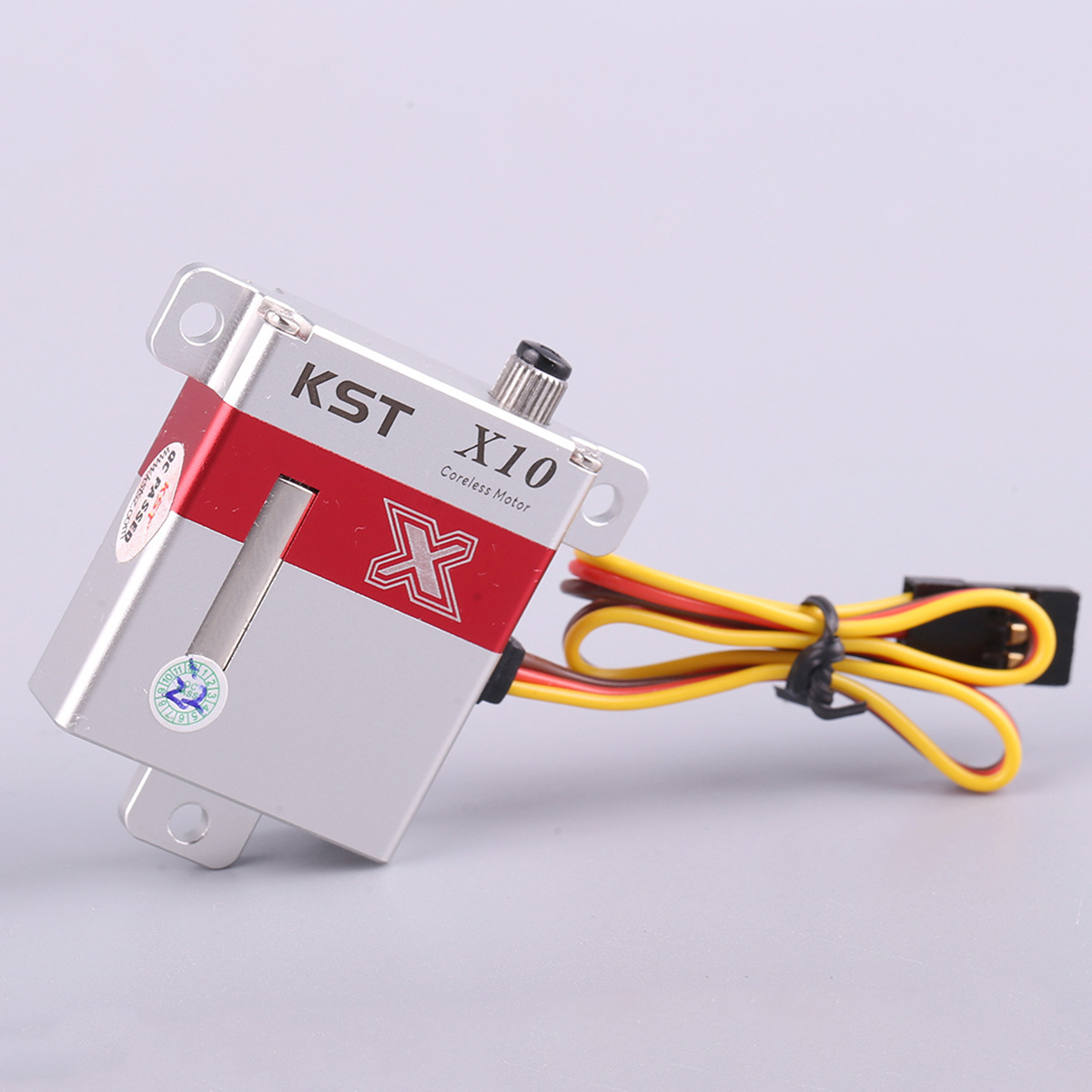

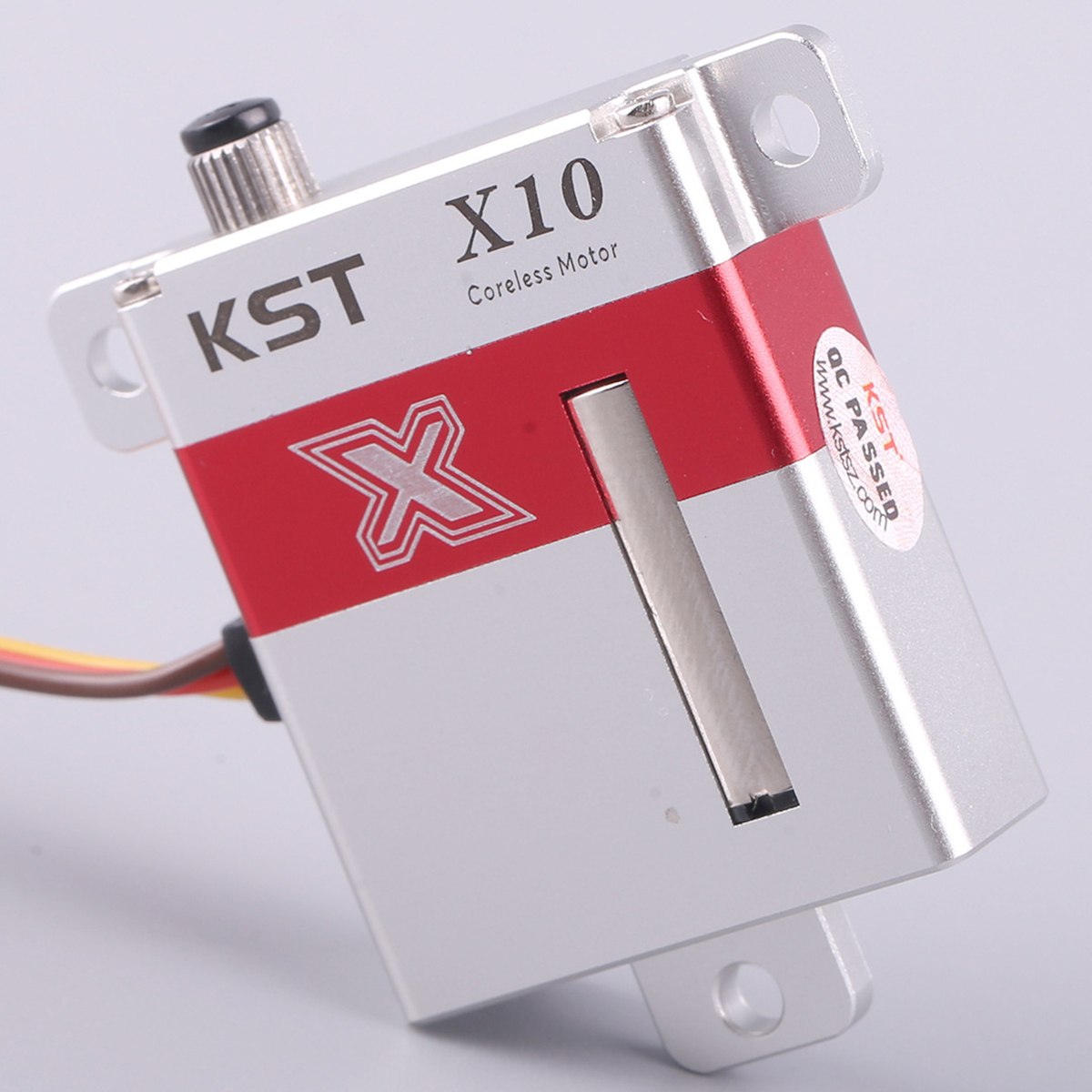

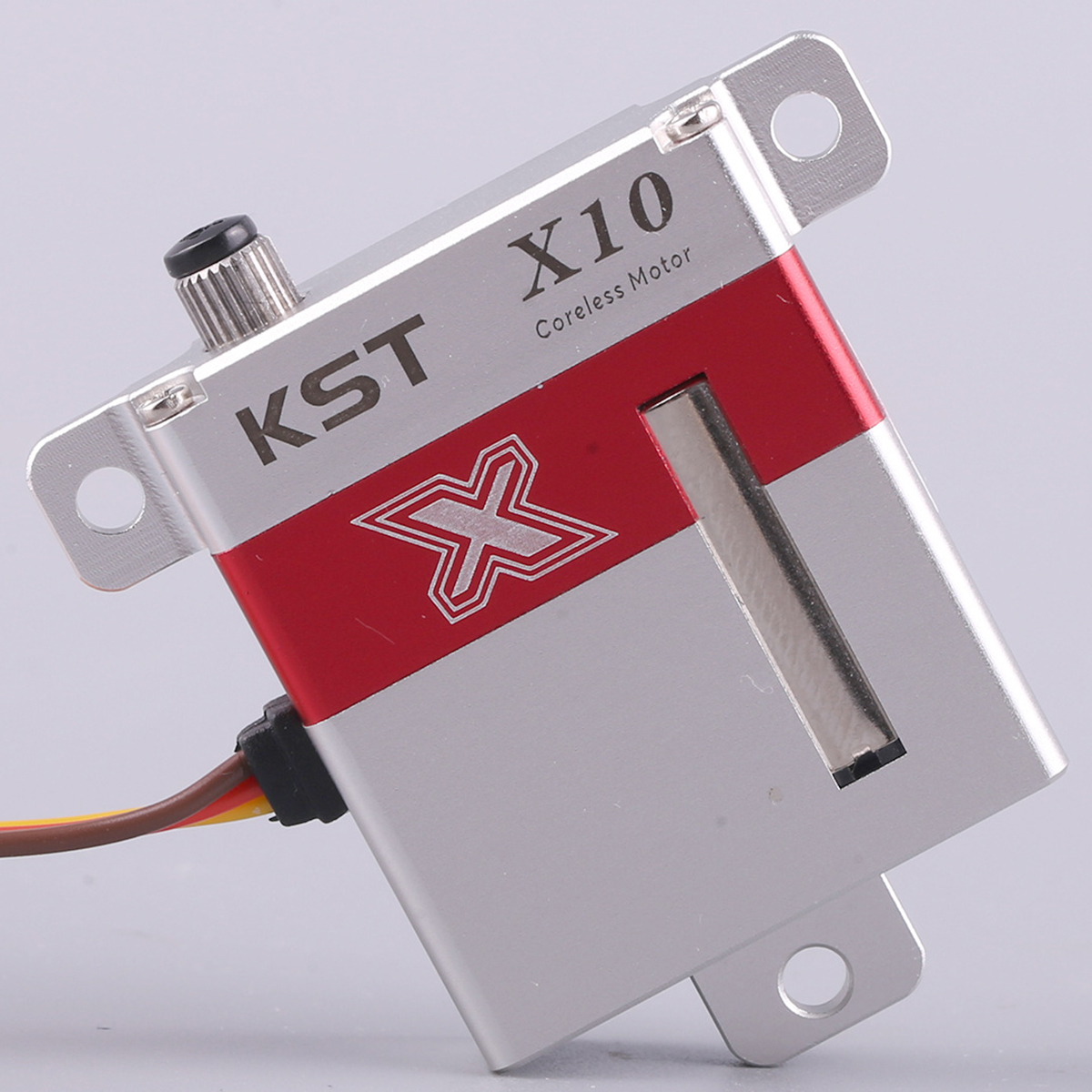

KST X10 V8.0 Metal Gear Aluminum Case Digital Servo 10.8kg.cm 0.10sec for RC Gliders Helicopter
KST X10 V8.0 Metal Gear Aluminum Case Digital Servo 10.8kg.cm 0.10sec for RC Gliders Helicopter
The wing servo from KST offers the best performance and definitely, the best value servo you can put in your latest sailplane wing. This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice its price.
Perfect for applications like F3J, F3B, F3F wing and flap installations. You need to see it and feel how smooth it goes… it’s just awesome.
Features
Compact and Lightweight Design
Extreme Torque and Excellent Speed
Excellent Heat Dissipation
Programmable
CNC Aluminum Case

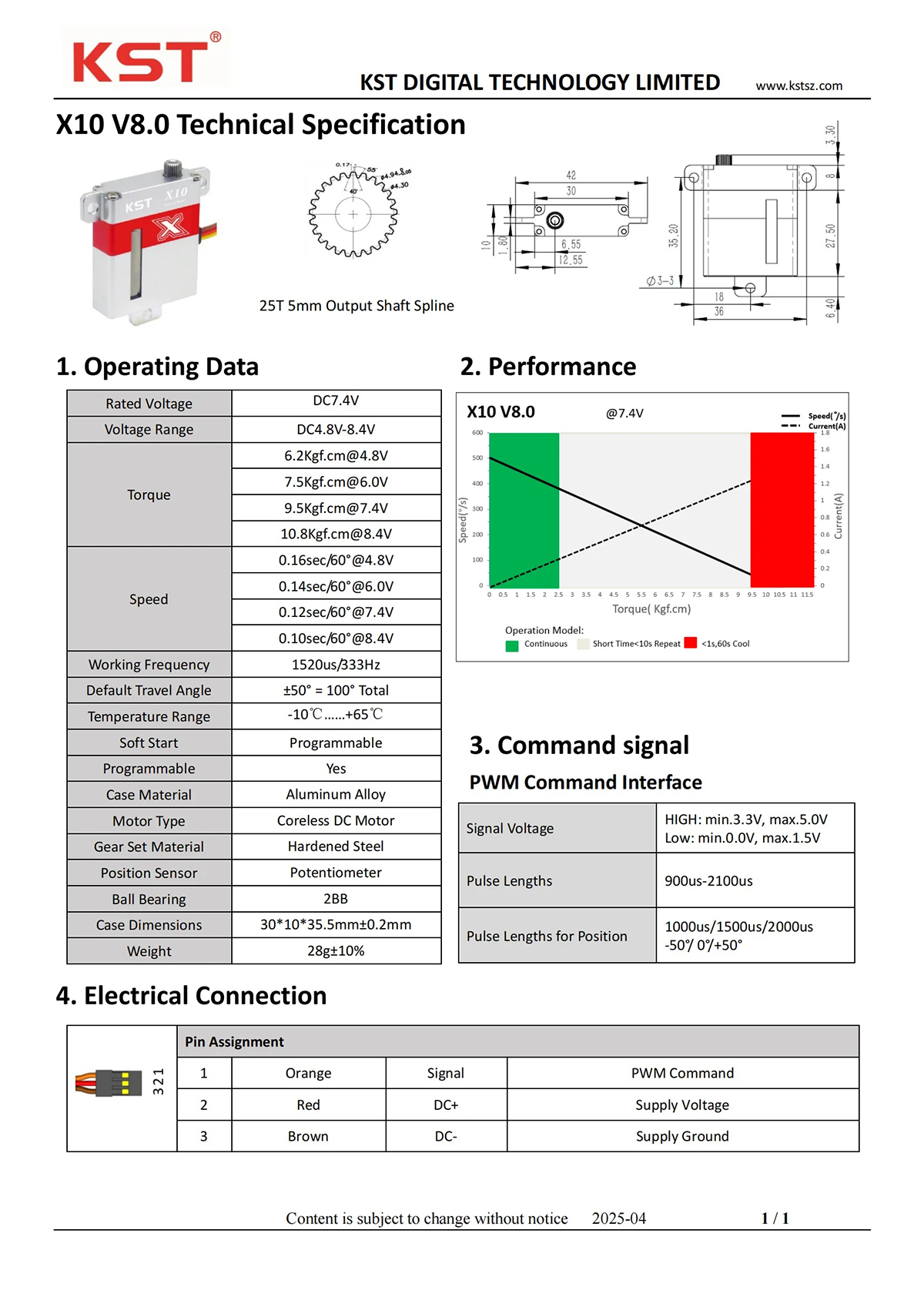

Model: X10 V8.0 Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 6.2Kgf.cm@4.8V, 7.5Kgf.cm@6.0V, 9.5Kgf.cm@7.4V, 10.8Kgf.cm@8.4V
Speed: 0.16sec/60° @4.8V, 0.14sec/60° @6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Working Frequency: 1520µs/333Hz

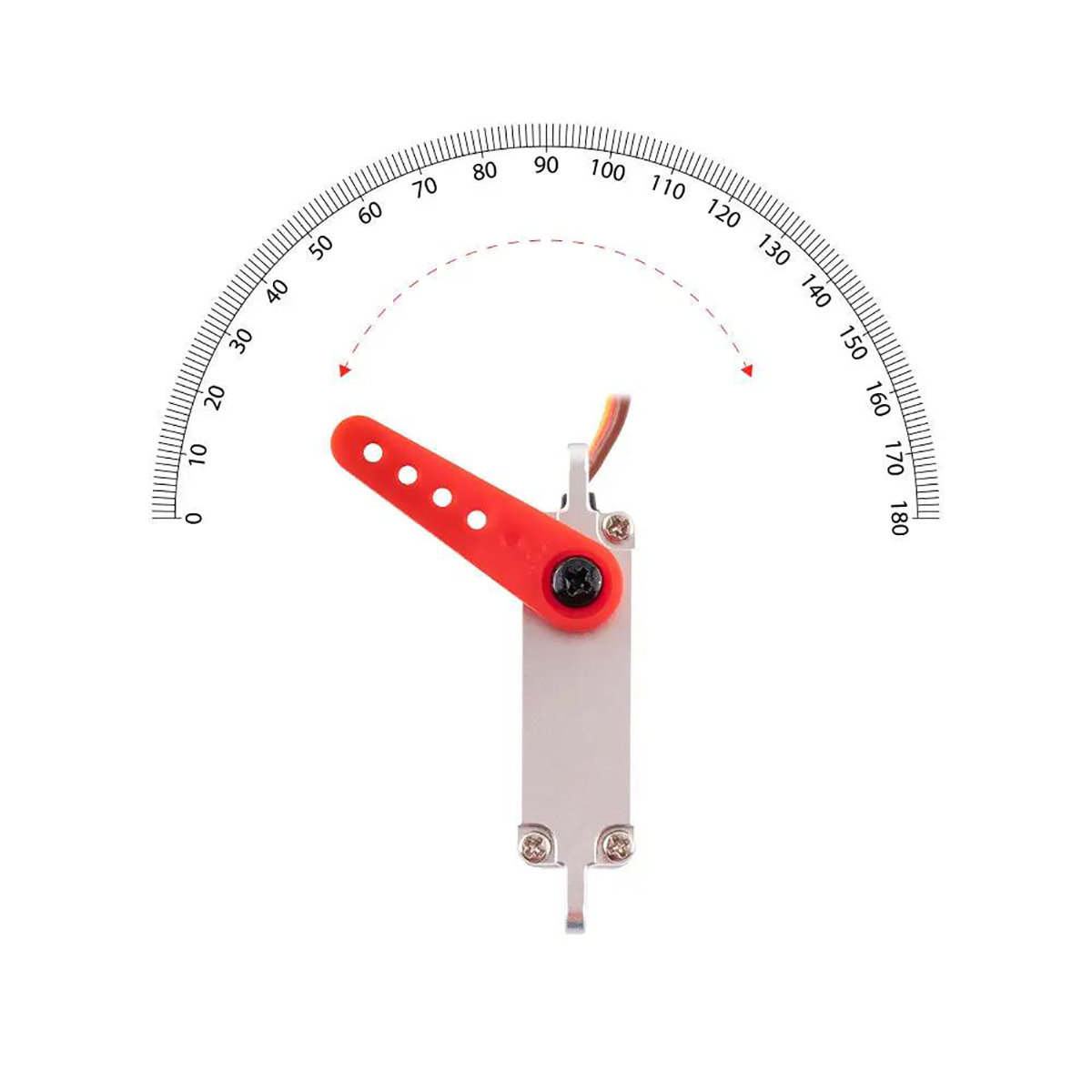

Travel Angle: ±50°=100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Lead length: 15cm
Bearing: 2BB

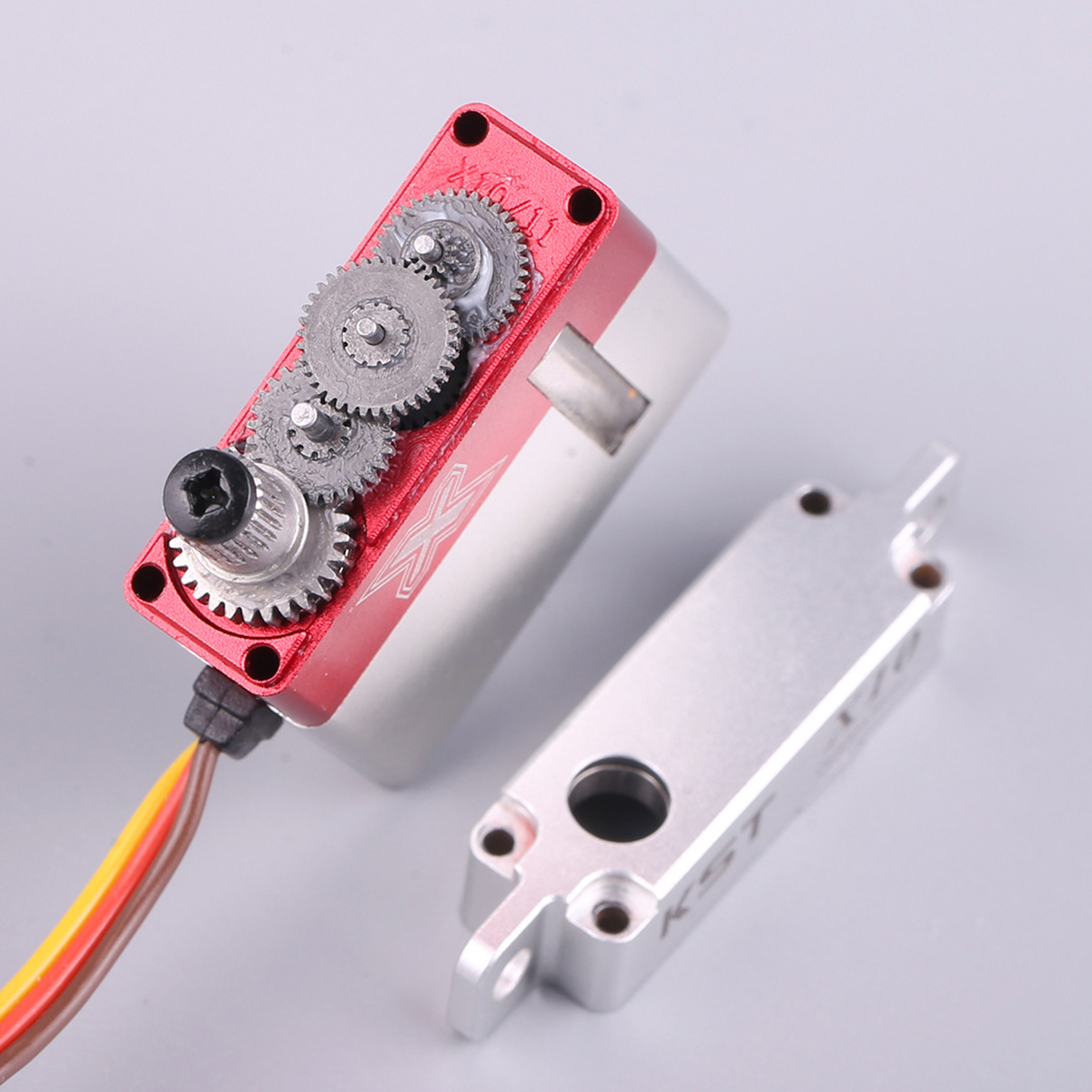

Gear Set Material: Hardened Steel
Motor Type: Coreless DC Motor
Position Sensor: Potentiometer

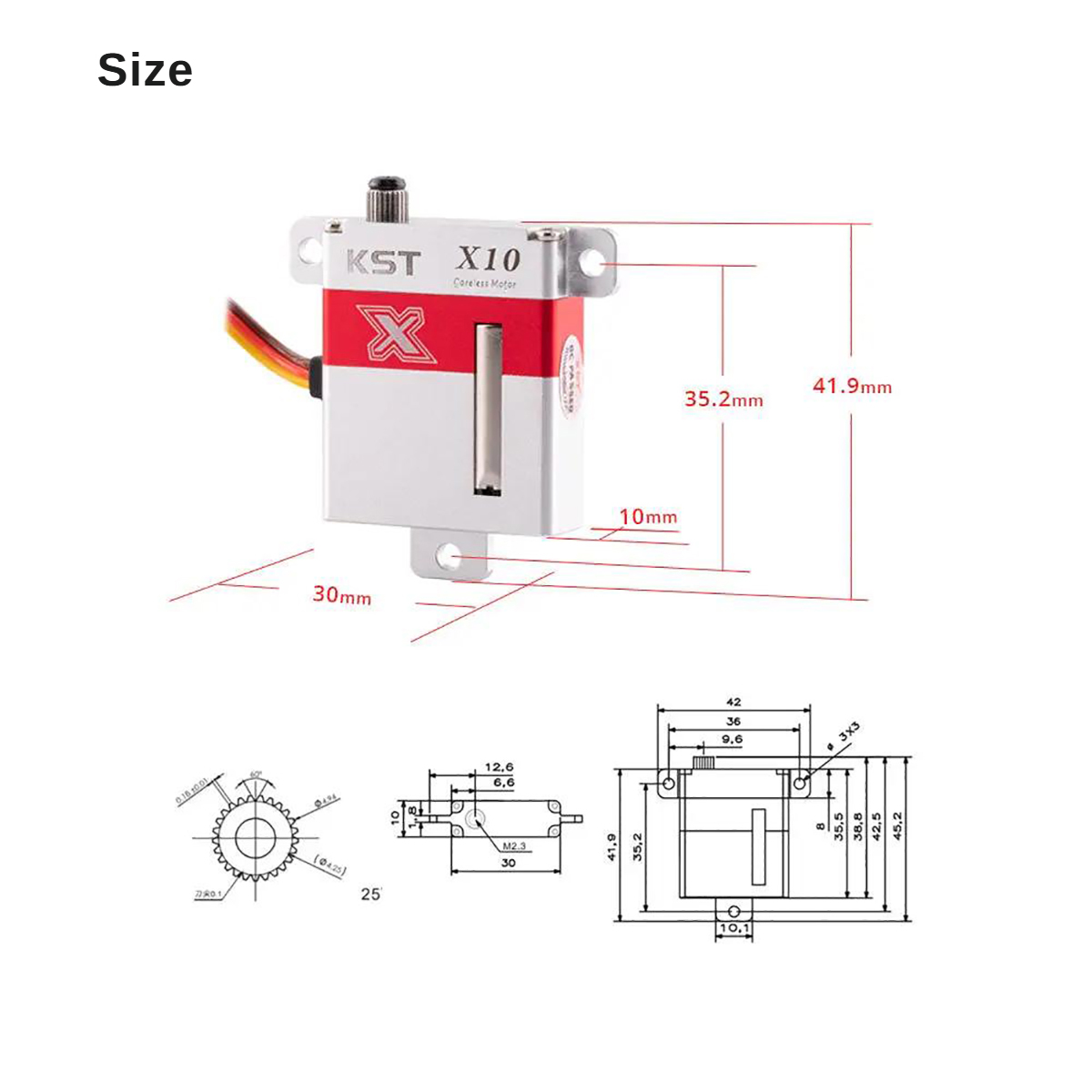

Case Dimensions: 30*10*35.5mm ±0.2mm
Weight: 28g±10%

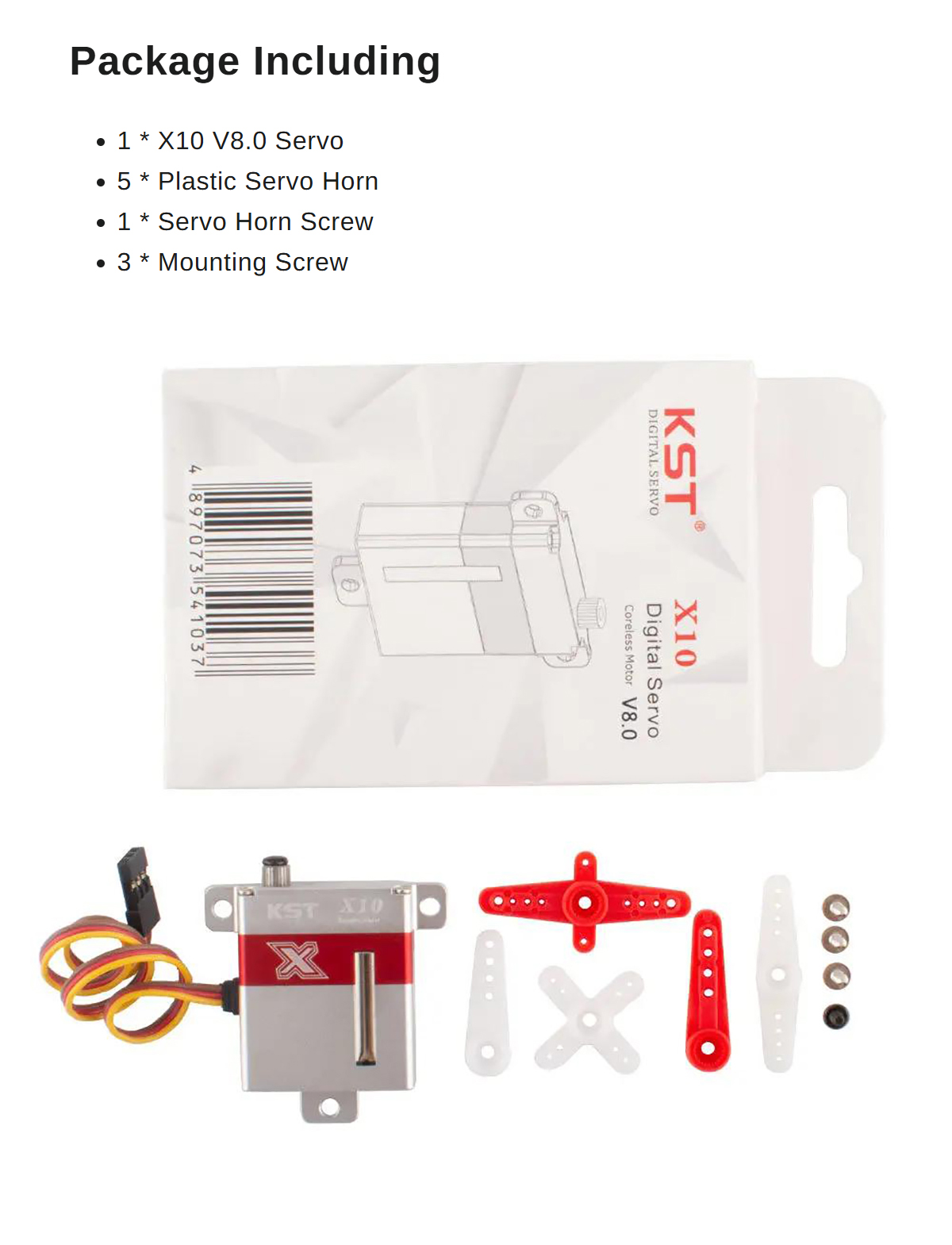

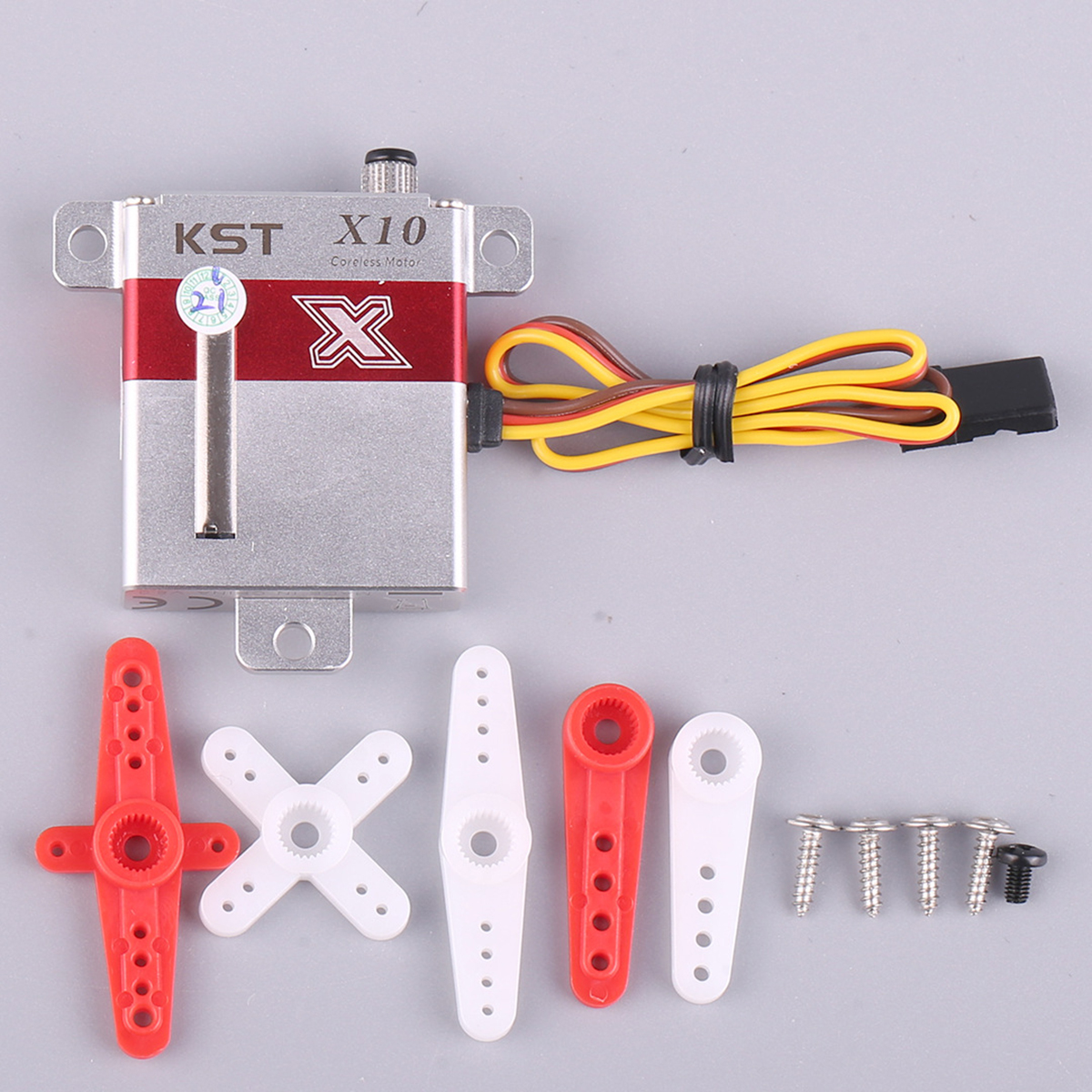

X10 V8.0 Servo x1
Plastic Servo Horn x5
Servo Horn Screw x1
Mounting Screw x3
