150CH auto search
Support channel signal calibration,safe.

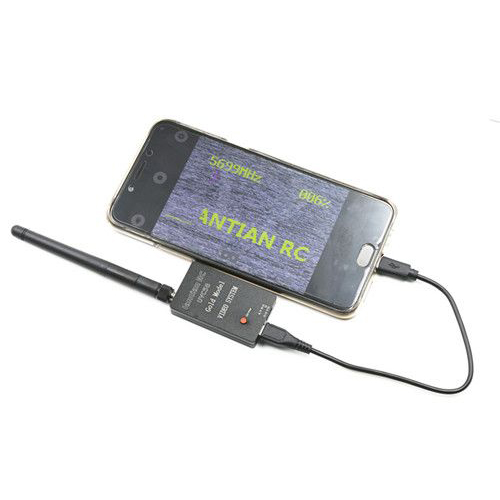

Compatible with Android smartphone and tablet by OTG(iphone incompatible)
Can connect with PC by USB
Can connect with monitor by AV out

Operation :
Note :
For better performance, please calibrate the highest and lowest signal before you use.
Please calibrate it in open field, take the transmitter more than 30m away from the receiver for calibration . Long press the button can power on receiver and enter the calibration mode.

Mobile :
1. Download and install the http://pan.baidu.com/s/1qY8ieAw
2. Directly connect with OTG cable, no need extra power supply.
3. After power on the VTX and RX, long press the button for 3 seconds, it will auto search the frequency and lock the strongest signal.

PC :
1. Connect PC with USB
2. (XP)open the camera;(WIN7)Install the AMCP camera software;(WIN10) Open the camera.Or MP ground station.
3.  Power on it, long press the button for 3 seconds, it will auto search the frequency and lock the strongest signal.

AV Monitor :
1. Use data cable for connecting, define interfaces of AV port. Recevier power input is 5V.
2. Power on it, long press the button for 3 seconds, it will auto search the frequency and lock the strongest signal.
