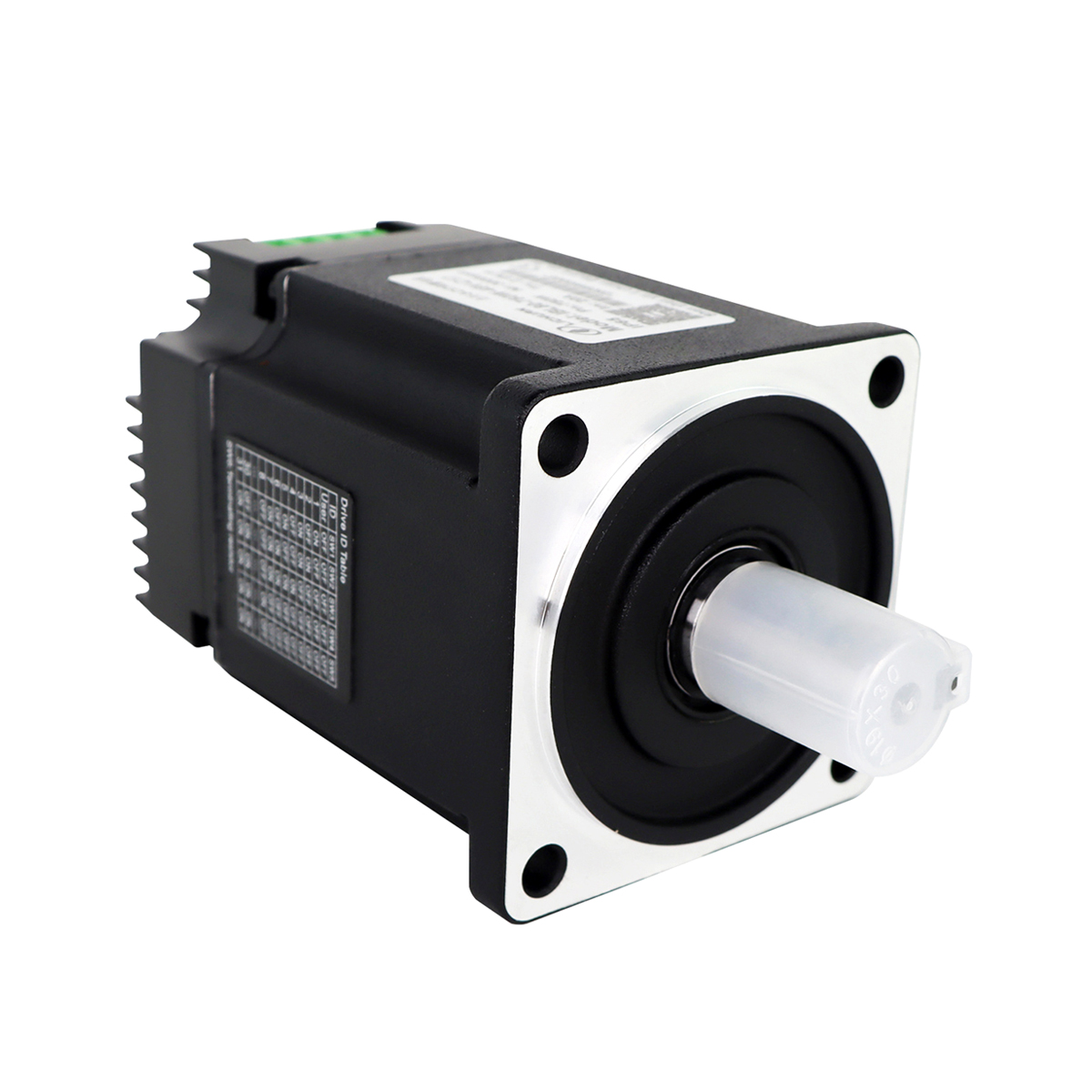

Lichuan IBL80C-750W-48V-C17 80 Backpack Type Integrated Servo Motor CANopen 2.4Nm 48V 750W for Industrial Robot

SKU IBL80C-750W-48V-C17 Category Electric-Miscellaneous Tag Servo Motor Brand: Feixiang

Lichuan IBL80C-750W-48V-C17 80 Backpack Type Integrated Servo Motor CANopen 2.4Nm 48V 750W for Industrial Robot

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

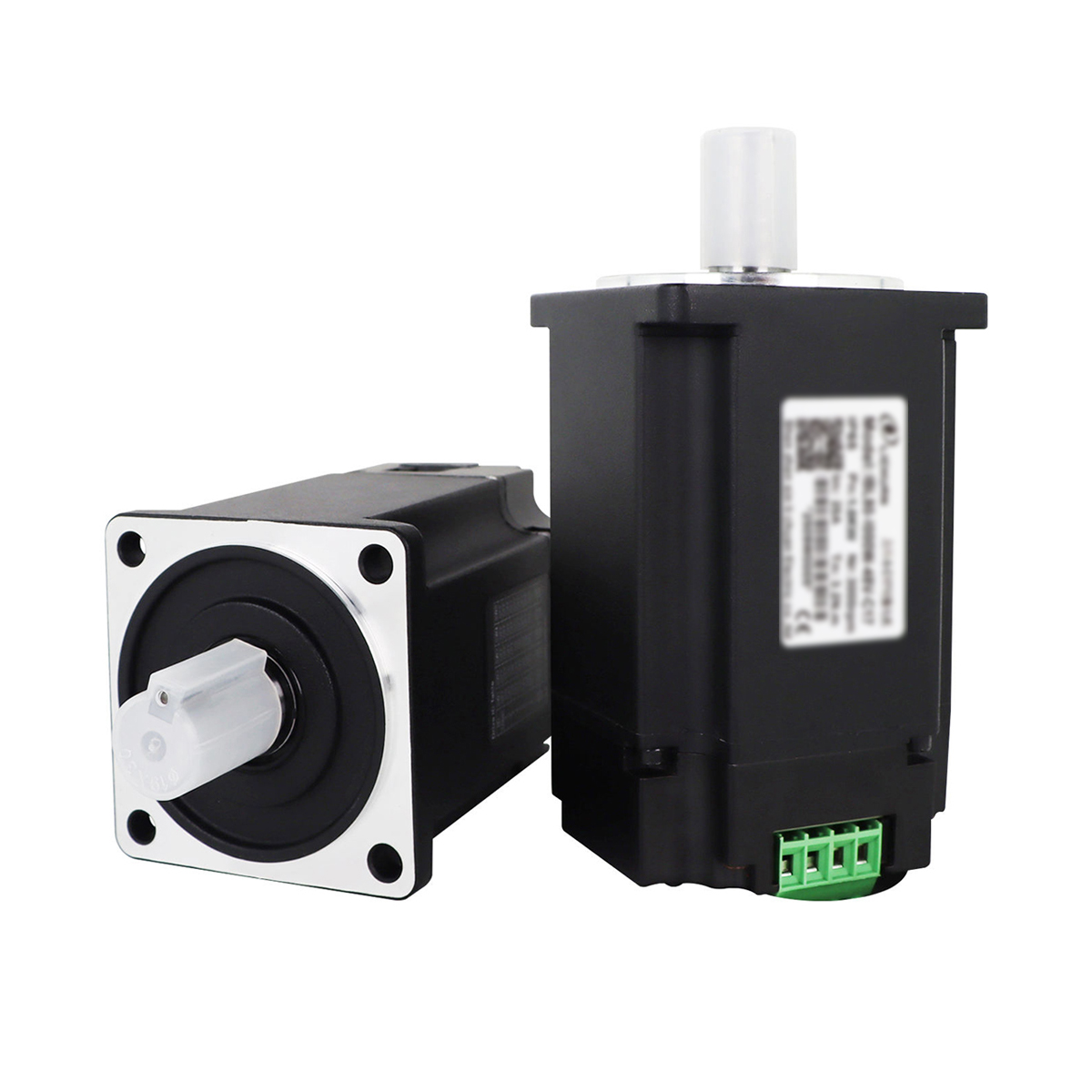

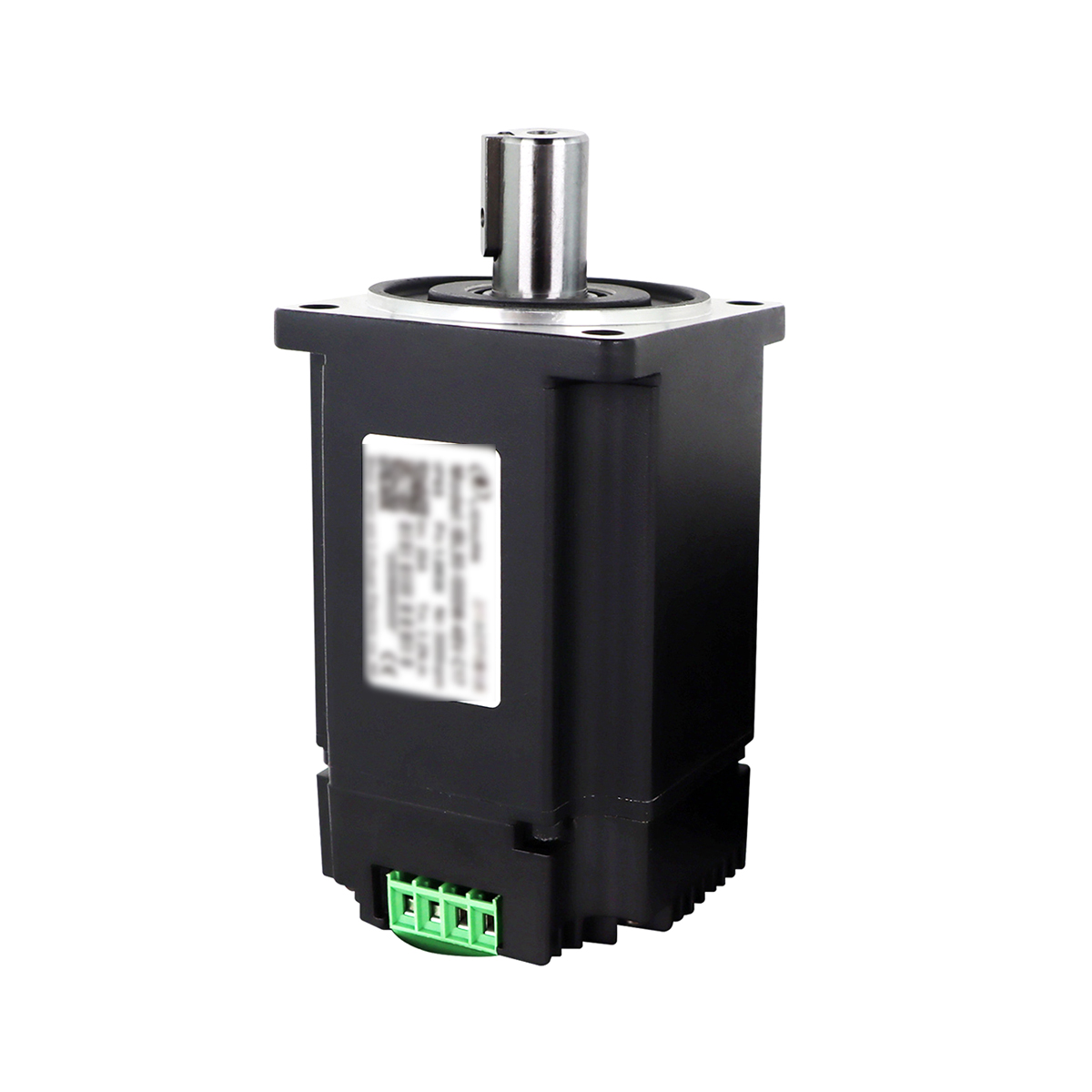

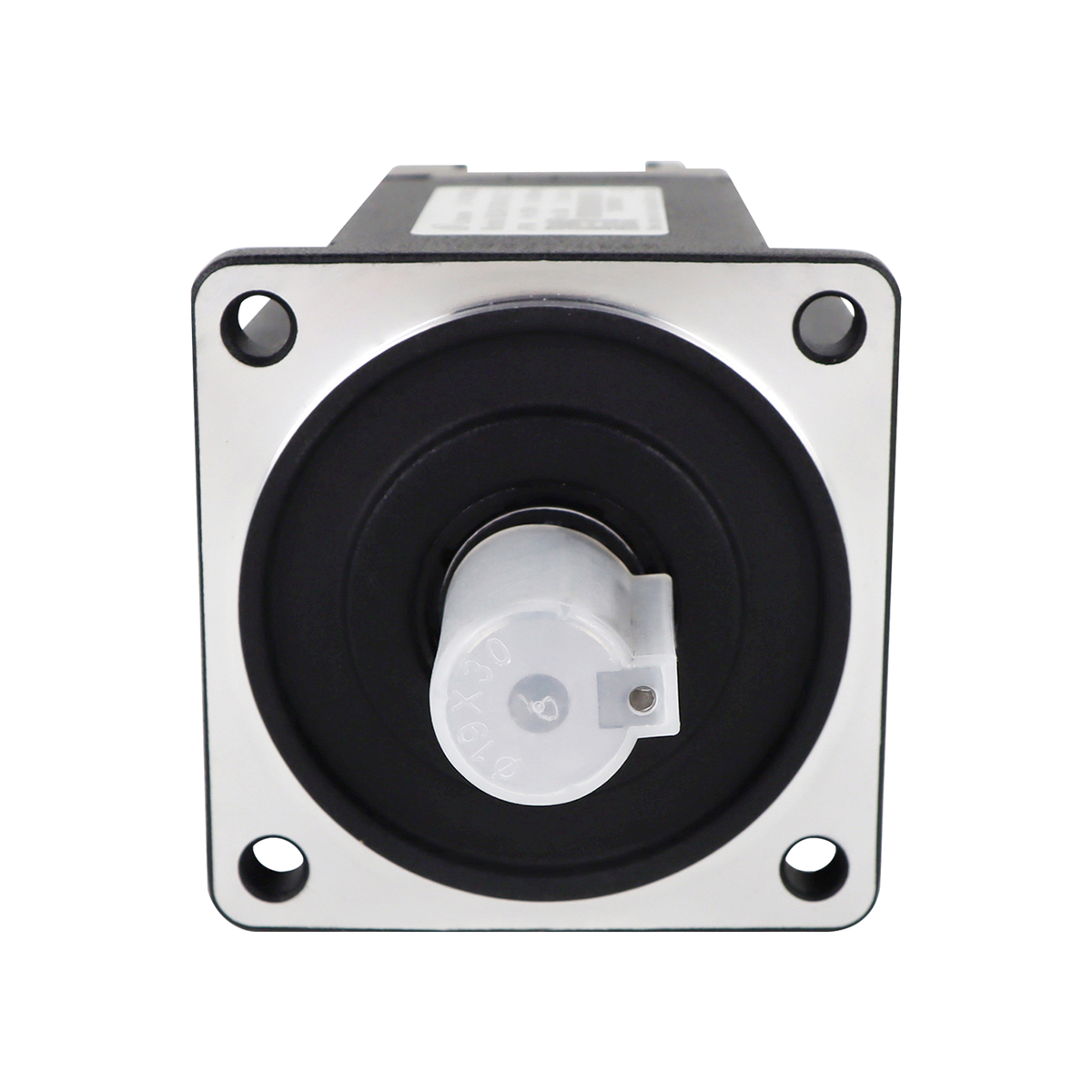

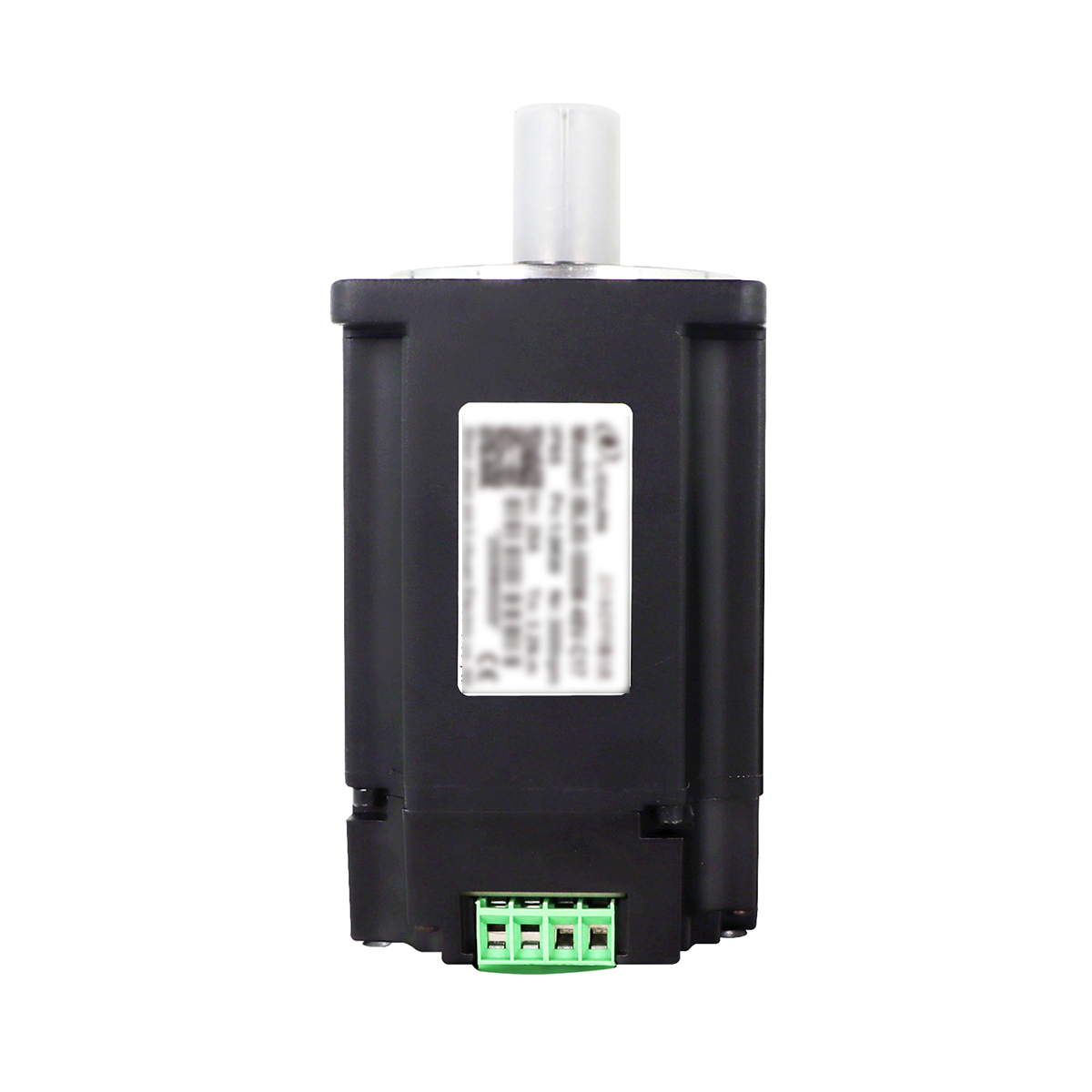

Lichuan IBL80C-750W-48V-C17 80 Backpack Type Integrated Servo Motor CANopen 2.4Nm 48V 750W for Industrial Robot

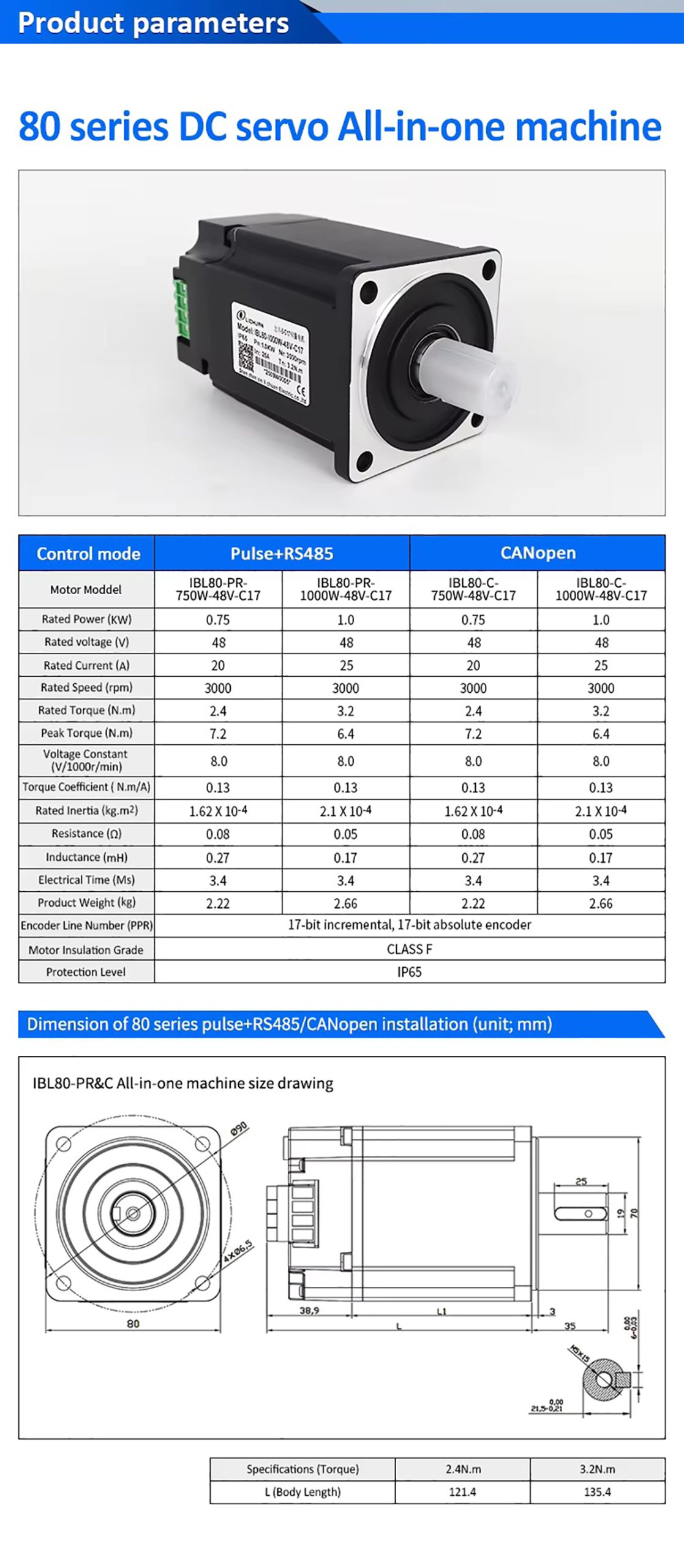

Model: IBL80C-750W-48V-C17
Rated Power: 750W
Rated Voltage: 48V
Rated Current: 20A
Rated Speed: 3000Rpm
Rated Torque: 2.4N.m
Peak Torque: 7.2N.m
Back EMF: 8.0V/1000R/Min
Torque Constant: 0.13N.M/A
Rotor Inertia: 1.62×10⁻⁴Kg.m²
Resistance: 0.08Ω
Inductance: 0.27mH
Electrical Time Constant: 3.4ms
Weight: 2.22kg
Body Length: 121.4mm
Encoder Line Count: 17-Bit Encoder
