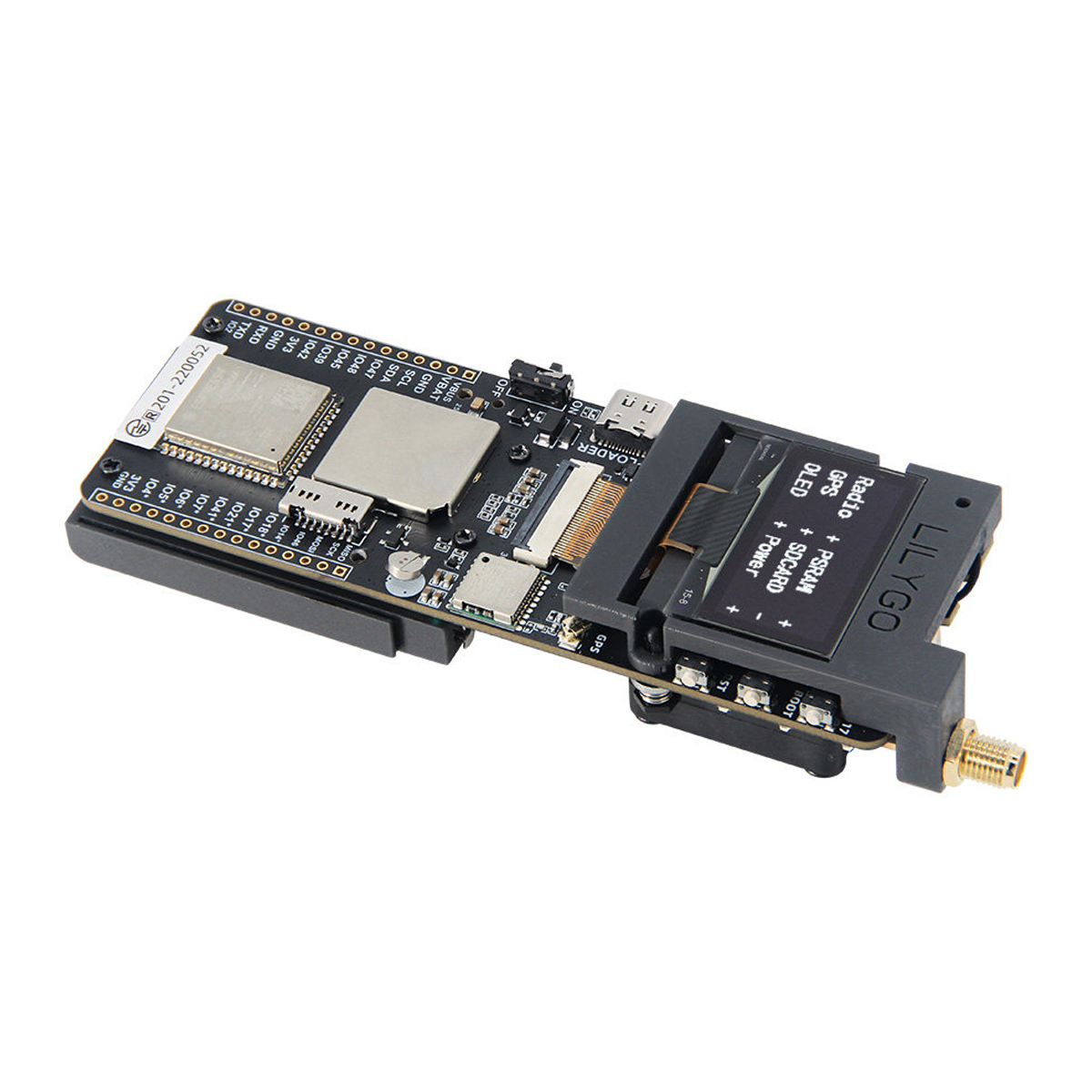

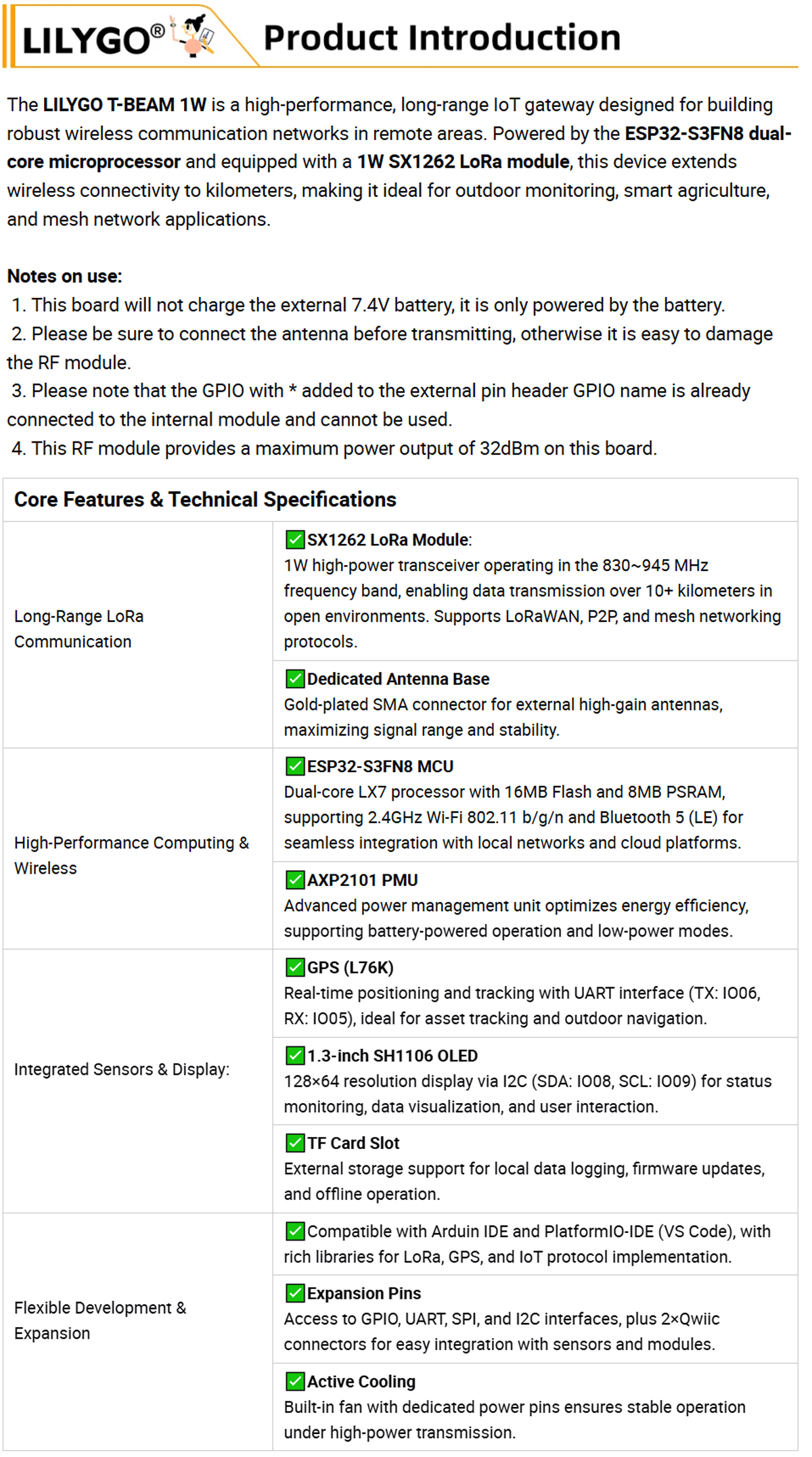

LILYGO T-BEAM 1W is a high-performance, long-range IoT gateway designed for building robust wireless communication networks in remote areas. Powered by the ESP32-S3FN8 dual-core microprocessor and equipped with a 1W SX1262 LoRa module, this device extends wireless connectivity to kilometers, making it ideal for outdoor monitoring, smart agriculture, and mesh network applications.
Notes on use:

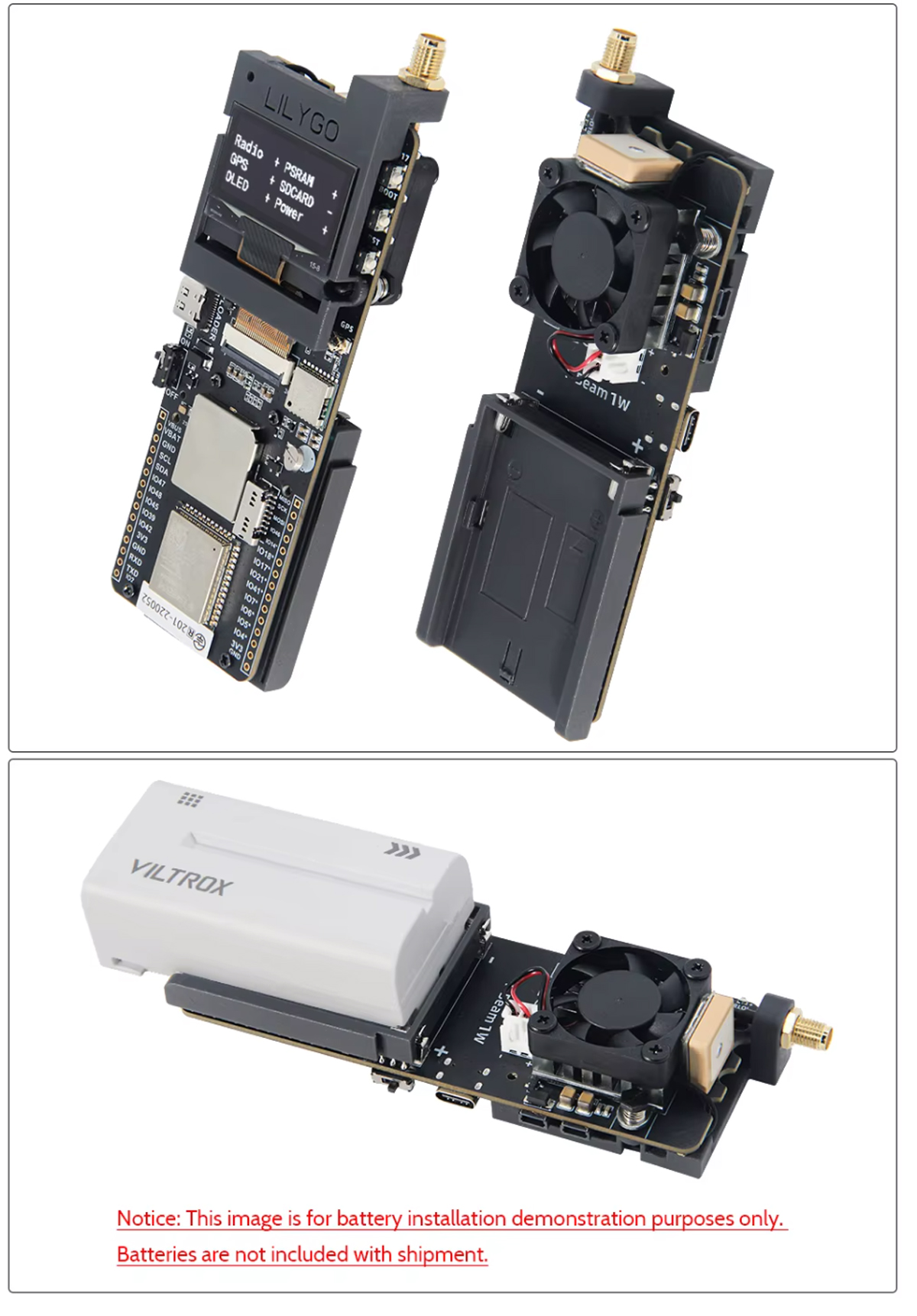

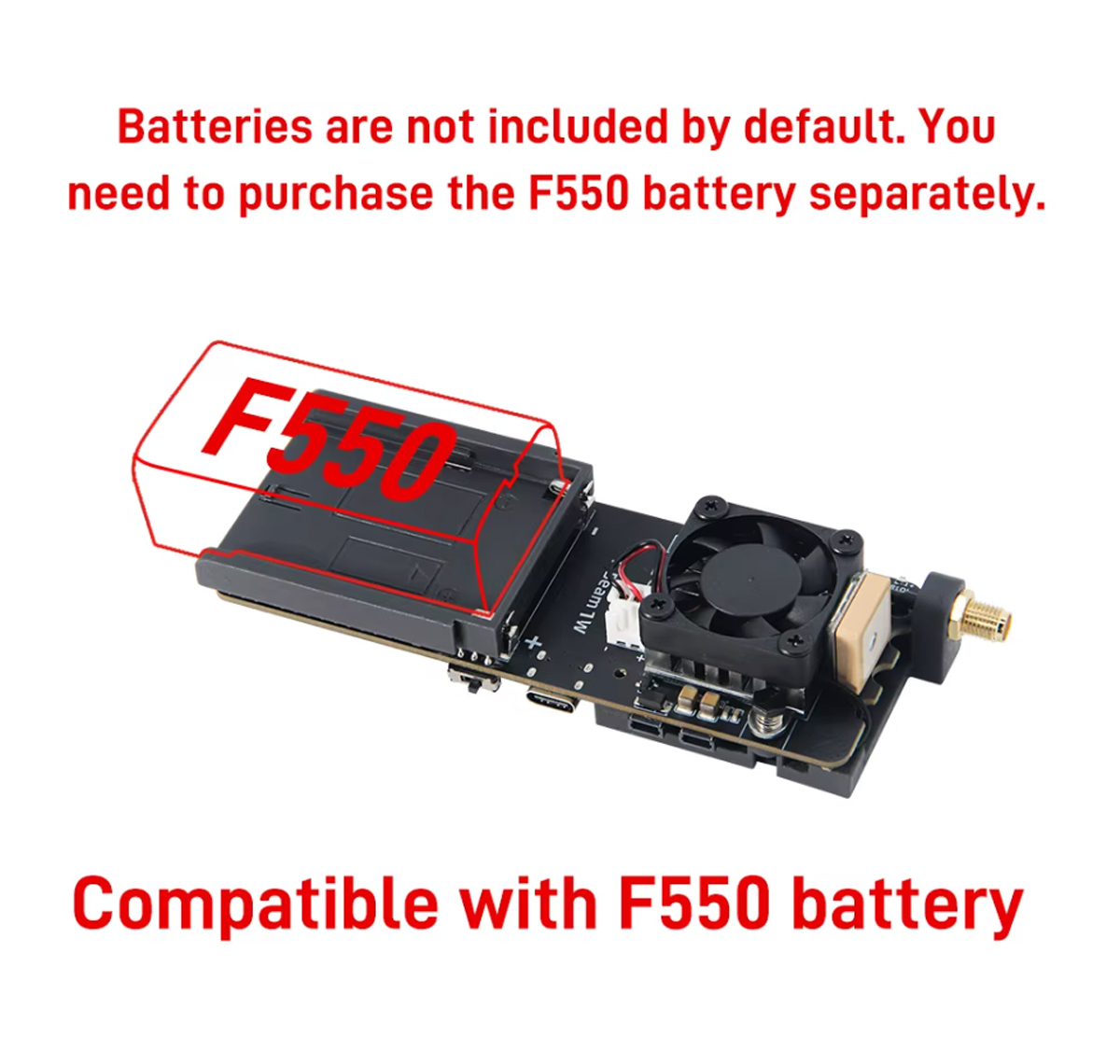

1. This board will not charge the external 7.4V battery, it is only powered by the battery.
2. Please be sure to connect the antenna before transmitting, otherwise it is easy to damage the RF module.

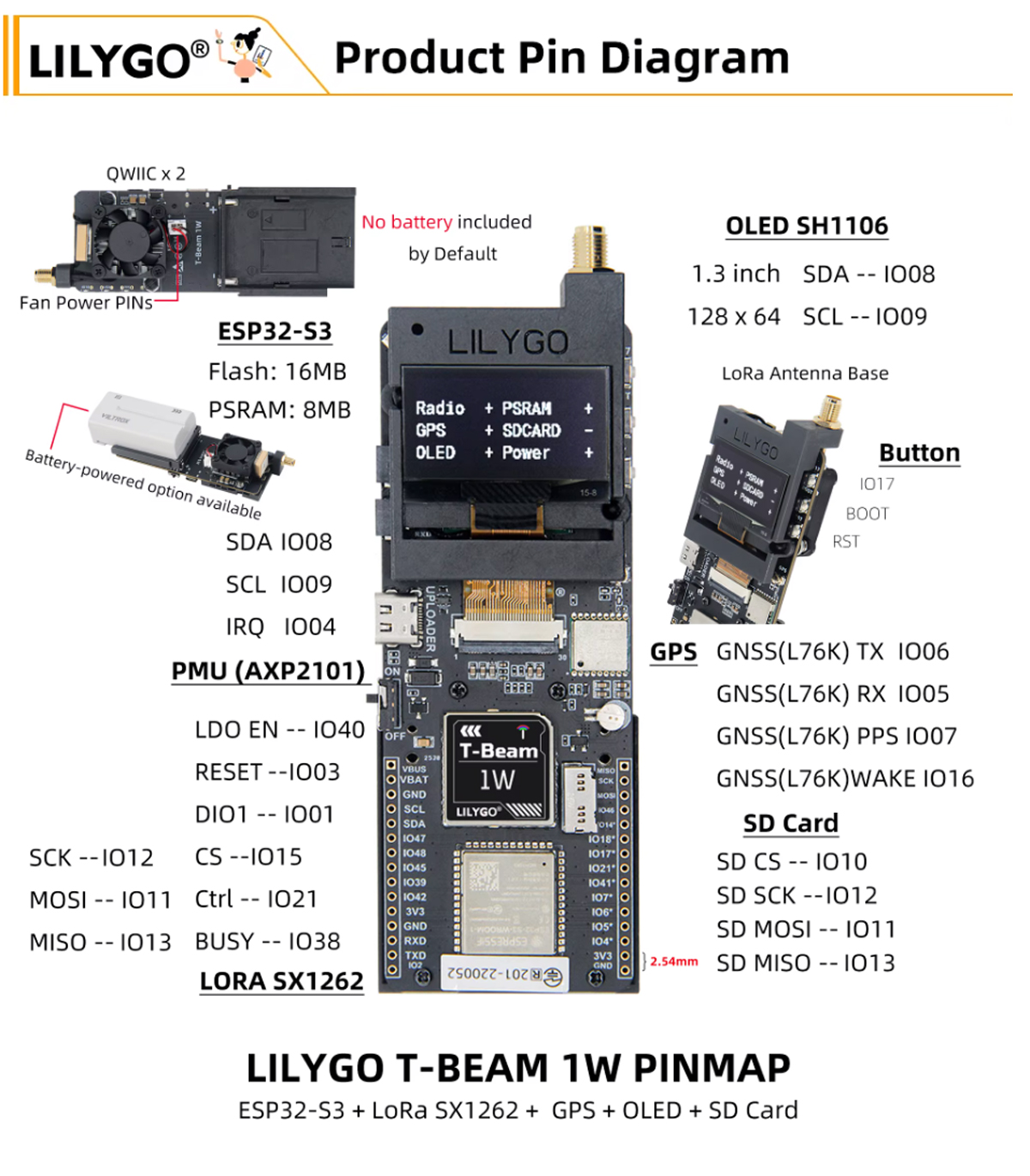

3. Please note that the GPIO with * added to the external pin header GPIO name is already connected to the internal module and cannot be used.
4. This RF module provides a maximum power output of 32dBm on this board.

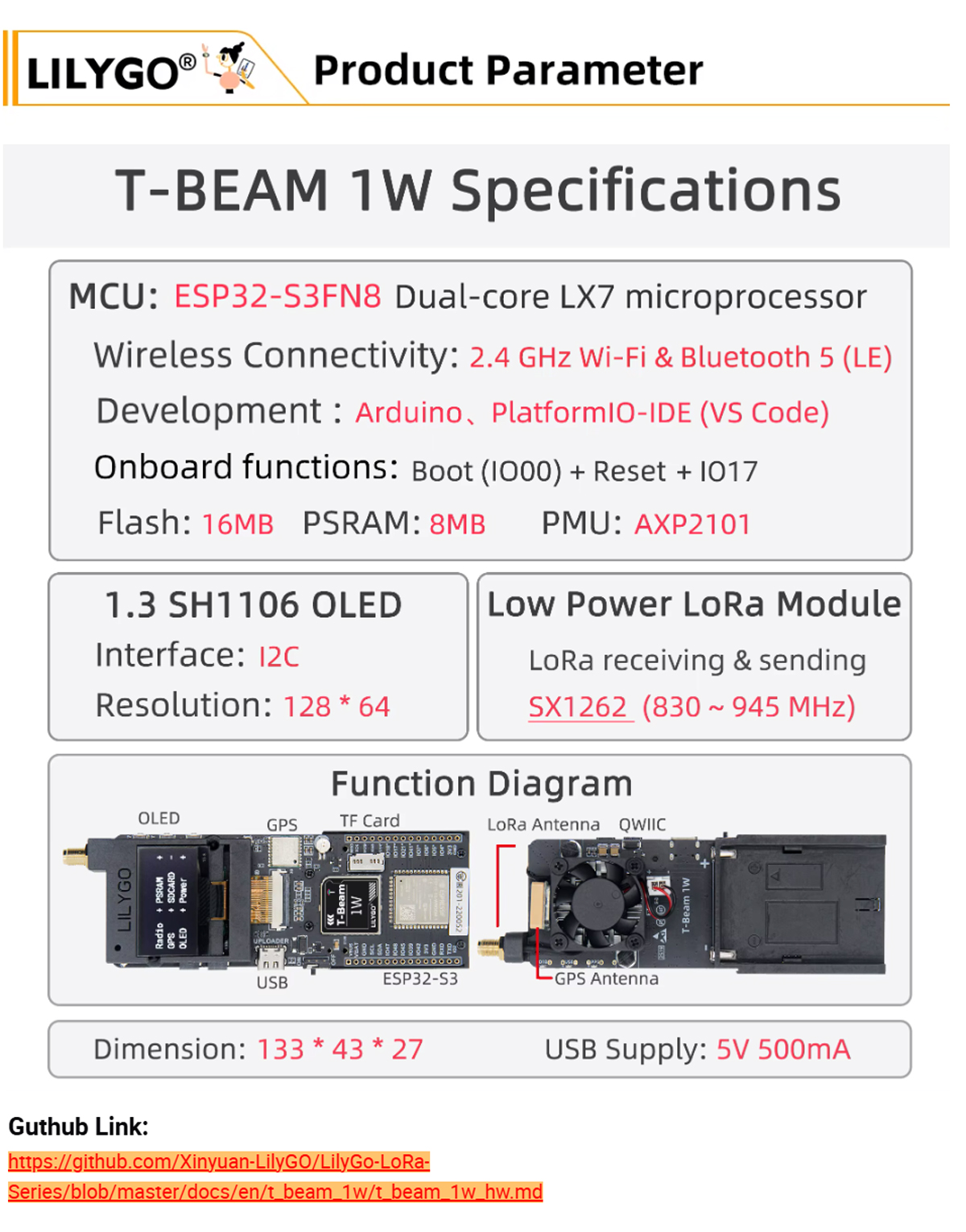

Model: T-BEAM 1W 868MHz H768
MCU: ESP32-53FN8 Dual-core LX7 microprocessor
Development: Arduino, PlatformIO-IDE (Vs code)
Flash: 16MB
PSRAM: 8MB
PMU: AXP2101
Onboard functions: Boot (IO00)+ Reset+ Power +IO03

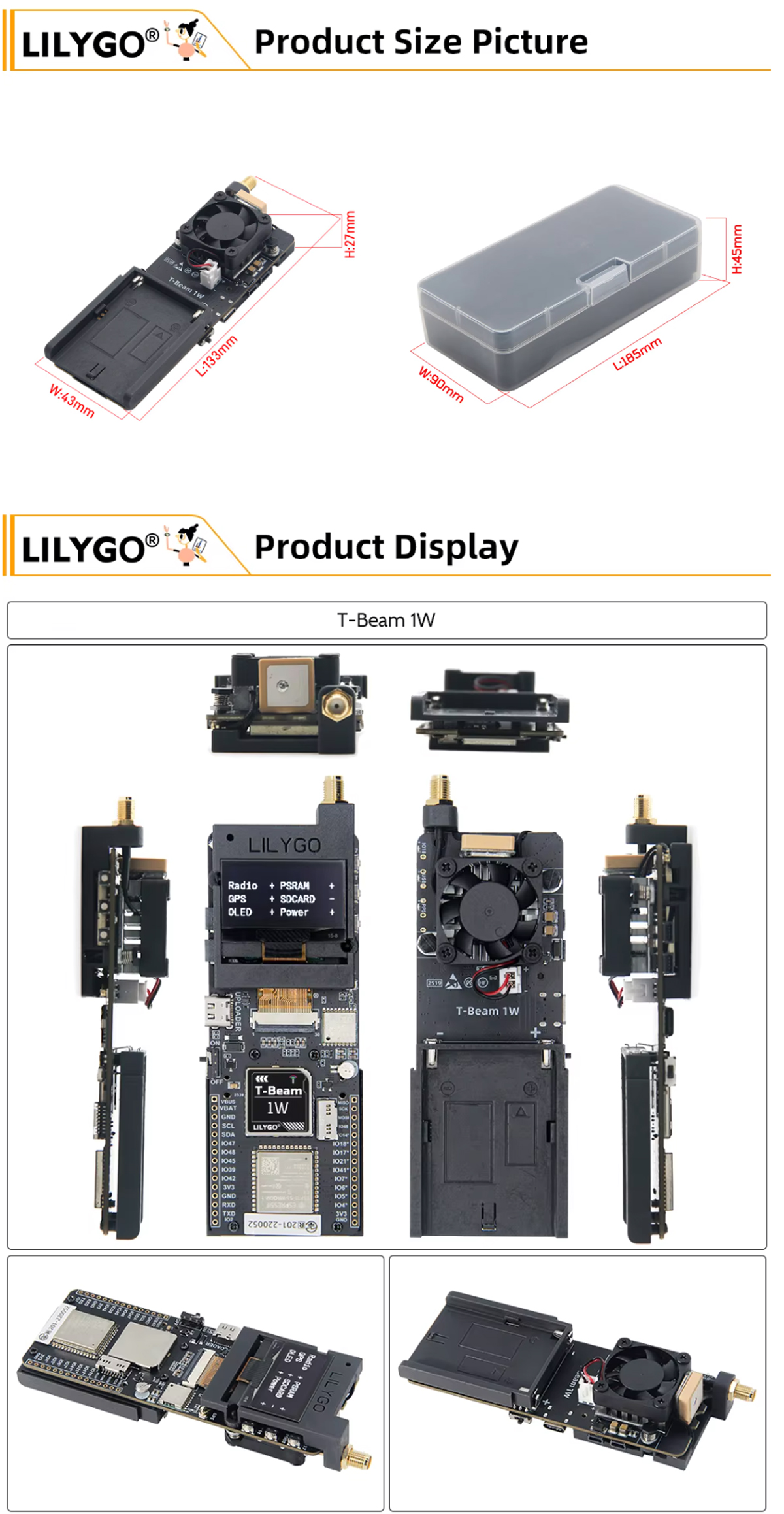

Dimension: 133*43*27mm

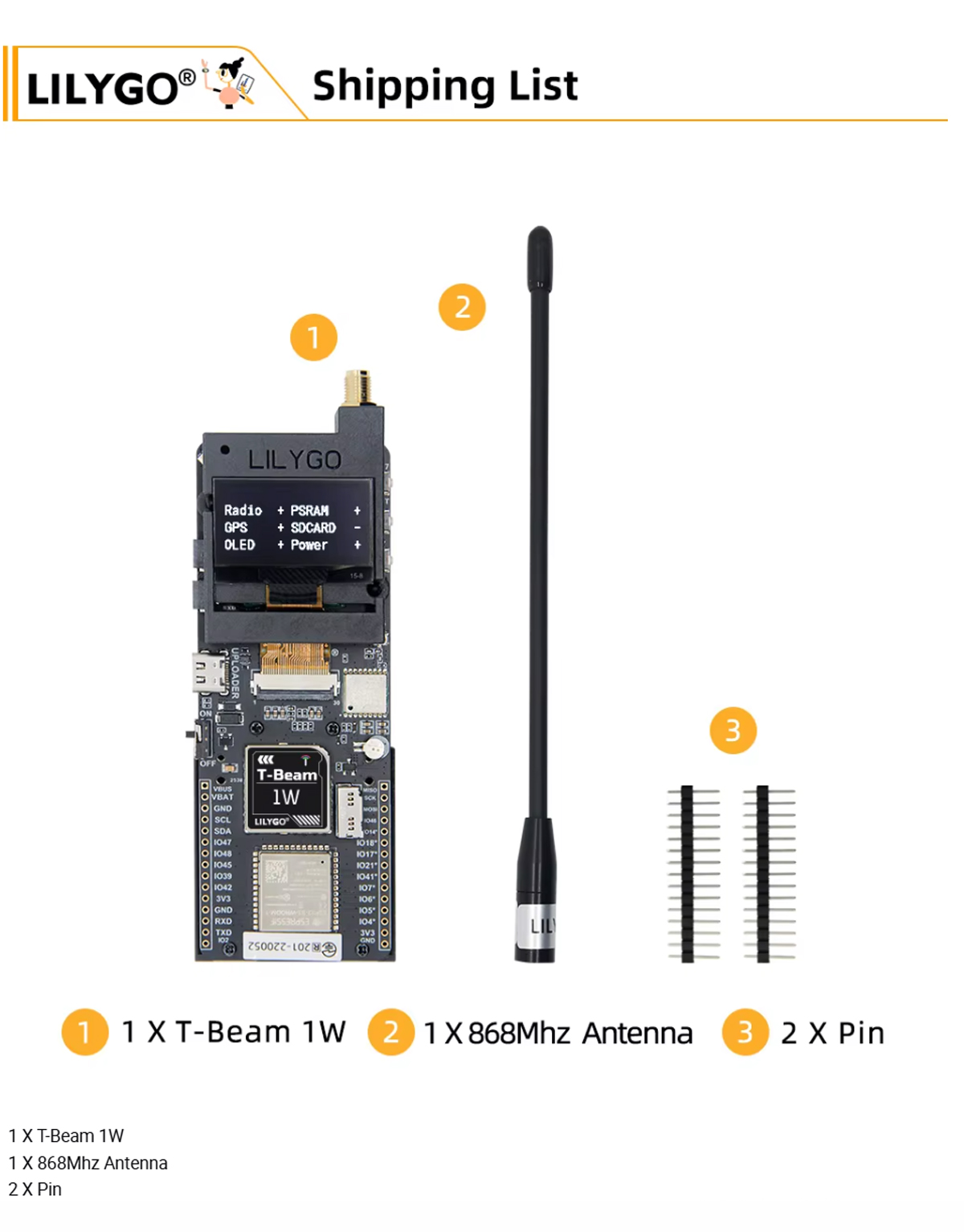

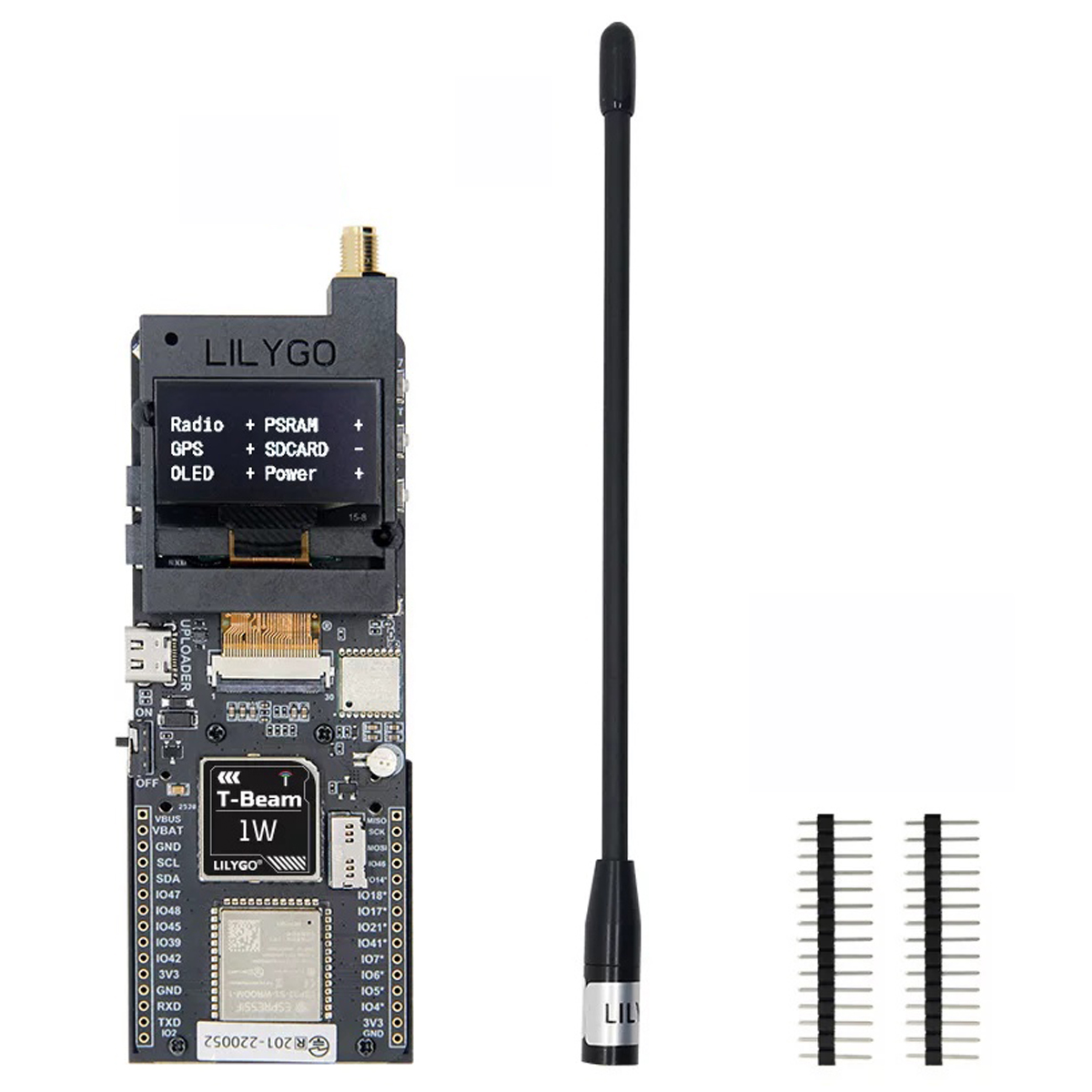

T-Beam 1W x1
868MHz Antenna x1
Pin x2
