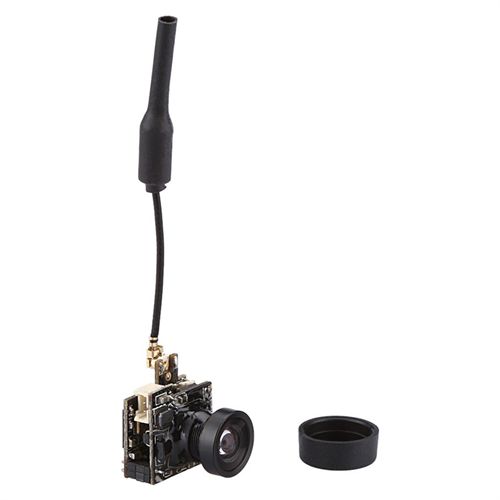

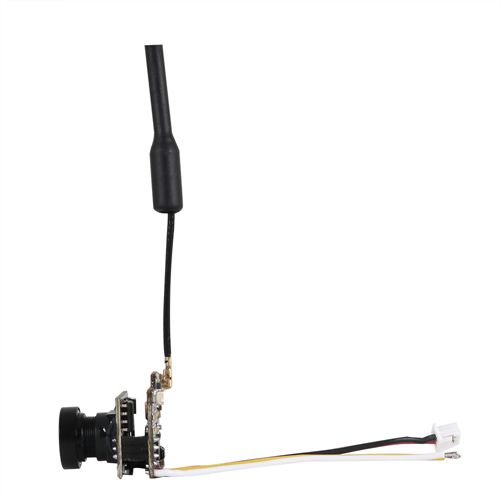

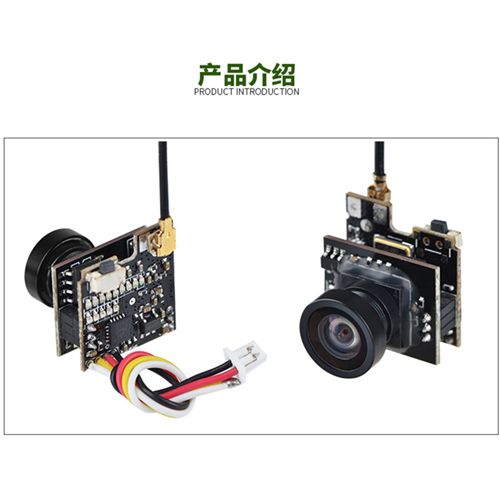

LST-S2+ OSD 5.8G 40CH 800TVL HD Micro CMOS FPV Micro Camera PAL/NTSC Switchable for FPV Racing Drone
LST-S2+ OSD 5.8G 40CH 800TVL HD Micro CMOS FPV Micro Camera PAL/NTSC Switchable for FPV Racing Drone
Figure transmission one machine, ultra-small size, ultra-light weight.
Horizontal viewing angle is 150° Angle of inclination 170°
40 channels combined with 5 frequency bands and 8 frequency bands
Sensor: 1/4 “CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Voltage: 3.6-5.5V
Lens Mirror Diameter: 2.1mm FOV150 (horizontal)
Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

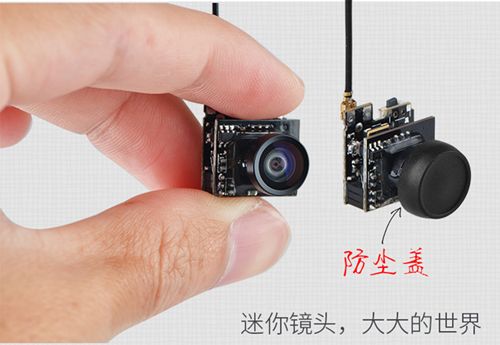

Body
Weight: 3.6g
Size: 18x16x16mm (without antenna)
1 x LST-S2+ FPV Camera
1 x Wire
