Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna LHCP 4x Combo Set for DJI Digital HD FPV Goggles V2

SKU FPV-5.8GLHCP Category Tag Brand:

Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna LHCP 4x Combo Set for DJI Digital HD FPV Goggles V2

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

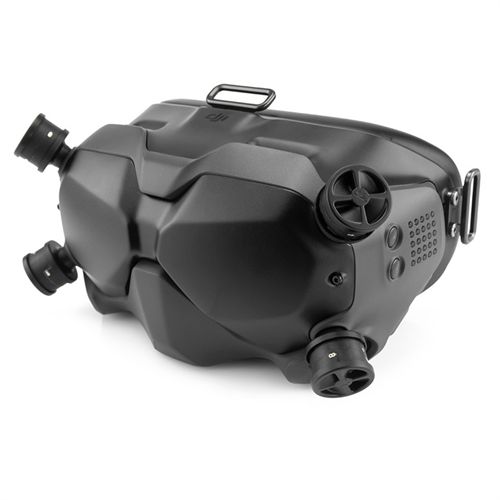

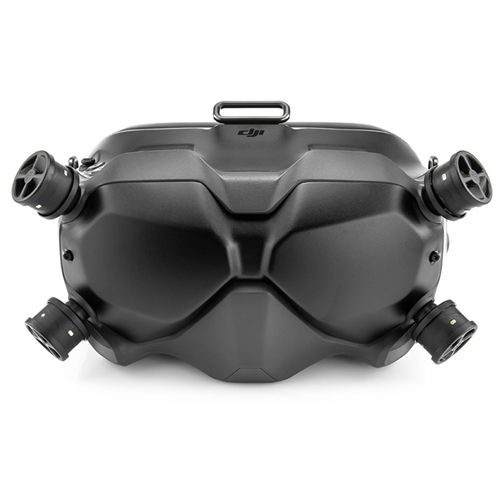

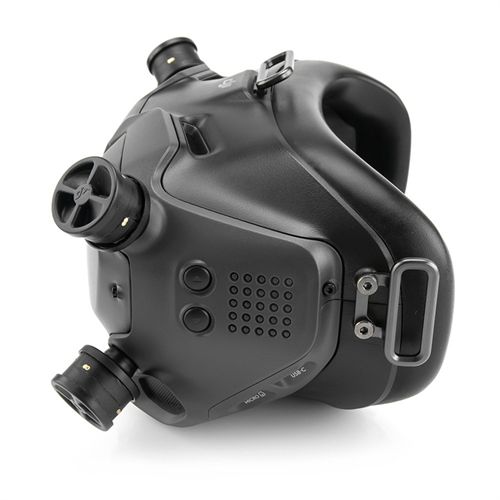

The Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna for DJI Digital HD FPV Goggles V2. A circular polarized antenna specifically designed for the DJI FPV Drone Goggles. Duality antennas provide improved 2.4/5.8Ghz reception in a compact form factor. That’s right, this antenna will work on both 2.4GHz or 5.8GHz frequencies!

The DJI FPV Drone has a linear polarization (neither LHCP nor RHCP). This means that either LHCP or RHCP will be an equal upgrade to the stock antennas on the goggles. If you also use the DJI FPV V2 Goggles with the DJI FPV Air Unit (DJI Digital FPV System), you need LHCP antennas assuming you did not swap to RHCP antennas on the Air Unit or Caddx Vista. If you purchase RHCP and use it with the stock DJI Air Unit antennas (LHCP) there will be greatly reduced signal performance. Never cross – polarize RHCP and LHCP.

Gain: 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
Polarization: LHCP
Cross-Polar Rejection: -15 to -30dB, (2.2%)
Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Weight: 5.25g
Dimensions: 23.3mm dia. X 22.0mm height
Connector: RP-SMA

2.4/5.8GHz LHCP Dual-Band Antenna x4pcs
