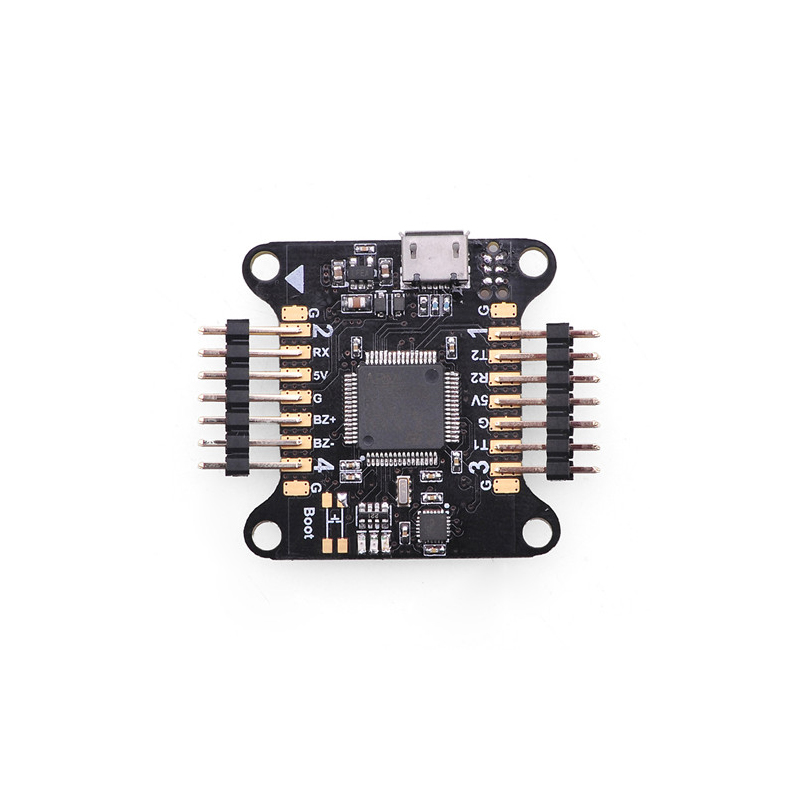

LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing
LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing
1. Highest quality components
2. Micro USB connector for programming
3. Provides high quality flight control using the powerful F3 processor along with top of the line hardware
4. Supports PPM or Serial RX (including Futaba, FrSky, S.BUS). A signal inverter is already included for S.BUS.
Please note: KISS firmware is not supported, .
Item name: Lux Flight Controller
PCB: Have
Weight: 6g
Output: 5v 1.0A
Input: Up to 26v (6S lipo)
RX Voltage Output Selectable: 3v/5v
Gyro/accelerometer: MPU6500 MEMS
Processor: STM32F303RCT6(256kB flash) 32-bit
Mode for bootloader + software: STM32 DFU
Dimensions: 36x36x6mm (includes USB in height)
Mounting Holes: 30.5mm square to center of holes
1x Lux Flight Controller Betaflight firnware
2x 2×7 Straight Pin Headers
