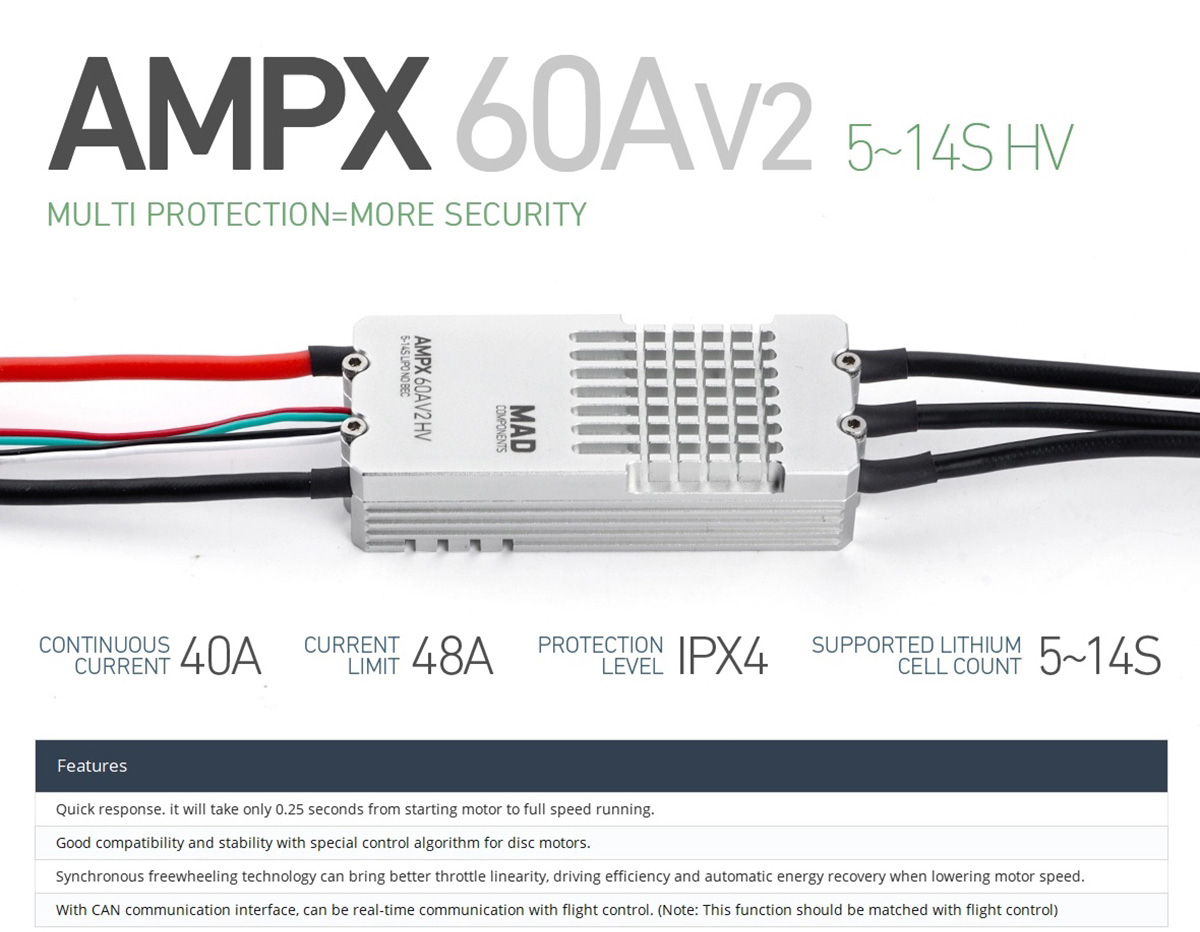

MAD AMPX 60A V2 5~14S HV Electric Speed Controller for FPV Long Endurance Drone Multirotor
Quick response. it will take only 0.25 seconds from starting motor to full speed running.
Good compatibility and stability with special control algorithm for disc motors.
Synchronous freewheeling technology can bring better throttle linearity, driving efficiency and automatic energy recovery when lowering motor speed.
With CAN communication interface, can be real-time communication with flight control. (Note: This function should be matched with flight control)

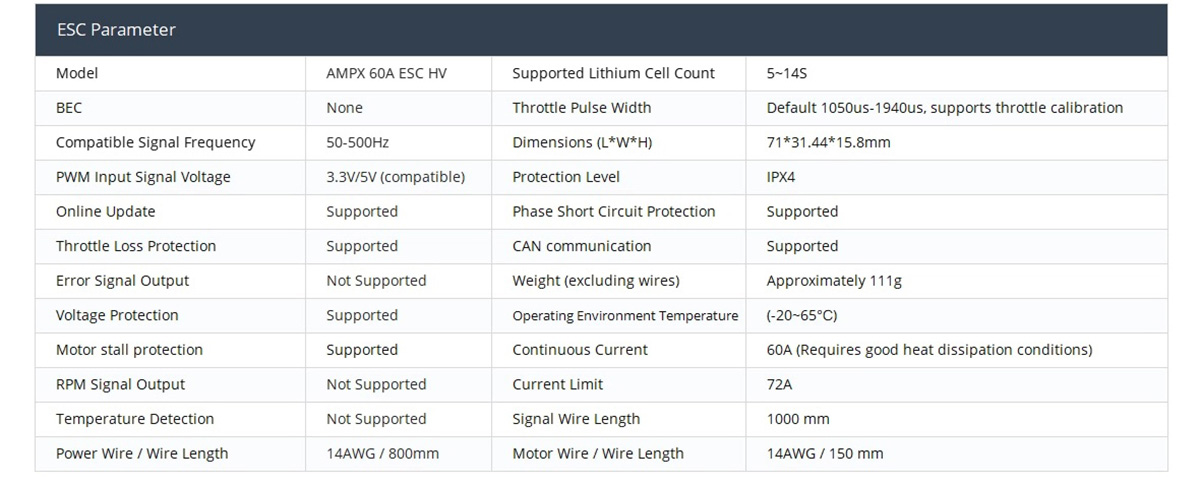

Model: AMPX 60A ESC HV
Supported Lithium Cell Count: 5-14S
BEC: None
Throttle Pulse Width: Default 1050us-1940us, supports throttle calibration
Compatible Signal Frequency: 50-500Hz

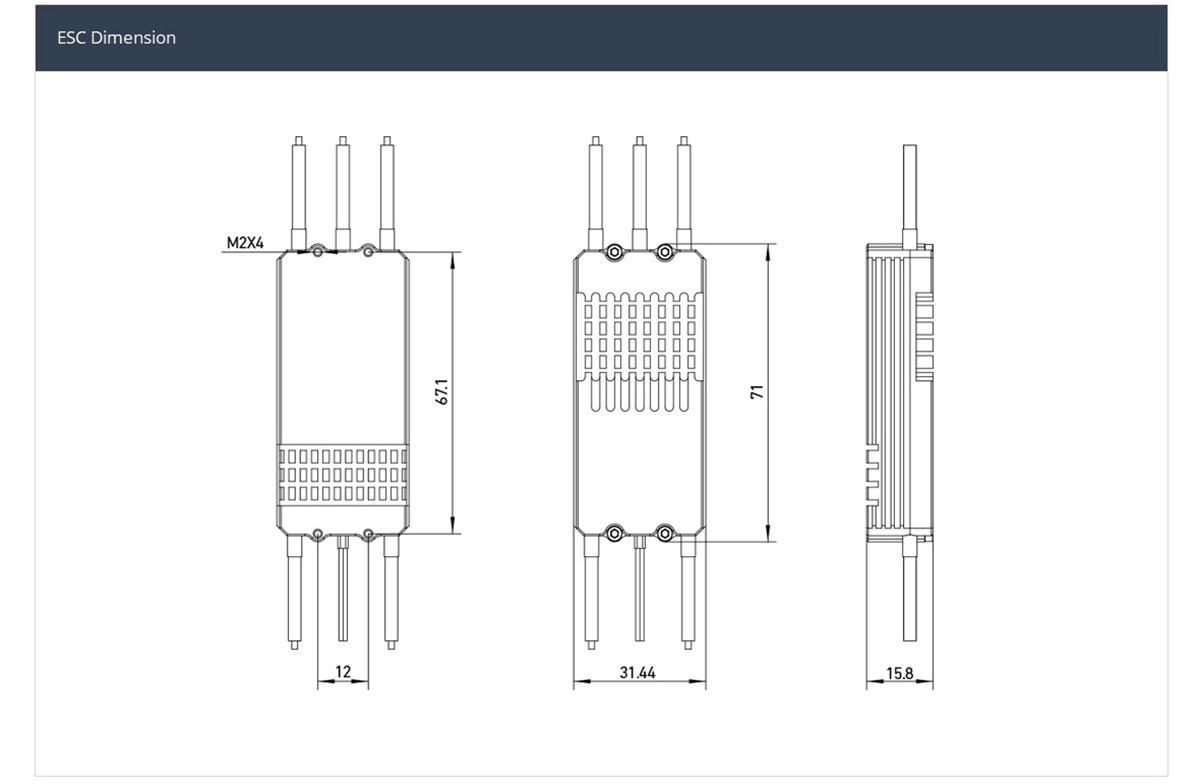

Dimensions (LWH): 71×31.44×15.8mm
PWM Input Signal Voltage: 3.3V/5V (compatible)
Protection Level: IPX4
Online Update: Supported

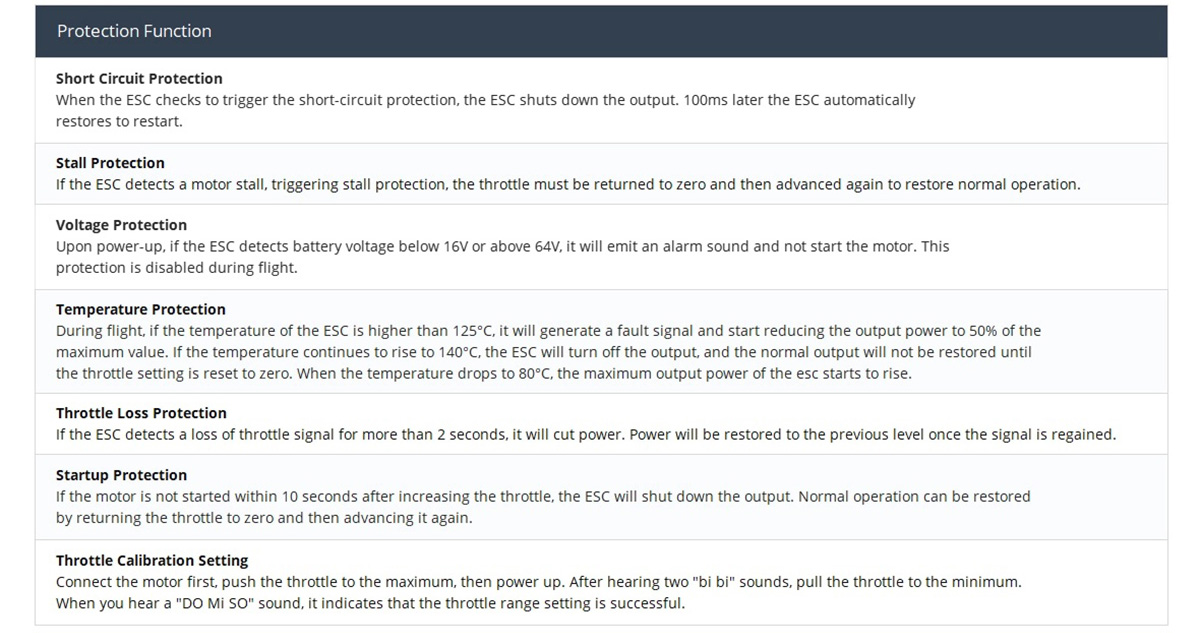

Phase Short Circuit Protection: Supported
Throttle Loss Protection: Supported
CAN communication: Supported
Error Signal Output: Not Supported
Weight (excluding wires): Approximately 111g
Voltage Protection: Supported
Operating Environment Temperature: (-20-65°C)
Motor stall protection: Supported
Continuous Current: 60A (Requires good heat dissipation conditions)
RPM Signal Output: Not Supported
Current Limit: 72A
Temperature Detection: Not Supported
Signal Wire Length: 1000 mm
Power Wire/Wire Length: 14AWG/800mm
Motor Wire/Wire Length: 14AWG/150mm
AMPX 60A ESC HV x1
