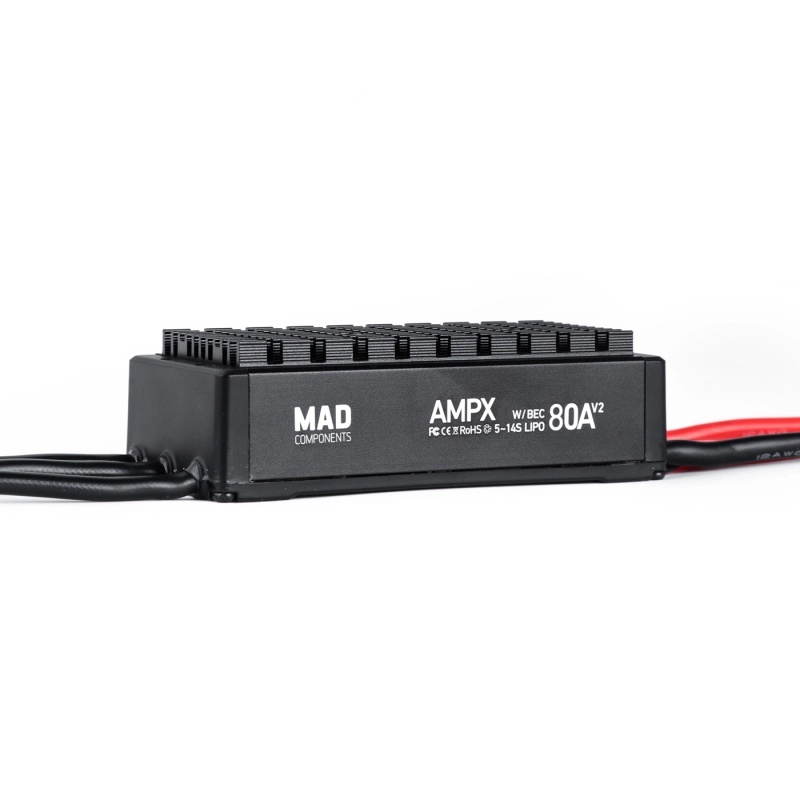

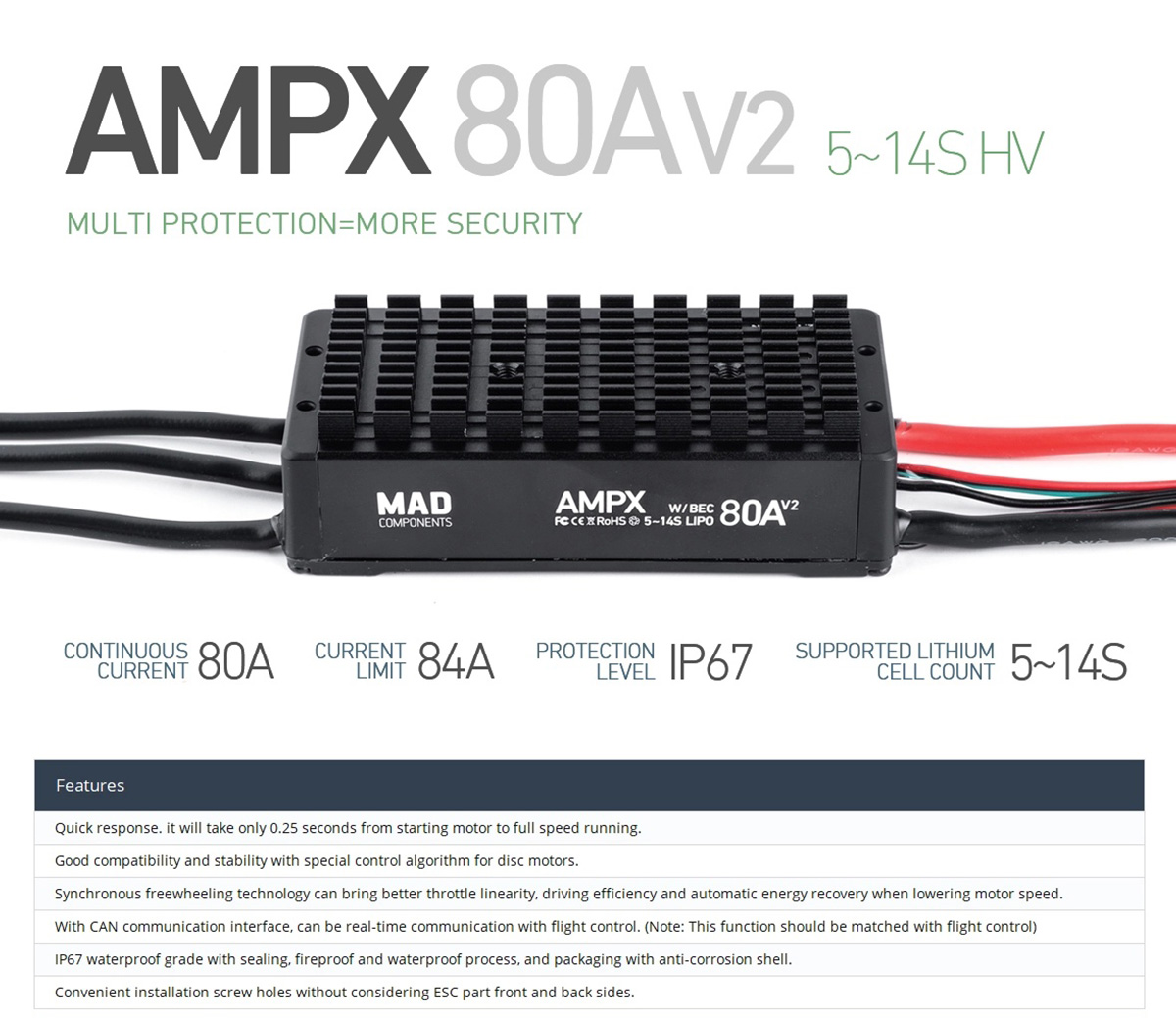

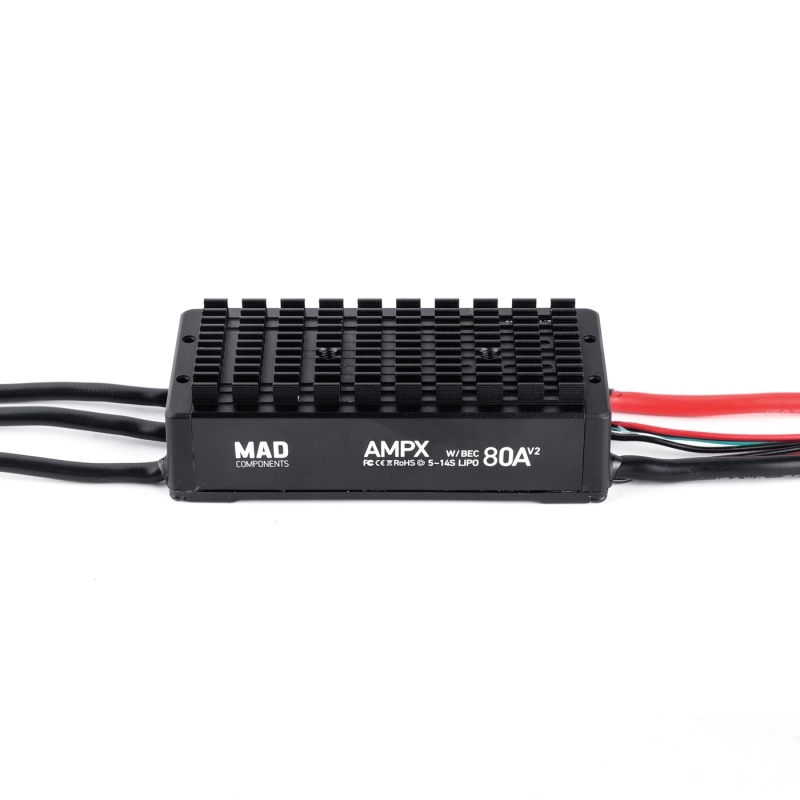

Model: AMPX 80A ESC
Supported Lithium Cell Count: 5-14S
BEC: 5V/200MA output
Throttle Pulse Width: Default 1050us-1940us, supports throttle calibration
PWM Input Signal Voltage: 3.3V/5V (compatible)

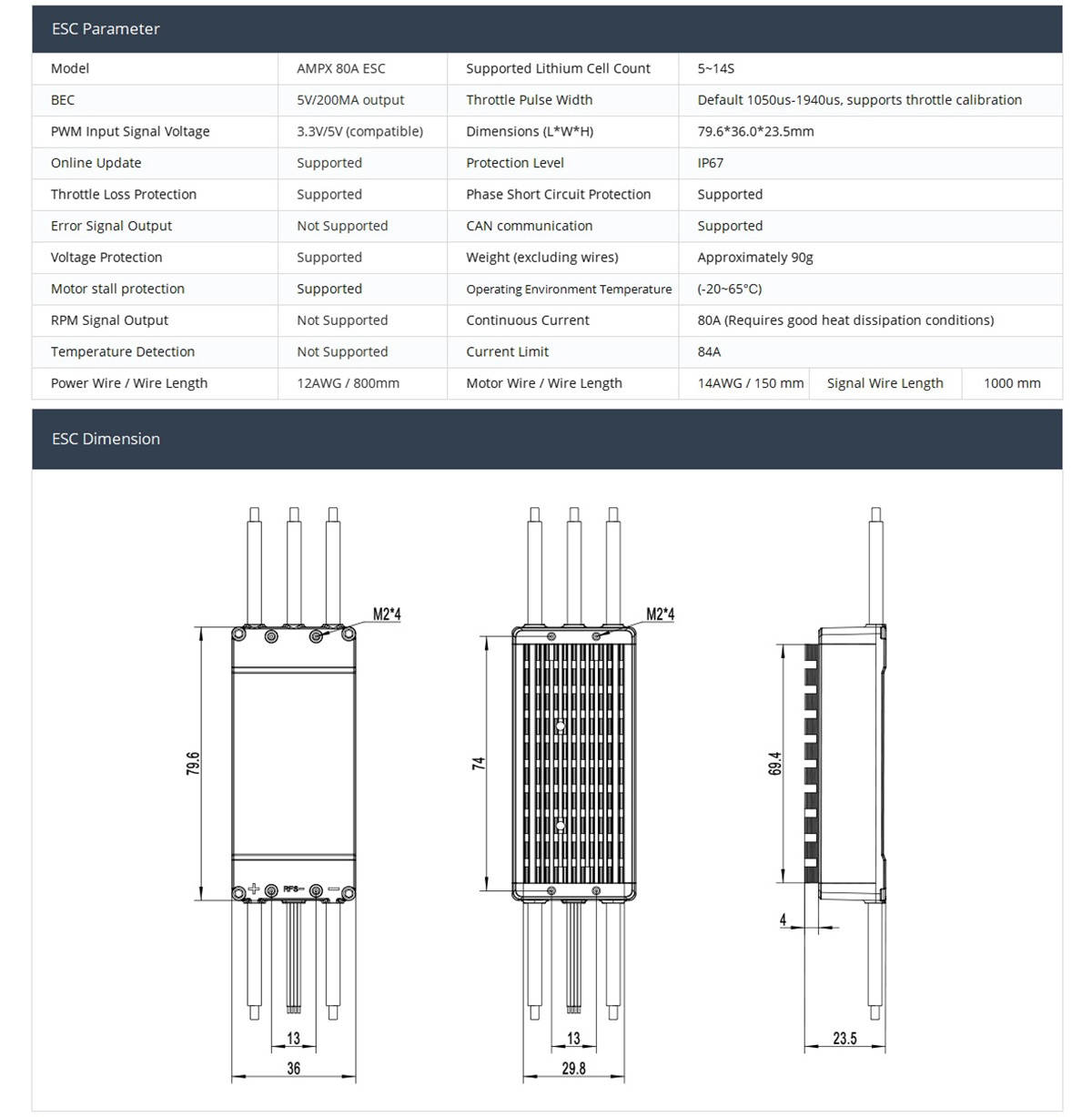

Dimensions (LWH): 79.6*36.0*23.5mm
Online Update: Supported
Protection Level: IP67

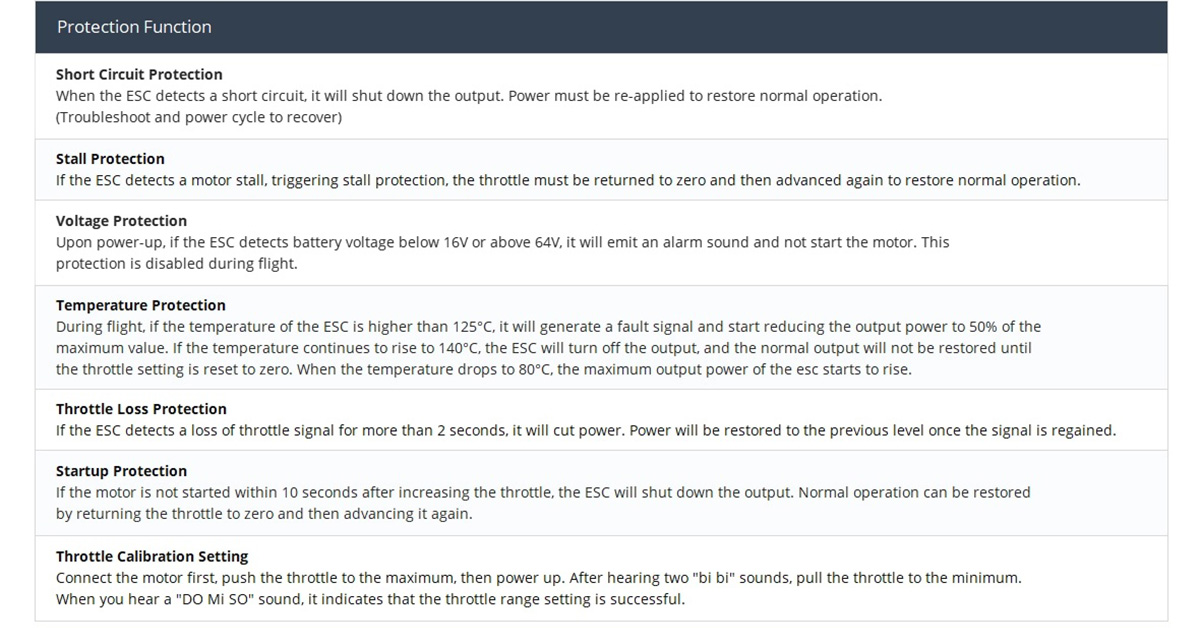

Throttle Loss Protection: Supported
Phase Short Circuit Protection: Supported
Error Signal Output: Not Supported
CAN communication: Supported
Voltage Protection: Supported
Weight (excluding wires): Approximately 90g
Motor stall protection: Supported
Operating Environment Temperature: (-20-65°C)
RPM Signal Output: Not Supported
Continuous Current: 80A (Requires good heat dissipation conditions)
Temperature Detection: Not Supported
Current Limit: 84A
Power Wire/Wire Length: 12AWG/800mm
Motor Wire/Wire Length: 14AWG/150mm
Signal Wire Length: 1000mm
