Mantis85 85mm FPV Racing Drone w/ Supers_F4 6A BLHELI_S 5.8G 25MW 48CH 600TVL BNF
-Full carbon fiber glass and CNC aluminum alloy structure
-Extremely light and Solid Frame
-More powerful SE1102 motor
-More powerful STM32F4 MCU + BLHELI_S ESC make your Operating feel more stability and silky

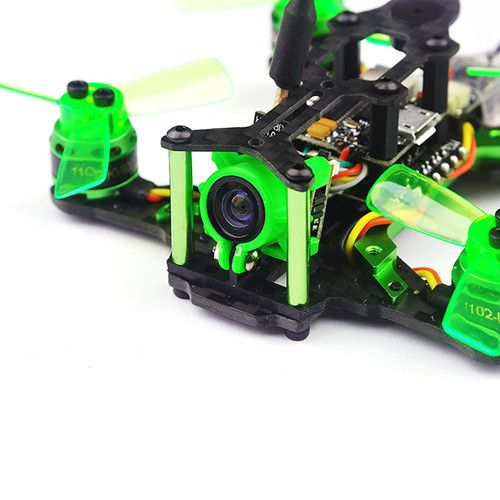

-Adjustable Angle of Camera
-Jaw-dropping flight performance
-Betaflight support
-Acro mode / Air mode /Angle mode support
-Built-in OSD(Using F4 MCU controls OSD over SPI bus in DMA mode)
-OSD Configuration has been include in BETAFLIGHT GUI
-Radio Stick to control PID Tunes
-BLEHELI_S pass-through ready
-Frsky Mode :Telemetry RSSI Output ready
Brand name:
Item name: Mantis85 85mm FPV Racing Drone
Wheelbase: 85mm
Size:100mm*100mm*25mm
Weight: 49g( battery not include)
Flight controller: Supers_F4 Flight controller built-in OSD

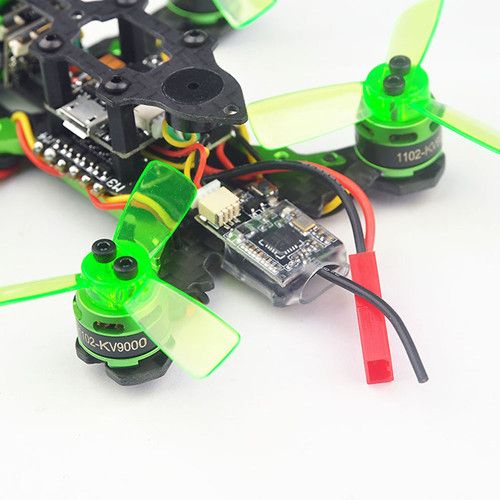

Motor: Happymodel SE1102 KV9000
Propeller: 48mm 3-blades propeller
Camera: 600TVL HD CMOS 1/4inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
Battery: 7.4V 400mah 30C lipo battery
OSD: Betaflight OSD
Firmware of Flight controller: Betaflight 3.1.7
Flight time : 4minutes
Buzzer Ready
BNF Receiver Option:

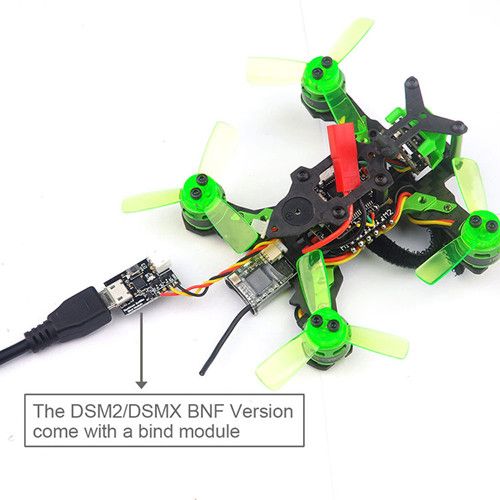

-Frsky SBUS D8 mode receiver (RSSI Output)
Flight controller Specification:
Size: 20mm*20mm
Mount hole: 16mm*16mm
Processor: STM32F405RGT6 MCU
Sensor: SPI Sensor MPU6000
Built-in Betaflight OSD ( Batt voltage, RSSI, Fly mode , Flytime, Craft name etz.)
Firmware version: Betaflight 3.1.7 Dshot600 ready
Target: Omni F4SD
ESC specification:
Size:25mm*29mm
Mount hole: 16mm*16mm
Firmware version: BLHELI_S 16.5
BB2, 48MHZ Chip
Lipo Battery: 1-2S
Con. Current: 6A
Peak Current: 10A (5S)
Programming: YES
Betaflight passtrough ready
Dshot600 ready(Default)
Support oneshot42 oneshot125 Multishot Dshot
Damped light on

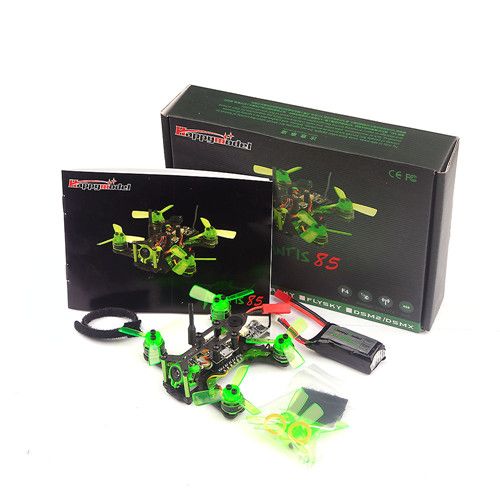

1 x Happymodel Mantis 85 Frame kit
1 x Super_s F4 Flight controller build-in Betaflight OSD
1 x Frsky Receiver
4 x Happymodel SE 1102 KV9000 brushless motor
1 x Super_S BS06D 4 in 1 ESC Dshot600
4 x 1935 3-blades propeller CW
4 x 1935 3-blades propeller CCW
1 x 600TVL HD CMOS 1/4 inch camera
1 x 5.8g 25MW 48CH NTSC/PAL VTX with Raceband
1 x 7.4V 400mah 30C lipo battery
1 x Buzzer
