MD820 high-strength metal gear digital locking tail servo, compatible with most gyroscopes such as Futaba 401 and 601






MD820 high-strength metal gear digital locking tail servo, compatible with most gyroscopes such as Futaba 401 and 601
*Using high-strength, high-precision, wear-resistant metal gears to ensure that the steering gear will run after long-term operation
The error is still very small.
* Japanese raw materials are made of outer casing, which is sturdy and durable, and has a heat-resistant stable temperature of 120 degrees.
*MD820 uses a high quality hollow core motor to improve the efficiency and life of the steering gear.
*MD820 uses Futaba servos with the same quality and type of imported Japanese potentiometers.
The life span can reach 1 million times.
*For the tail control of the 500-class electric helicopter and the high-speed glider
In places where high reaction speeds are required, the MD820 is fully compatible with most gyroscopes such as the Futaba 401 and 601.
Working voltage: 4.8V ~ 6.0V
Working temperature: ‐20°C~+60°C
Operating speed: 0.09 sec/60° (sec/60° 4.8V)
0.07 sec/60° (sec/60° 6.0V)
Torque: 3.0 Kg 6 7cm (Kg 6 7cm 4.8V)
3.5 Kg 6 7cm (Kg 6 7cm 6.0V)
Dead zone width: ≤3usec
Midpoint pulse: 1520us wideband
Maximum row rotation angle: ±65°
Madda: Five-pole air core cup
Potentiometer: imported from Japan

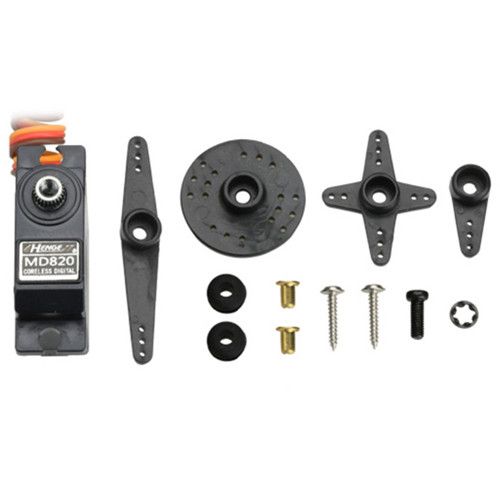

MD820 Metal gear digital lock tail servo x1
