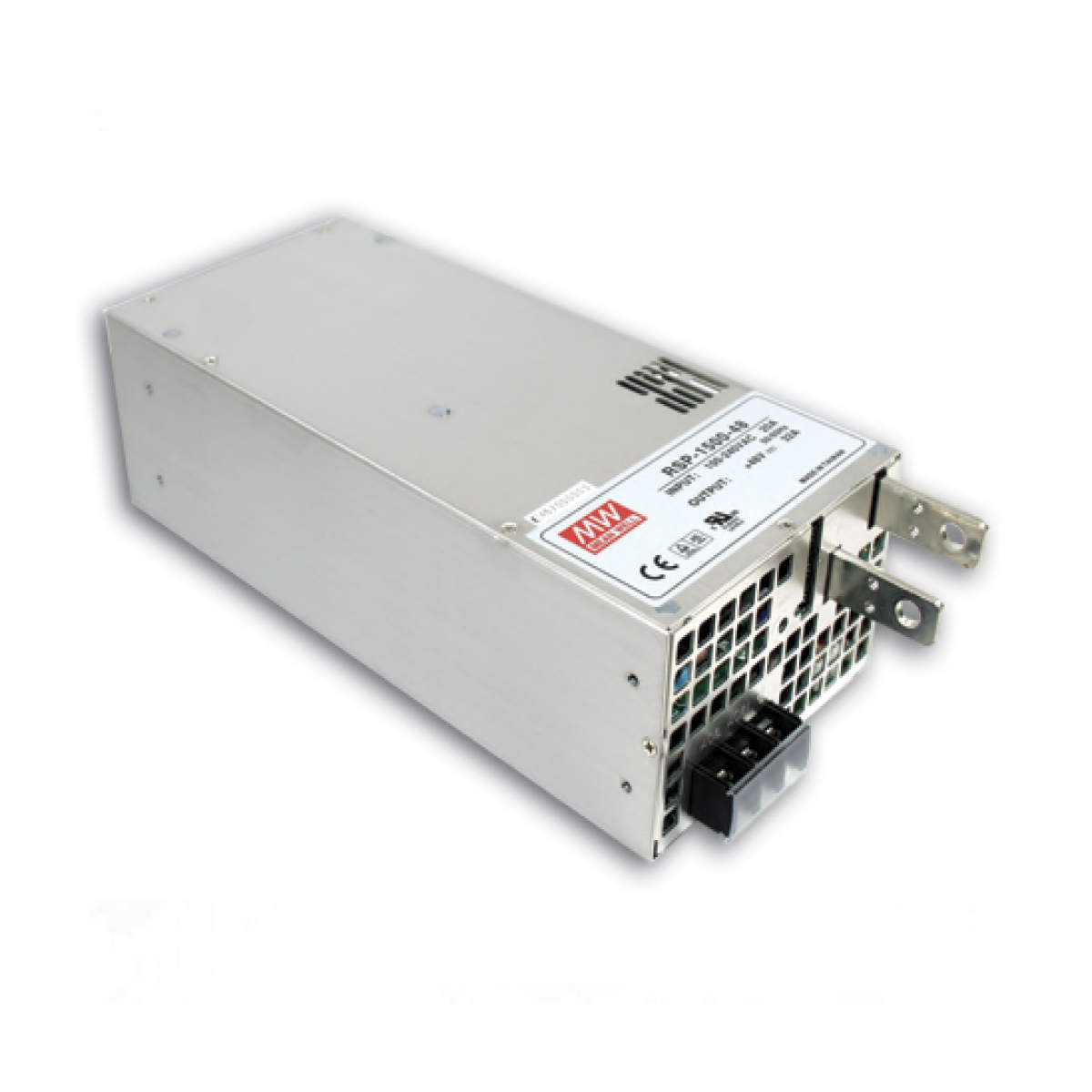

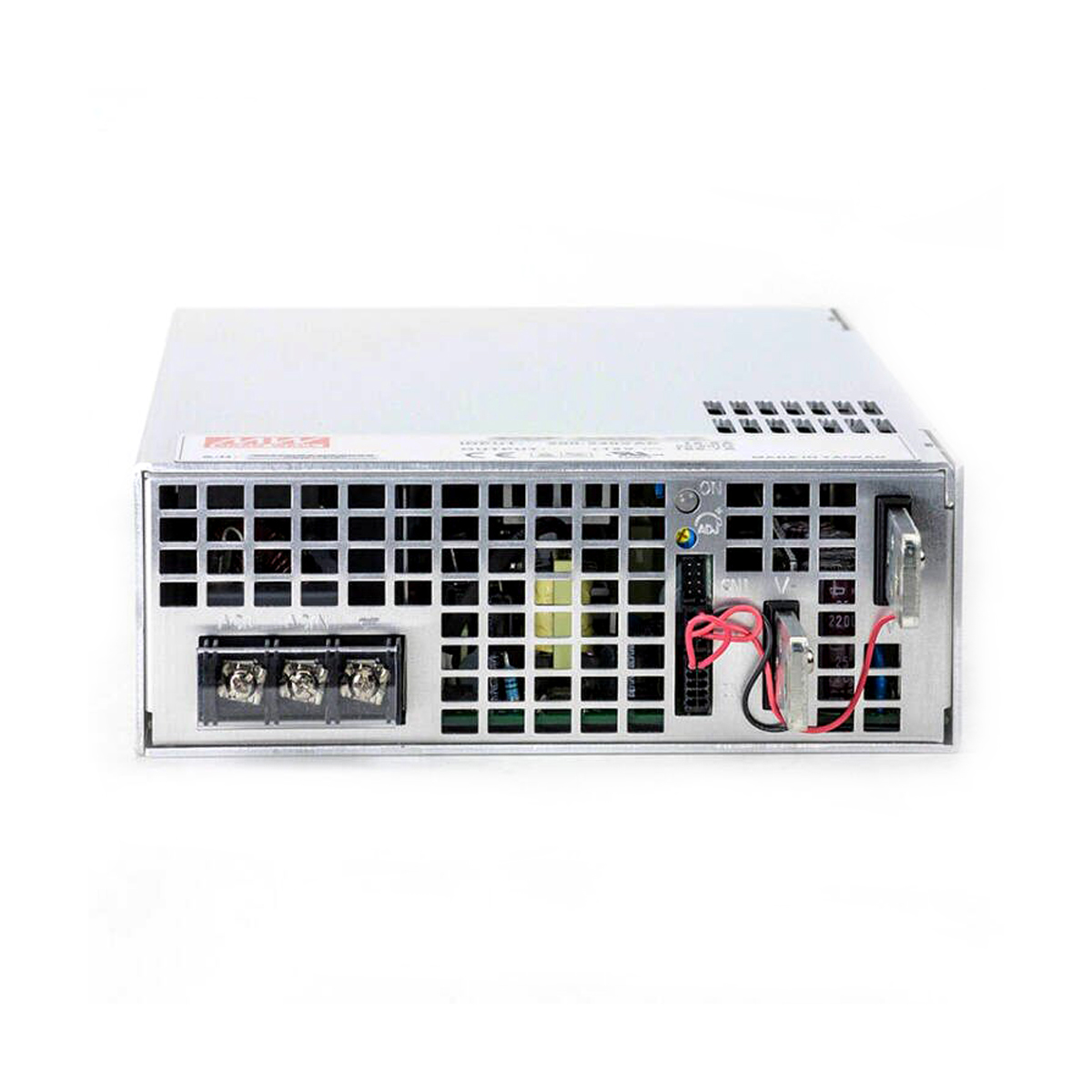

Mean Well RSP Series 1500W RSP-1500-48V Single Output Power Supply PFC Function for Industrial Automation
Mean Well RSP Series 1500W RSP-1500-48V Single Output Power Supply PFC Function for Industrial Automation

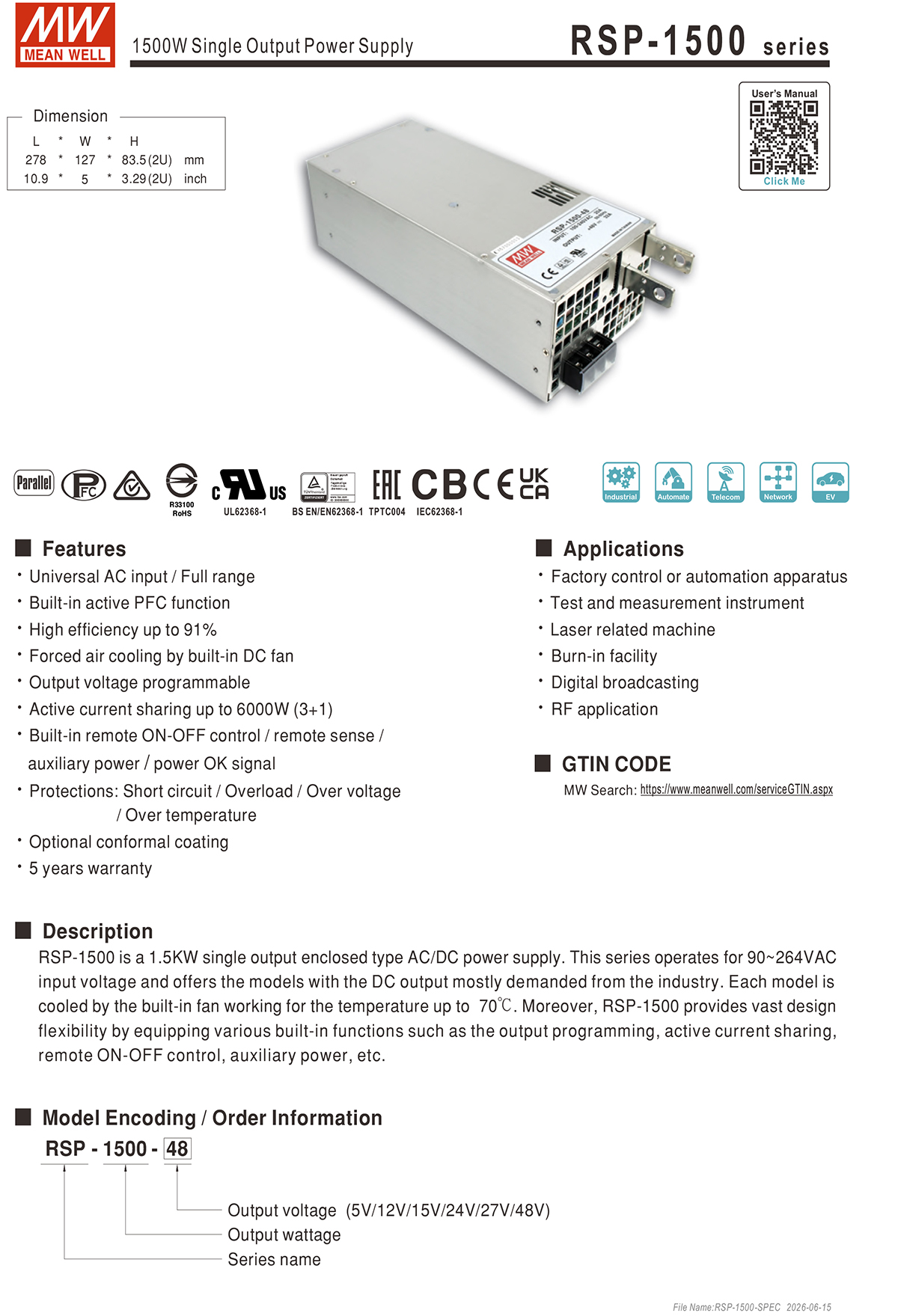

Built‑in active PFC function
High efficiency up to 91%
Forced air cooling by built‑in DC fan
Output voltage programmable
Active current sharing up to 6000W (3+1)
Built‑in remote ON‑OFF control / remote sense / auxiliary power / power OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature

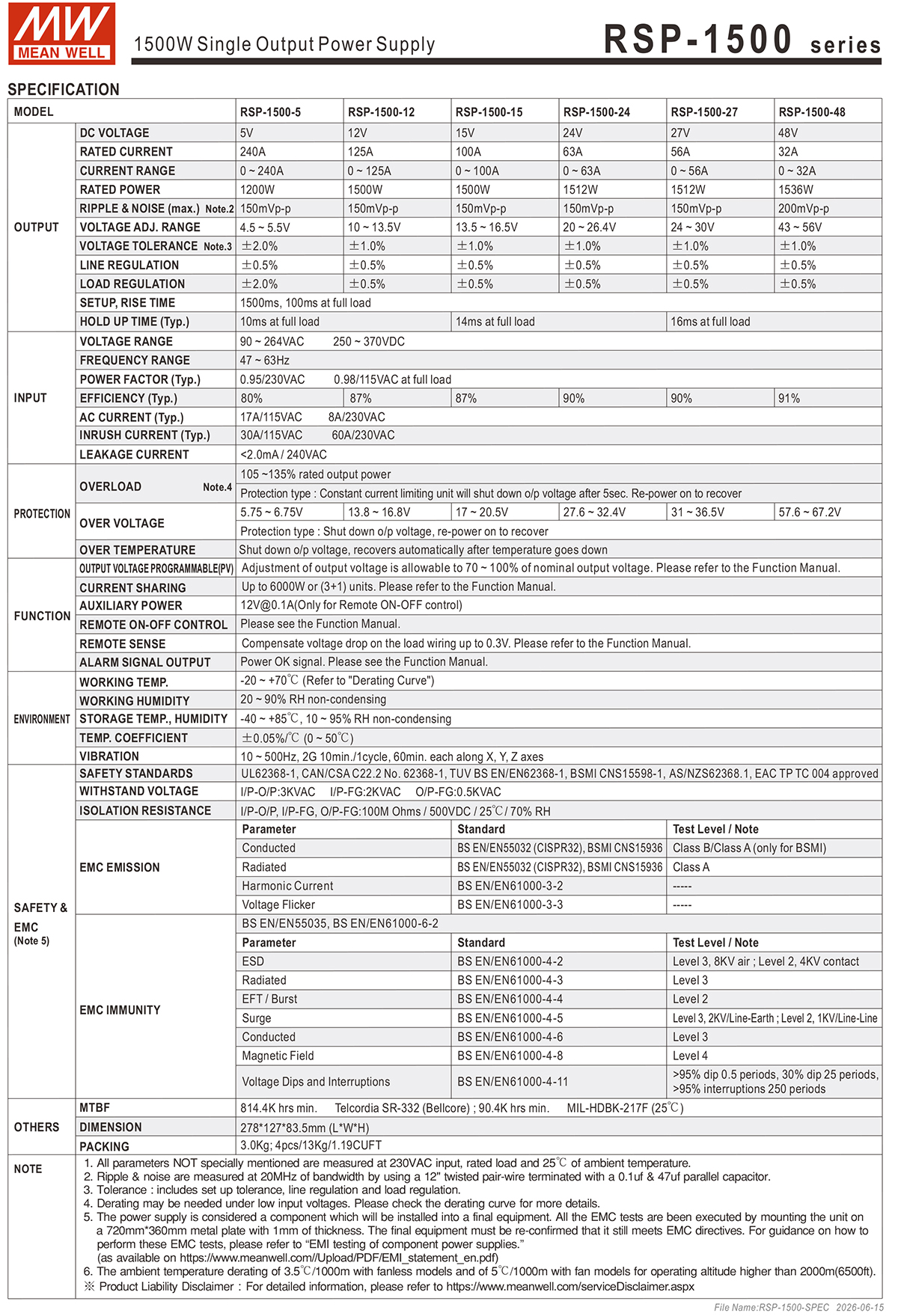

Model: RSP‑1500‑48
Dc Voltage: 48V
Rated Current: 32A
Current Range: 0 ~ 32A
Rated Power: 1536W
Ripple & Noise (max.) : 200mVp‑p
Voltage Adj. Range: 43 ~ 56V
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Setup, Rise Time: 1500ms, 100ms at full load
Hold Up Time (Typ.): 16ms at full load
Voltage Range: 90 ~ 264VAC, 250 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): 0.95/230VAC 0.98/115VAC at full load
Efficiency (Typ.): 91%
Ac Current (Typ.): 17A/115VAC, 8A/230VAC
Inrush Current (Typ.): 30A/115VAC, 60A/230VAC
Leakage Current: <2.0mA / 240VAC
Dimension: 278*127*83.5mm (L*W*H)
Packing: 3.0Kg; 4pcs/13Kg/1.19CUFT
RSP-1500-48V Power Supply x1
