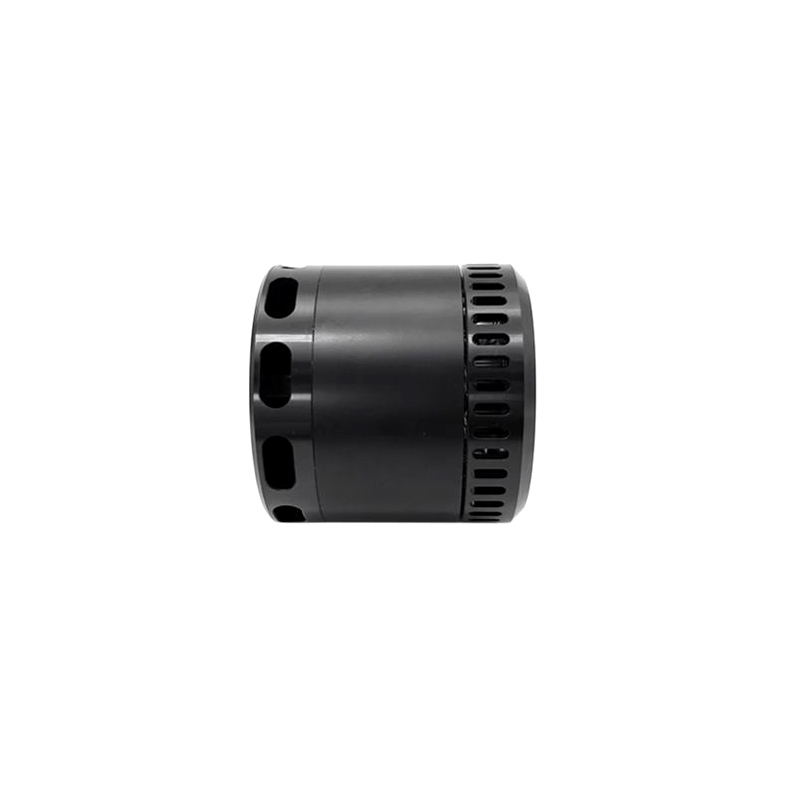

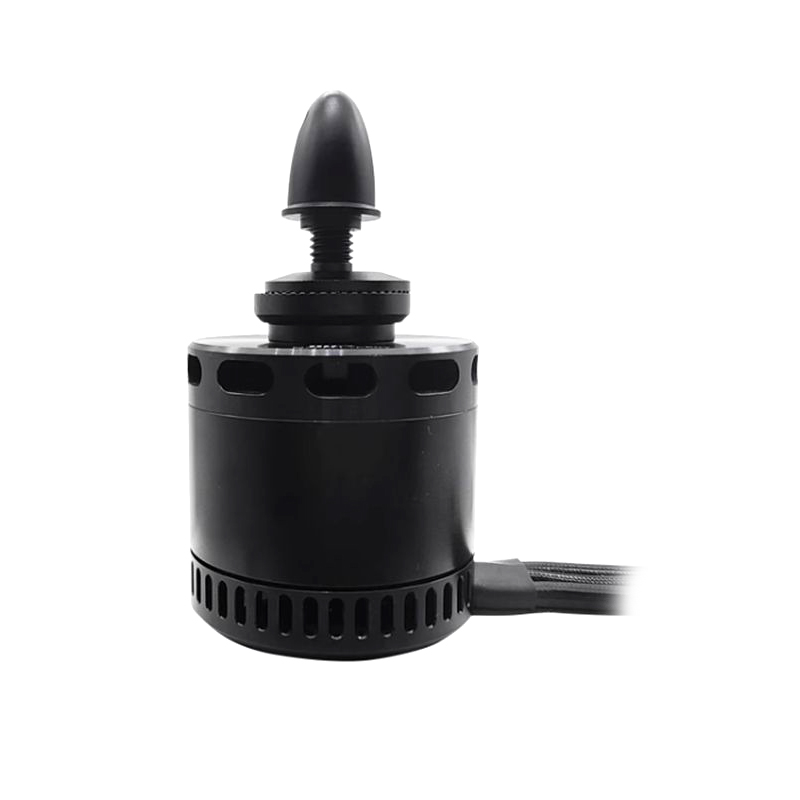

MFE 4120 KV430 High-efficiency Aerial Survey Motor Striver mini Front-pull Motor
*Powerful Dynamics · Stable Output
The 4120 KV430 cruising motor has a high power density to ensure continuous and stable output.It is matched with the APC 1612E propeller and powered by a 6S lithium polymer battery.The maximum pulling force of a single shaft can reach 5800g.
*Active Heat Dissipation · Cooling and Efficiency Enhancement
Built-in “Fan” Design in the Rotor.Active heat dissipation can be achieved through the diversion groove, further improving the kinetic energy conversion efficiency.
*Low Copper Loss · High Power
Using military-grade high-temperature resistant enameled wire to reduce copper loss in the motor and minimize heat generation.Pure manual winding ensures a high slot fill factor, higher power density, and stronger power.
Motor Model: 4120 KV430
Slot-level Structure: 12N14P
Stator Core: Special Surface Anti-rust Treatment
Motor Size: 50×47.5mm
Enameled Wire Grade: Resistant to 200°C High Temperature
Magnet Grade: Resistant to 180°C High Temperature
Wire Outlet Specification: 12AWG 100mm
Rotor Dynamic Balance Test: ≤5 Mg
Wire Coil Withstand Voltage Test: 500V AC
Propeller Mounting Hole Position: M3Ø124
Motor Mounting Hole Position: M4Ø84
Magnet Shape: Arc-shaped
KV Value: 430
Rated Voltage: 6S
No-load Current: 1.5A/10V
Inter-phase Internal Resistance: 26mΩ
Maximum Current: 79A/30S
Maximum Power: 2425W
Maximum Thrust: 5800g
ESC Recommendation: 6S 80 – 100A
Propeller Recommendation: APC 1612E Propeller
Motor Weight: 307g
1× 4120 KV430
1× Propeller Holder
4× Propeller Holder Installation: M310mm
4× Motor Installation: M48mm
