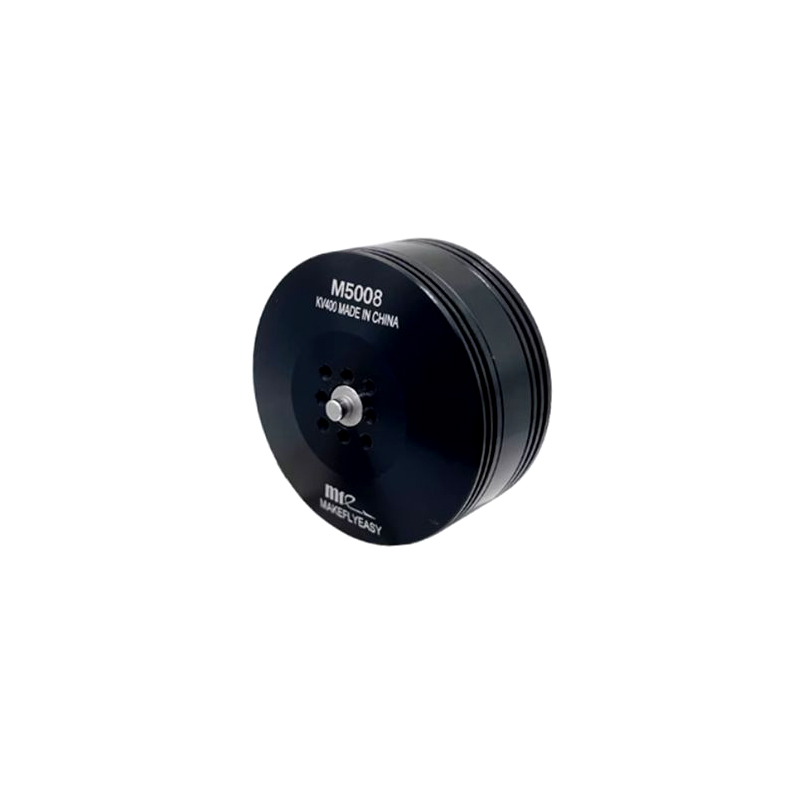

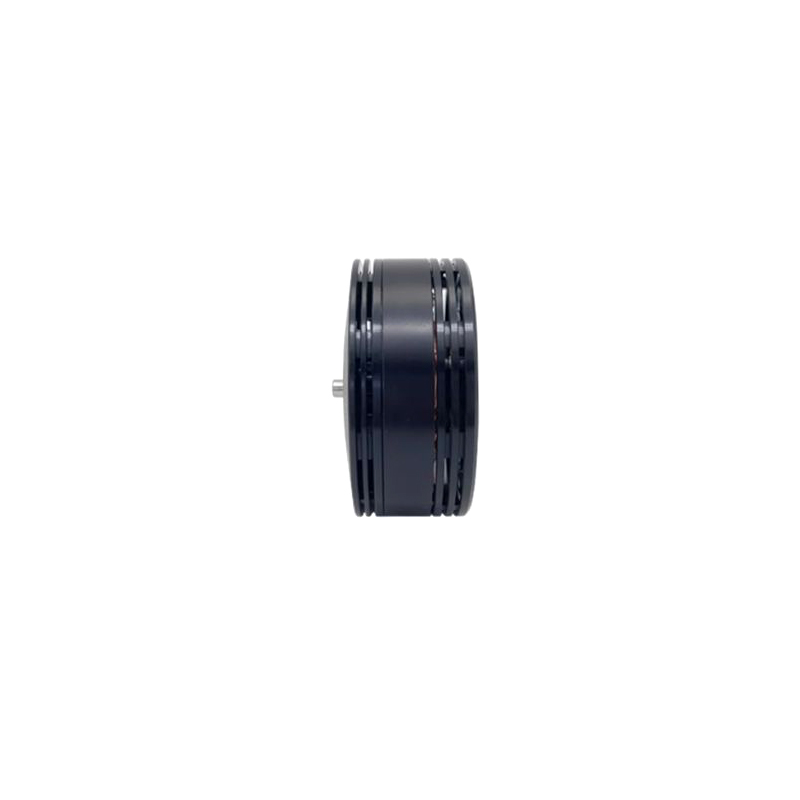

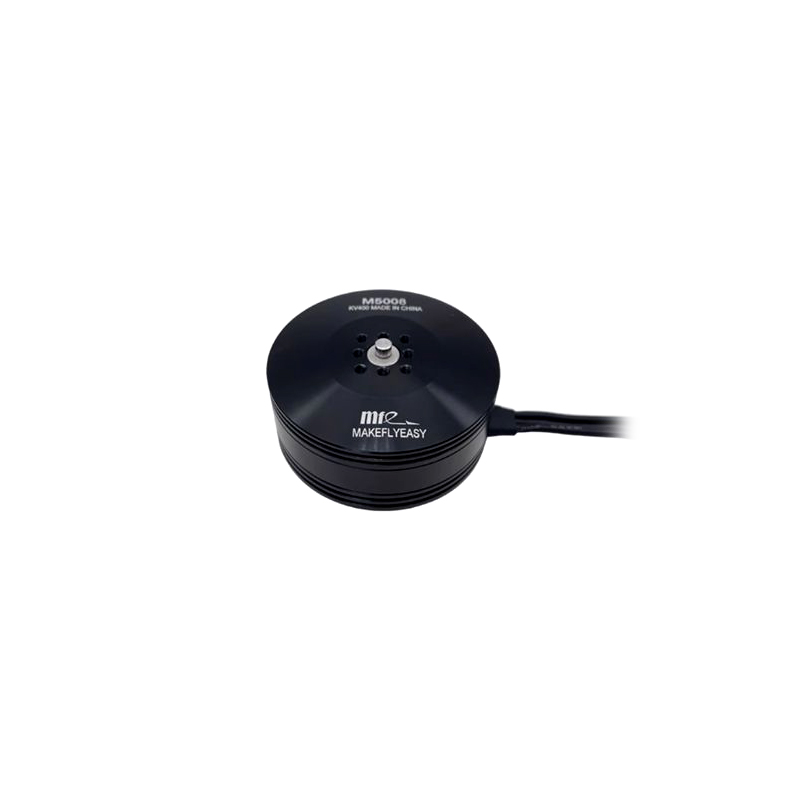

MFE 5008 KV400 High-efficiency Brushless Motor for dron Striver mini VTOL
MFE 5008 KV400 with 1755 carbon fiber paddle, under the 6S lithium polymer battery power supply, the maximum single-axis pull up to 3900g. single motor weight 141g, with IP35 protection level, built-in “fan” design to accelerate heat dissipation, improve the efficiency of kinetic energy conversion.
Motor Model: 5008KV400
Slot-level Structure: 24N28P
Stator Core: Imported Material/Surface Anti-rust
Motor Size: 56×25.5mm
Enameled Wire Grade: Resistant to 180℃ high temps
Magnet Grade: Resistant to 180℃ high temps
Protection Grade: IP35
Wire Outlet Specification: 70mm
Off-core Heat Dissipation Design: YES
Rotor Dynamic Balance Test: ≤5 Mg
Wire Coil Withstand Voltage Test: 500V AC
Propeller Mounting Hole Position: M3ø124/M3 ø 154
Motor Mounting Hole Position: M3 ø 30*4
KV: 400
Operating Rated Voltage: 6S
No-load Current: 0.6A/20V
Interphase Internal Resistance: 108mΩ
Motor Weight: 141g
Maximum Current: 31A
Maximum Power: 730W
Maximum Pull: 3900g
Maximum Torque: 1.03 N*m
ESC Recommendation: 50A
Propeller Recommendation: 1755 Carbon Fiber Paddle
1× MFE 5008 KV400 Brushless Motor
