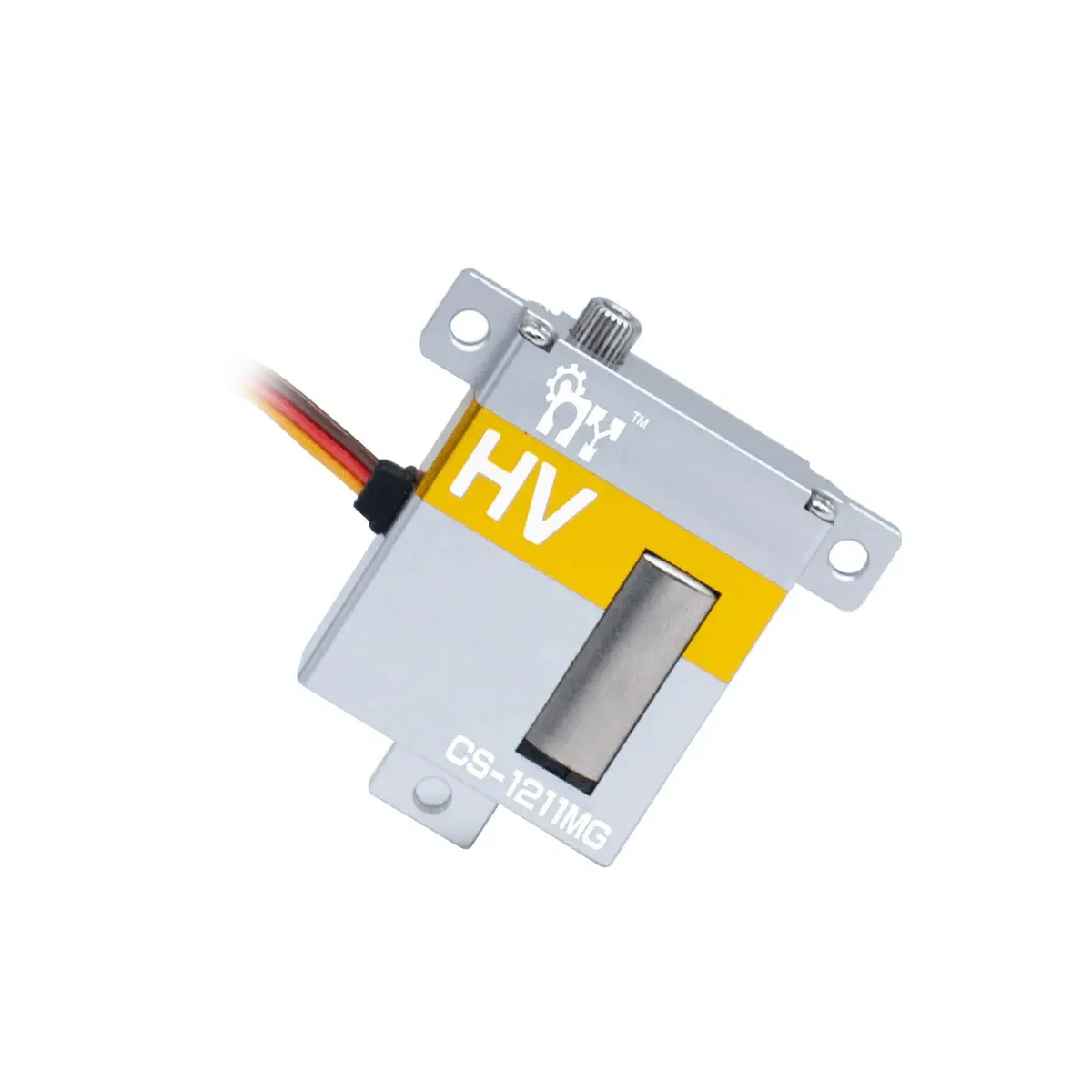

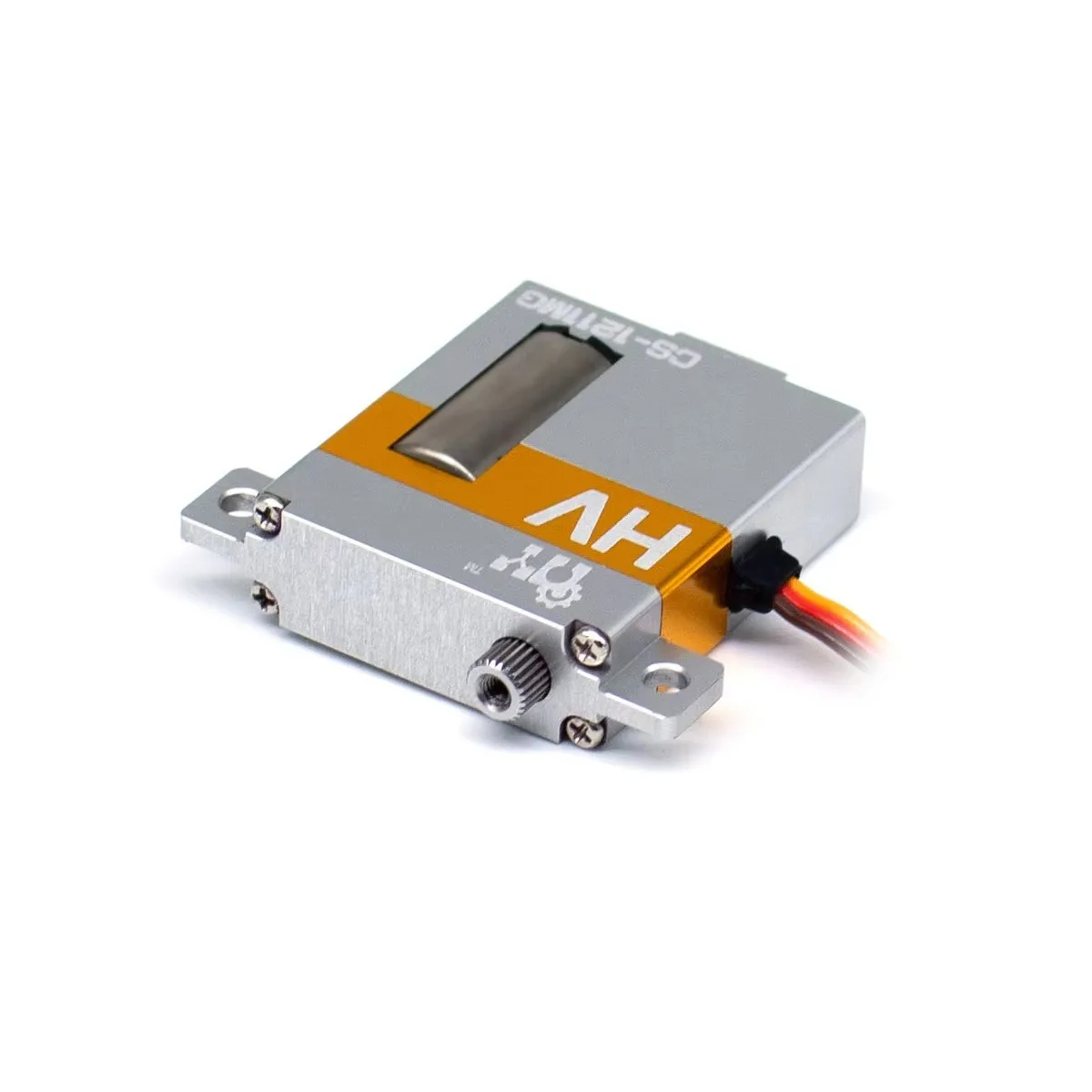

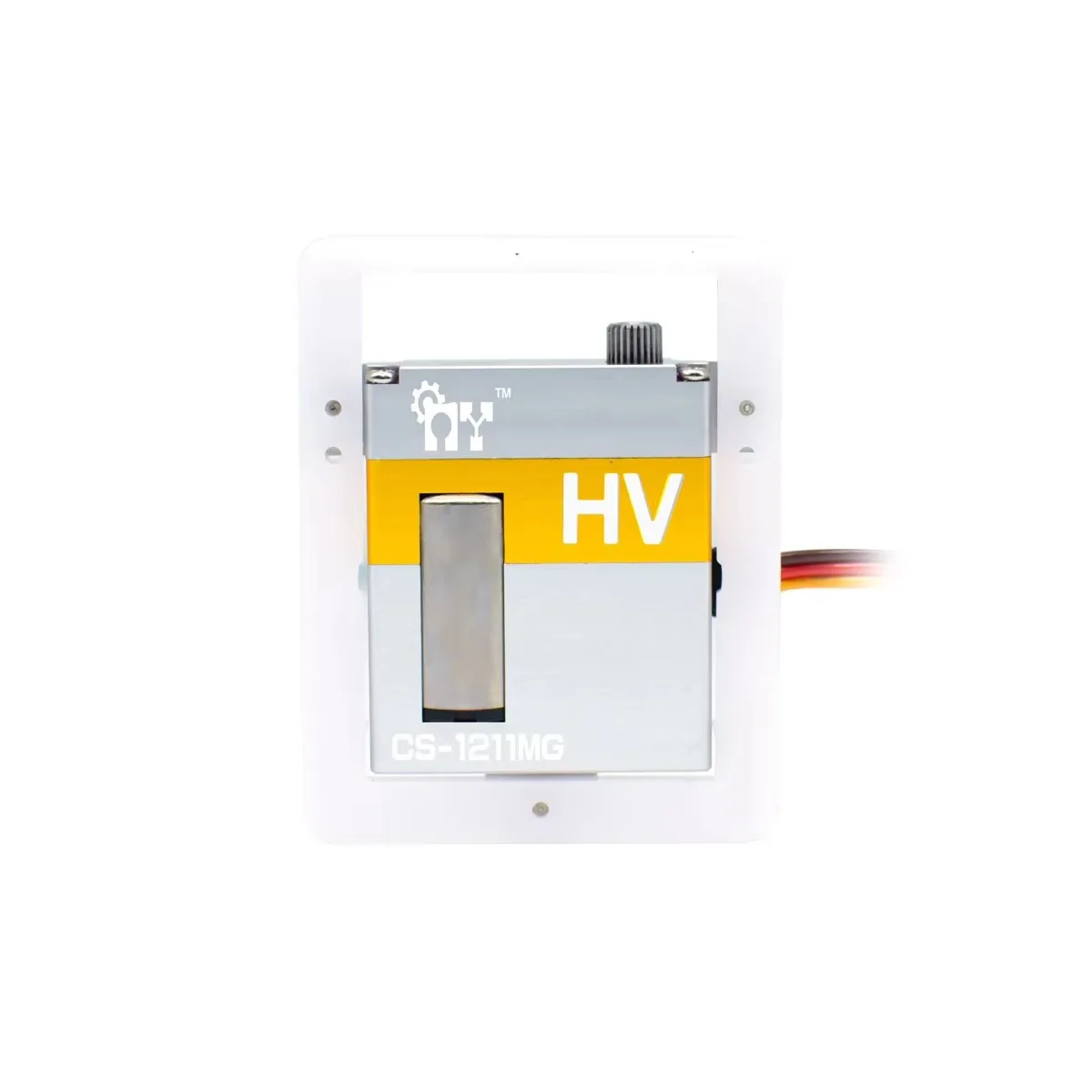

MY Servo CS-1211MG Metal Gear High Speed Coreless Micro Digital RC Servo for Rc Airplane Glider Fixed Wings Drone UAV SAVOX
MY Servo CS-1211MG Metal Gear High Speed Coreless Micro Digital RC Servo for Rc Airplane Glider Fixed Wings Drone UAV SAVOX
7.4V 11kg high performance coreless wing servo
High precision steel gears
Full metal aluminum shell, ultra thin design
Double ball bearings
JR plug, suitable for fixed wing gliders
Super strong metal gears ensure long service life, durability and lower noise
Model: CS-1211MG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Voltage Range: 6.0-7.4V
Motor: Coreless Motor
Operating Speed 6.0V): 0.17sec/60°
Operating Speed (7.4V): 0.15sec/60°
Stall Torque (6.0V): 9.0kg.cm
Stall Torque (7.4V): 11.0kg.cm

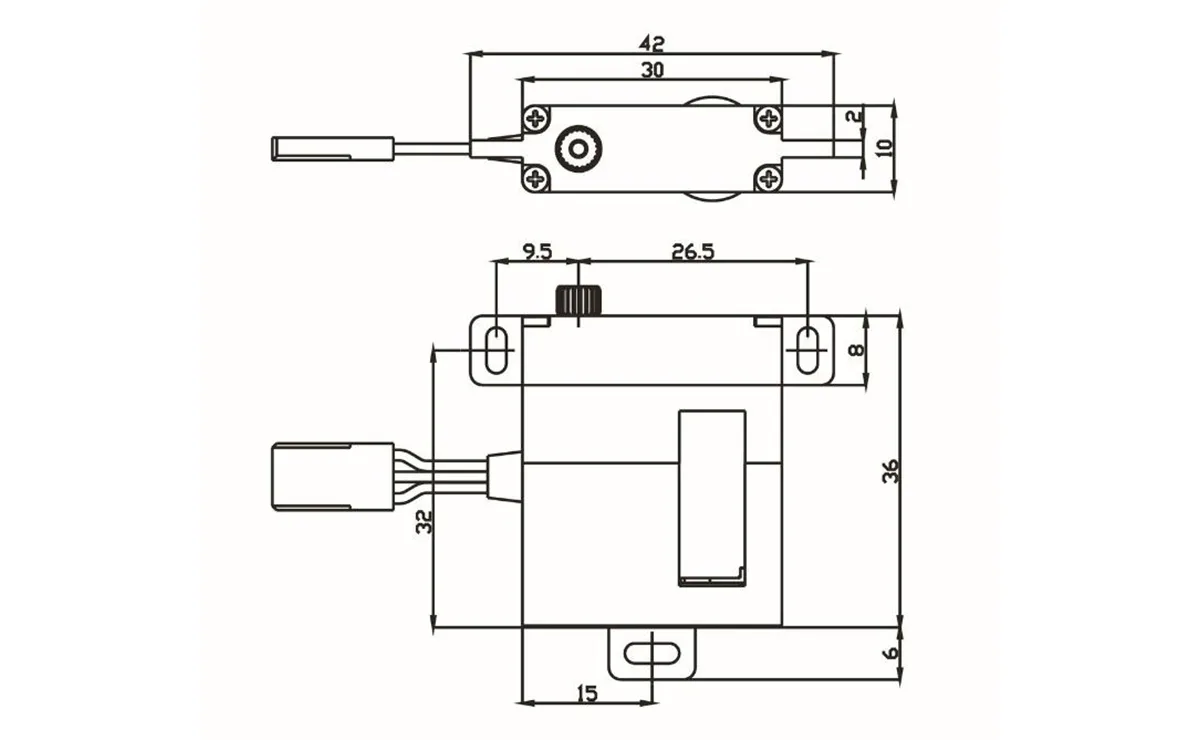

Dimensions: 30×10×36mm
Weight: 30g
Connector Wire Length: JR 220mm
Bearing: 2BB
Output Gear Spline: 25T
1×CS-1256TG Coreless Digital Servo
