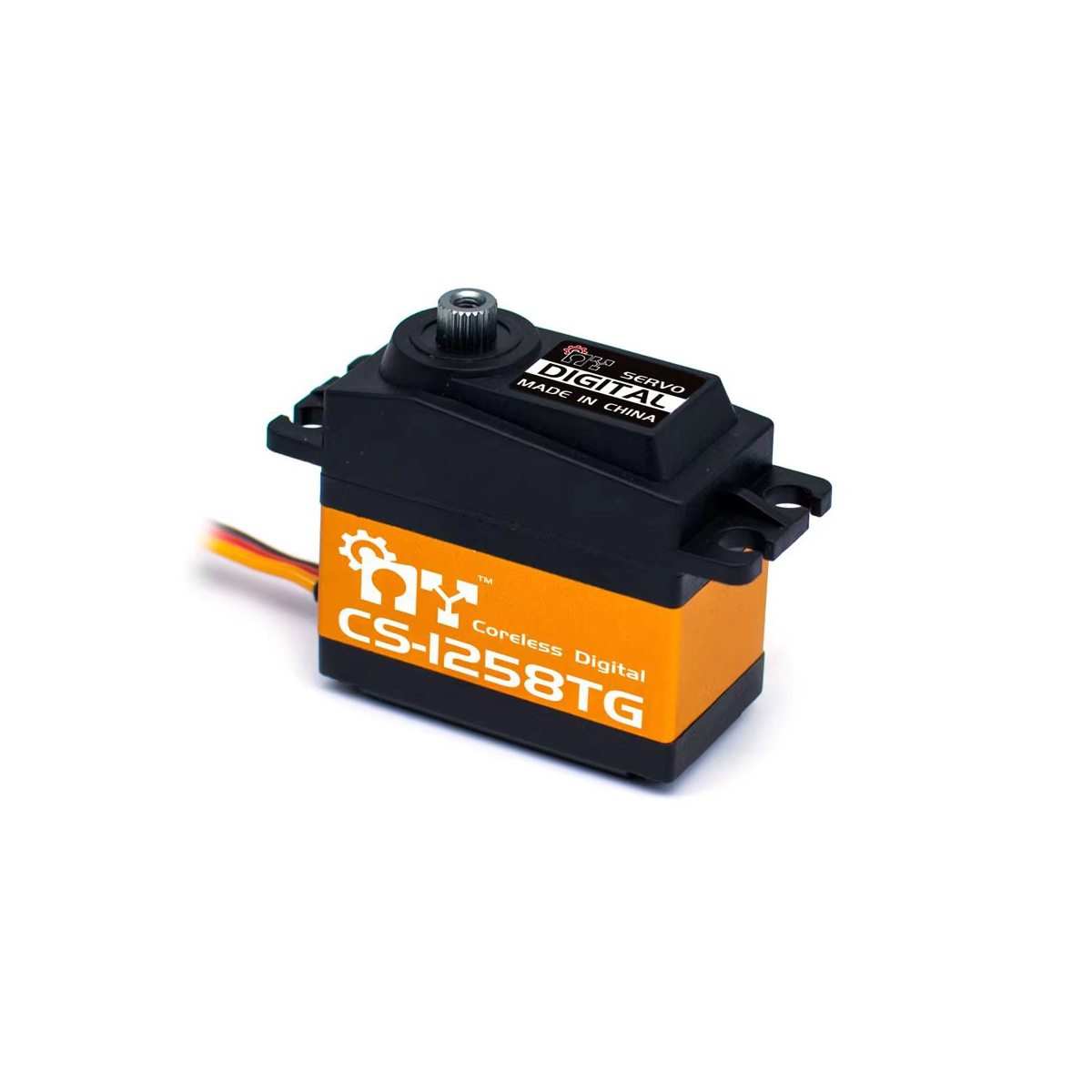

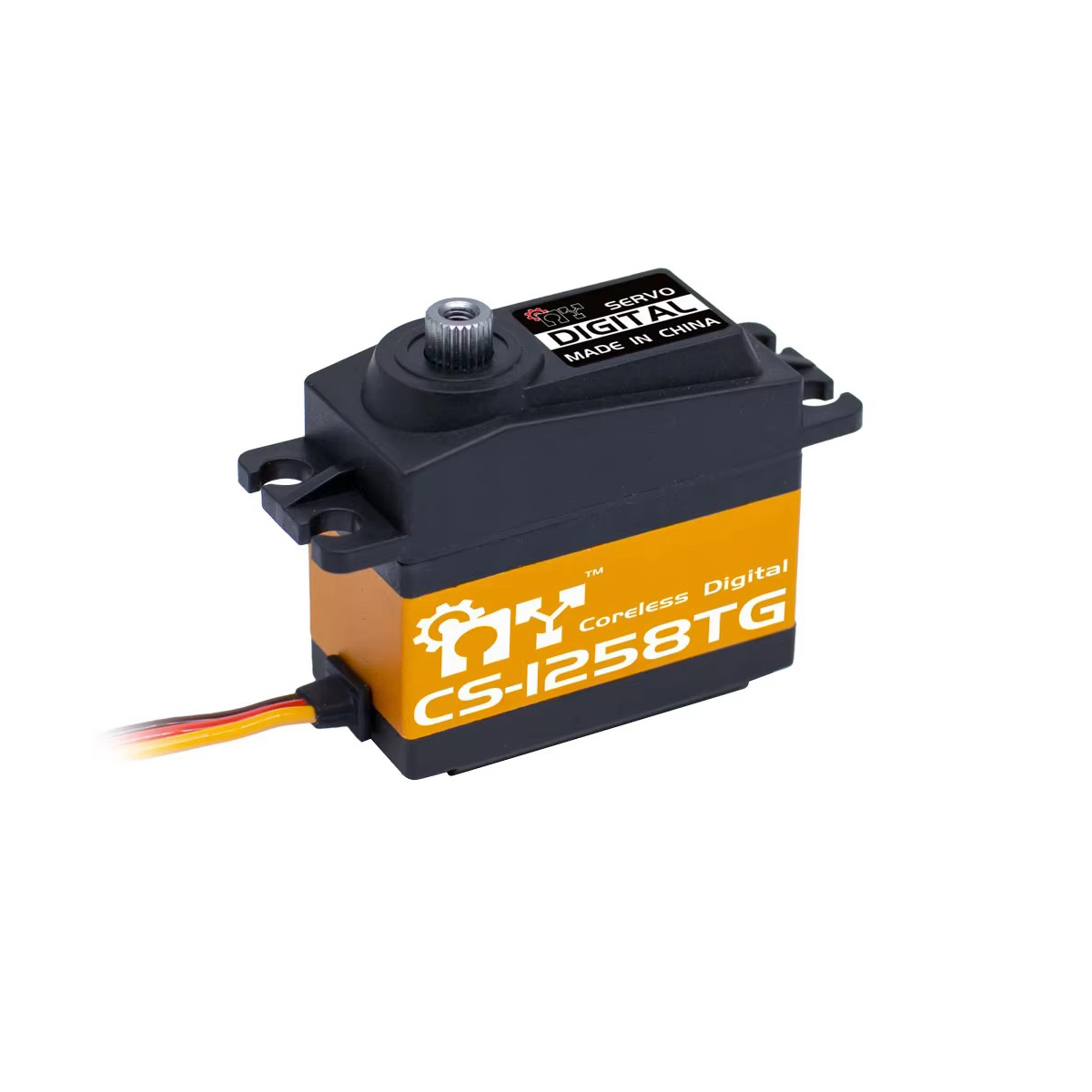

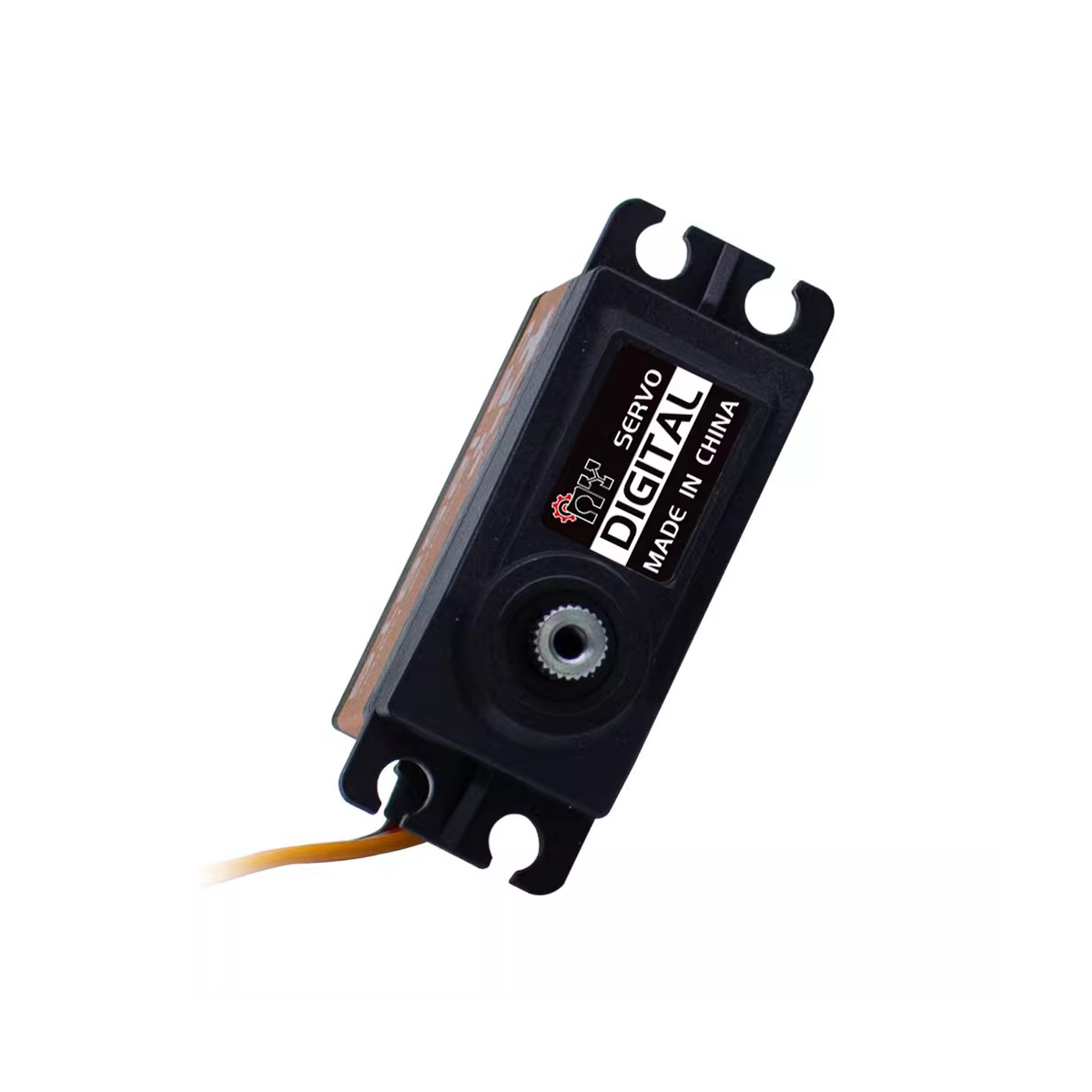

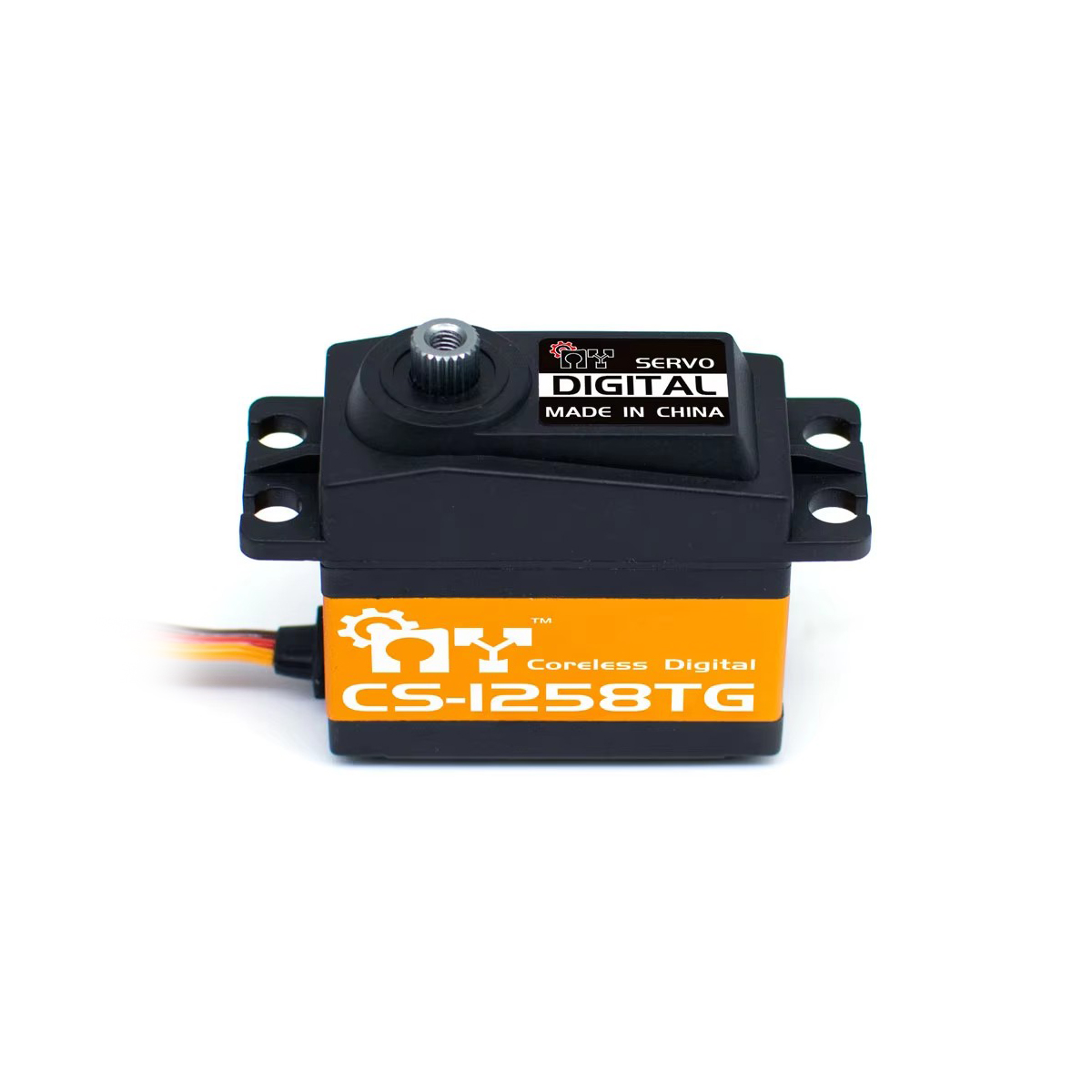

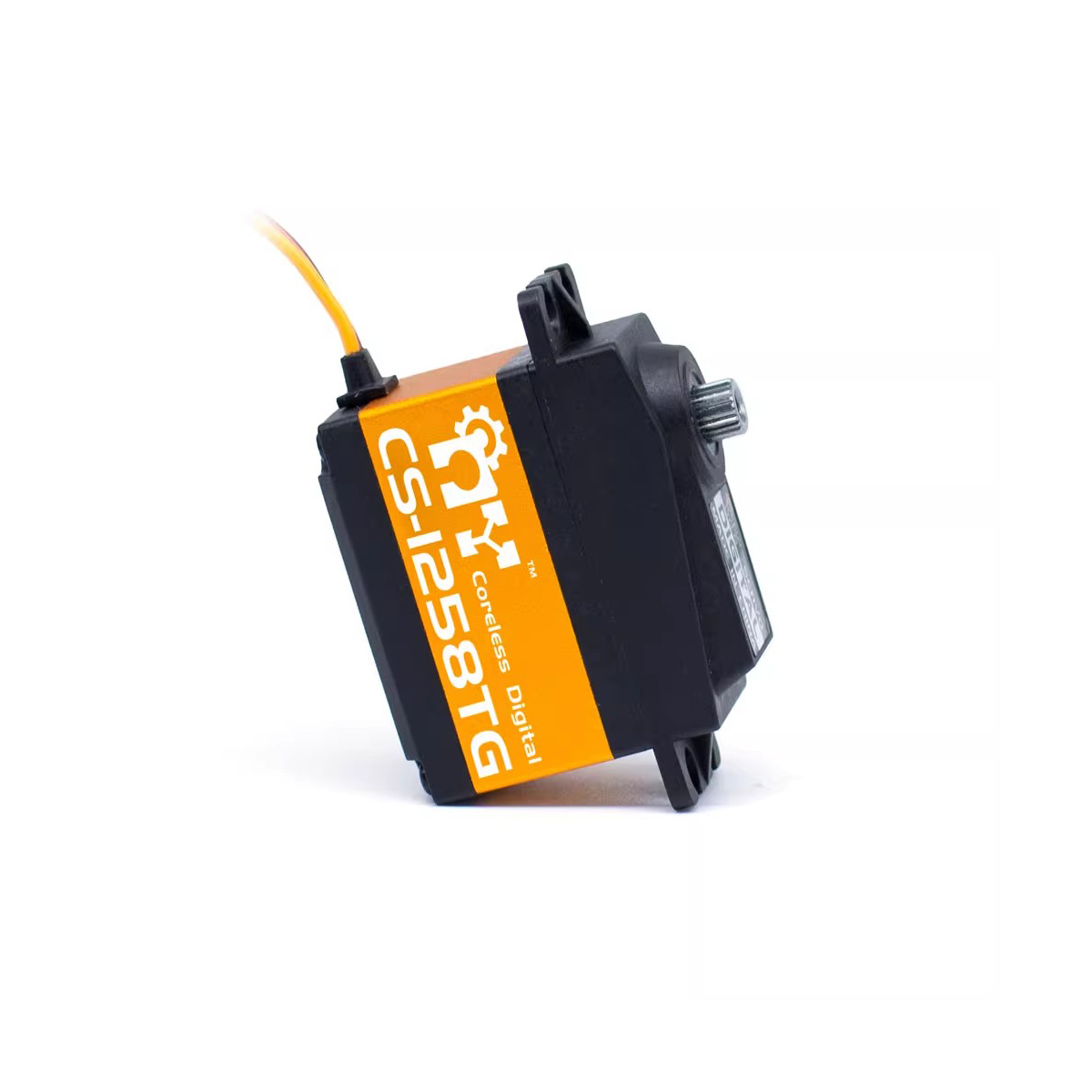

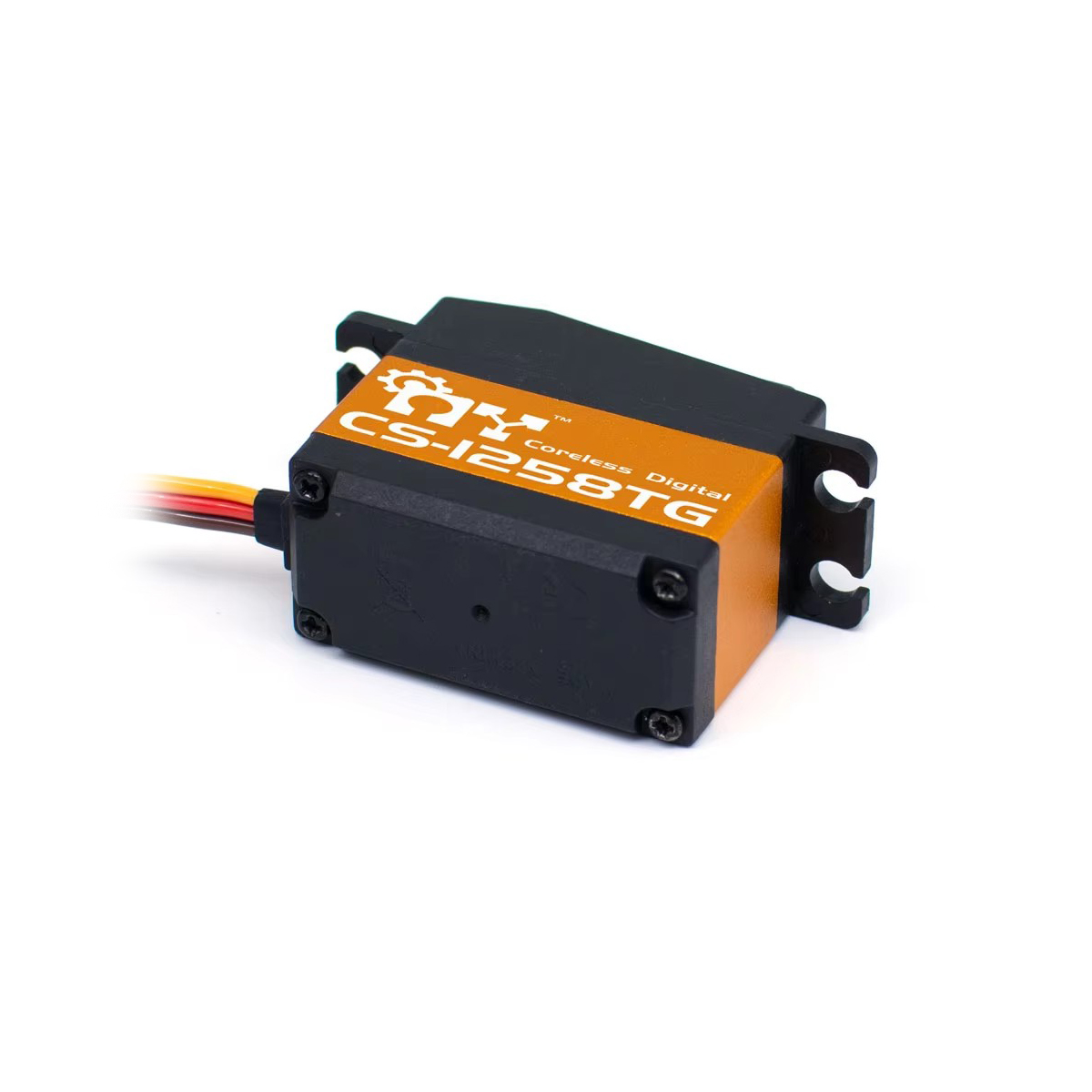

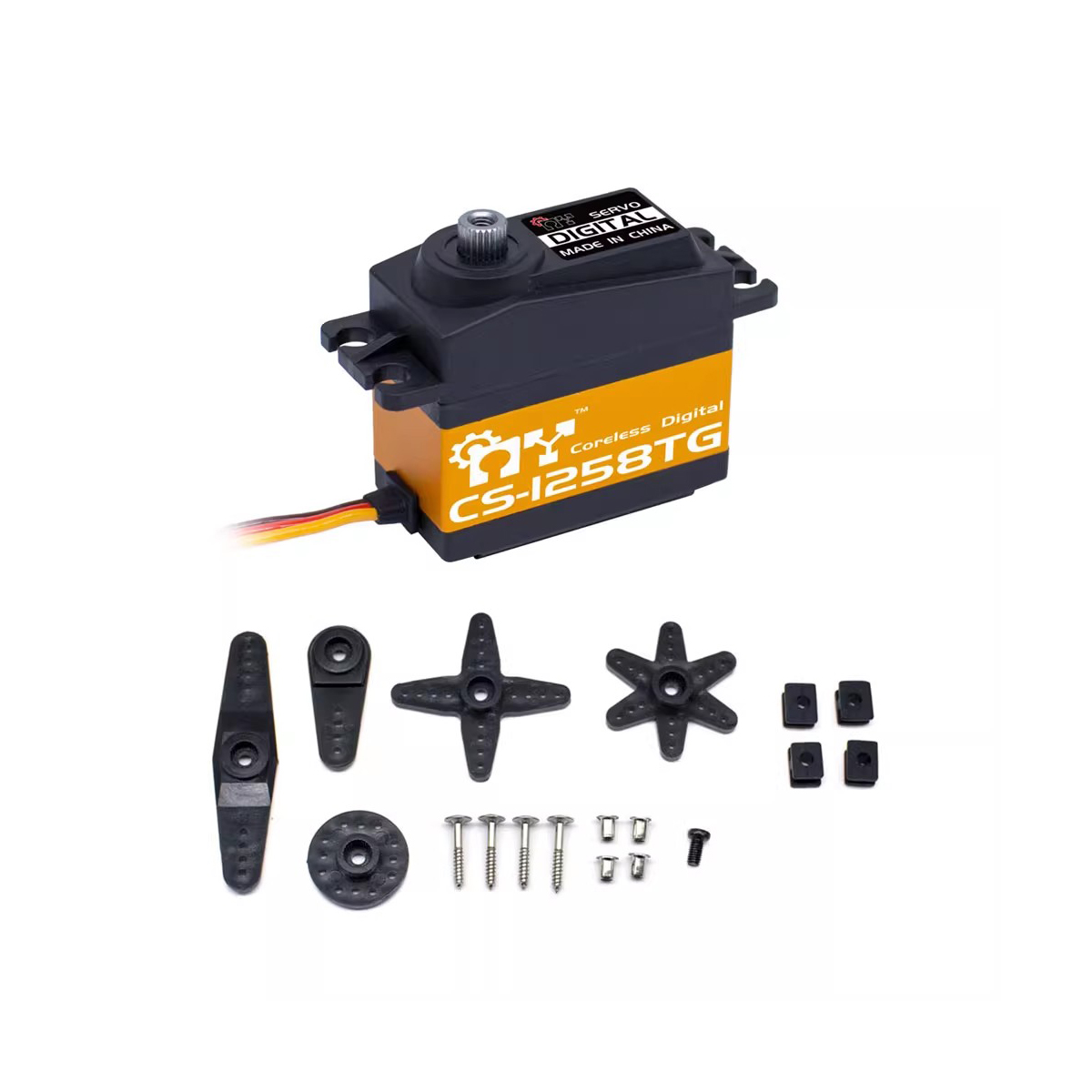

MY Servo CS-1258TG 6.0V 12kg High Speed Coreless Motor Titanium Gear Digital Servo
6.0V 12kg high performance coreless standard digital servo

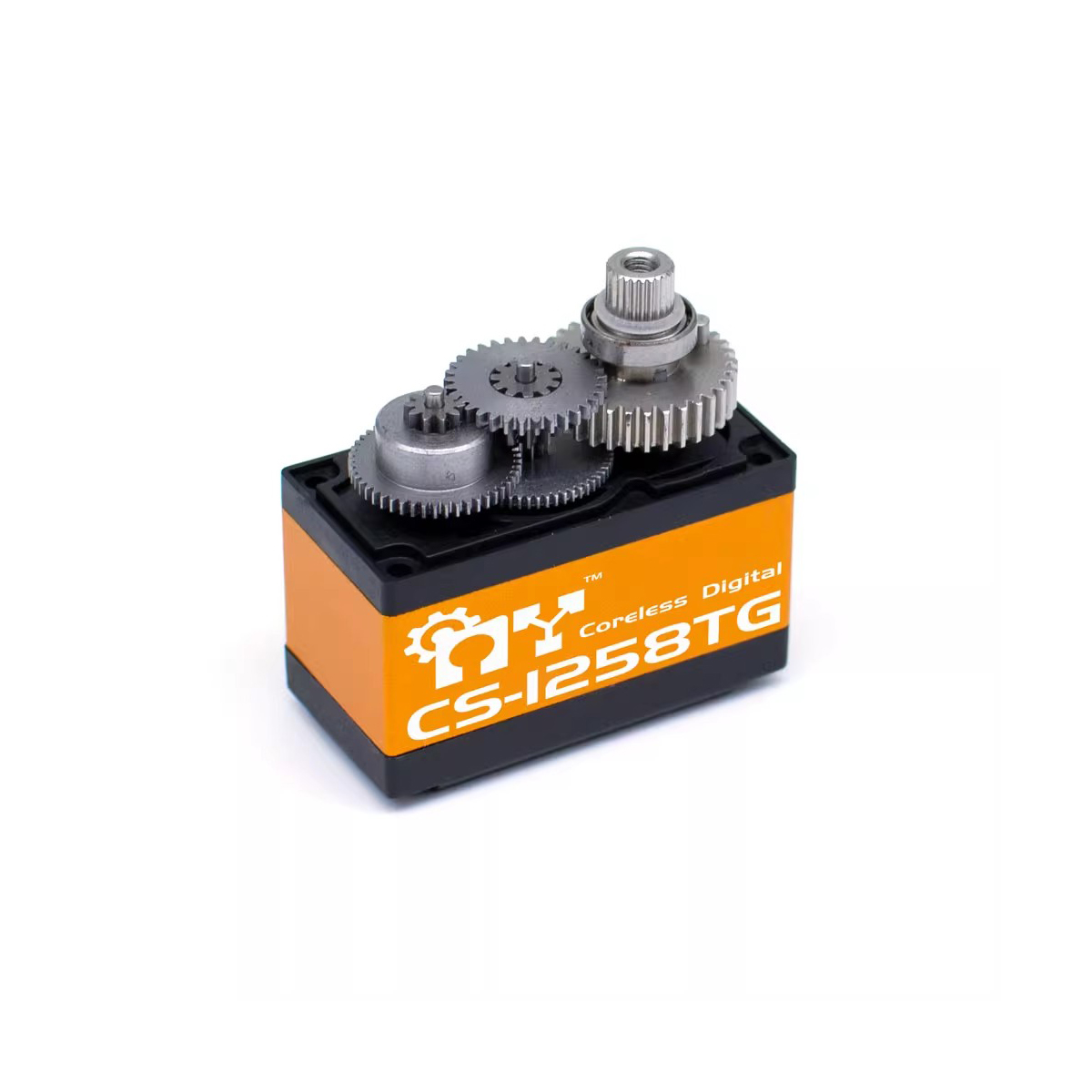

High precision titanium alloy aluminum gears
Aluminum mid shell structure housing
Double ball bearings
JR plug
High torque, ultra long service life, and low noise
32 bit programmable servo
Model: CS-1258TG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Coreless Motor
Operating Speed 4.8V): 0.1sec/60°
Operating Speed (6.0V): 0.08sec/60°
Stall Torque (4.8V): 9.6kg.cm
Stall Torque (6.0V): 12.0kg.cm

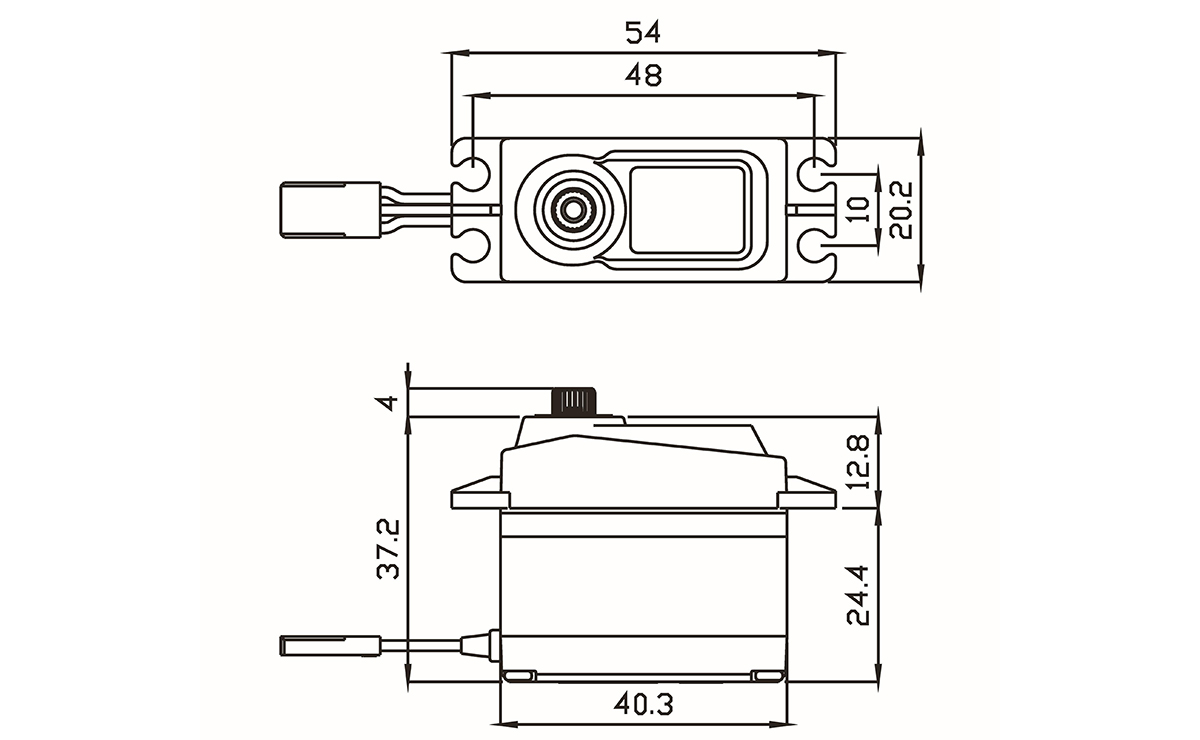

Dimensions: 40.3×20.2×37.2mm
Weight: 64g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T
CS-1258TG Servo x1
Pack of Accessories x1
