MY Servo MB-2271SG 7.4V 20kg Brushless Motor High Voltage High Torque Steel Gear Digital Servo
MY Servo MB-2271SG 7.4V 20kg Brushless Motor High Voltage High Torque Steel Gear Digital Servo
7.4V 20kg high performance brushless standard digital servo

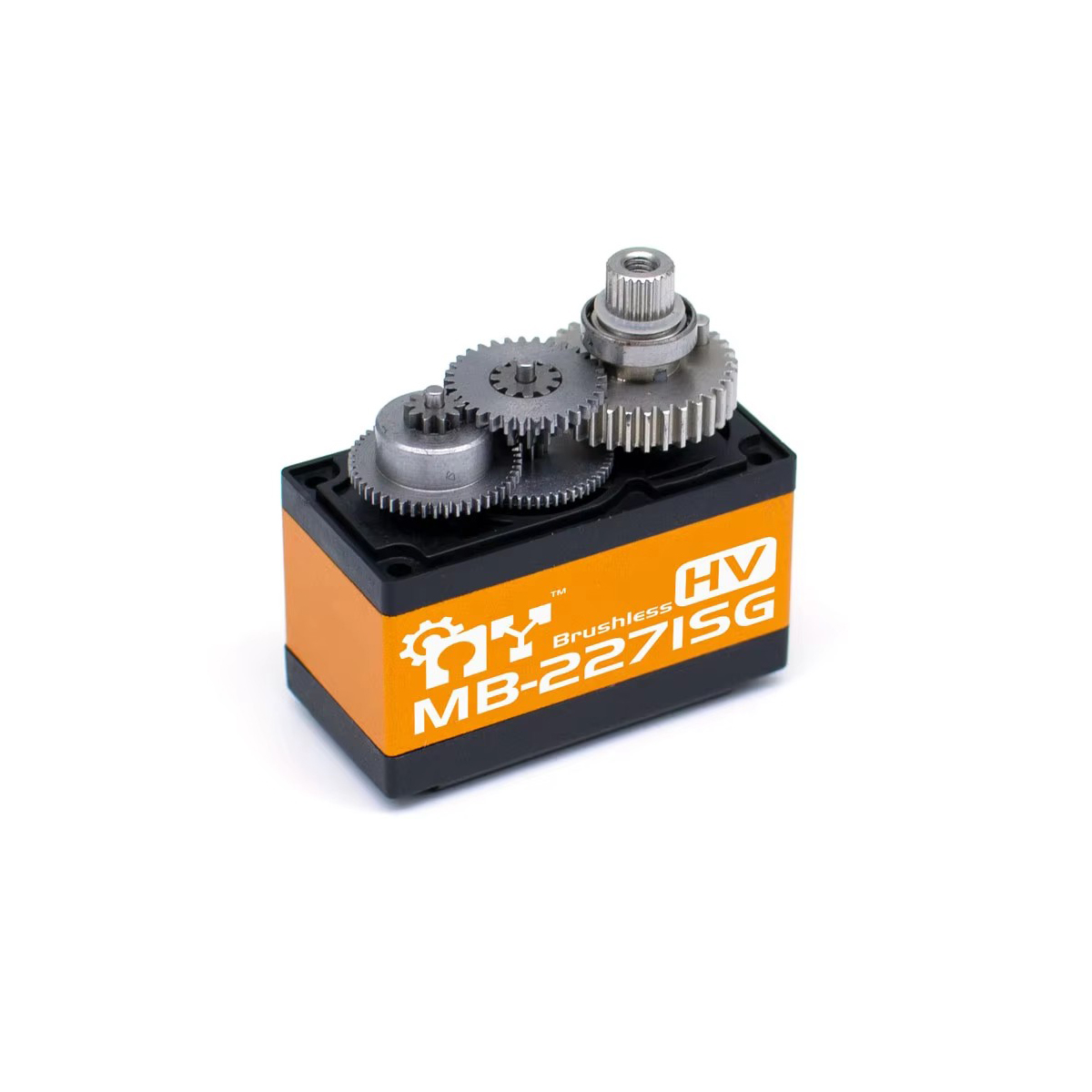

High precision stainless steel gears
Aluminum mid shell structure housing
Double ball bearings
JR plug
Super strong steel gears ensure long service life, durability, and lower noise
32 bit programmable servo
Model: MB-2271SG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Brushless Motor
Operating Speed 6.0V): 0.08sec/60°
Operating Speed (7.4V): 0.06sec/60°
Stall Torque (6.0V): 15.0kg.cm
Stall Torque (7.4V): 20.0kg.cm
Dimensions: 40.3×20.2×38.7mm
Weight: 69g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

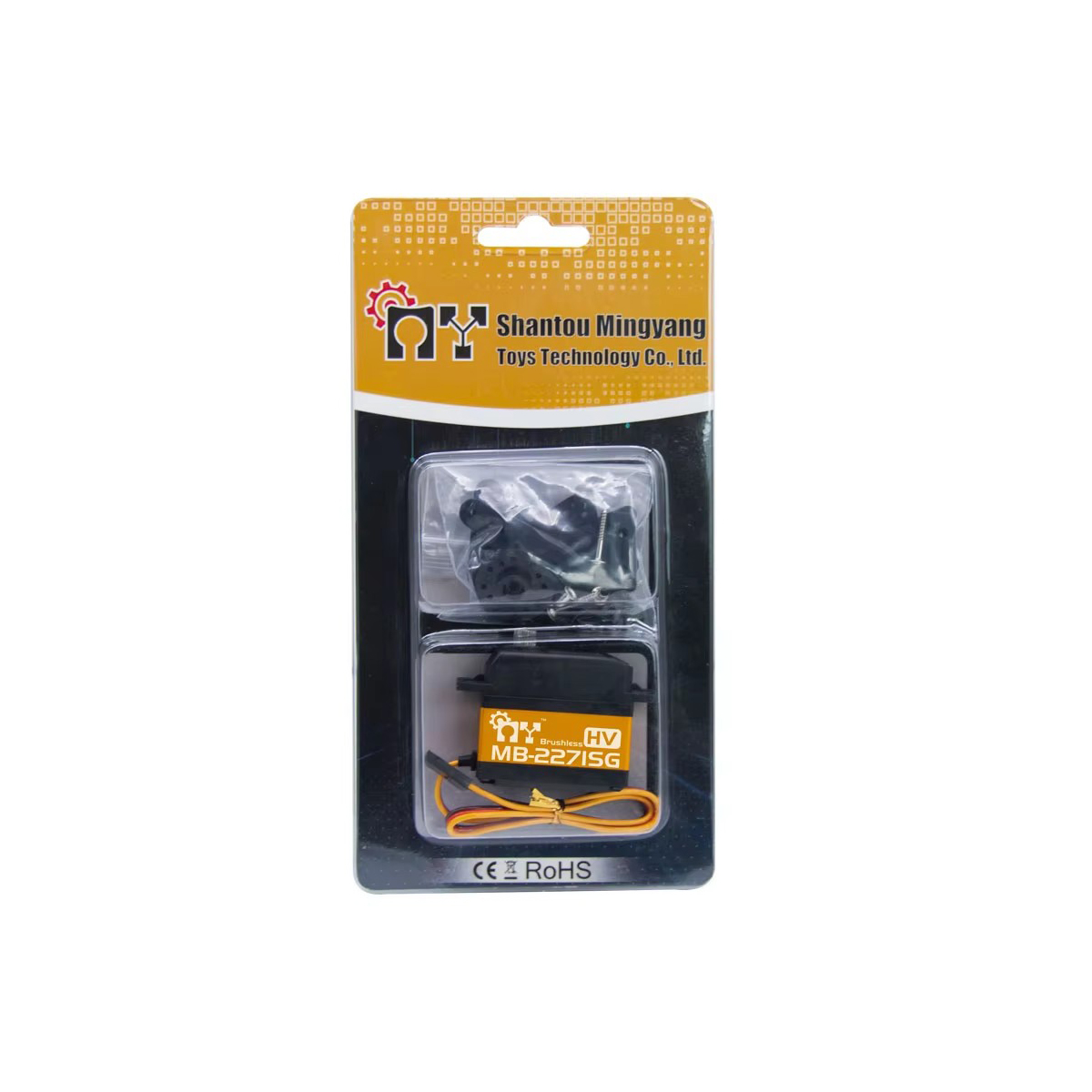

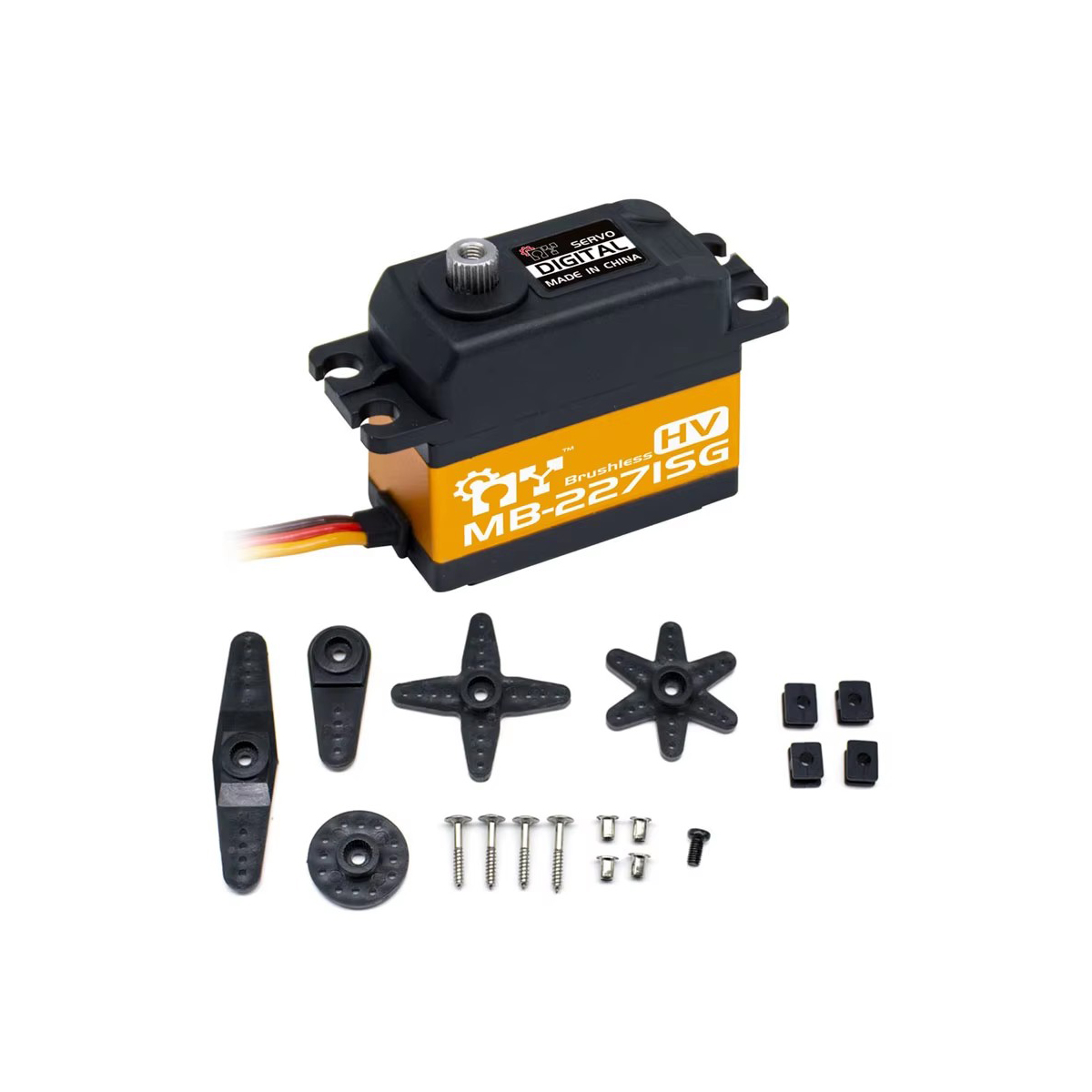

MB-2271SG Servo x1
Pack of Accessories x1
