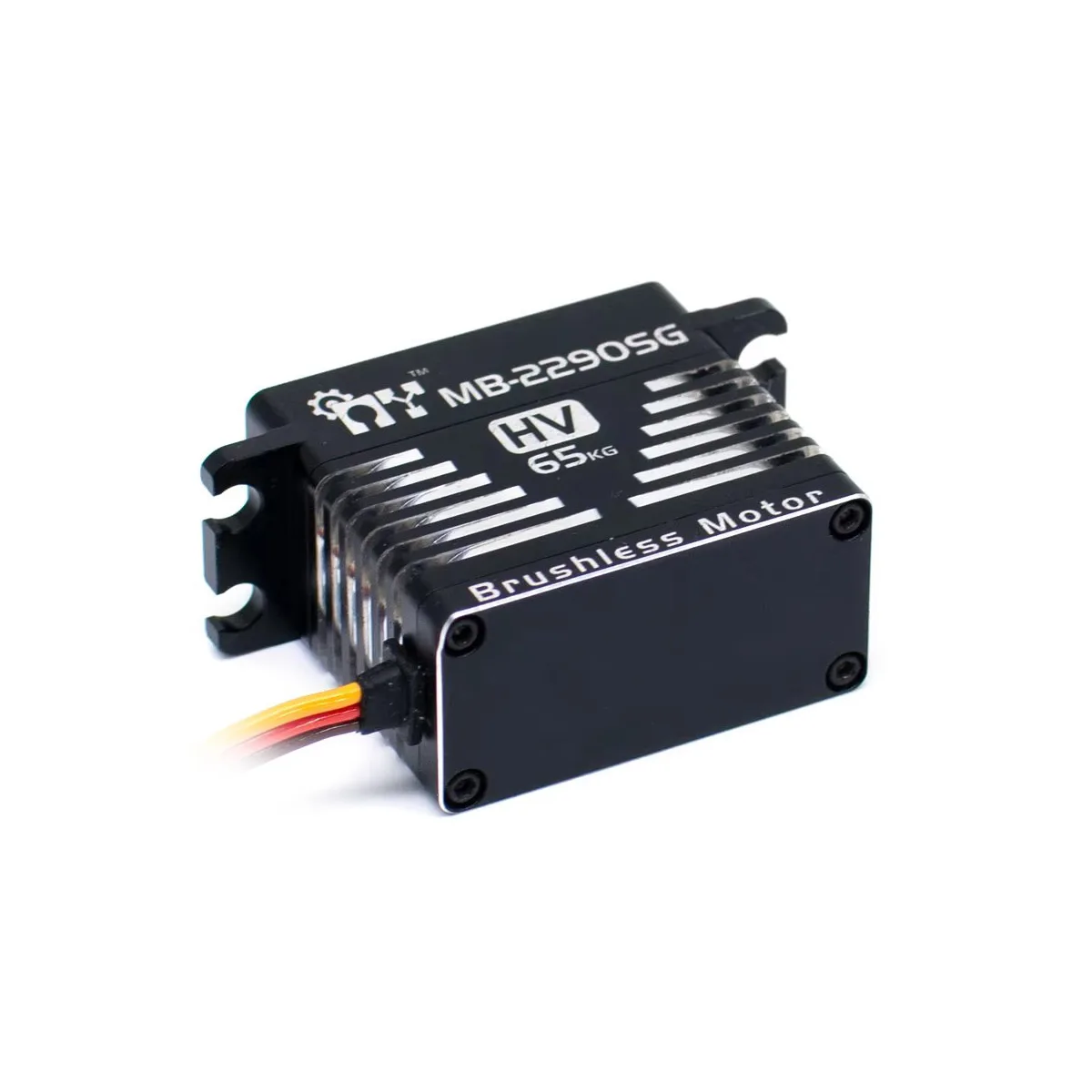

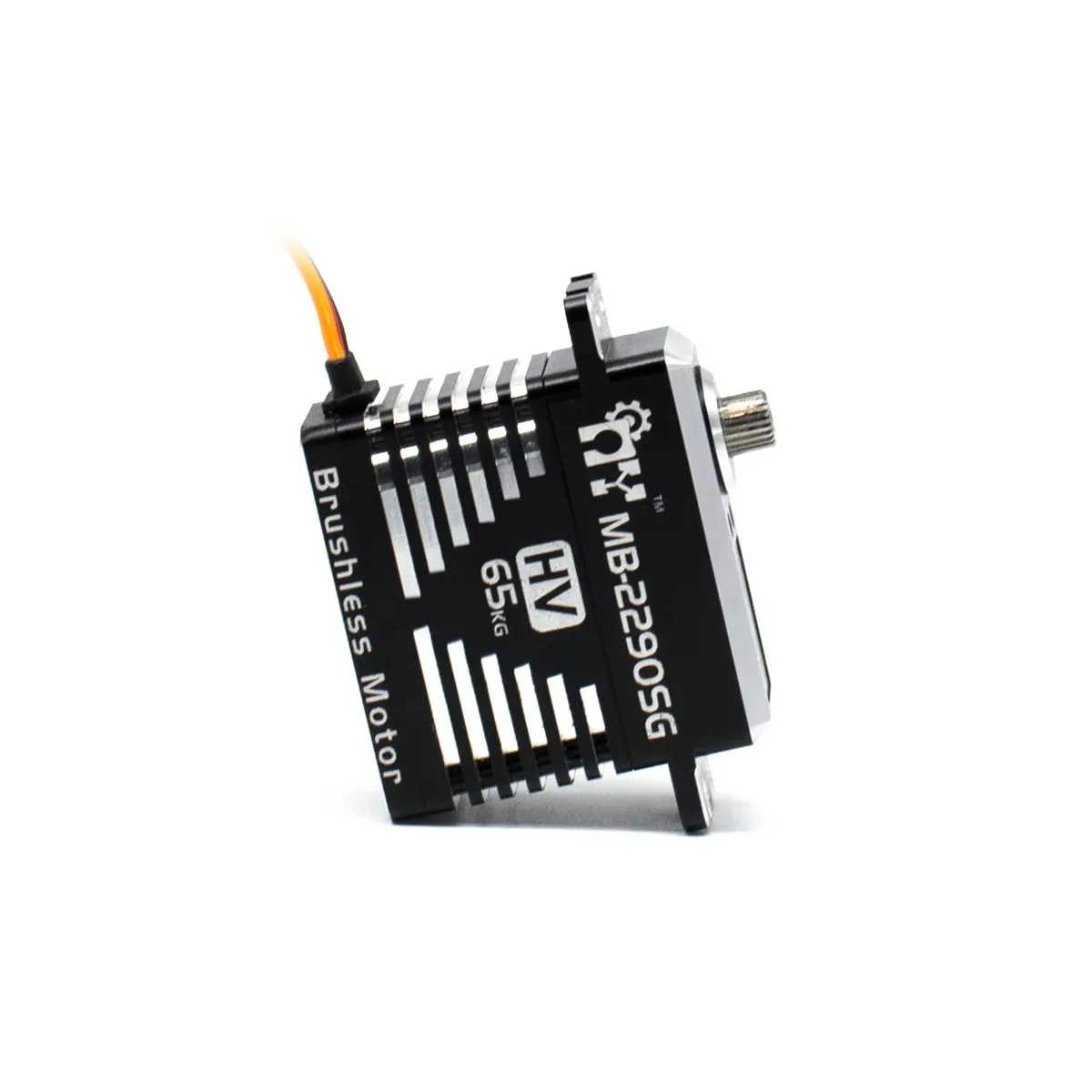

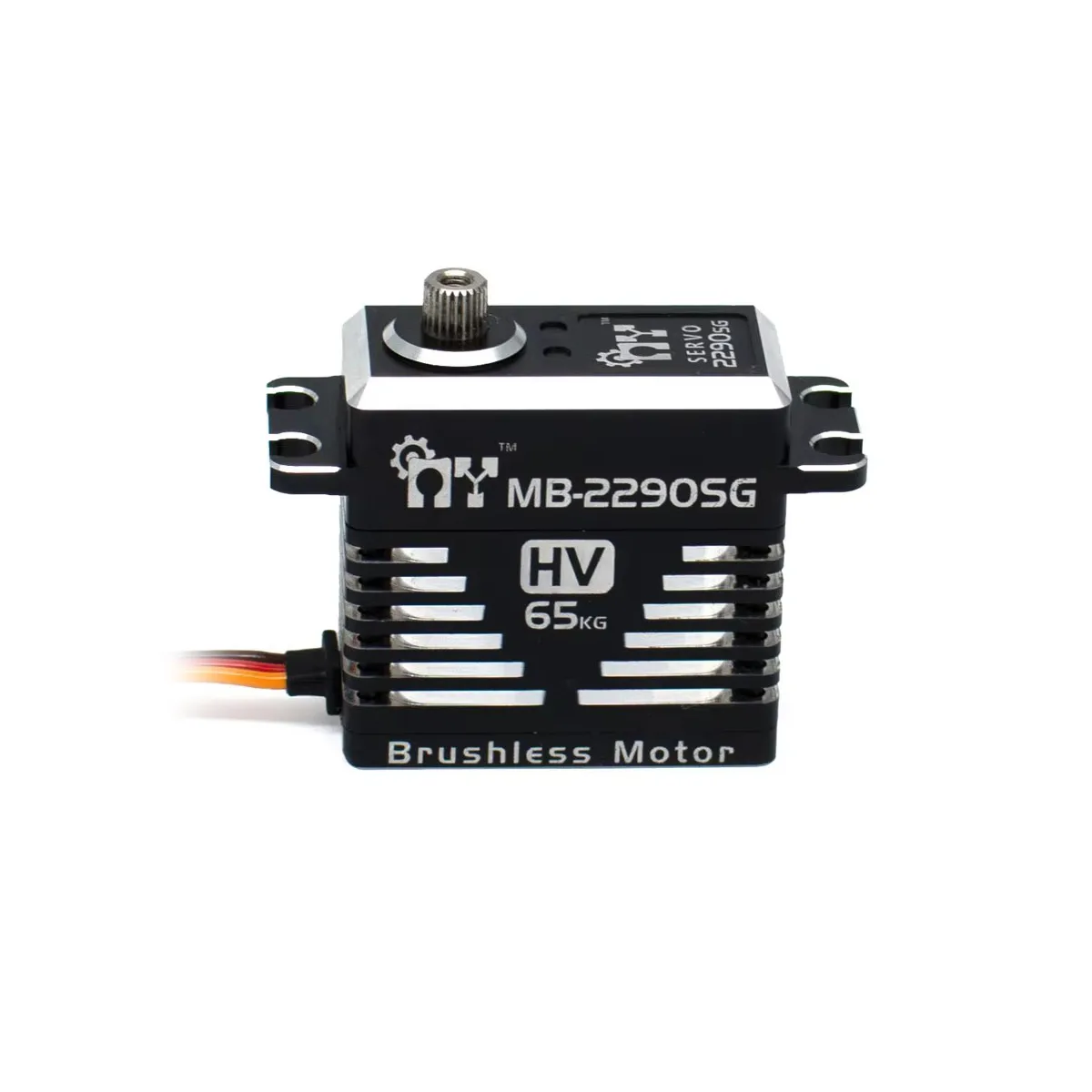

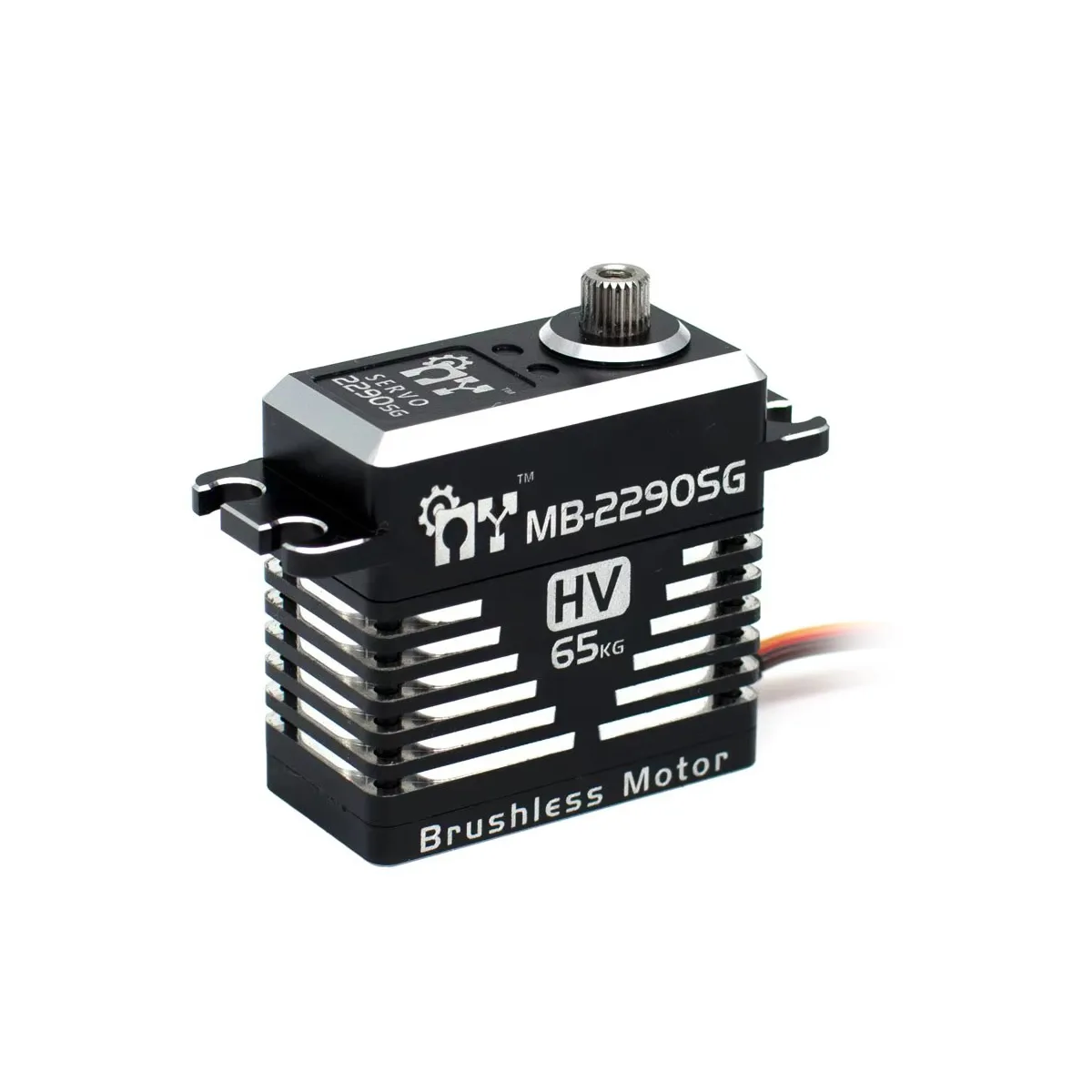

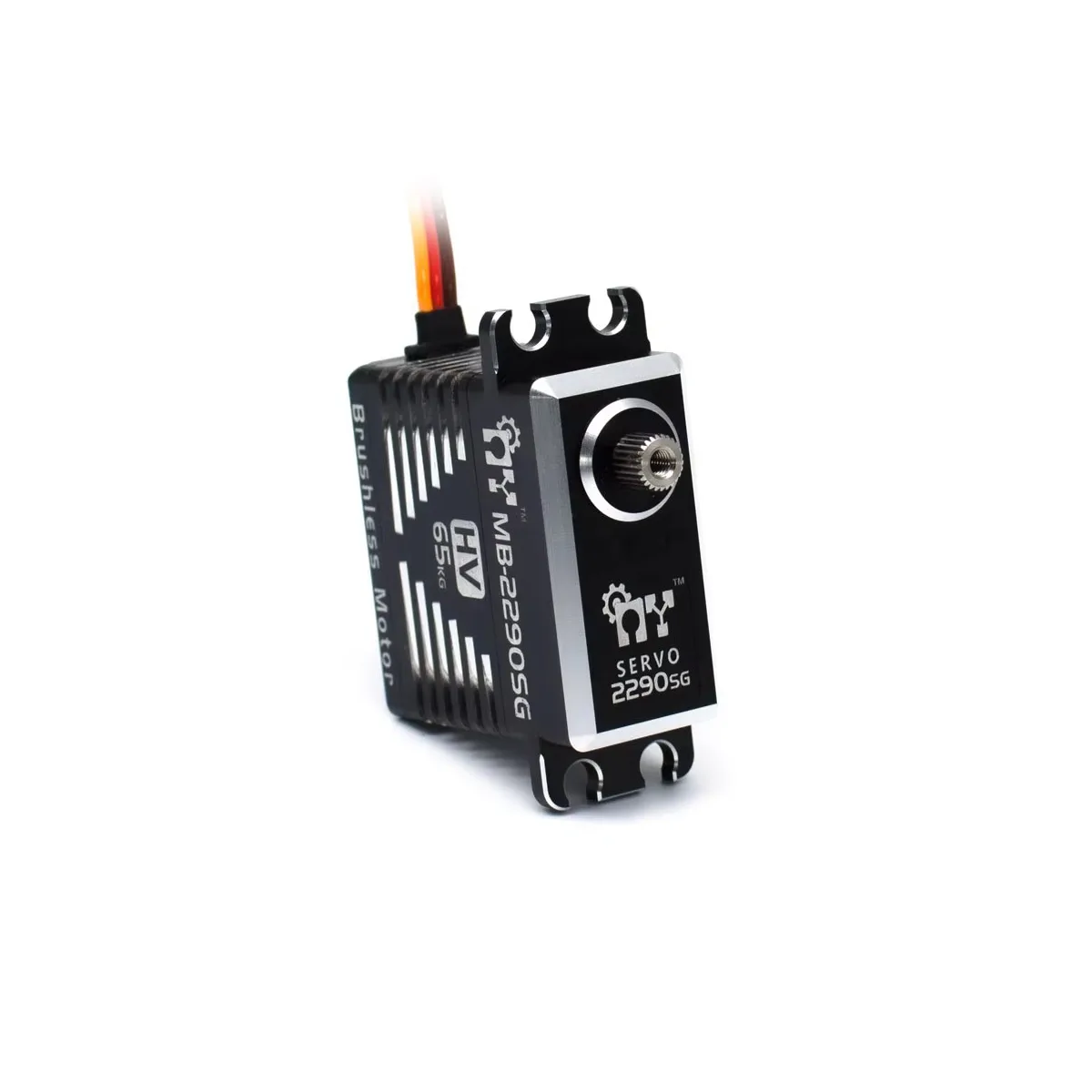

MY Servo MB-2290SG 8.4V 65kg High Voltague High Torque Aluminium Case Brushless Motor Digital Servo

SKU MB-2290SG Category Tag Brand:



MY Servo MB-2290SG 8.4V 65kg High Voltague High Torque Aluminium Case Brushless Motor Digital Servo

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

At its core, the MB-2290SG is a high-voltage, brushless digital servo. This advanced system eliminates the friction and wear associated with traditional brushed motors, resulting in cooler operation, superior efficiency, and a dramatically extended lifespan.
The brushless design works in concert with a sophisticated digital processor to deliver exceptional holding power,near-silent operation, and a remarkably responsive control feel.
full aluminium case
high performance digital standard servo
high precision metal gears
double ball bearings

Model: MB-2290SG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Brushless Motor
Operating Speed 7.4V): 0.13sec/60°
Operating Speed (8.4V): 0.11sec/60°
Stall Torque (7.4V): 50.0kg.cm
Stall Torque (8.4V): 65.0kg.cm
Dimensions: 40.3×20.2×38.7mm
Weight: 81g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

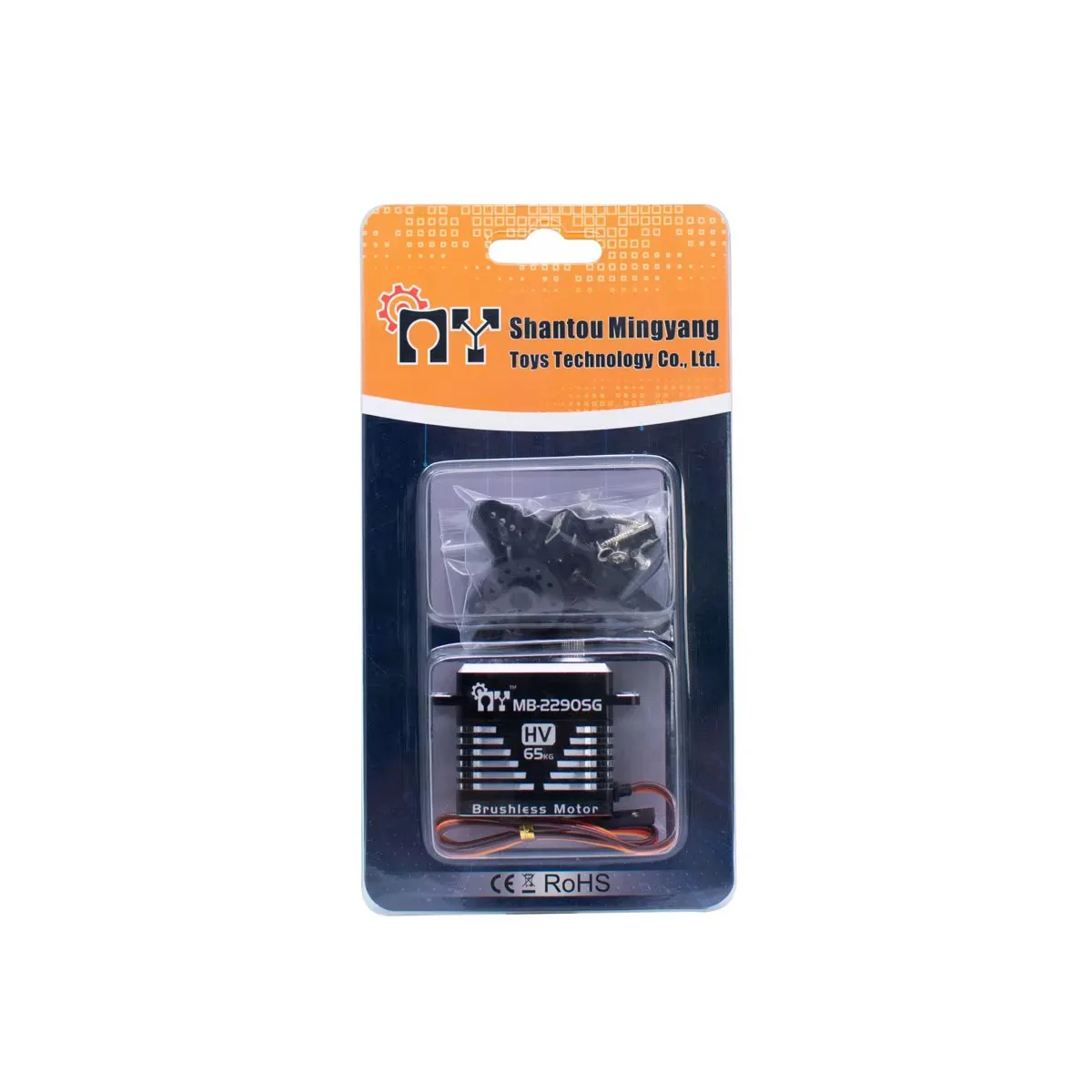

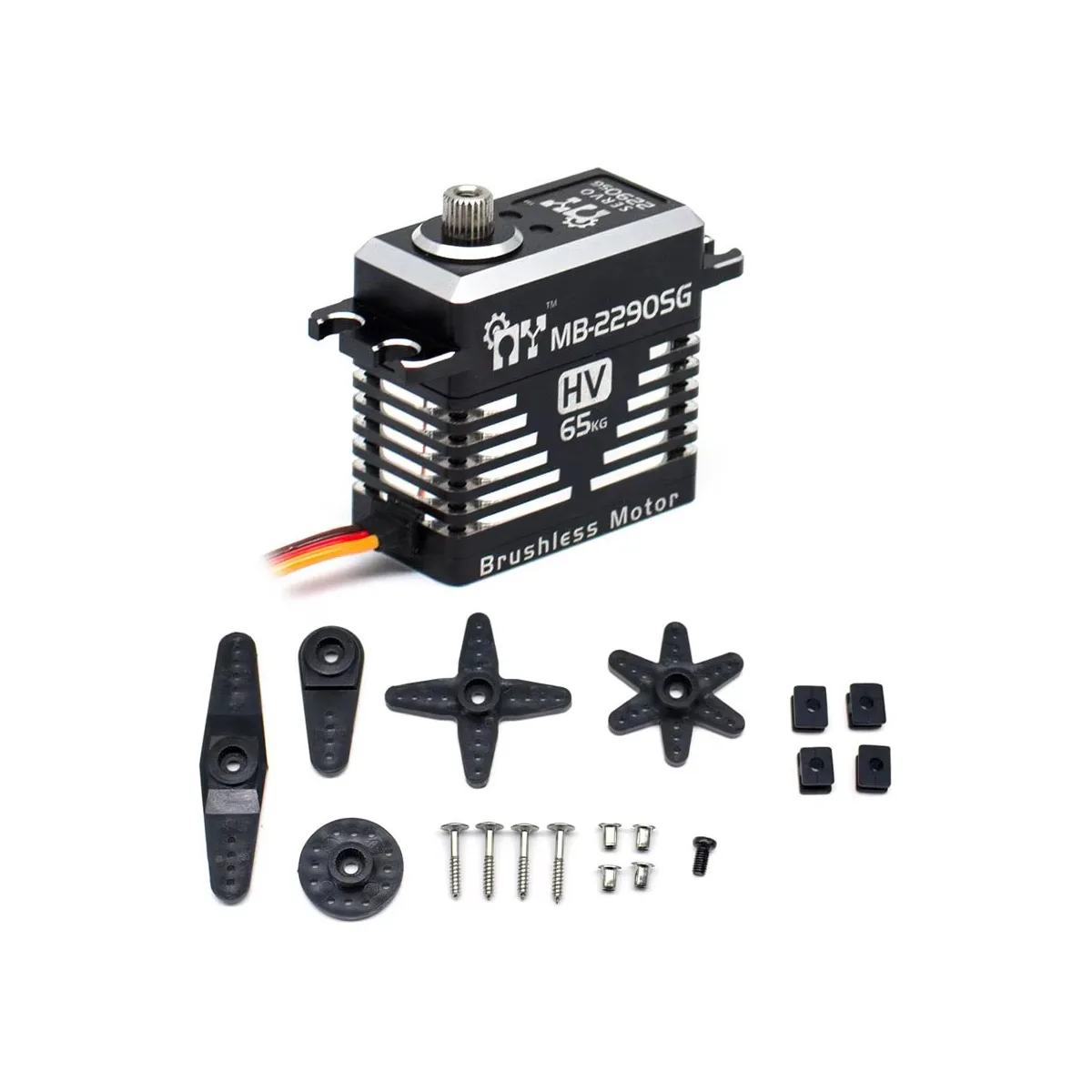

MB-2290SG Servo x1
Pack of Accessories x1
