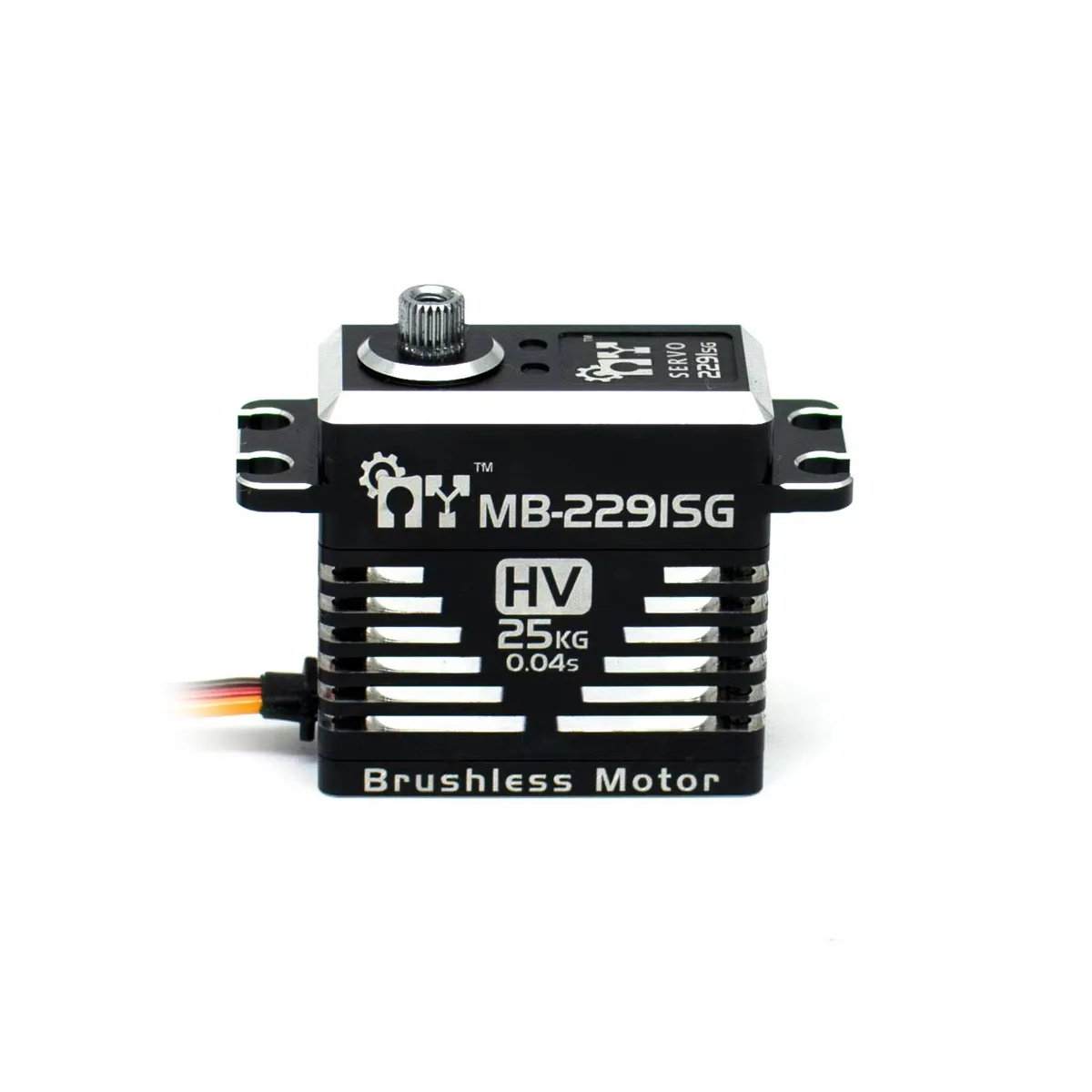

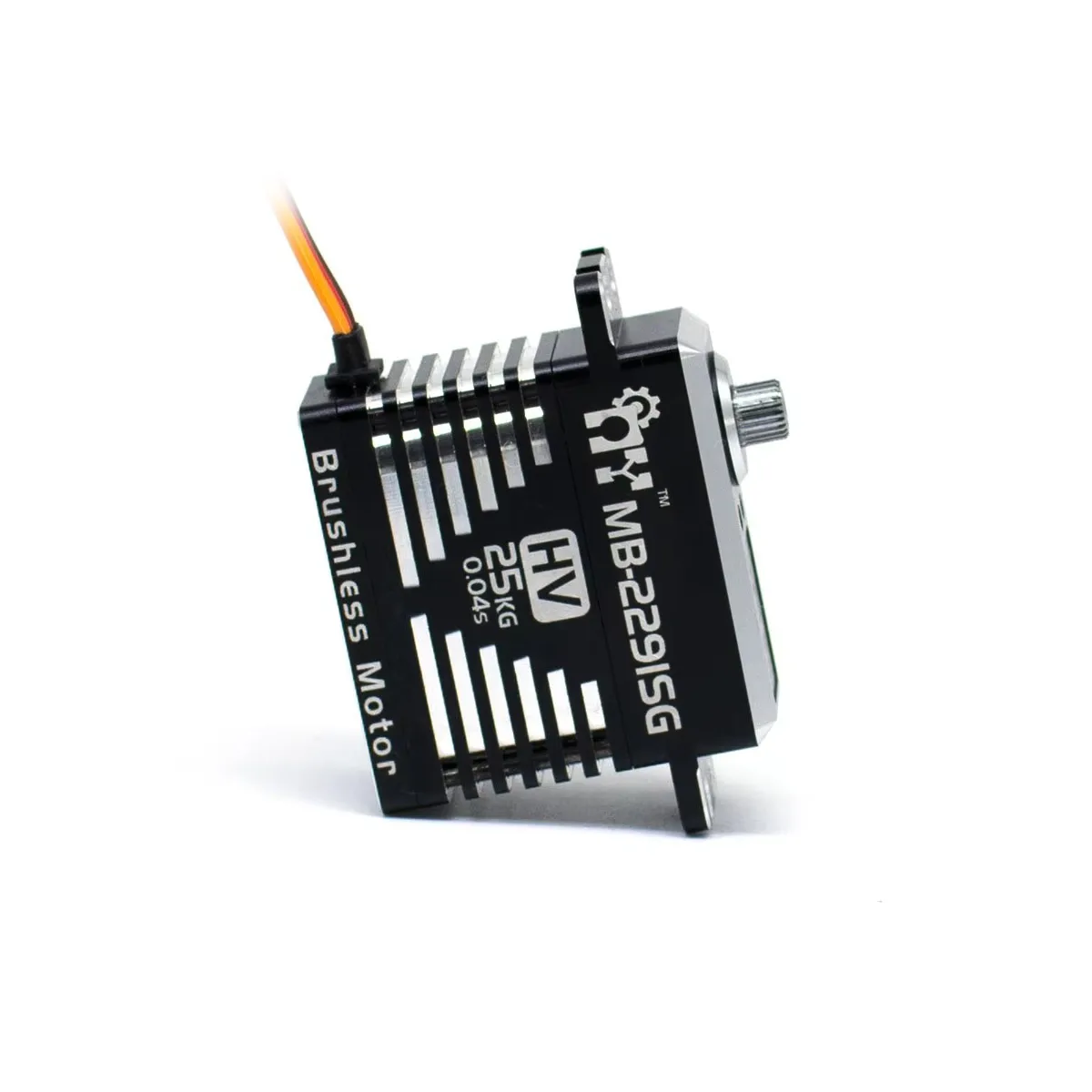

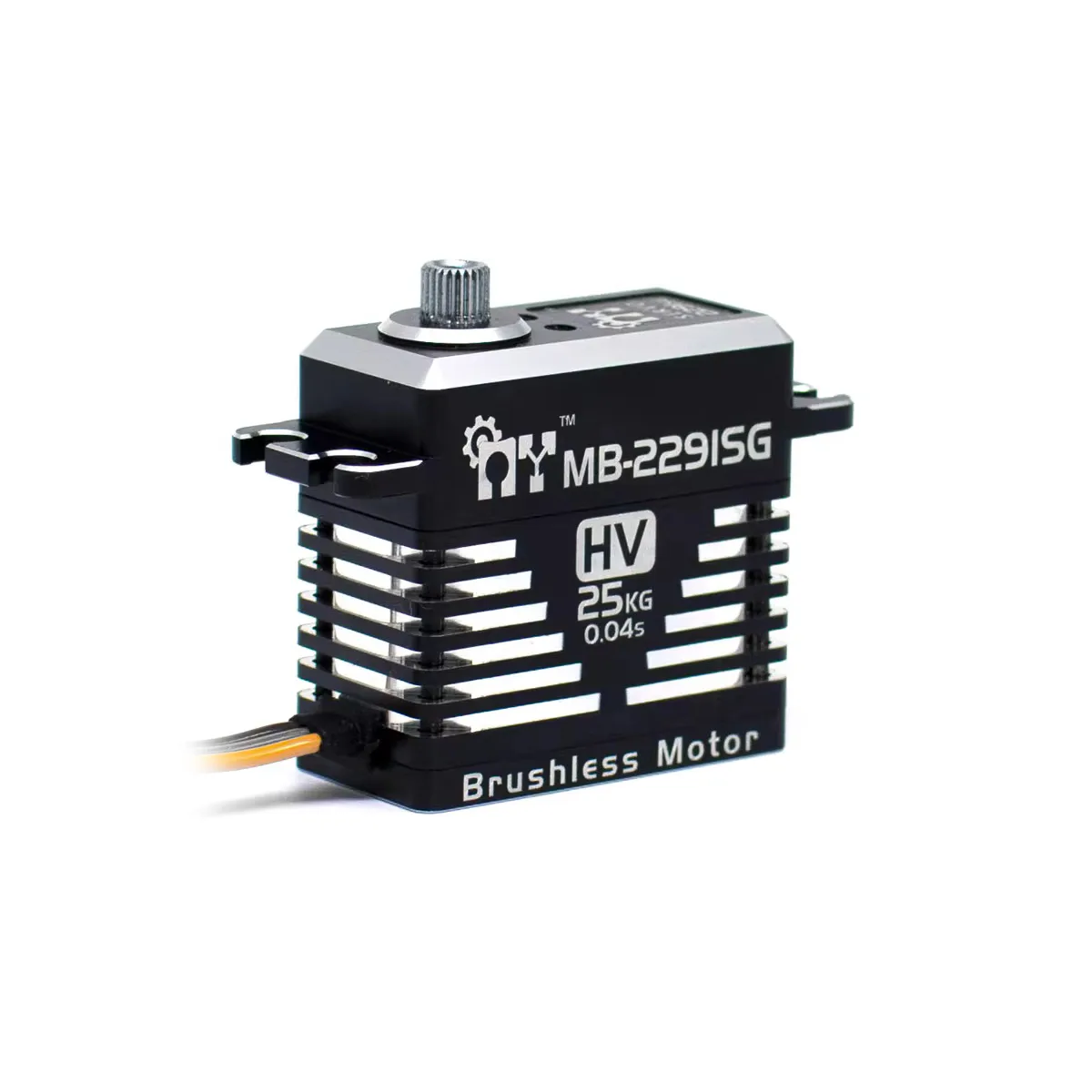

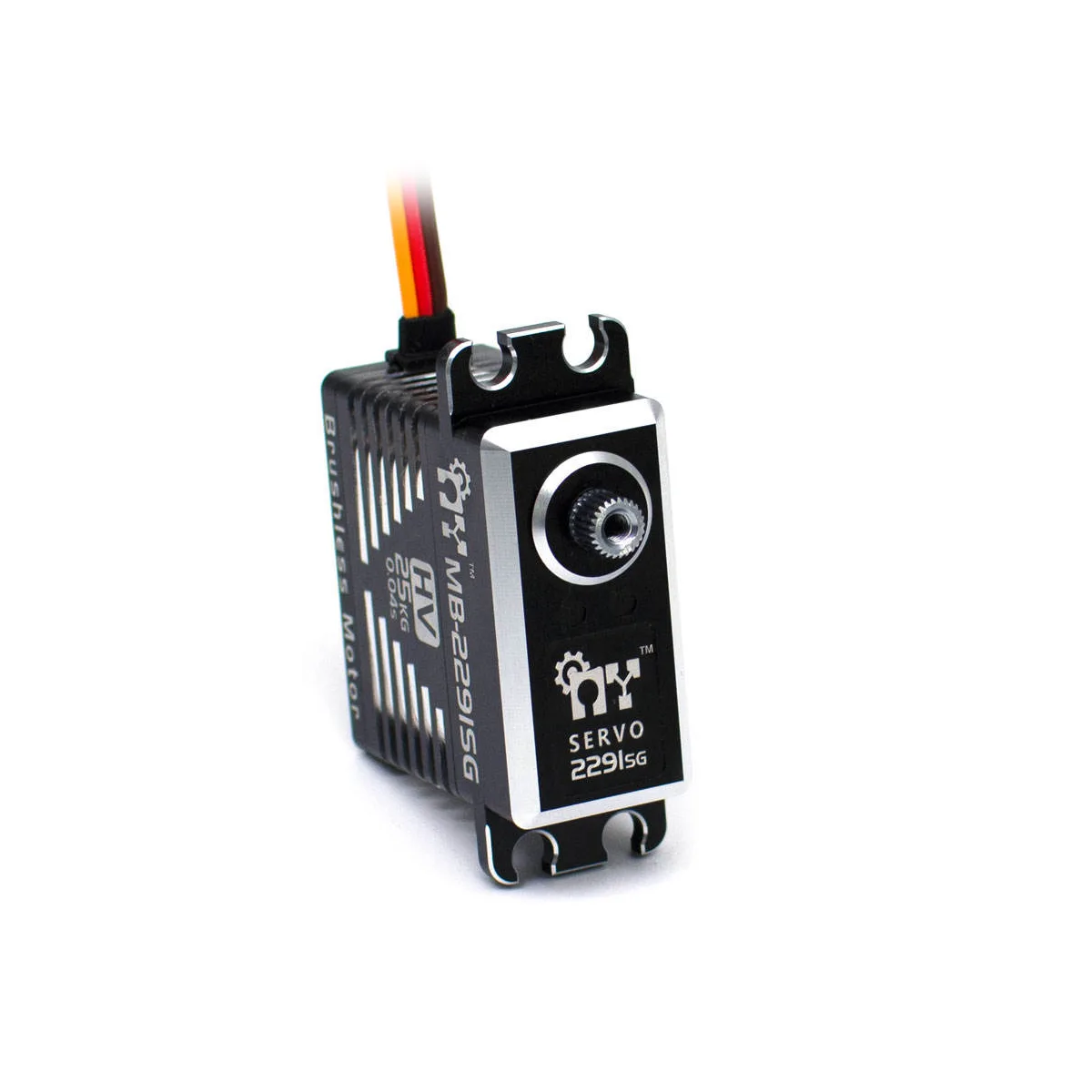

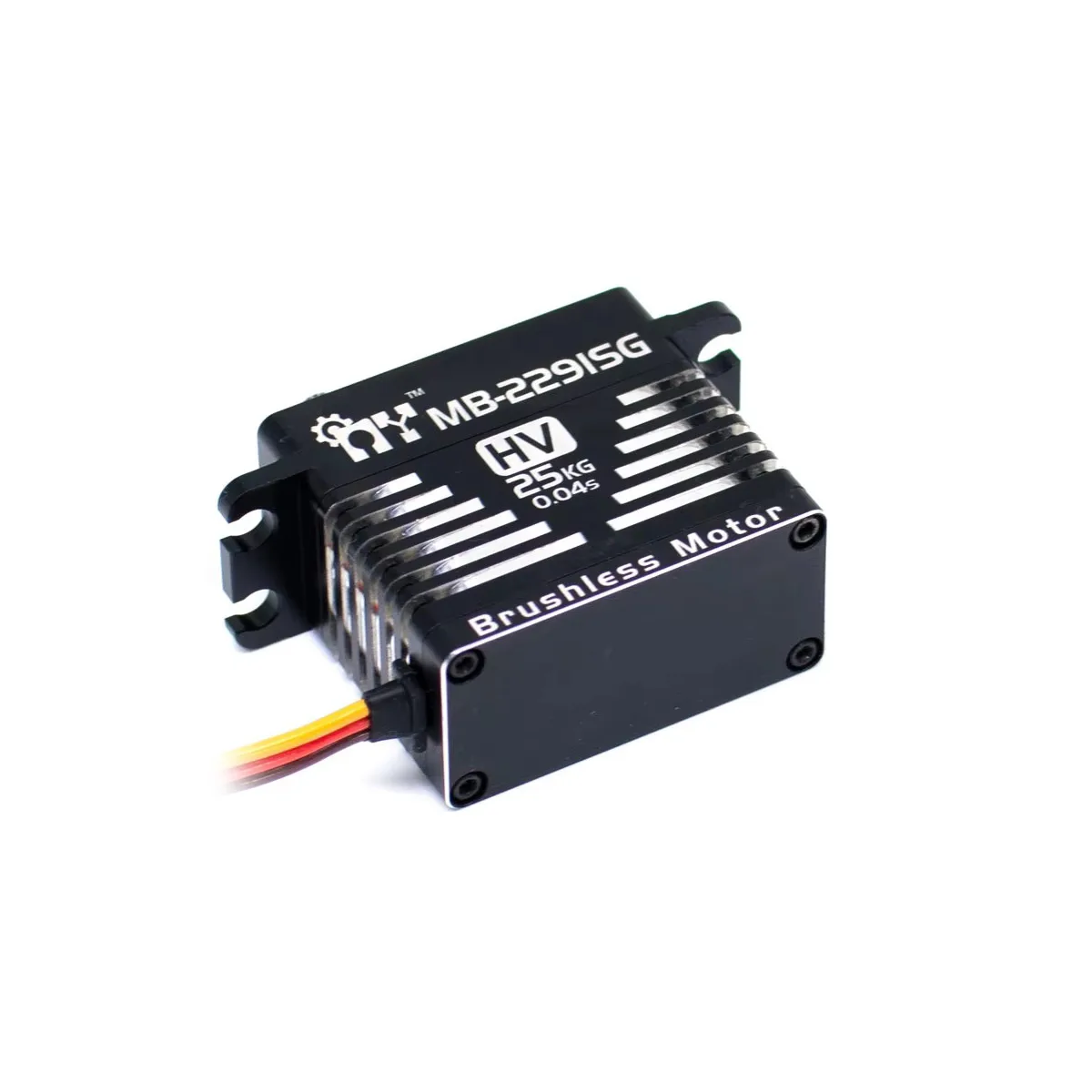

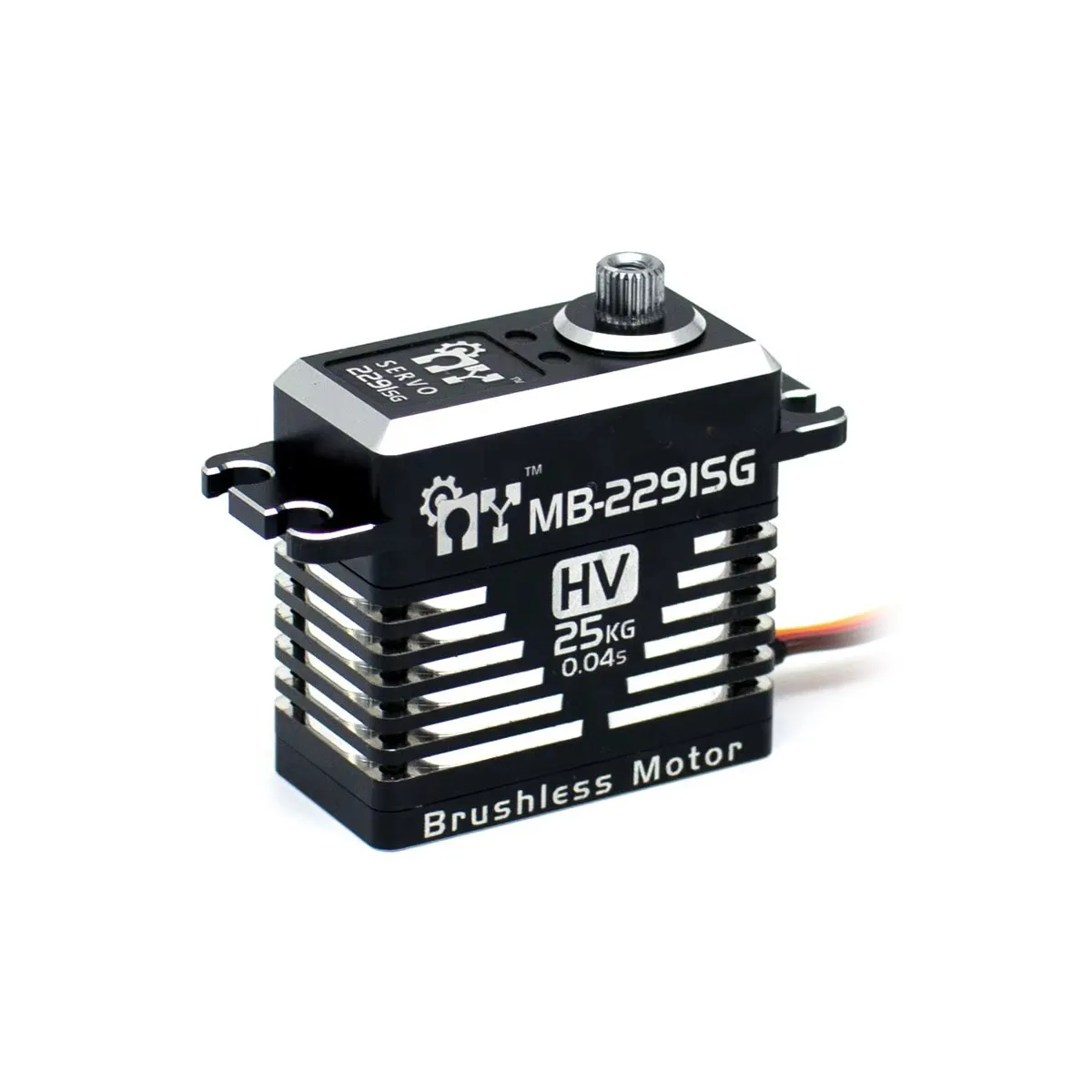

MY Servo MB-2291SG 8.4V 25kg Full Metal Aluminium Case Steel Gear High Voltague Digital Servo
















MY Servo MB-2291SG 8.4V 25kg Full Metal Aluminium Case Steel Gear High Voltague Digital Servo
At its core, the MB-2291SG is a state-of-the-art brushless digital servo. This advanced system operates with exceptional efficiency, generating less heat and providing a significantly longer lifespan than traditional brushed motors. The brushless design delivers smoother, near-silent operation and instantaneous power response, working in concert with a sophisticated digitalprocessor for unparalleled control, heightened resolution, and superior holding torque.
full aluminium case
high performance digital standard servo
high precision metal gears
double ball bearings
Model: MB-2291SG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Brushless Motor
Operating Speed 7.4V): 0.05sec/60°
Operating Speed (8.4V): 0.04sec/60°
Stall Torque (7.4V): 18.0kg.cm
Stall Torque (8.4V): 25.0kg.cm
Dimensions: 40.3×20.2×38.7mm
Weight: 79g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

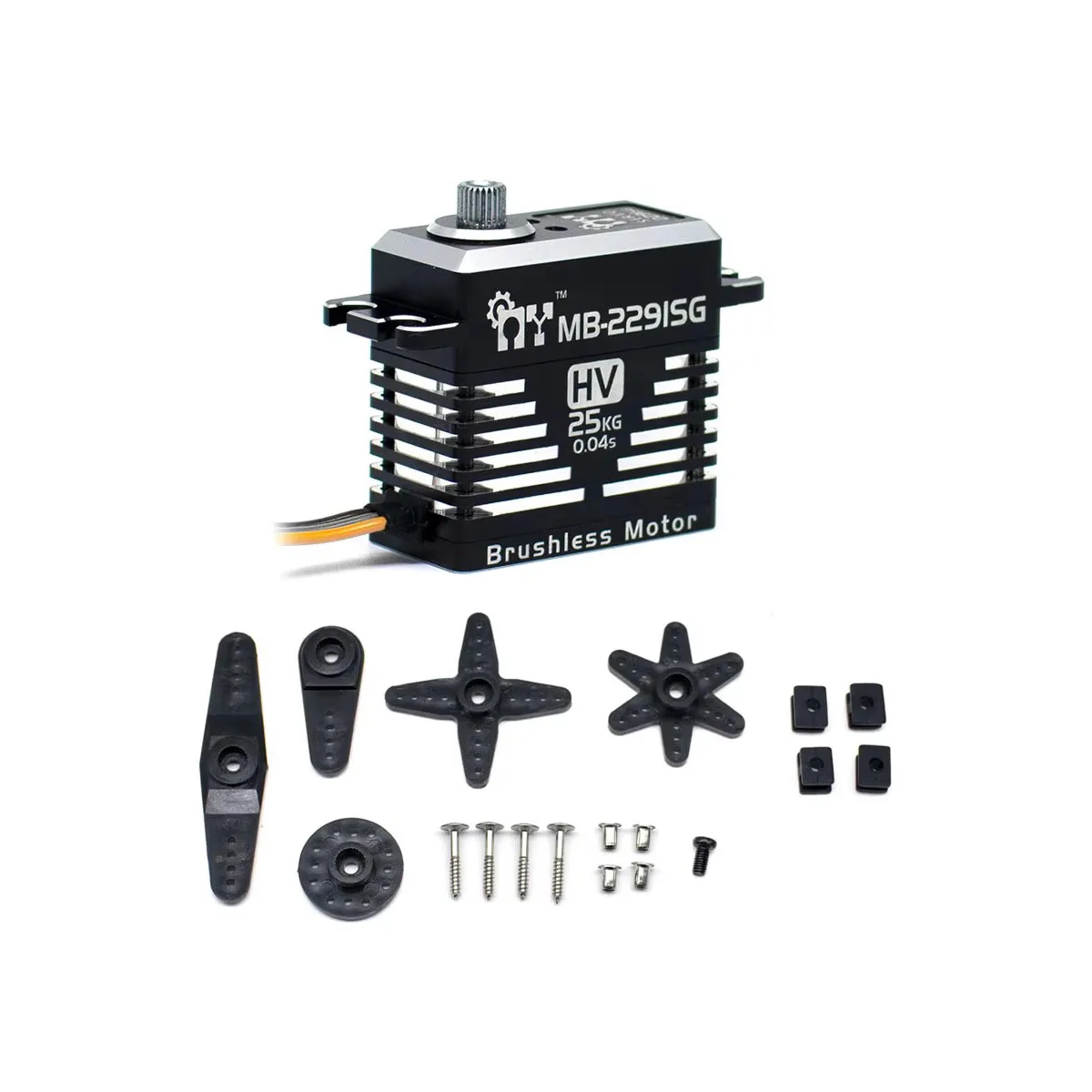

MB-2291SG Servo x1
Pack of Accessories x1
