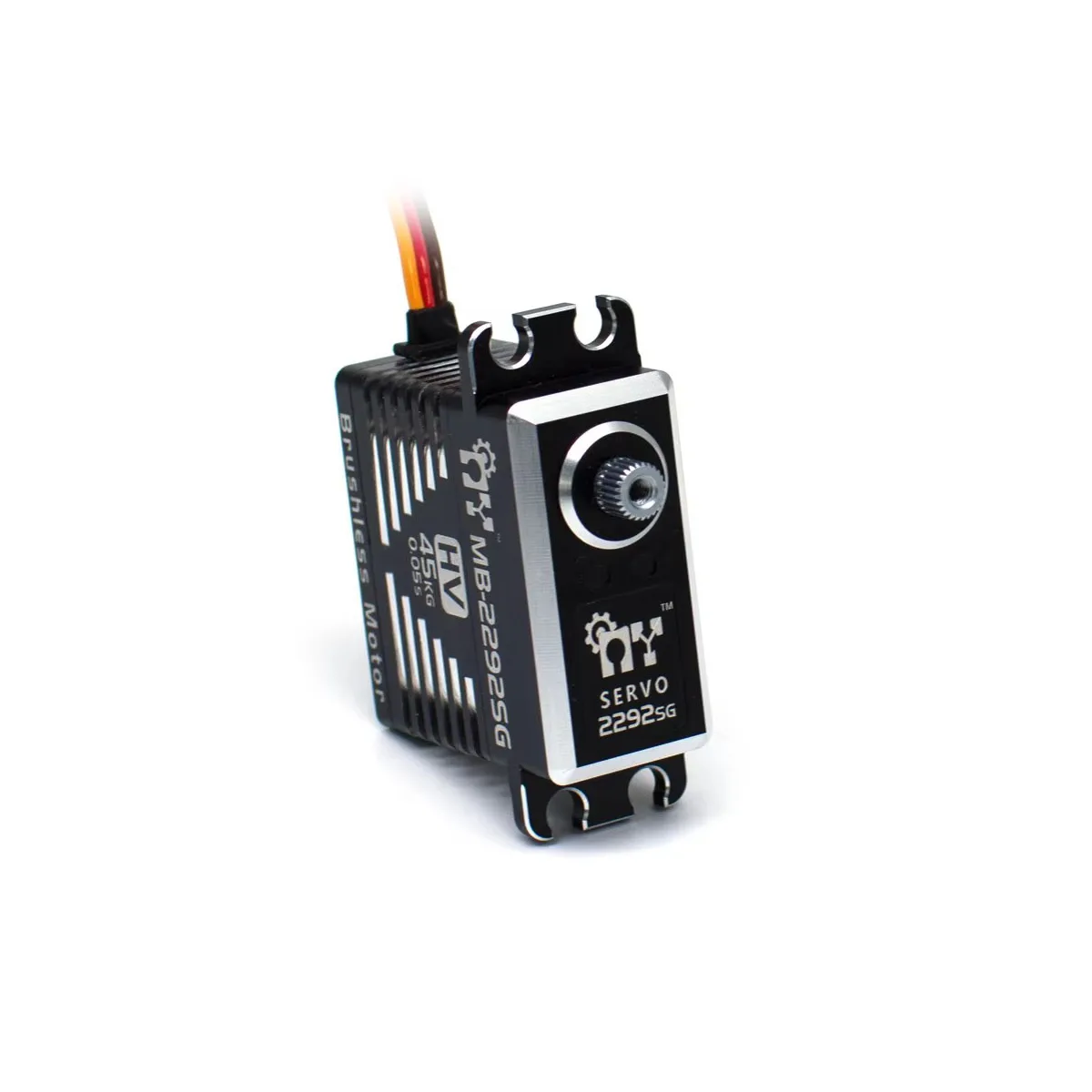

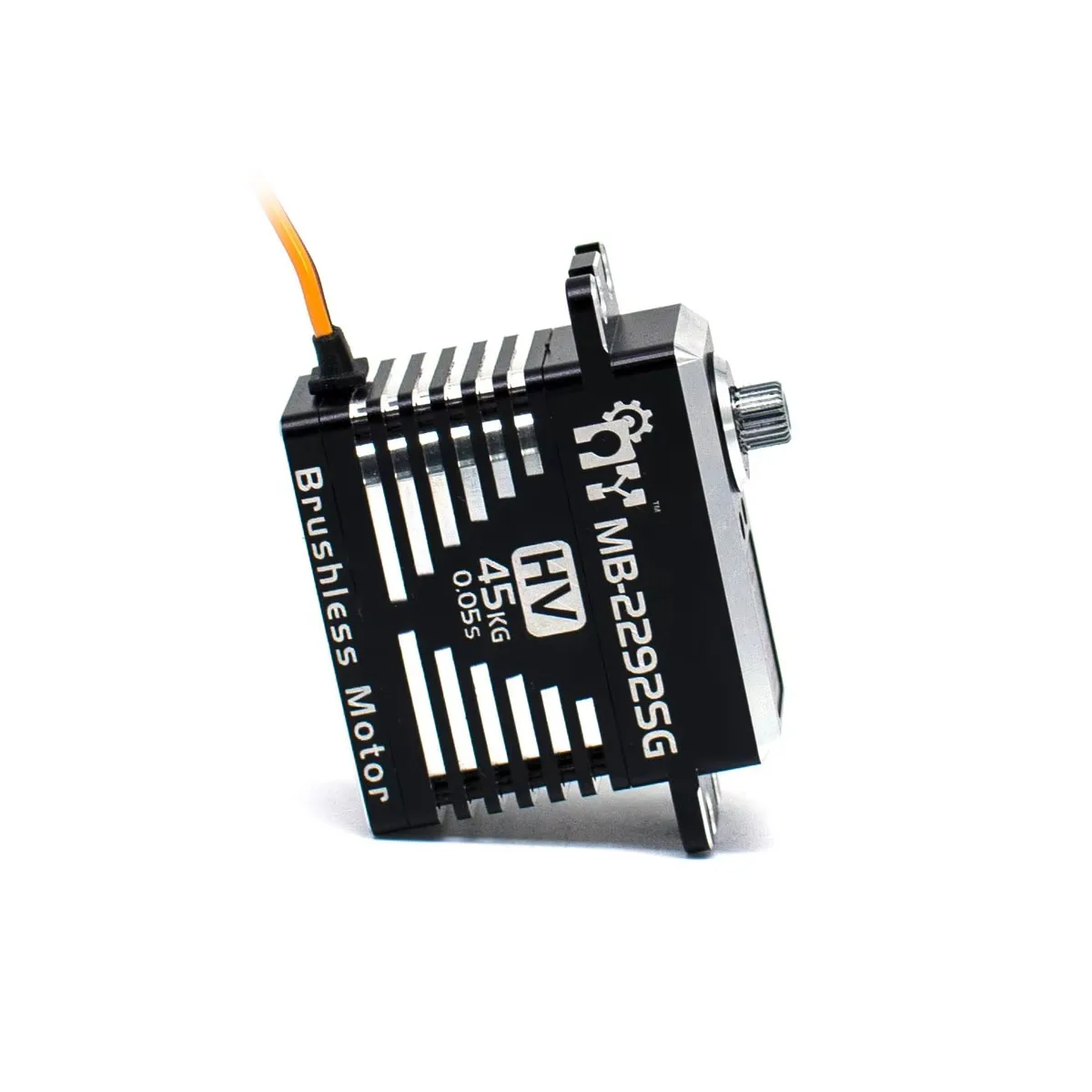

MY Servo MB-2292SG 8.4V 45kg Brushless Motor Aluminium Case High Speed Waterproof Digital Servo

SKU MB-2292SG Category Tag Brand:



MY Servo MB-2292SG 8.4V 45kg Brushless Motor Aluminium Case High Speed Waterproof Digital Servo

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

The heart of the MB-2292SG is its advanced brushless motor system, which operates with exceptional efficiency and remarkable smoothness. This technology, governed by a sophisticated digital processor, provides instantaneous torque response, superior resolution, and unparalleled holding power. The result is precise, responsive control that gives users a definitive competitive edge, whether navigating complex robotic movements or steering a heavy-scale RC vehicle at high speeds.
full aluminium case
high performance digital standard servo
high precision metal gears
double ball bearings

Model: MB-2292SG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Brushless Motor
Operating Speed 7.4V): 0.07sec/60°
Operating Speed (8.4V): 0.05sec/60°
Stall Torque (7.4V): 31.0kg.cm
Stall Torque (8.4V): 45.0kg.cm
Dimensions: 40.3×20.2×38.7mm
Weight: 79g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

MB-2292SG Servo x1
Pack of Accessories x1
