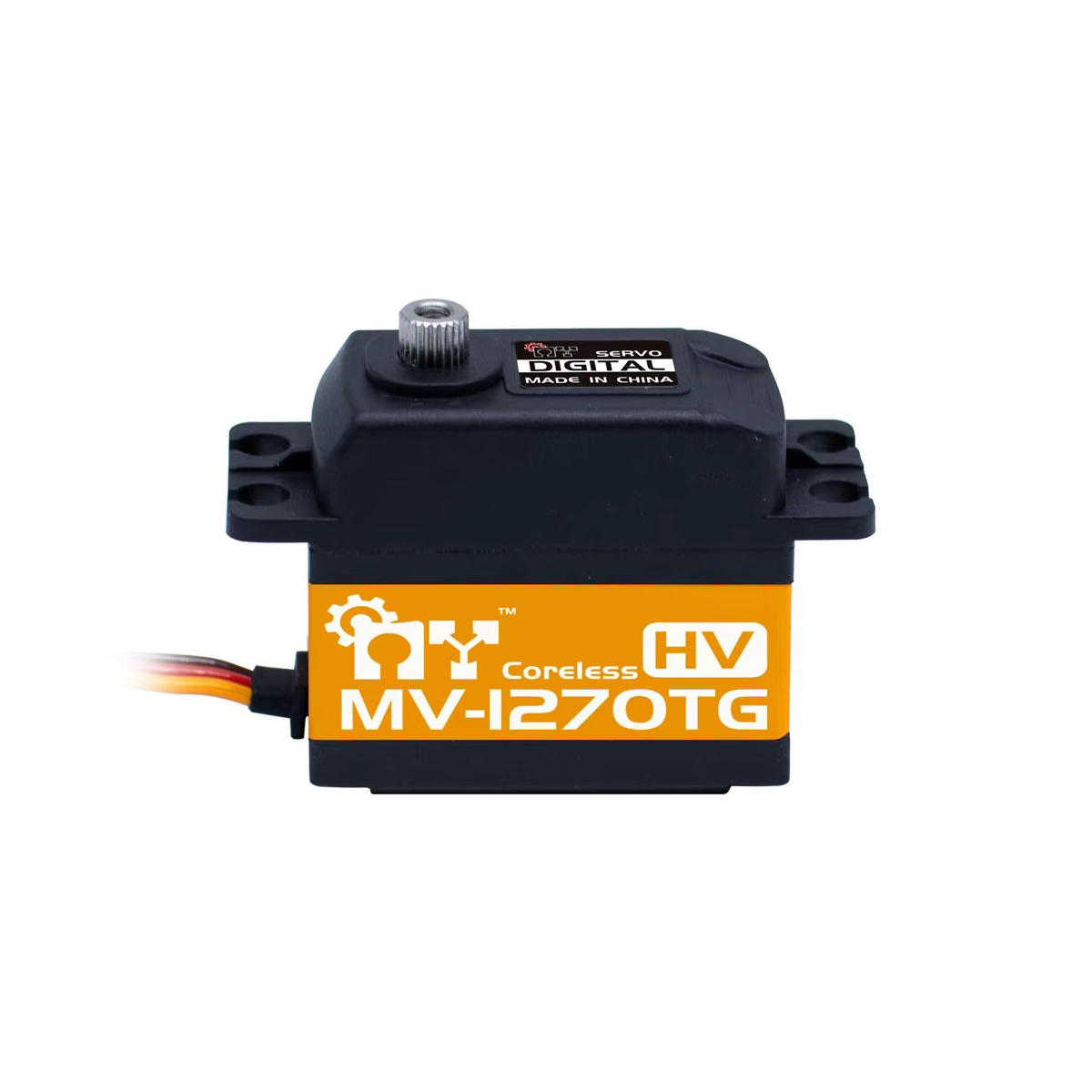

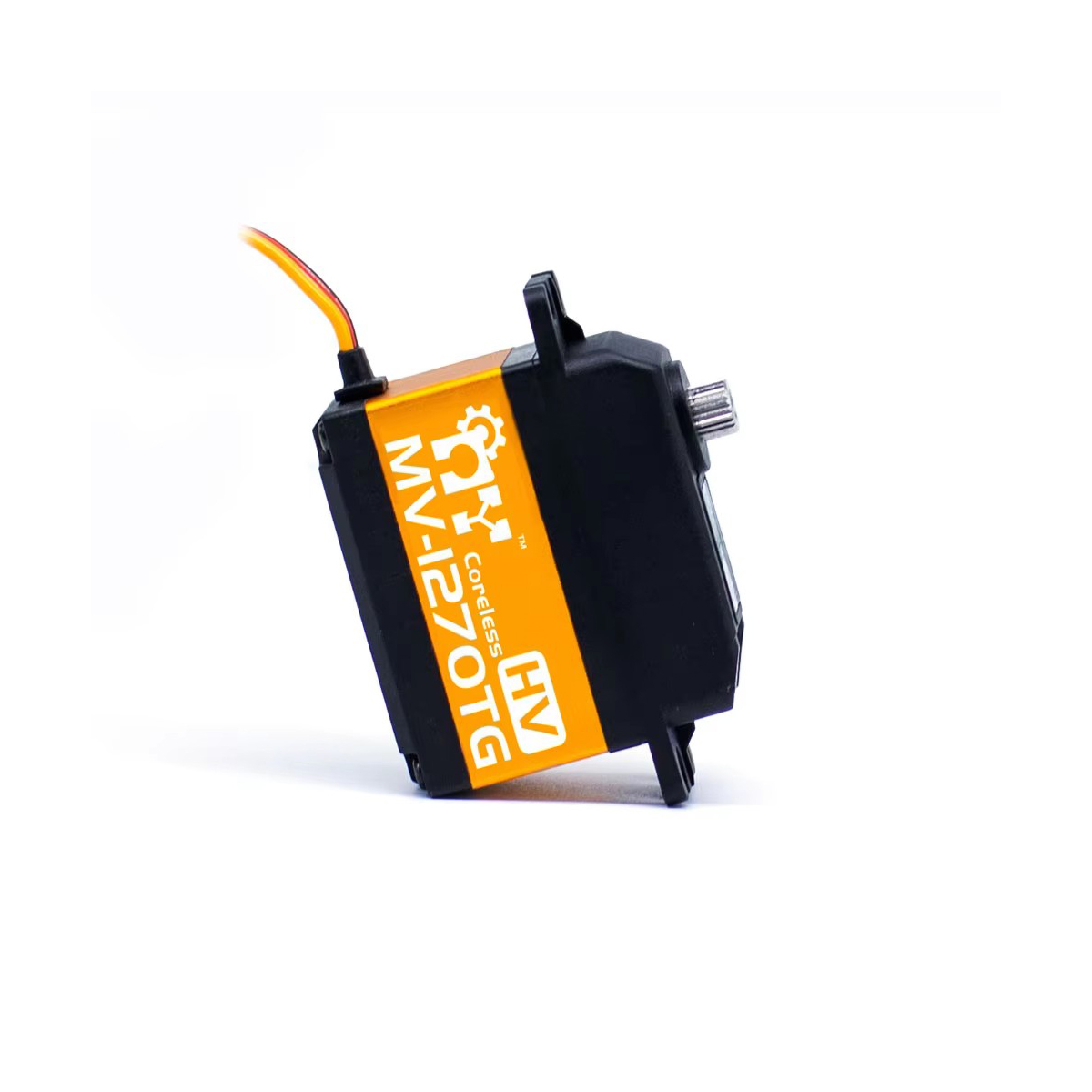

MY Servo MV-1270TG 7.4V 35kg Titanium Gear Coreless Motor Servo for RC Car Helicopter Robot
7.4V 35kg high performance coreless standard digital servo
High precision titanium alloy gears
Aluminum mid shell structure housing
Double ball bearings
JR plug
Efficient coreless motor with accurate and fast response
32 bit ultra high resolution high torque digital servo
Model: MV-1270TG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Coreless Motor
Operating Speed 6.0V): 0.14sec/60°
Operating Speed (7.4V): 0.11sec/60°
Stall Torque (6.0V): 26.0kg.cm
Stall Torque (7.4V): 35.0kg.cm
Dimensions: 40.3×20.2×37.2mm
Weight: 64g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

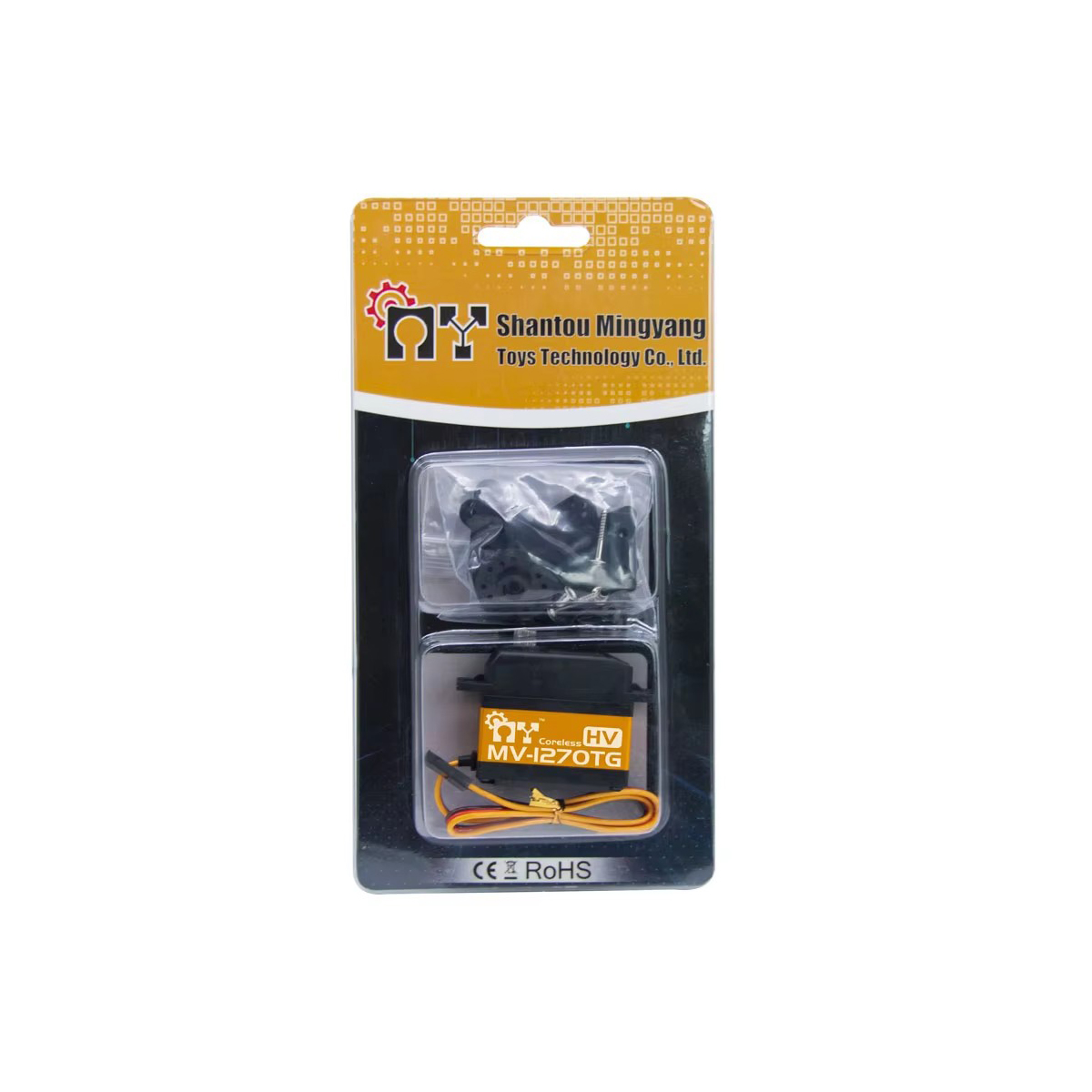

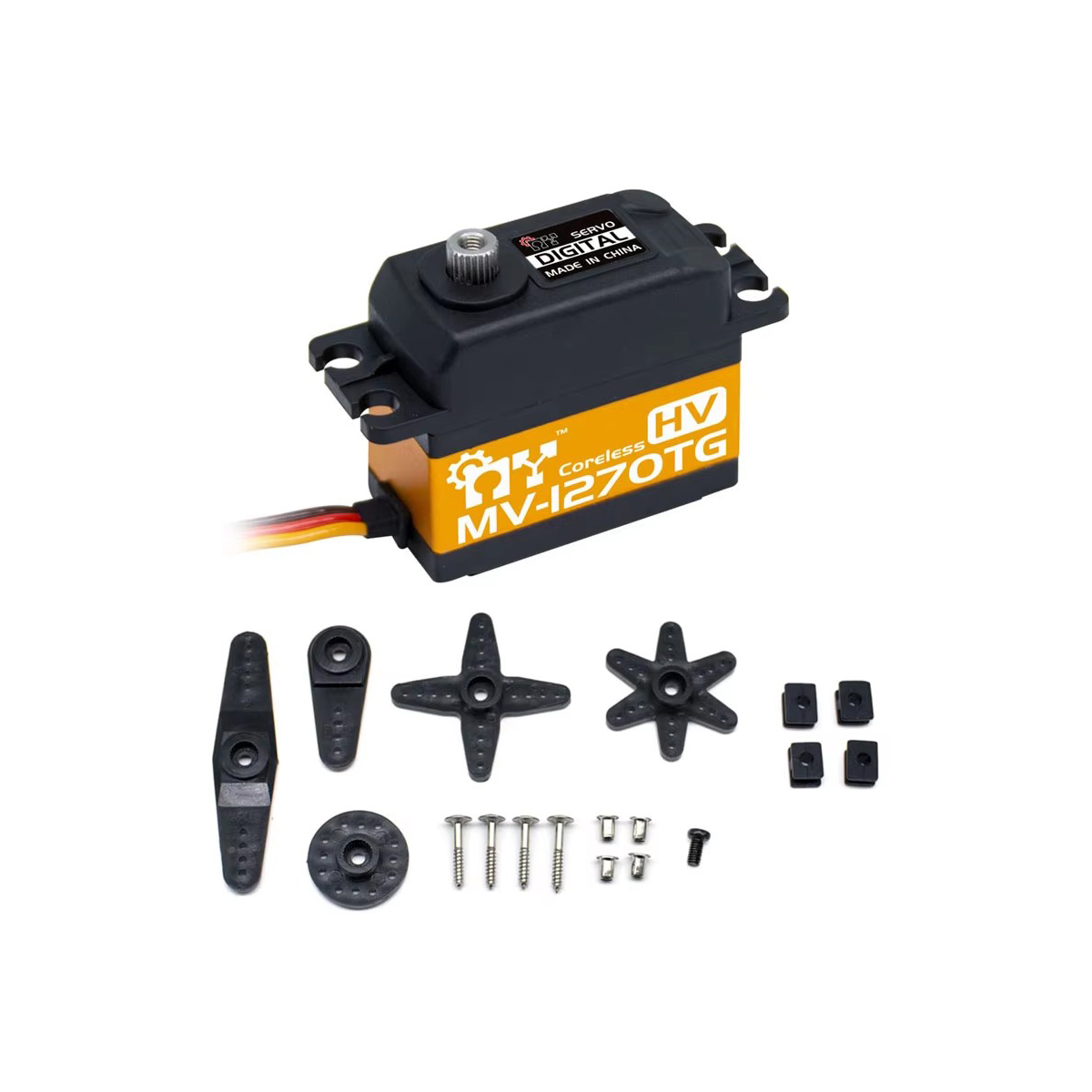

MV-1270TG Servo x1
Pack of Accessories x1
