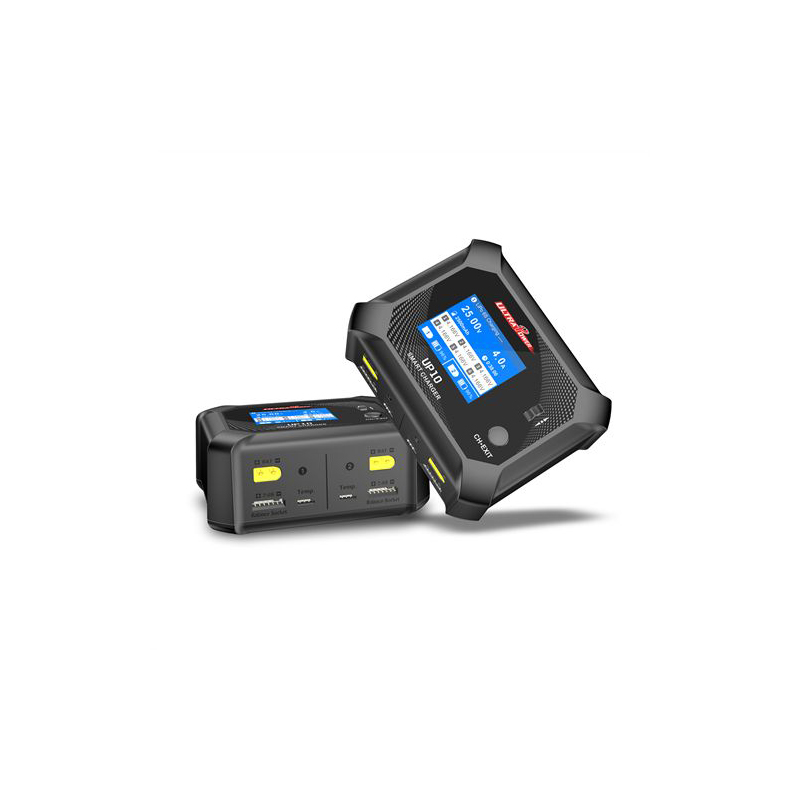

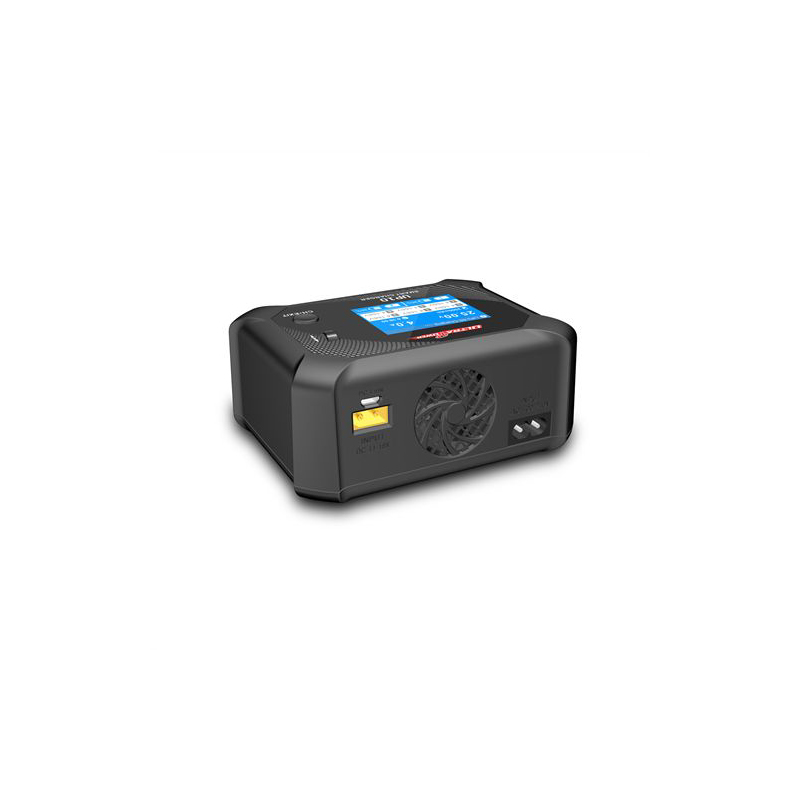

New ULTRA POWER UP10 Smart Balance Charger AC100W/DC200W 2.4 inch IPS Screen/AC/DC Dual Mode/Dual Channel Fast Charger
New ULTRA POWER UP10 Smart Balance Charger AC100W/DC200W 2.4 inch IPS Screen/AC/DC Dual Mode/Dual Channel Fast Charger
* It can support AC input or DC input, meet different use requirements. The output power is 100W in AC mode, 200W in DC mode.

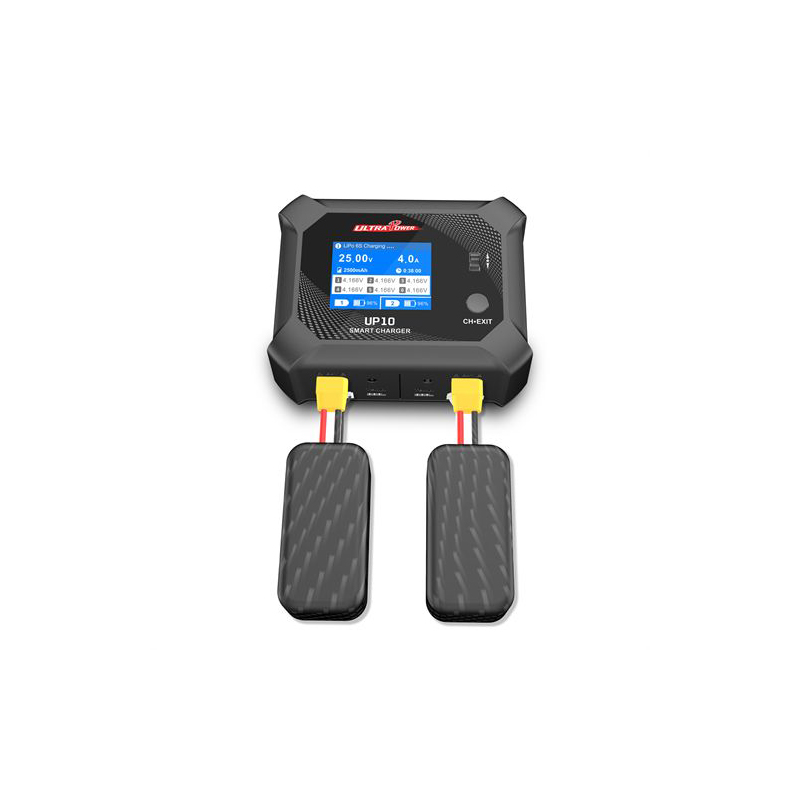

* Independent dual channel output, without interference by each other, single channel current up to 10.0A, support to charge 2pcs different type of batteries simultaneously. Including Lipo, LIHV (Support 4.45V), Lilon, Life, Nimh, Nicd, Lead Acid.
* 32 bit ARM chip, high accuracy charging management, balance precision within 0 .005V, well protect your battery automatically under various accident circumstance.

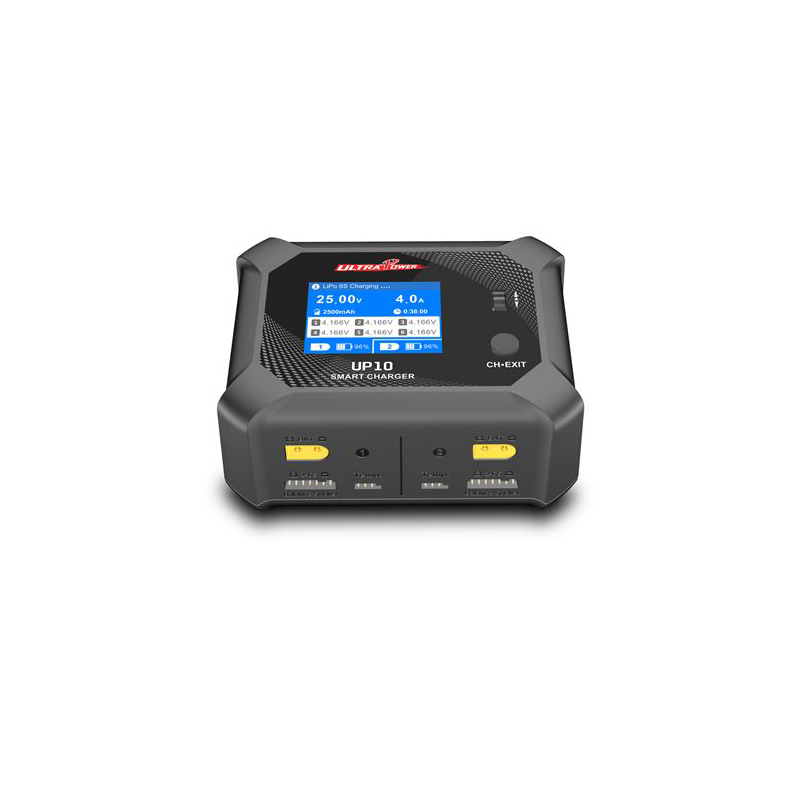

* 2.4” HD IPS color screen, all the data are visible under the sunshine, easy to get the information.
* Monitoring the comprehensive real-time data and showing the batteries status, judging the charging status by the LCD color.
Note: This charger is used to replace UP200 DUO, UP200 DUO has been discontinued
Input voltage:AC 100-240V, DC 11.0-18.0V
Output voltage: 0.1-26.1V
Charge Current: 0.1-10.0Ax2
Discharge Current: 0.1-5.0A
Charge Power DC Input: 2x100W
AC input: Max. CH1+CH2=100W
Support power distribution (2x50W)
Balance current: Max.500mA/cell
Discharge Power: 2x10W
LiHV(Support 4.45V battery)
LiPo/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)
LCD Screen type: 2.4〃320×240 IPS LCD

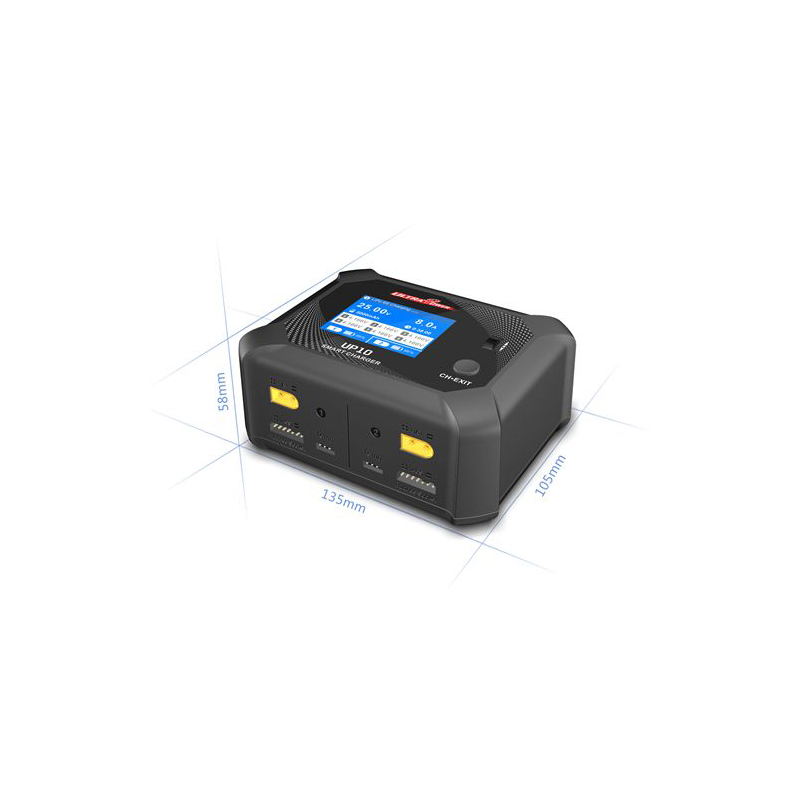

Dimensions: 135x105x58mm
Weight: 550g
UP10 Smart Balance Charger x1
