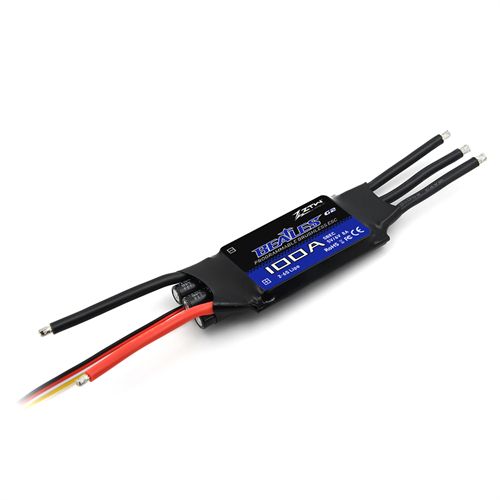

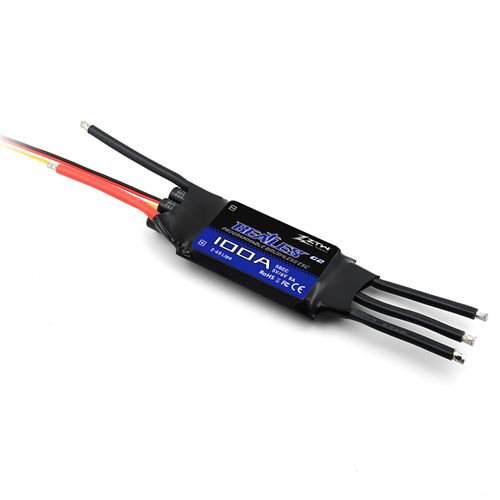

New ZTW Beatles G2 Series 32-bit ESC 100A 2-6S SBEC 5V/6V 8A Brushless Speed Controller for RC Airplane










New ZTW Beatles G2 Series 32-bit ESC 100A 2-6S SBEC 5V/6V 8A Brushless Speed Controller for RC Airplane
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Freewheeling make the ESC with higher driving efficiency and more energy-saving.
5. Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful power to the servo.
6. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
7. Support high RPM motors, and compatible with most motors in the market.
8. SMR Function: it supports switching the motor rotation to decelerate when the airplane landing to the ground.
Cont/Peak Current: 100A/120A
Battery NiXX/Lipo: 5-18NC/2-6Lipo
BEC Output: 5V/6V 8A(Switch Mode)
Size(L*W*H): 90*37*10
Weight: 80g
100A 2-6S SBEC 5V/6V 8A Brushless ESC x1
