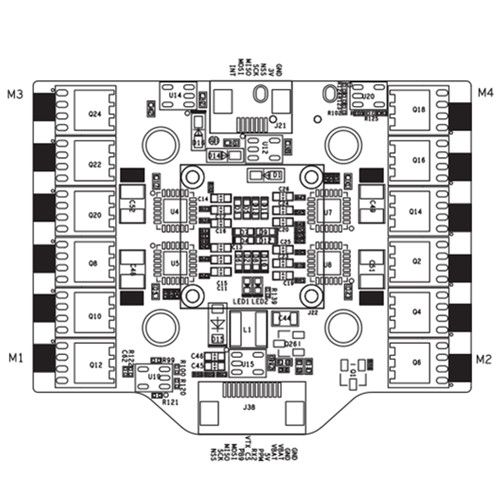

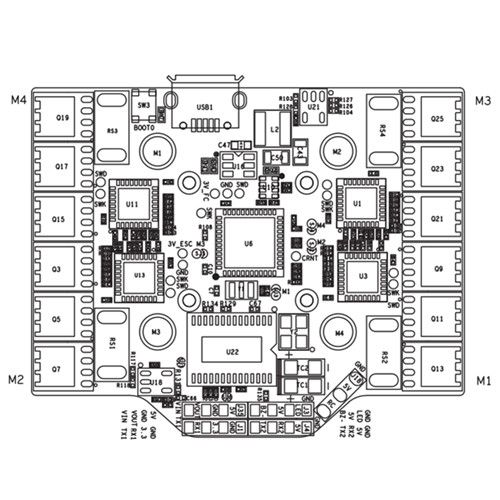

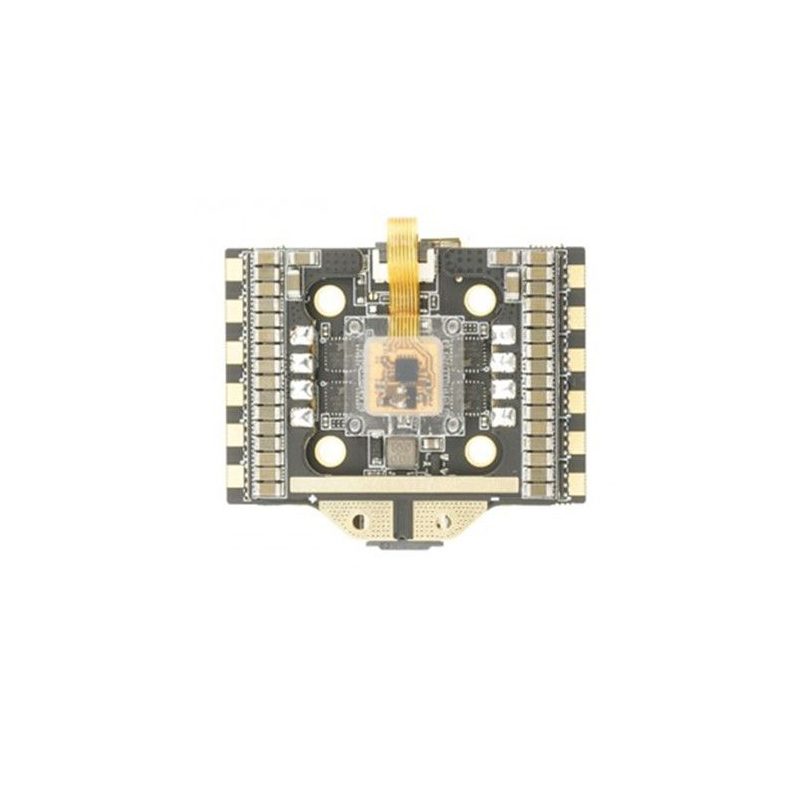

Airbot NOX its a small and compact AIO flight controller with STM32F411 MCU , ICM6000 MPU/Gyro 4x 35A Blheli_32 ESC (with telemetry functionality) , Barometer , 5V BEC with LC filter (500ma)and 4000uf capacitors onboard!
Yes that’s right , all of that installed in a single board with 48mmx39mm dimensions , 20x20mm mounting holes and weights around 20g !
20x20mm mounting holes (M3 Screws)
– 4x 35A BLHeli_32 ESC (DSHOT 1200 & Telemetry )
– STM32F411 MCU @ 100Mhz
– ICM Gyro mpu6000
– Betaflight OSD
– Incl. Barometer
– 5V BEC (500ma) With LC Filter
– 4000uf cap onboard
1X NOX V2
