NSK-10Q NSK-10QJ 10kg Robot Arm Quick Change Disc Automatic Fast Exchange Fixture for Injection Molding Machine
NSK-10Q NSK-10QJ 10kg Robot Arm Quick Change Disc Automatic Fast Exchange Fixture for Injection Molding Machine
This product is precision-machined by an imported 5-axis machining center. The machining accuracy reaches 0.005mm. The surface is treated with hard anodizing, featuring uniform color, no scratches, no burrs, smooth operation and no abnormal noise.
Model: NSK-10Q With Signal Module
Material: Super-Hard Aluminum Alloy
Weight: Approx. 470g
Mounting Position: Manipulator Side
Rated Load Capacity: 0~10kg
Installed Thickness: 40mm
Application: Quick-Change Fixture For Injection Molding Machine Manipulators
Model: NSK-10QJ With Signal Module
Material: Super-Hard Aluminum Alloy
Weight: Approx. 235g
Mounting Position: Tool Side
Rated Load Capacity: 0~10kg
Installed Thickness: 40mm
Application: Quick-Change Fixture For Injection Molding Machine Manipulators

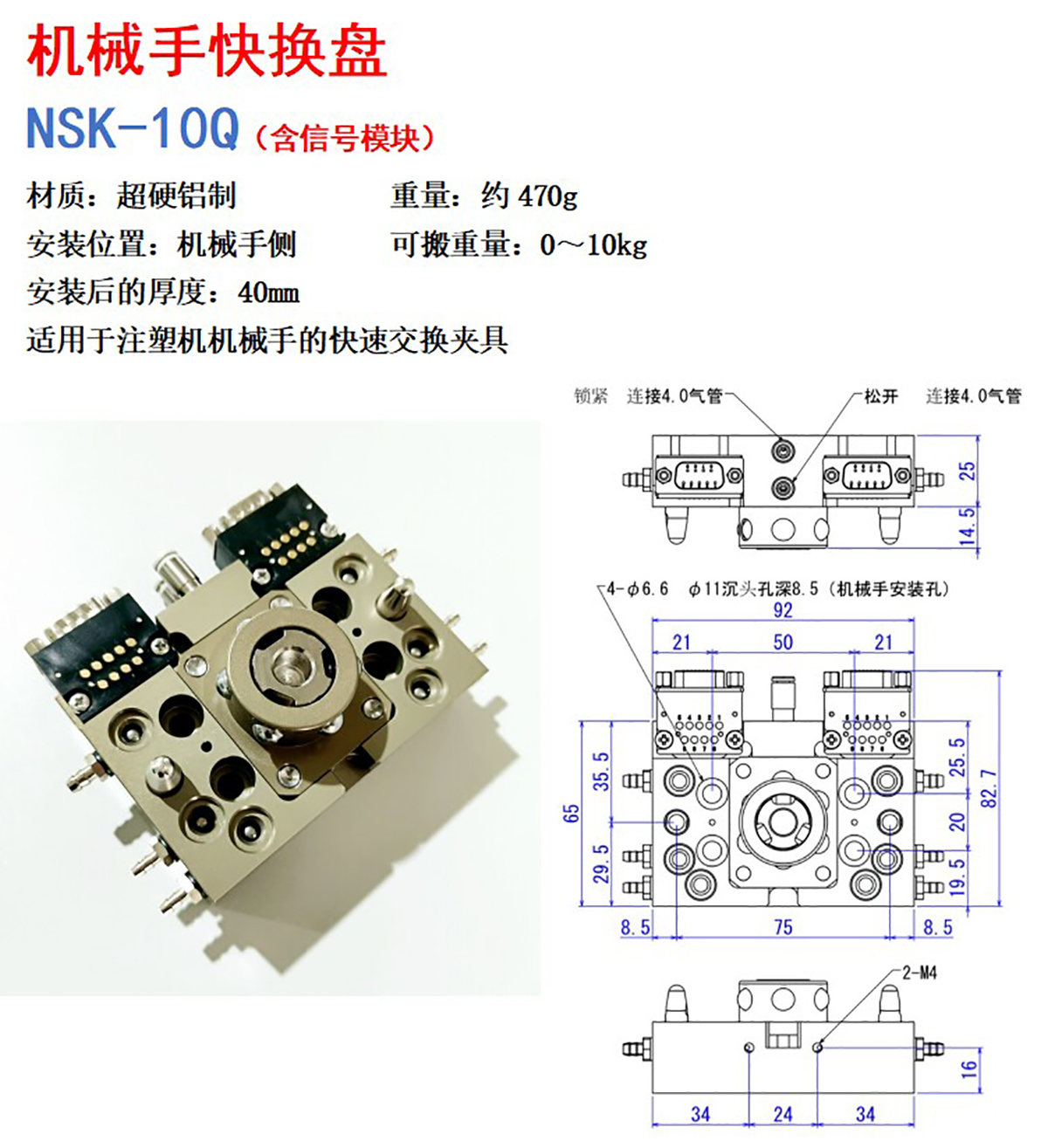

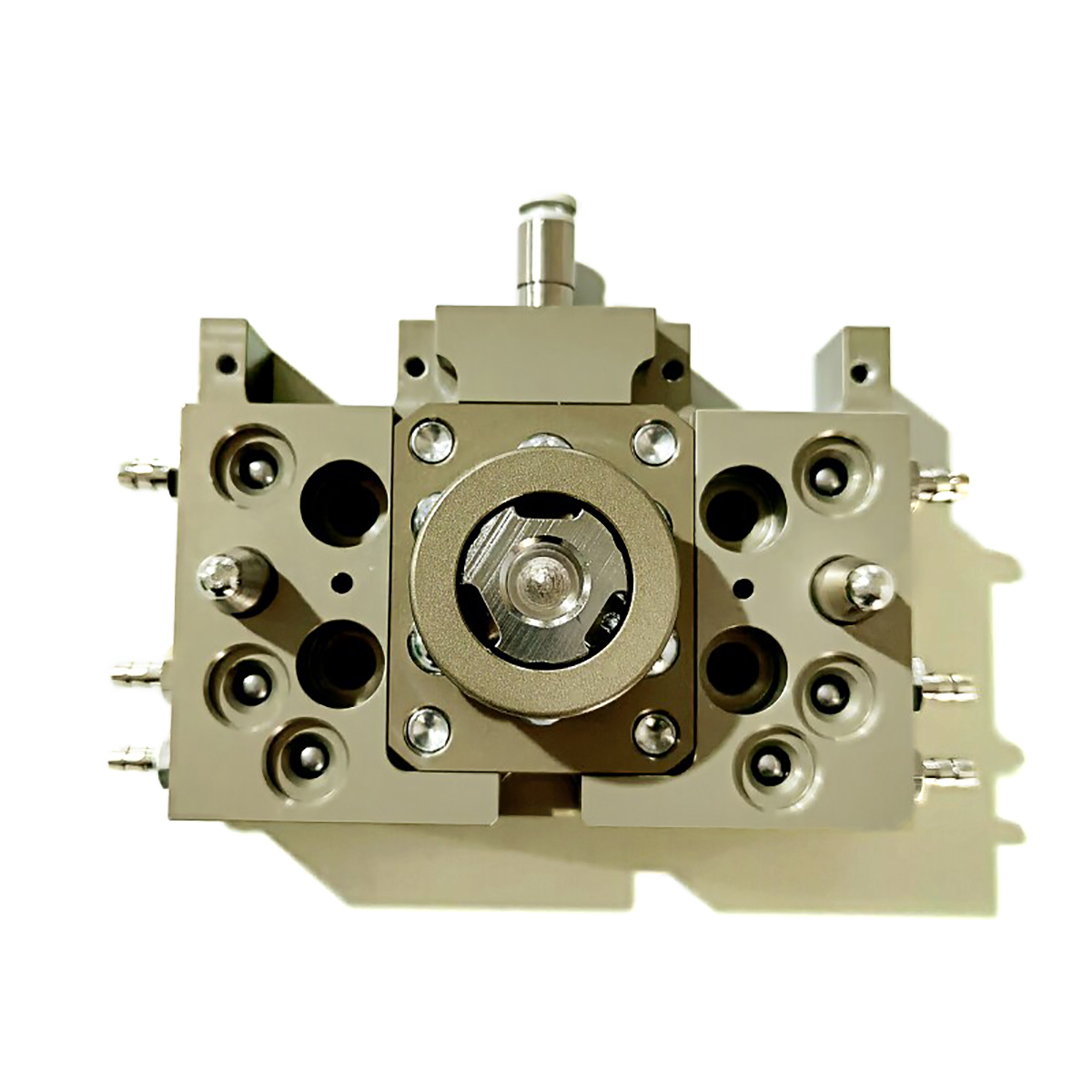

NSK-10Q
Manipulator Side NSK-10Q With Signal Module

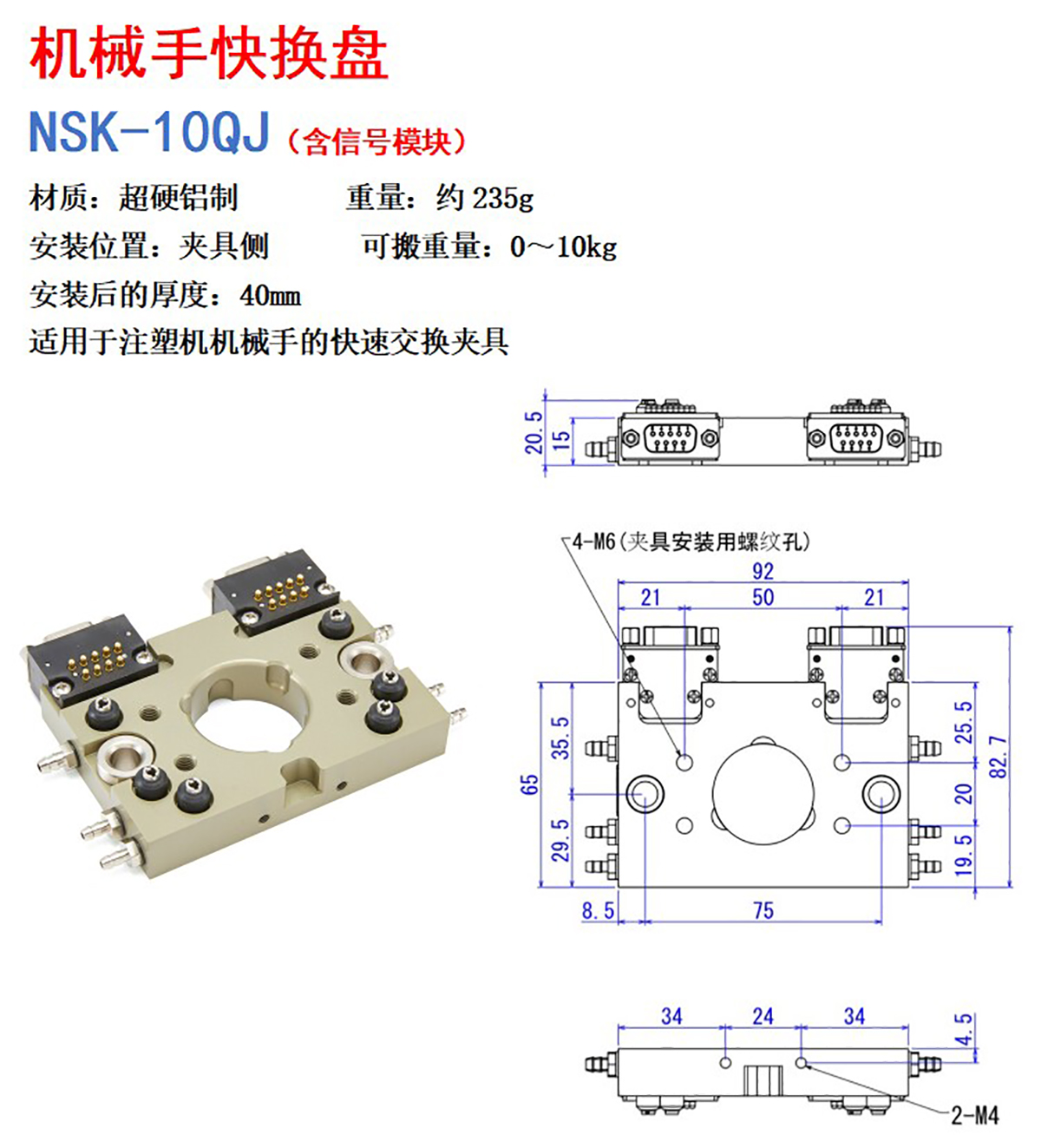

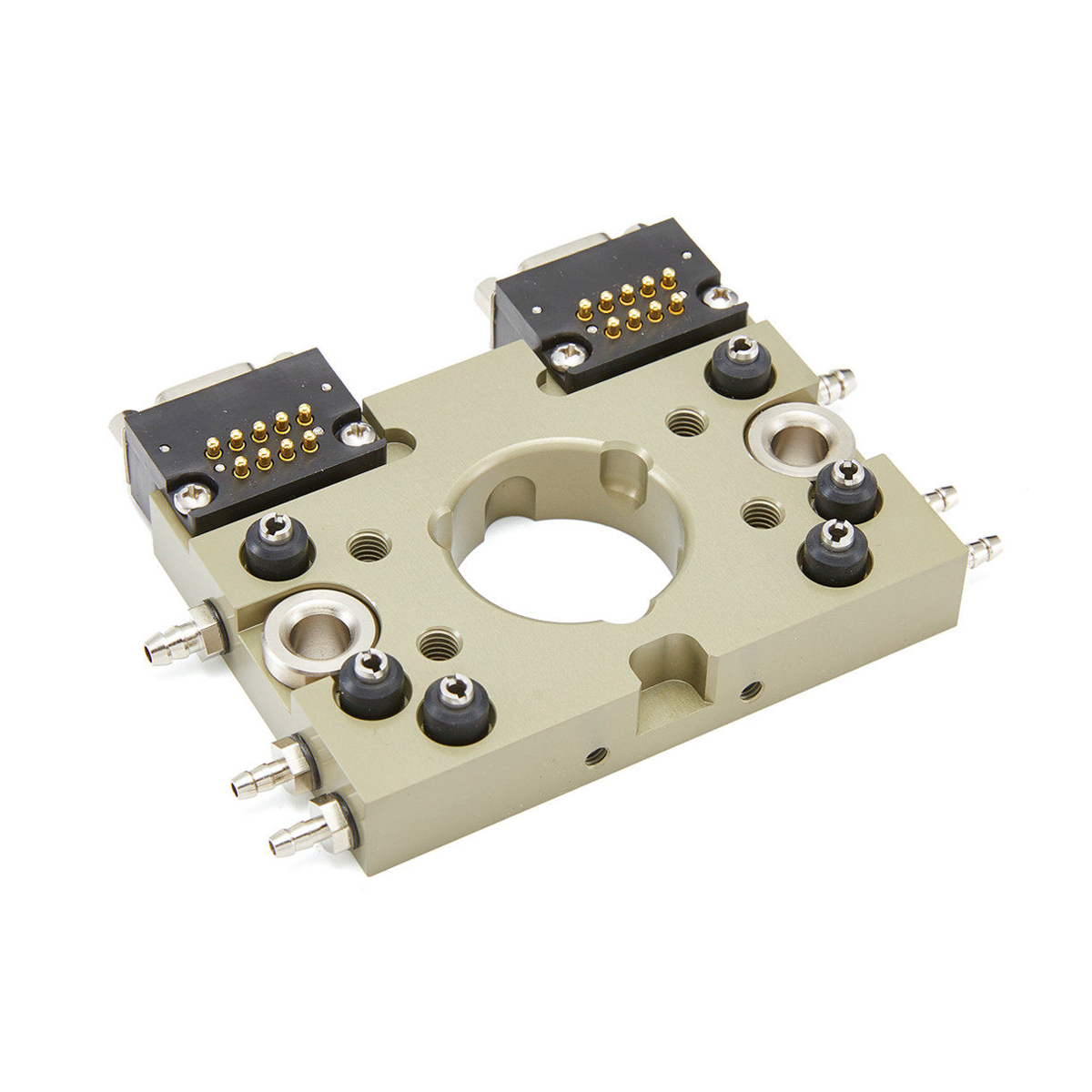

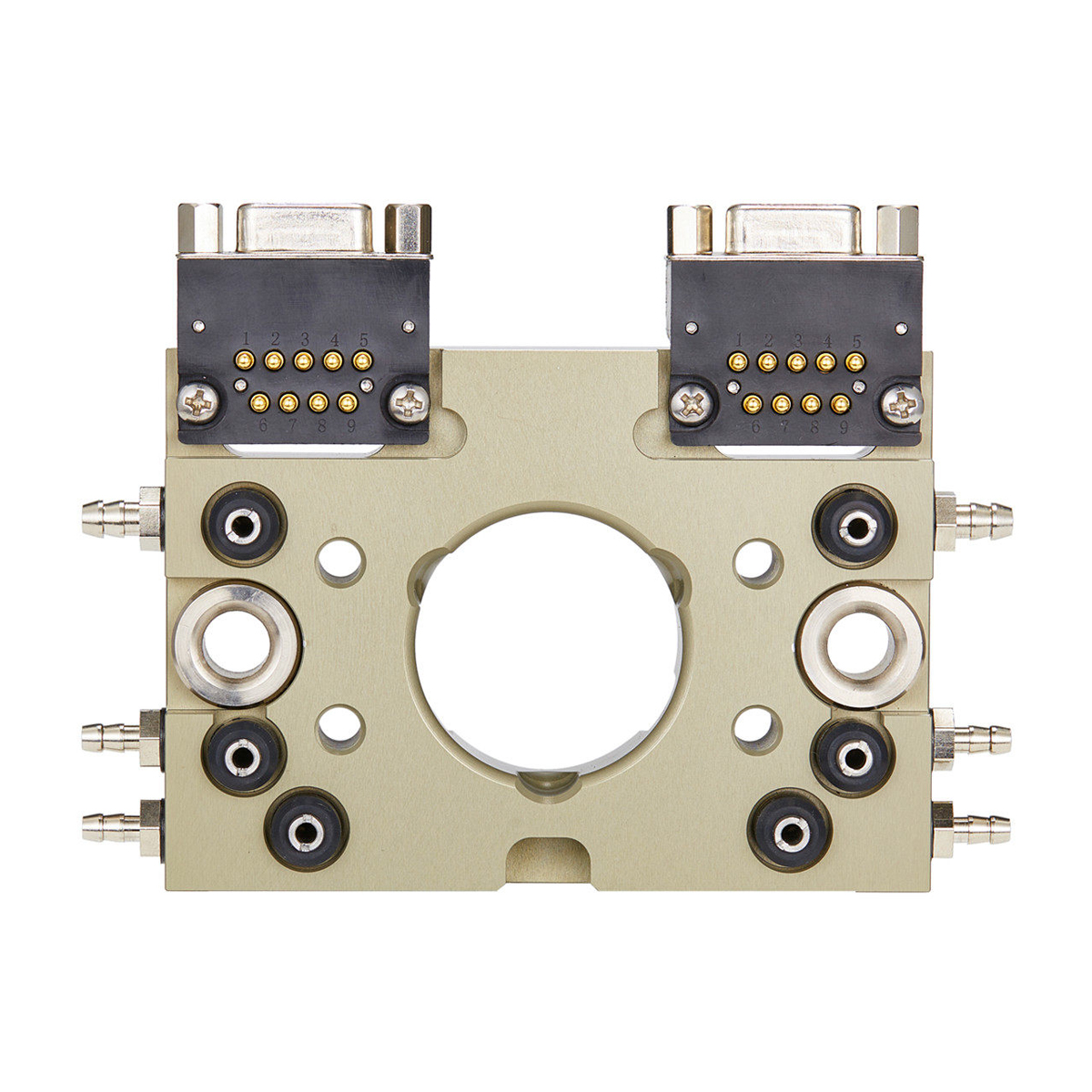

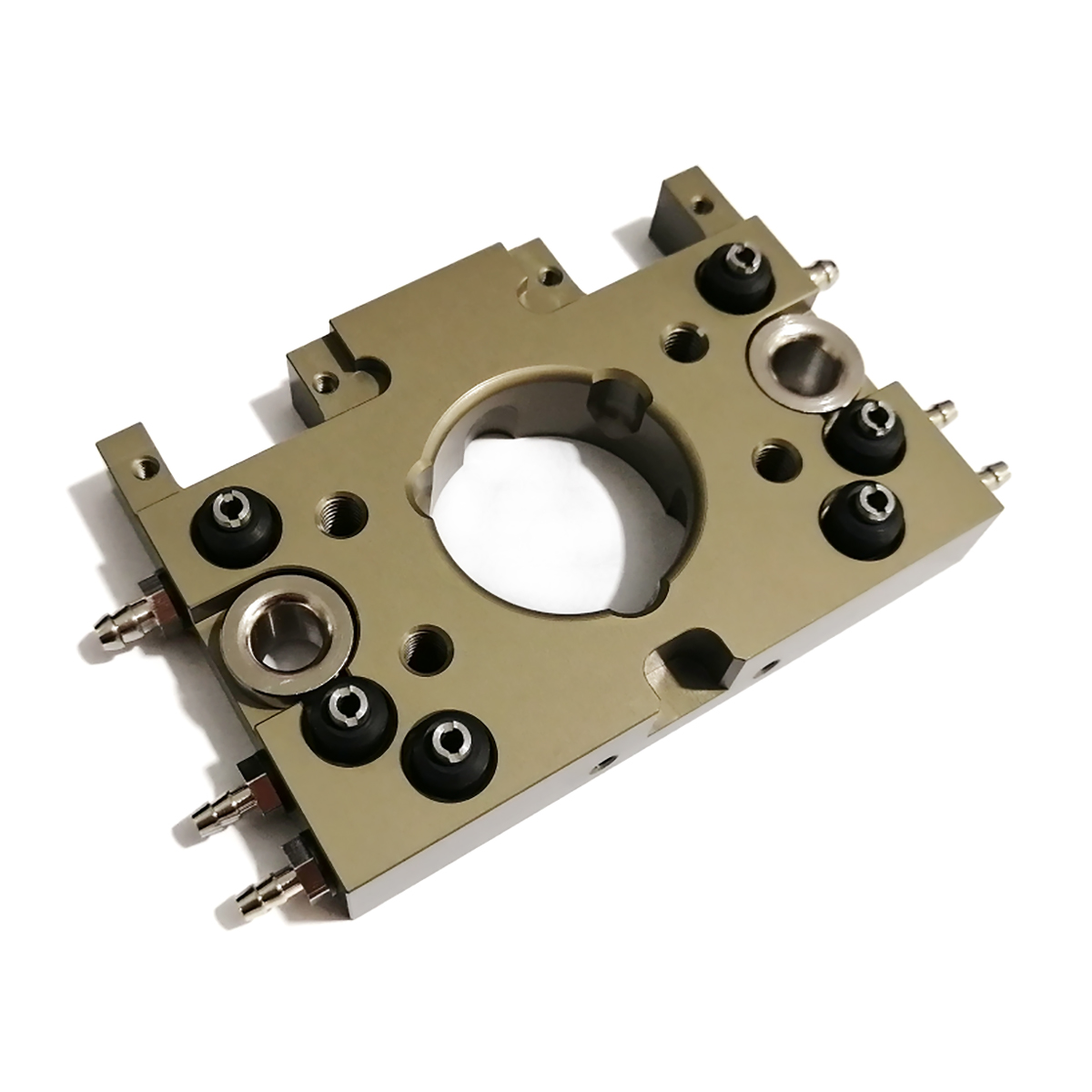

NSK-10QJ
Tool Side NSK-10QJ With Signal Module
