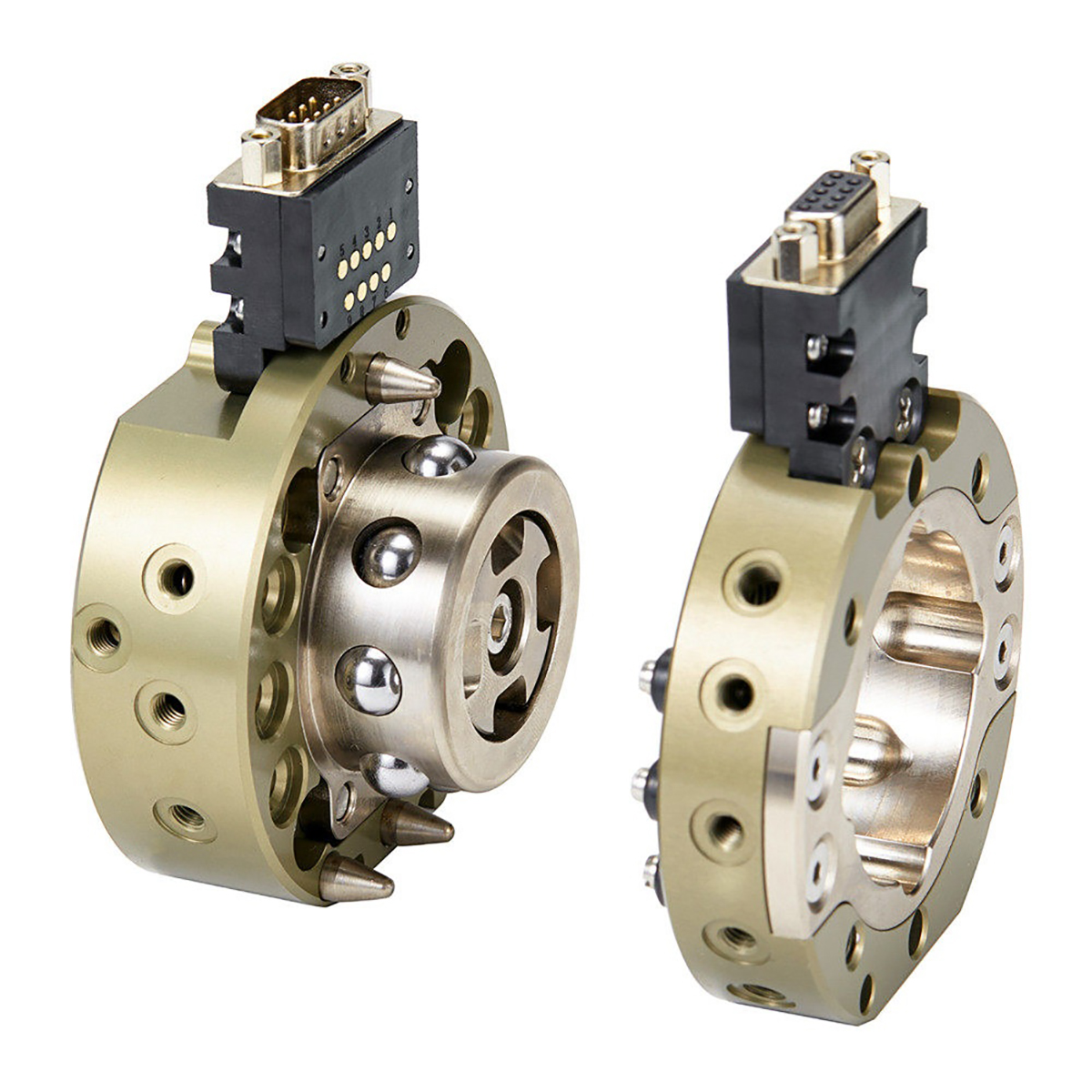

NSK-20D NSK-20DJ 20kg Robot Quick Changer High Load Automatic Quick Change Disc for Robotic Manipulator End Effector
NSK-20D NSK-20DJ 20kg Robot Quick Changer High Load Automatic Quick Change Disc for Robotic Manipulator End Effector
This product is precision-machined by an imported 5-axis machining center. The machining accuracy reaches 0.005mm. The surface is treated with hard anodizing, featuring uniform color, no scratches, no burrs, smooth operation and no abnormal noise.
Model: SK-20D With Signal Module
Material: Body Made Of Super-Hard Aluminum, Loading/Unloading Parts Made Of Mold Steel
Weight: 561g
Mounting Position: Robot Side
Installed Thickness: 47mm
Rated Load Capacity: 0~20kg
Application: Quick-Change Fixture for Multi-Joint Robots
Model: NSK-20DJ With Signal Module
Material: Body Made Of Super-Hard Aluminum, Loading/Unloading Parts Made Of Mold Steel
Weight: 229g
Mounting Position: Tool Side
Installed Thickness: 47mm
Rated Load Capacity: 0~20kg
Application: Quick-Change Fixture For Multi-Joint Robots

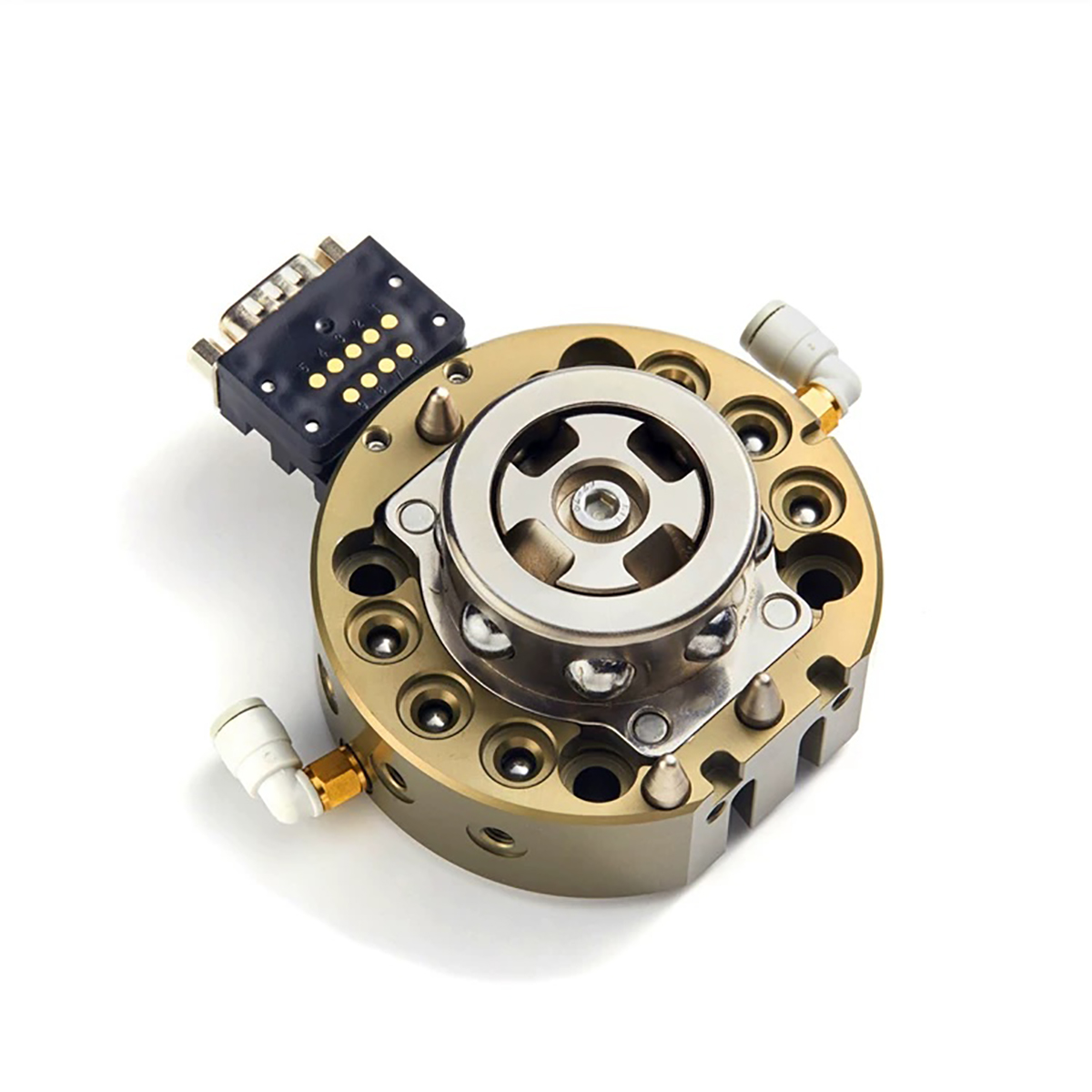

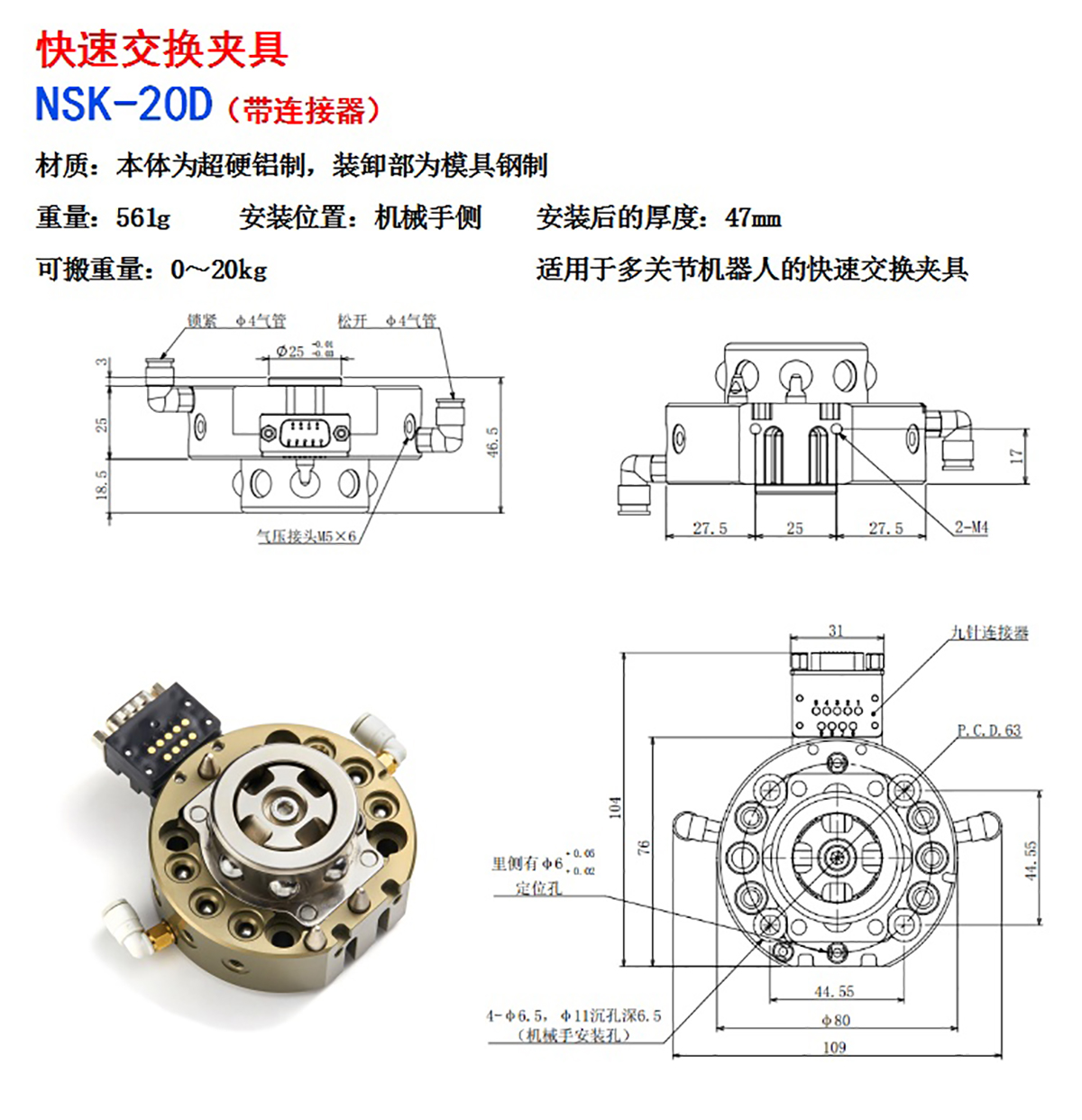

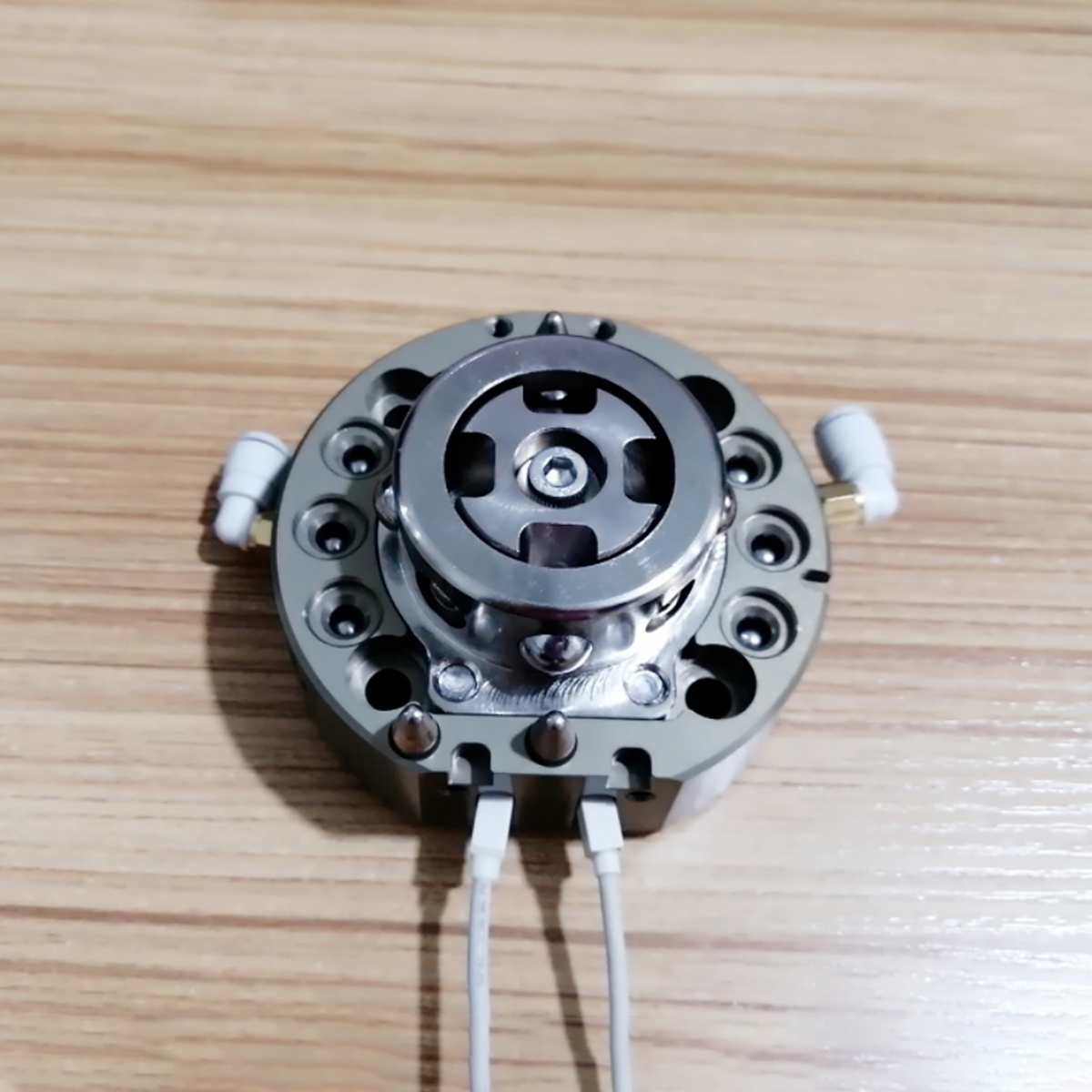

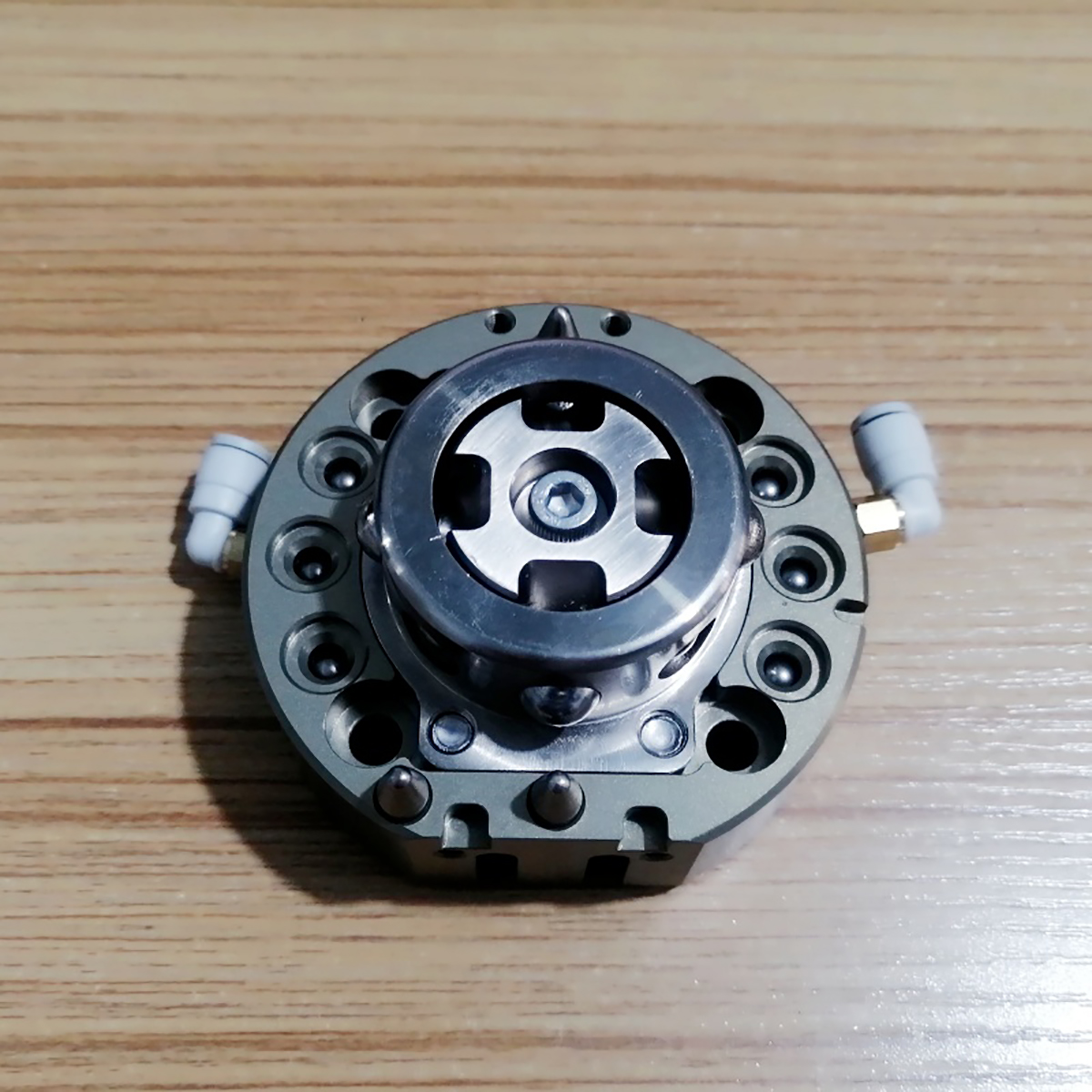

NSK-20D
Robot Side NSK-20D With 9Pin Signal Module

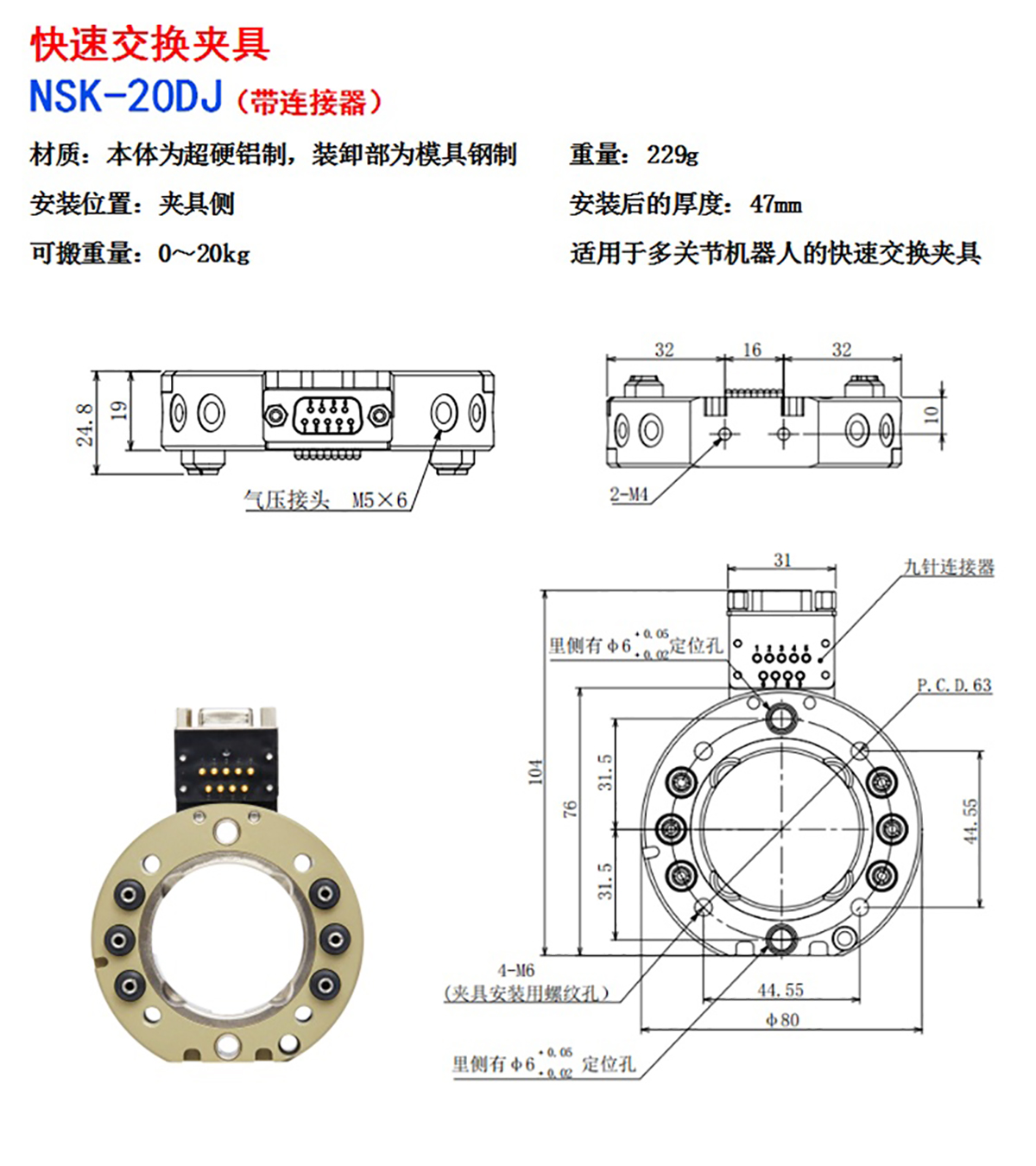

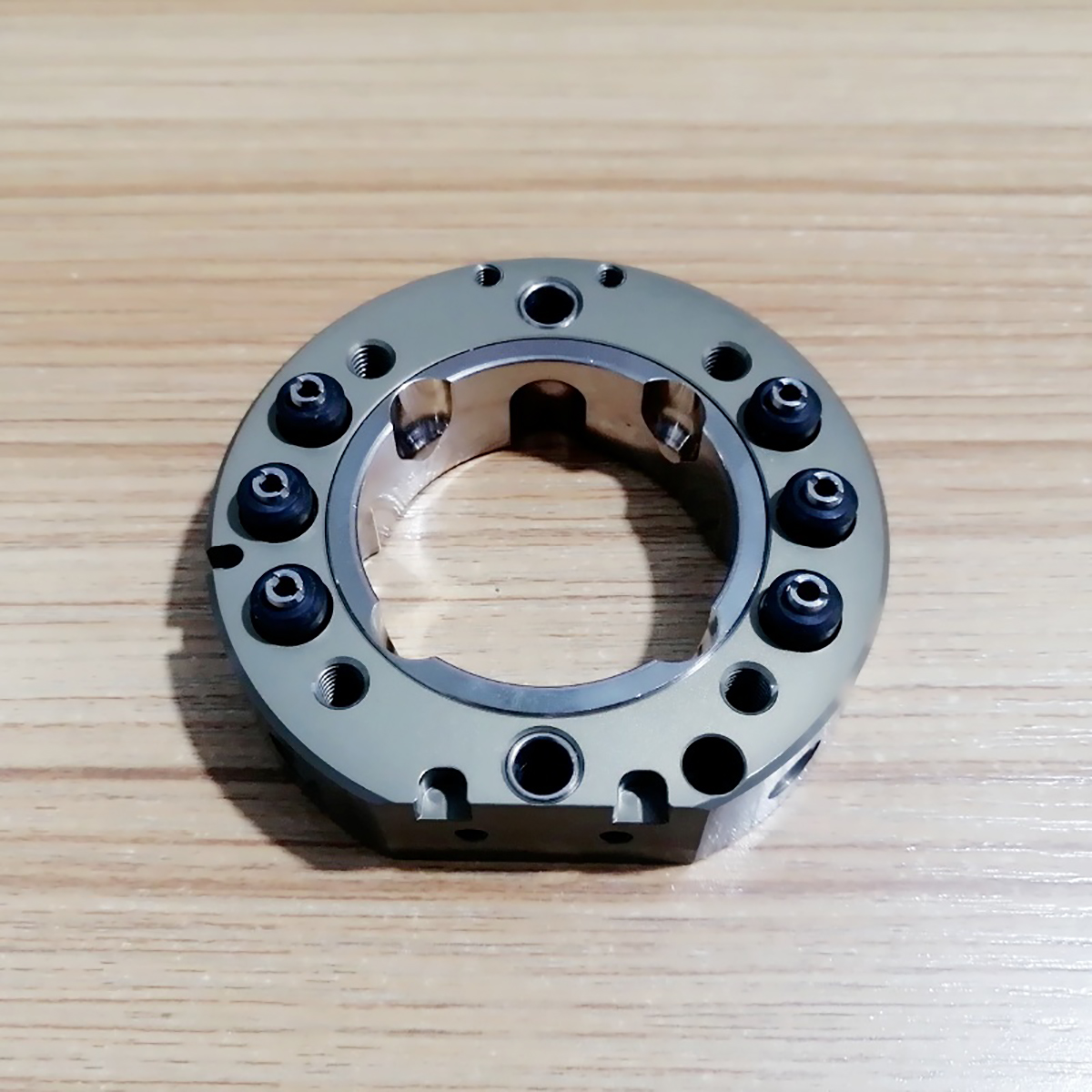

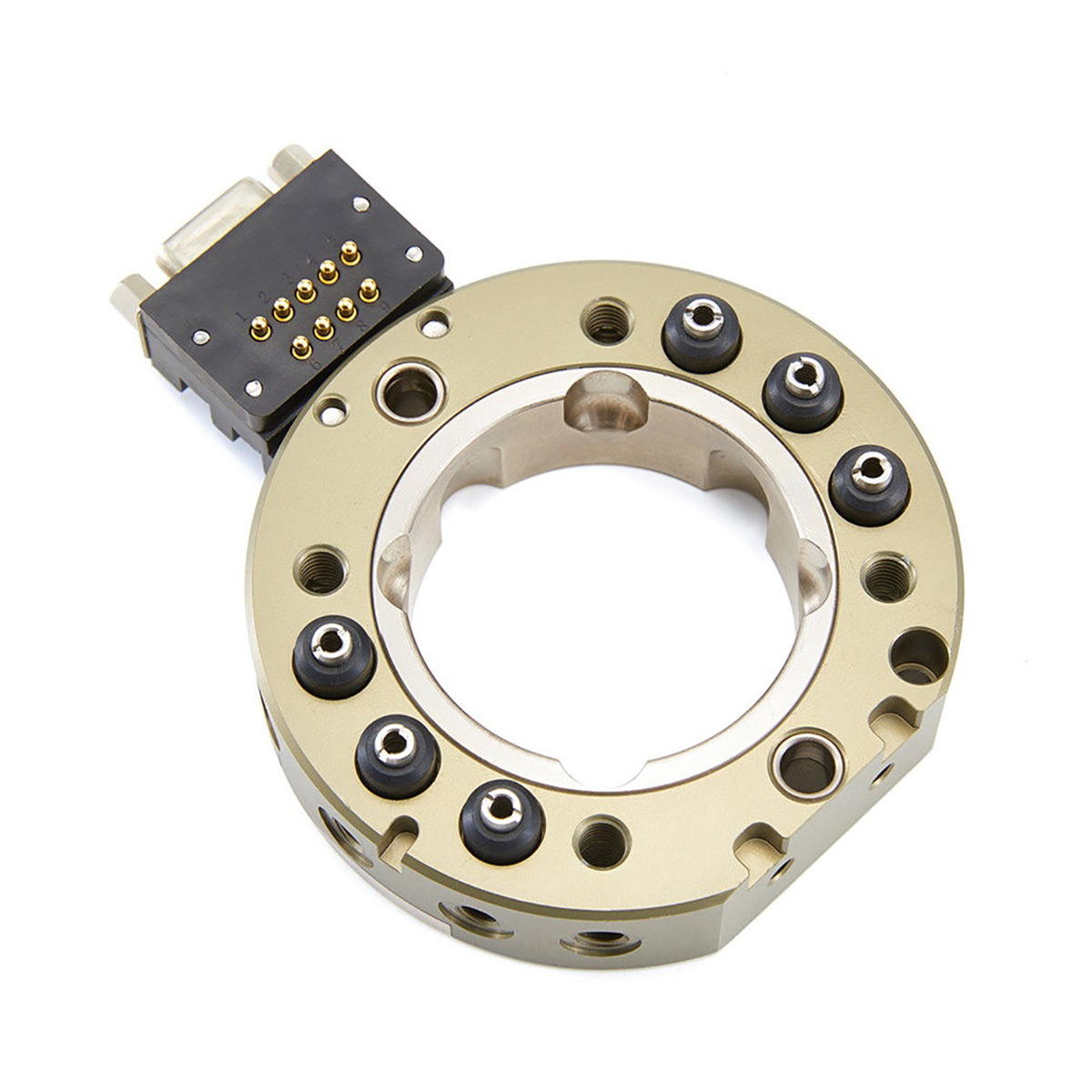

NSK-20DJ
Tool Side NSK-20DJ With 9Pin Signal Module
