NVIDIA Jetson Nano B01 4GB Development Board AI Core ROS Motherboard for Edge Computing & Robotics
NVIDIA Jetson Nano B01 4GB Development Board AI Core ROS Motherboard for Edge Computing & Robotics

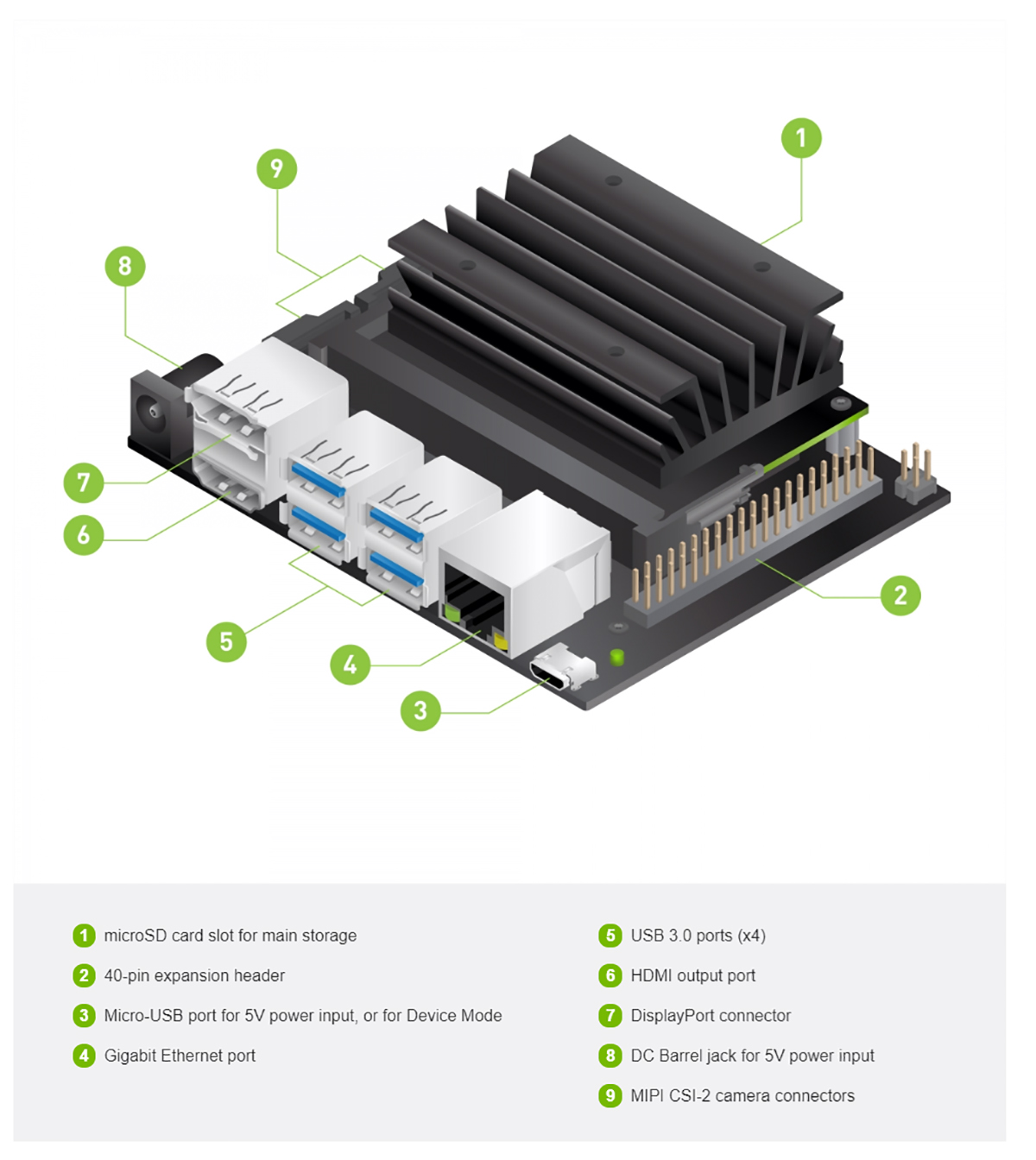

The NVIDIA Jetson Nano Developer Kit is a powerful small-form-factor computer that enables you to run multiple neural networks in parallel for applications such as image classification, object detection, segmentation, and speech processing. All these tasks can be accomplished on this easy-to-use platform, which operates at a power consumption of just 5 watts. It is an ideal solution for prototyping your next AI-based product and bringing it to market quickly.
Model: Jetson Nano B01
AI Performance: 472 GFLOPS
GPU: NVIDIA Maxwell™ architecture, equipped with 128 NVIDIA CUDA® Cores, computing performance is 0.5 TFLOPS (FP16)
CPU: Quad-core ARM® Cortex®-A57 MPCore processor
Memory: 4GB 64-bit LPDDR4, 1600MHz-25.6GB/s
Storage: 16GB eMMC 5.1 flash memory
Video Encoding: 4Kp30 | 4×1080p30 | 9×720p30 (H.264/H.265)
Video Decoding: 4Kp60 | 2×4Kp30 | 8×1080p30 | 18×720p30 (H.264/H.265)
Camera: 12-lane (3×4 or 4×2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
Connectivity: Wi-Fi Requires external chip; 10/100/1000 BASE-T Ethernet
Display: HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1×2) 2 simultaneous transmissions
UPHY: 1×1/2/4 PCIE, 1×USB 3.0, 3×USB 2.0
I/O: 3×UART, 2×SPI, 2×I2S, 4×I2C, GPIO
Size: 69.6mm x 45mm
Specification Dimensions: 260-pin edge connector
Network: 10/100/1000 BASE-T Ethernet
Structural Dimensions: 69.6 mm×45 mm; 260-pin SO-DIMM connector
Jetson Nano B01 x1
