Omni F4 Corner Nano Flight Controller With ICM20608 Damping Box IMU Build In OSD Current Sensor
Omni F4 Corner Nano Flight Controller With ICM20608 Damping Box IMU Build In OSD Current Sensor
-IMU installation with damping box
-Up to 32k Gyro loop
-Support programmable LED Sprit
-Support BLheli/BLHELI_S suite Pass-through ready
-ESC Protocol PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 compatible
-Built-in voltage sensor and Current sensor
-Built-in Betaflight-OSD, Configure by Betaflight GUI
-Buzzer Ready (Solder pin)

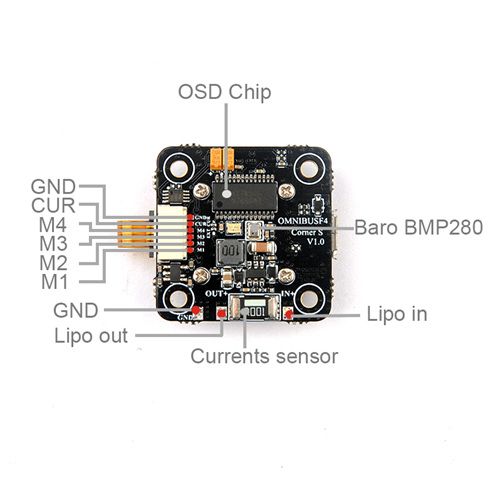

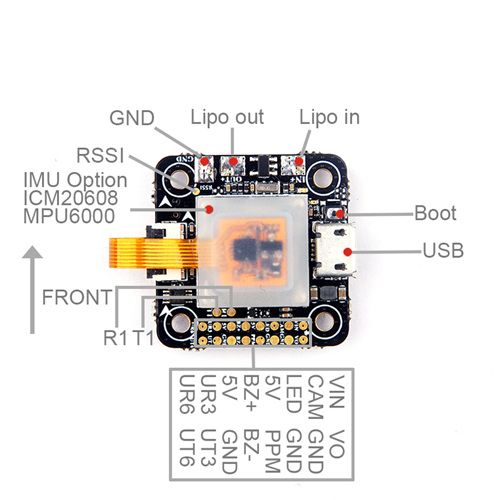

Omni F4 Corner Nano flight controller board
Specification parameters
Specification:
Item name: Omni F4 Corner Nano flight controller board

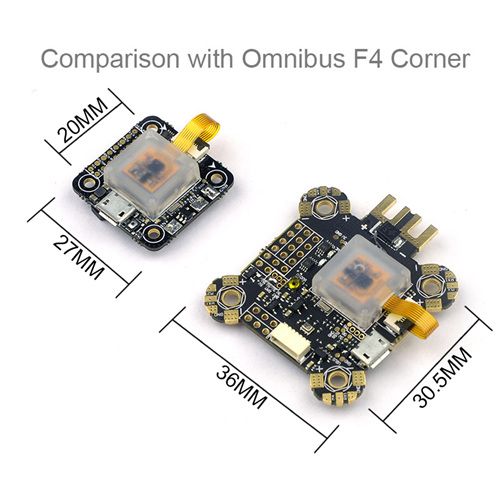

Size: 27*27mm
Mounting hole distance: 20*20mm
Mount hole Diameter: 2.3mm
Weight: 5.7g
Processor: STM32F405RGT6
Sensor option: ICM20608( connected by SPI)
Firmware version: betaflight_3.2.0_Omni F4SD
Built-in ESC: 5V 1A output(BUCK)
Built-in LC filter for VTX power (max 800ma)
Built-in Current Sensor
Built-in Barometer BMP280
Power supply: 2S-4S Lipo battery
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
Suitable for Micro FPV brushless frame
1* F4 flight controller board
4*M2*5+5 Nylon column
4*M2 Nuts
4*M2 Screw
1*4in1 ESC cable
