Pixracer R15 AutoPilot xracer PX4 Flight Controller M8N GPS Module for RC FPV Drone
The Pixracer is the common name for the FMUv4 generation of Pixhawk autopilots. It has been designed primarily for the demanding requirements of small multicopters, but of course can be used on planes and other vehicles which require no more than 6 pwm outputs for controlling escs and motors.
Includes an ESP8266 for easy WiFi Updates. Comes with the latest Ardupilot ESP8266 firmware developed by Andrew Tridge. This new firmware has a nice web interface, MavLink2 support and an easier way to do future updates via the web interface.

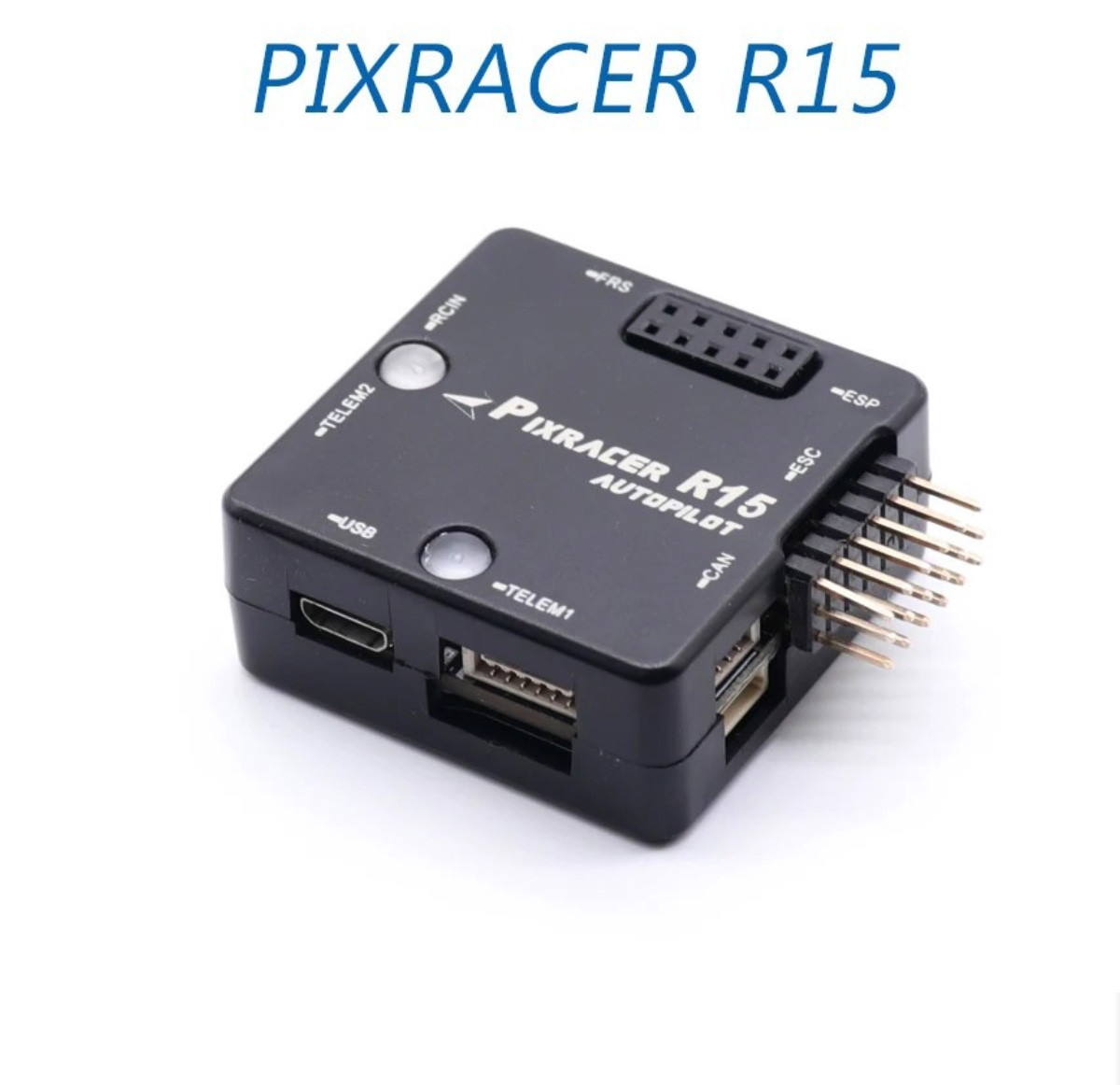

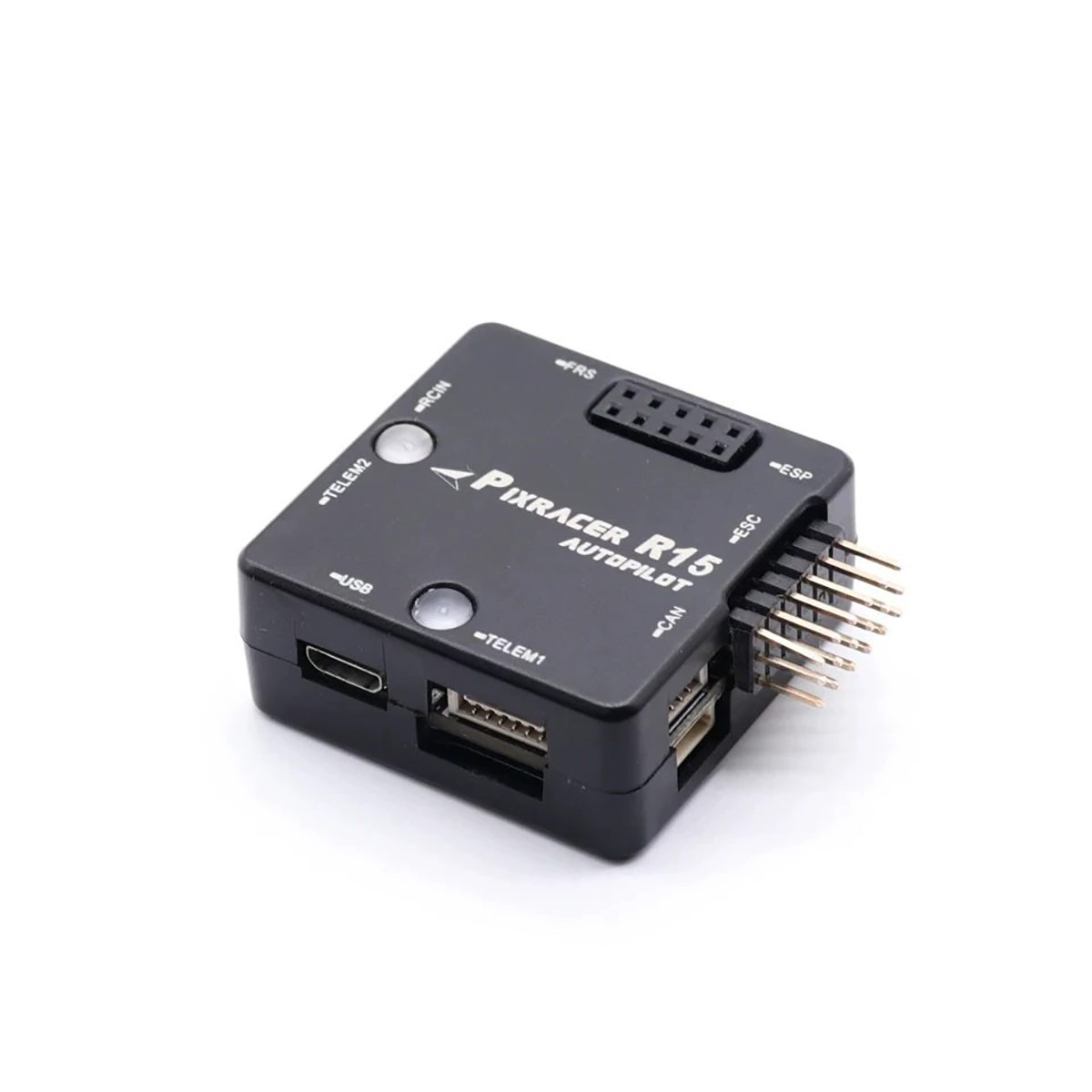

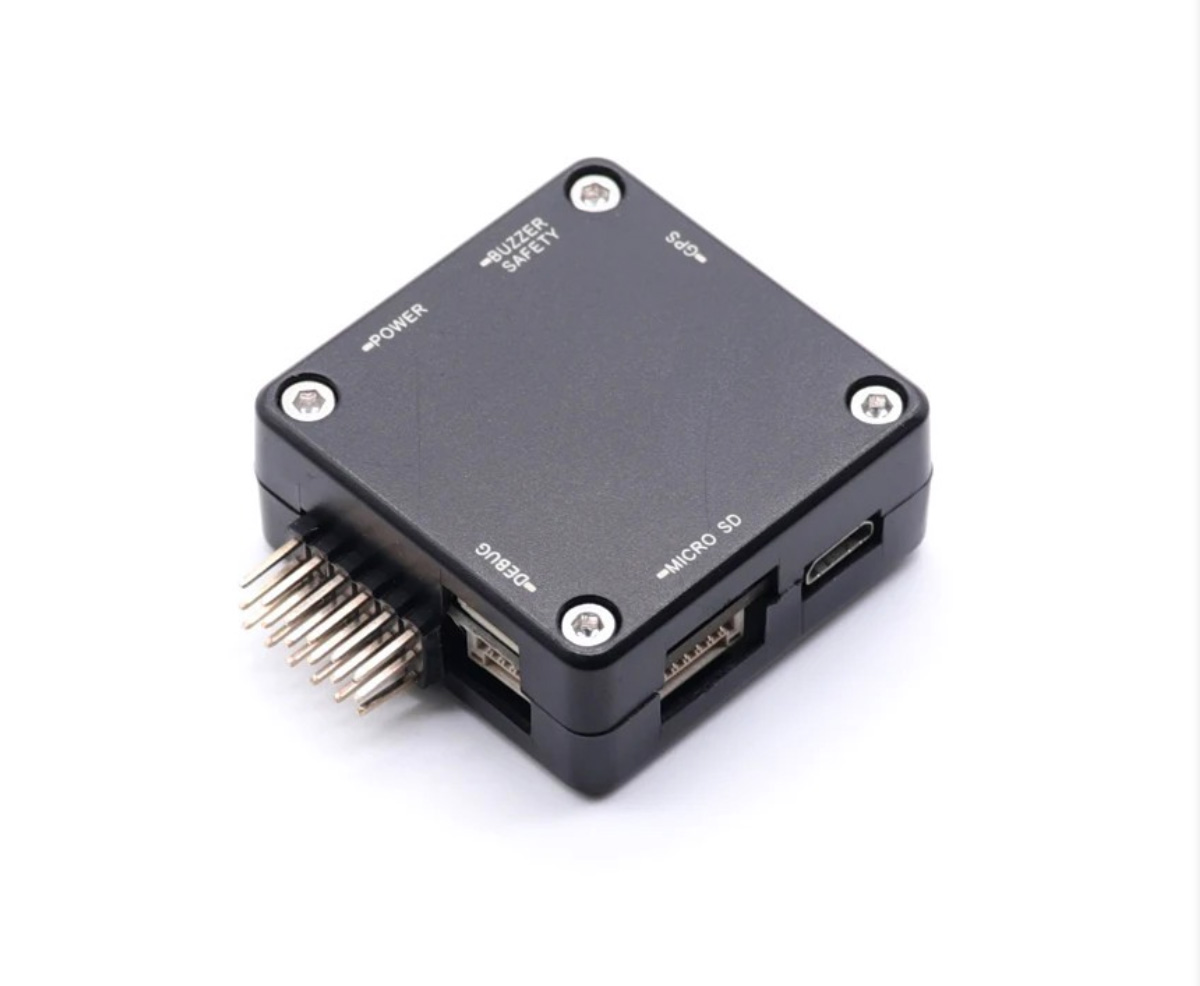

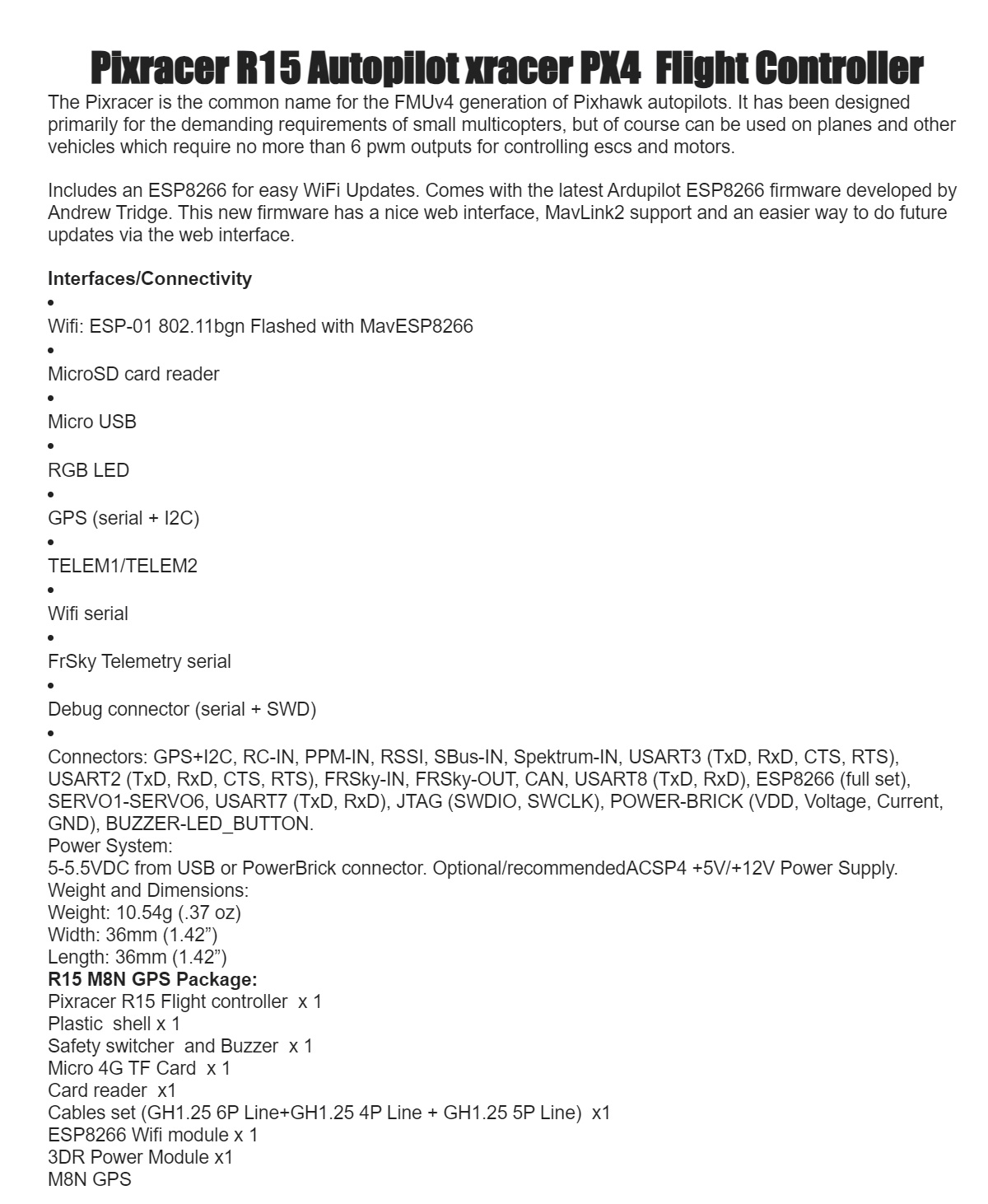

Pixracer R15 Autopilot xracer PX4 Flight Controller
Wifi: ESP-01 802.11bgn Flashed with MavESP8266
MicroSD card reader
Micro USB
RGB LED
GPS (serial + I2C)
TELEM1/TELEM2
Wifi serial
FrSky Telemetry serial
Debug connector (serial + SWD)
Connectors: GPS+I2C, RC-IN, PPM-IN, RSSI, SBus-IN, Spektrum-IN, USART3 (TxD, RxD, CTS, RTS), USART2 (TxD, RxD, CTS, RTS), FRSky-IN, FRSky-OUT, CAN, USART8 (TxD, RxD), ESP8266 (full set), SERVO1-SERVO6, USART7 (TxD, RxD), JTAG (SWDIO, SWCLK), POWER-BRICK (VDD, Voltage, Current, GND), BUZZER-LED_BUTTON.
Power System: 5-5.5VDC from USB or PowerBrick connector. Optional/recommendedACSP4 +5V/+12V Power Supply
Weight and Dimensions:
Weight: 10.54g
Width: 36mm
Length: 36mm

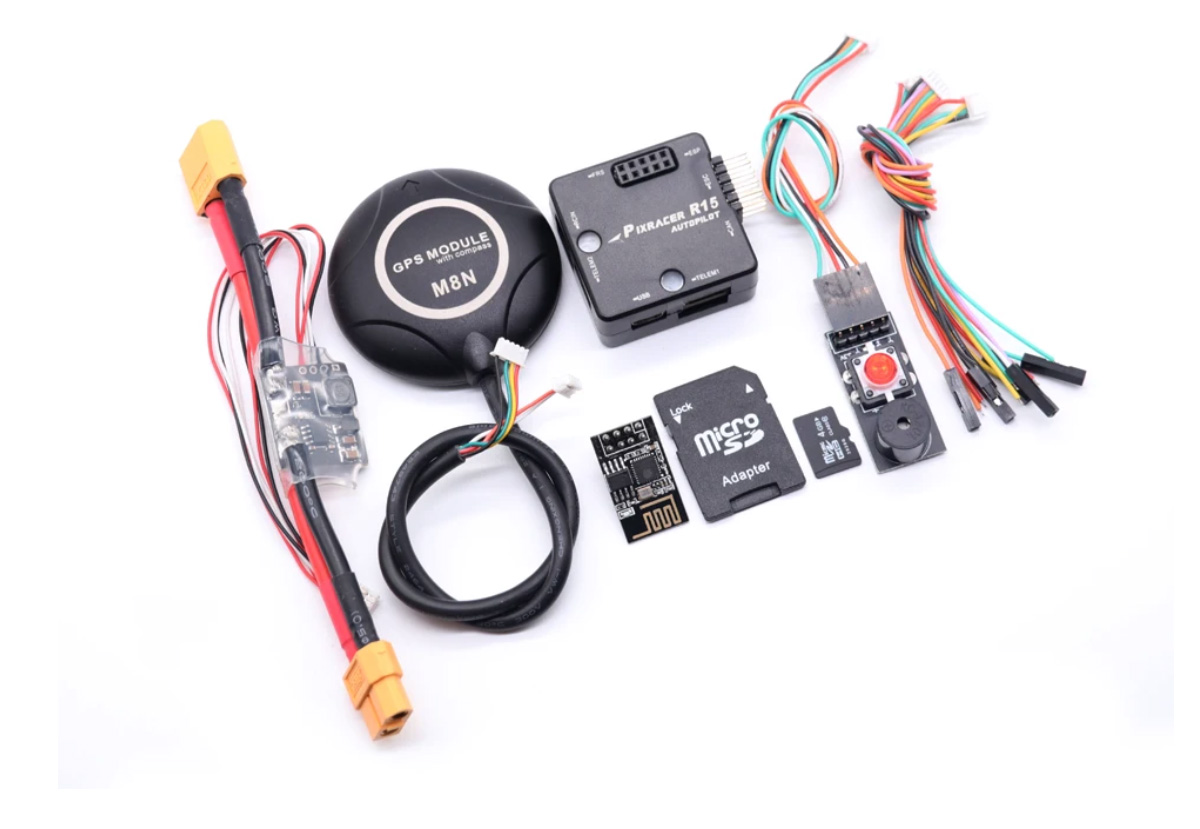

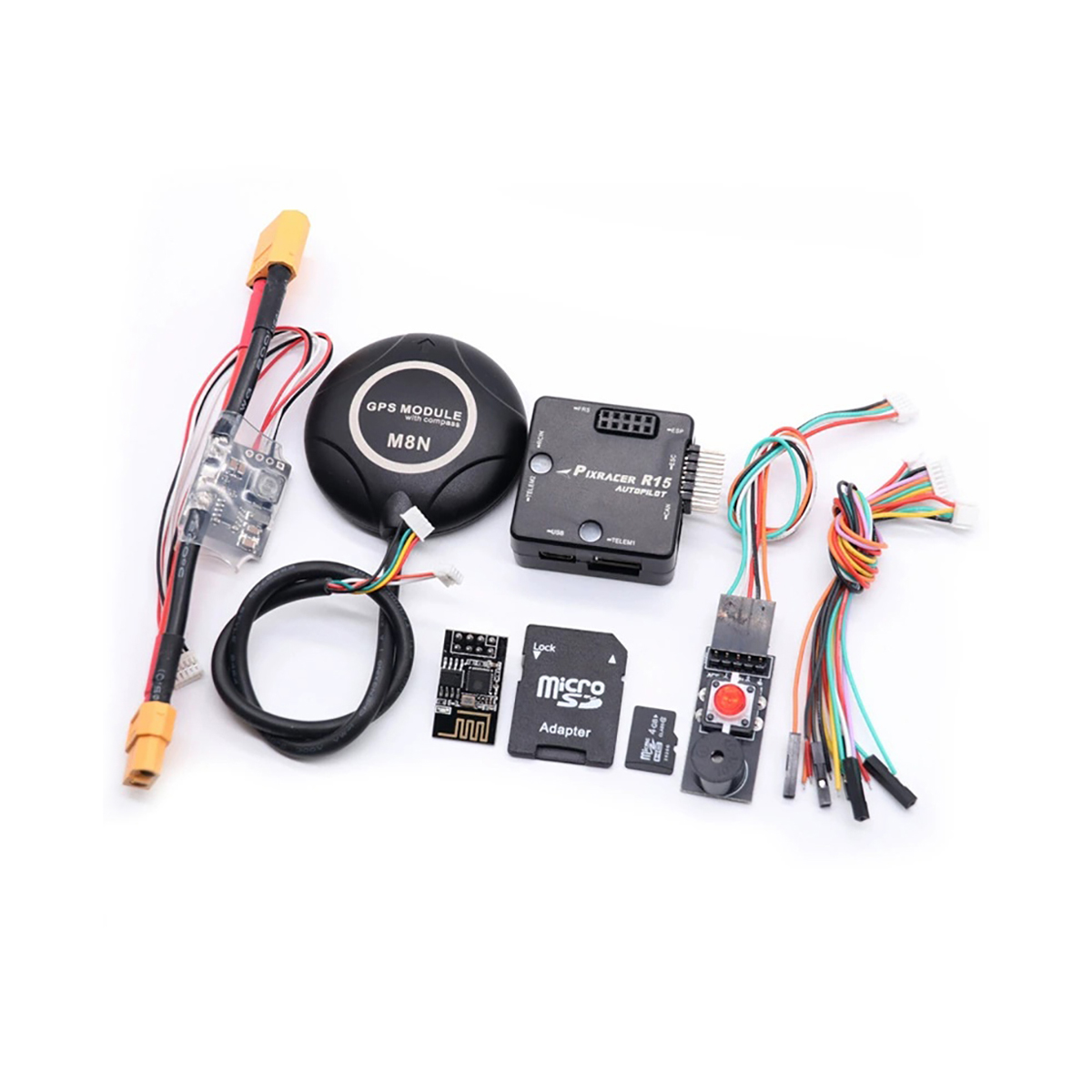

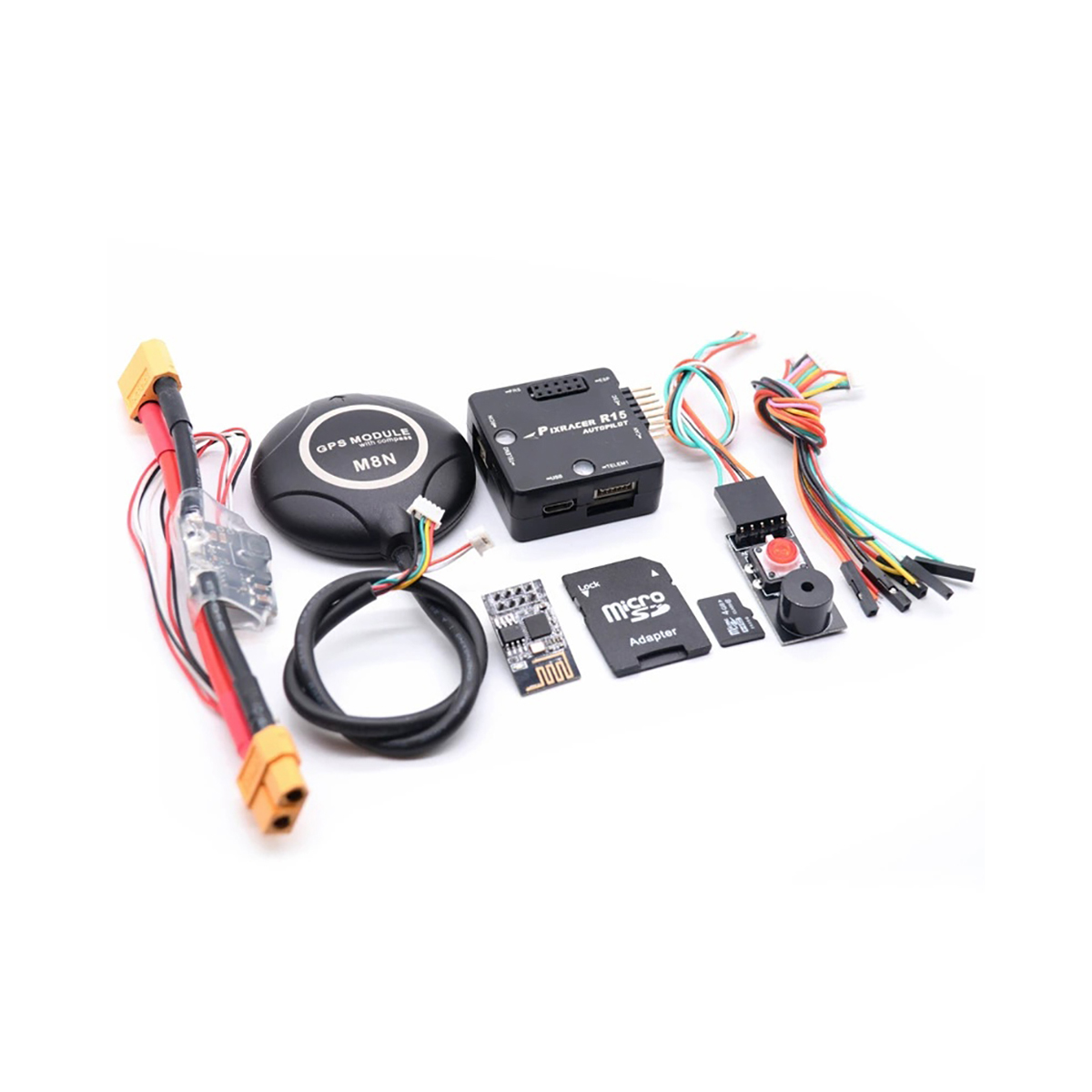

Pixracer R15 Flight controller x 1
Plastic shell x 1
Safety switcher and Buzzer x 1
Micro 4G TF Card x 1
Card reader x1
Cables set (GH1.25 6P Line+GH1.25 4P Line + GH1.25 5P Line) x1
ESP8266 Wifi module x 1

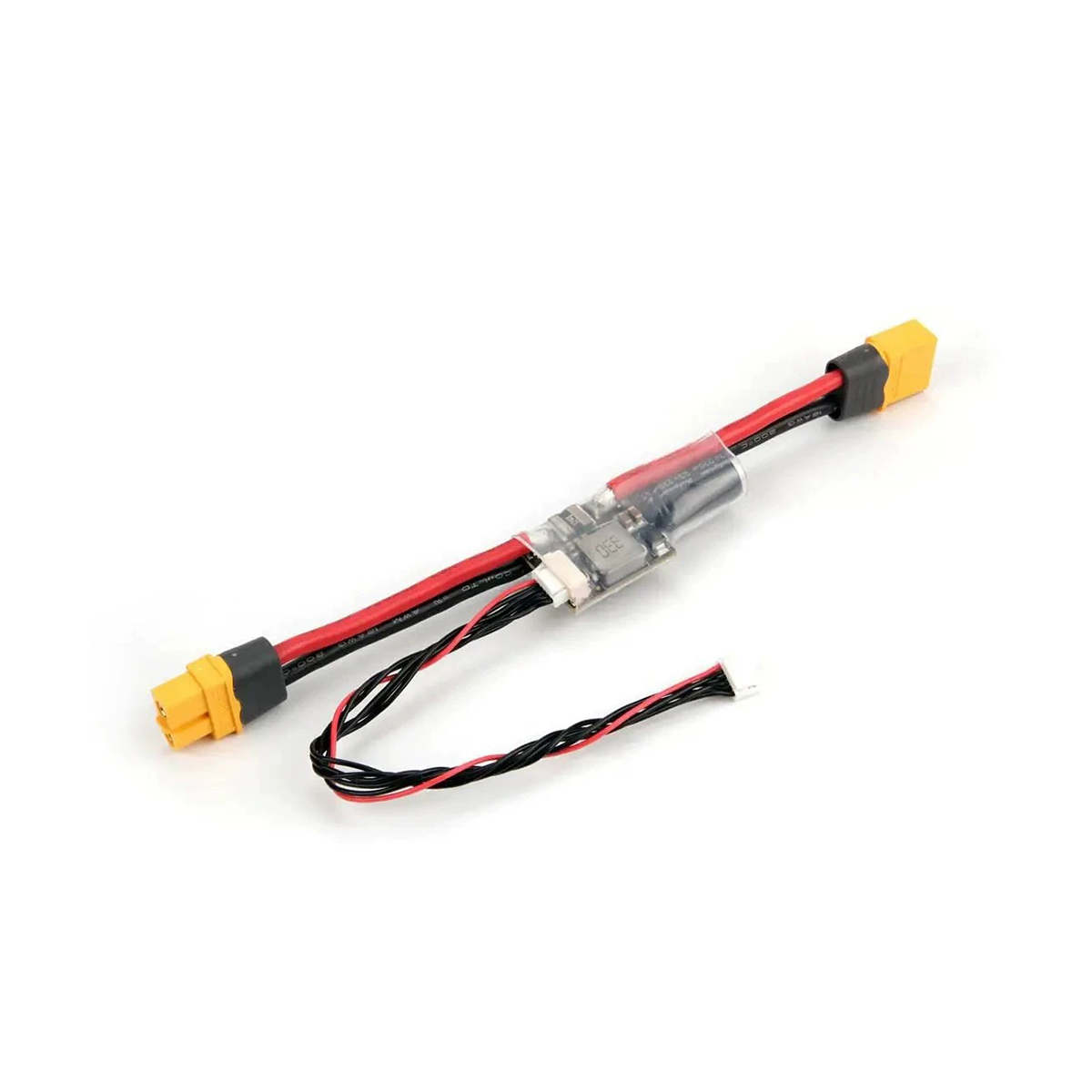

3DR Power Module x1

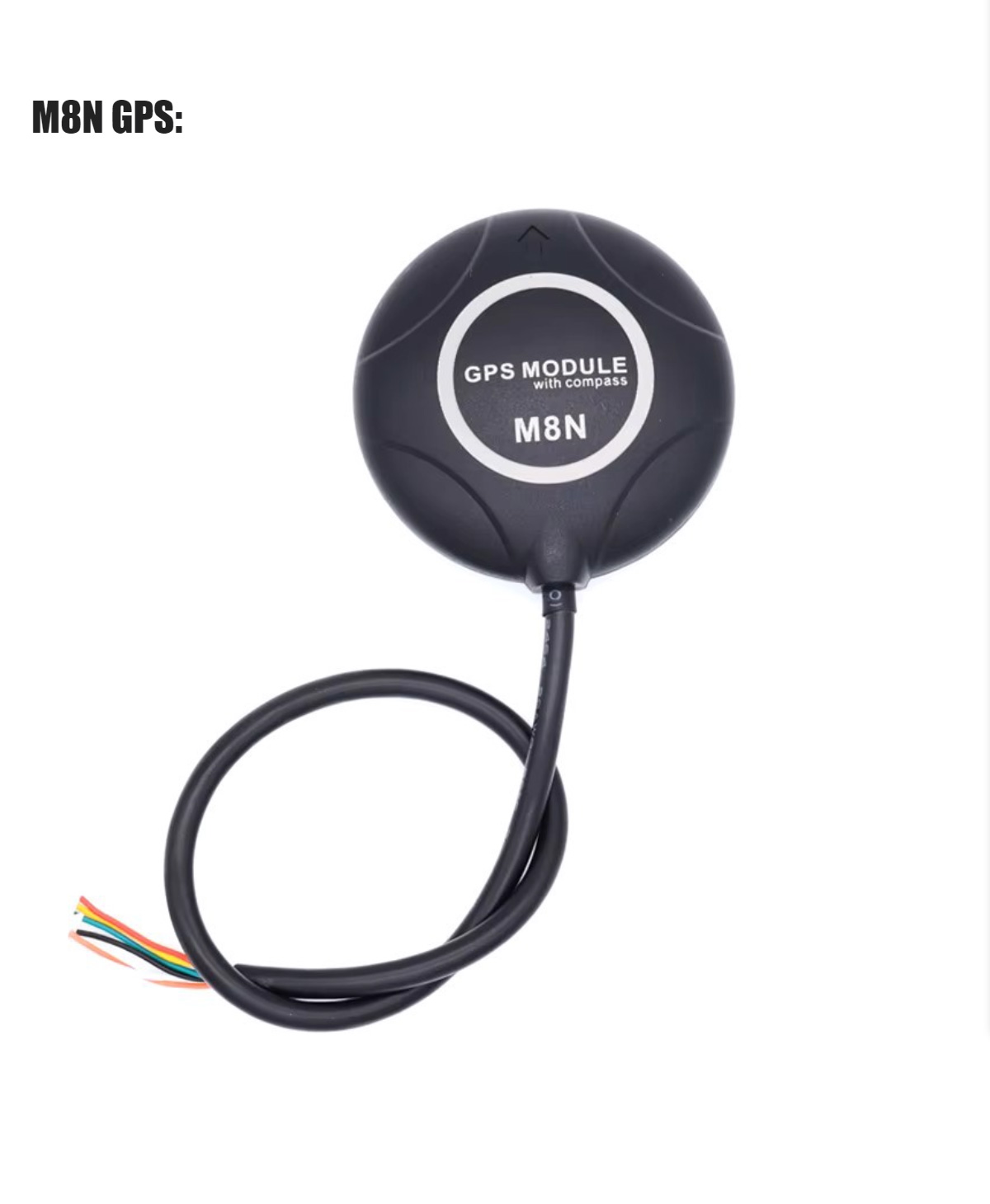

M8N GPS x1
