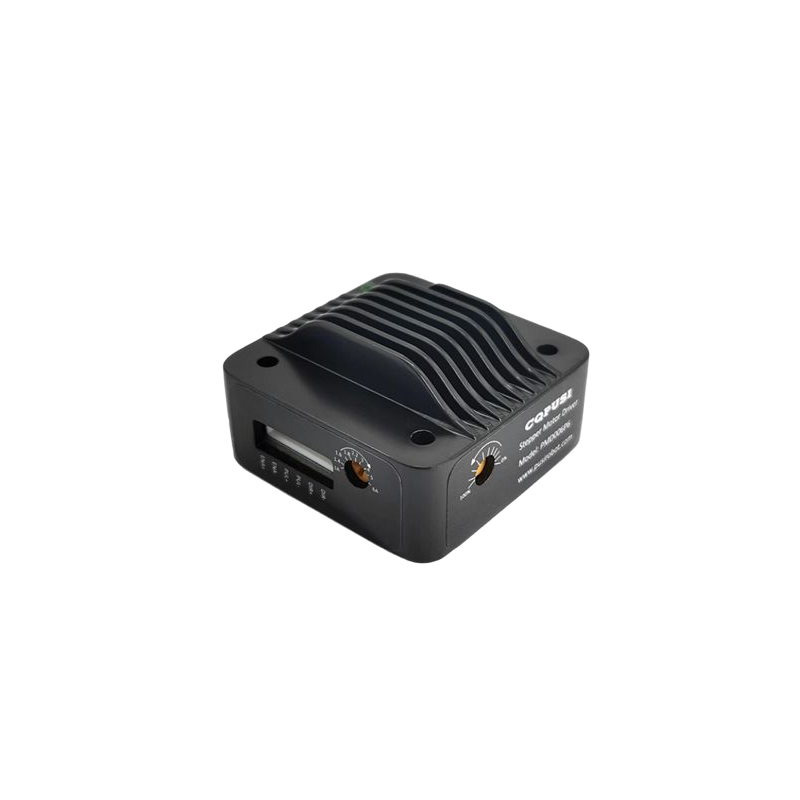

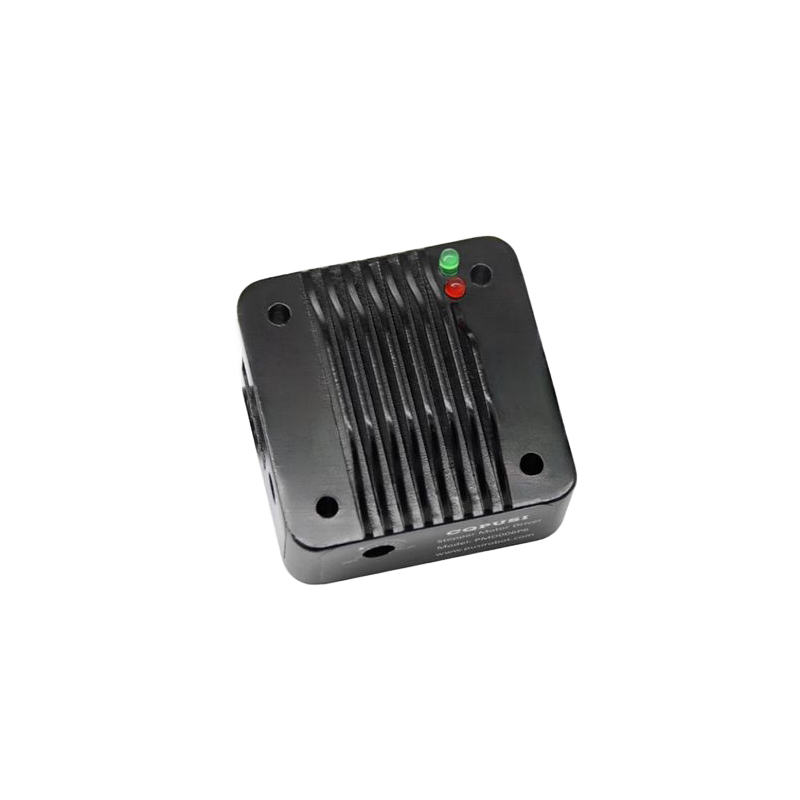

PMD006P2 2A Stepper Motor Driver Controller Rear Cover Integrated Low Vibration and High Torque
PMD006P2 2A Stepper Motor Driver Controller Rear Cover Integrated Low Vibration and High Torque

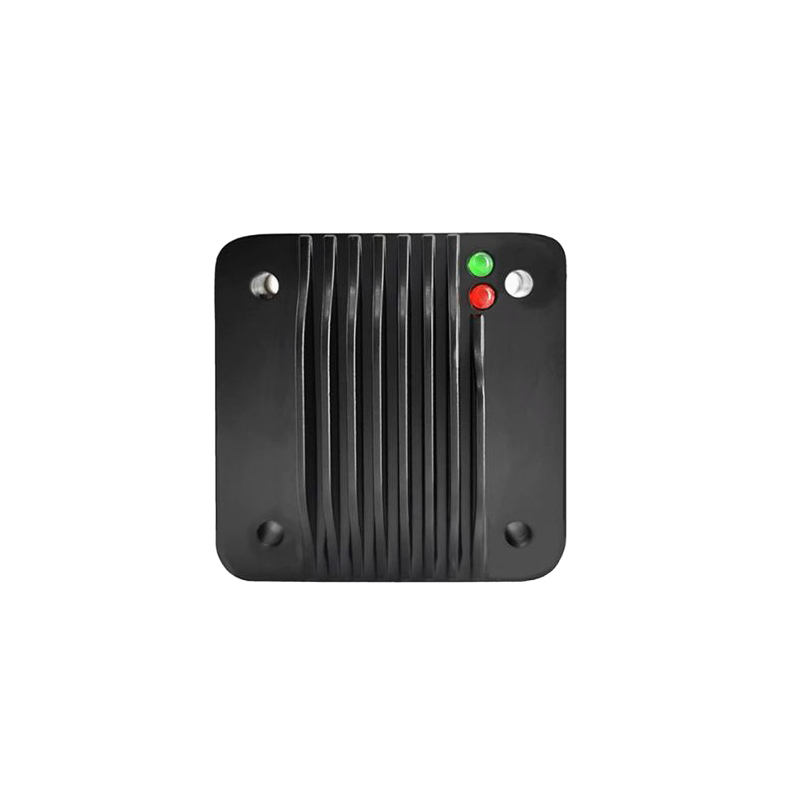

*LIGHTS Run run/fault indicator light green light, red light failure
*Current regulationAdjustable continuous current, powerful
*Rapid positive &negativeSegmentation can be adjusted
*Superior performanceHigh speed high torqueroundThe national quality assurance
*PC controlProtection function
Model: PMD006P2
Size: 4cm x 4cm x 2cm
Power Supply Method: Direct current.

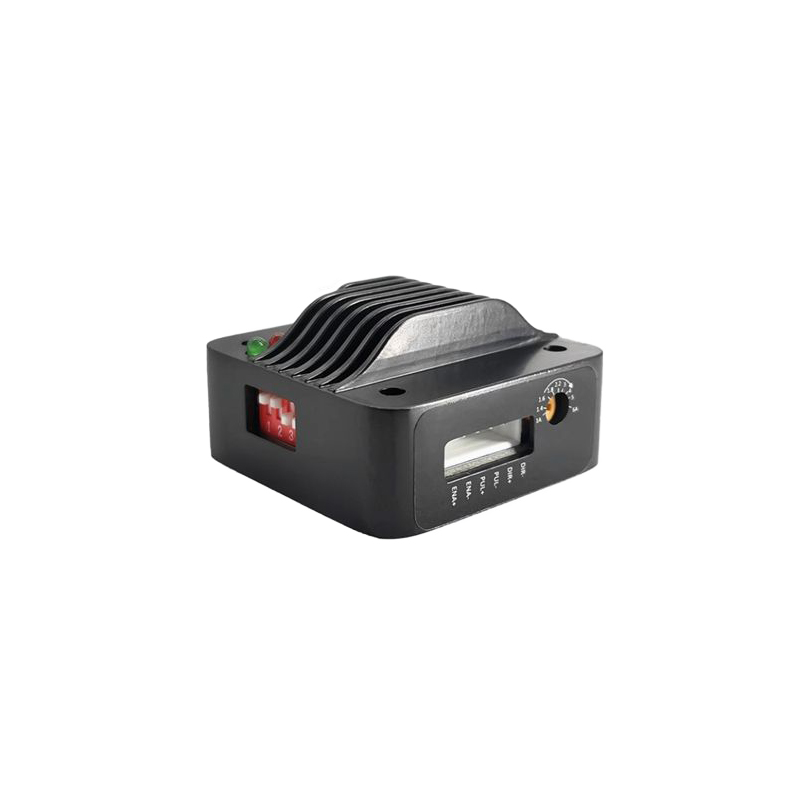

Interface Form: 6P integrated interface
Product Features: Continuously adjustable idle current, high subdivision.
Industrial Grade: Industrial level.
Input Voltage: 9 – 32V
Input Current: 0 – 2A
Output Current: 0.1 – 2A
Applicable Motor: 42 motor.
Maximum Subdivision: 1/128.
Maximum Pulse Frequency: 250K.
Application Range: Open-loop medium, high and low speed scenarios.
Torque Enhancement Full Torque Mode: Yes.
TSD, ULVO, OCP Protection Functions: Present.
Wiring Method: Common anode, common cathode, differential, double pulse, pulse direction, etc.
Working Current Continuously Adjustable: Yes.
Shell: Aluminum alloy.
1×PMD006P2 2A
