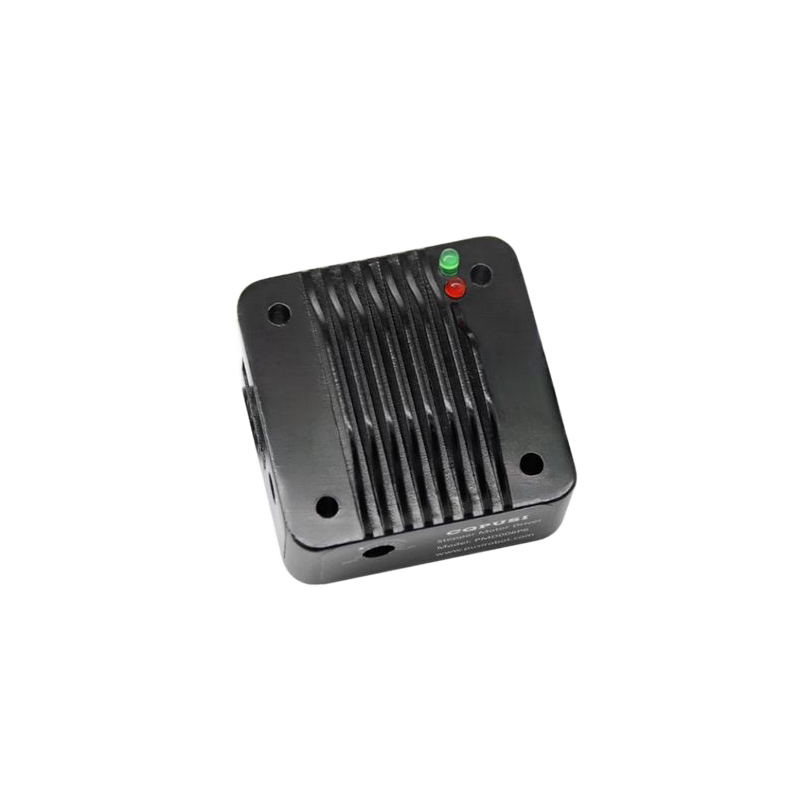

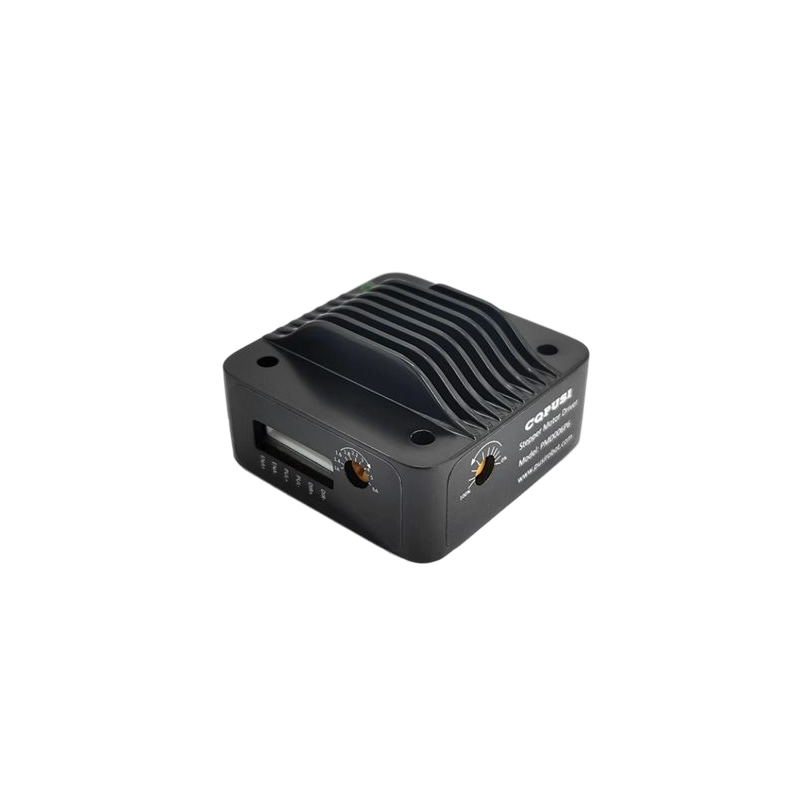

PMD006P6 6A Stepper Motor Driver Controller Rear Cover Integrated Low Vibration and High Torque
PMD006P6 6A Stepper Motor Driver Controller Rear Cover Integrated Low Vibration and High Torque

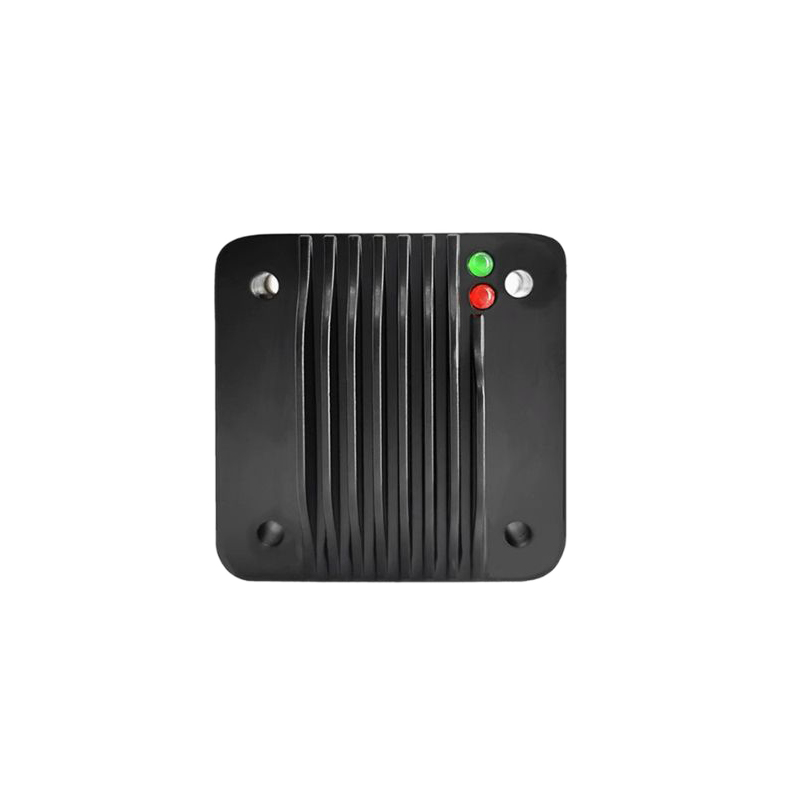

*LIGHTS Run run/fault indicator light green light, red light failure
*Current regulationAdjustable continuous current, powerful
*Rapid positive &negativeSegmentation can be adjusted
*Superior performanceHigh speed high torqueroundThe national quality assurance
*PC controlProtection function

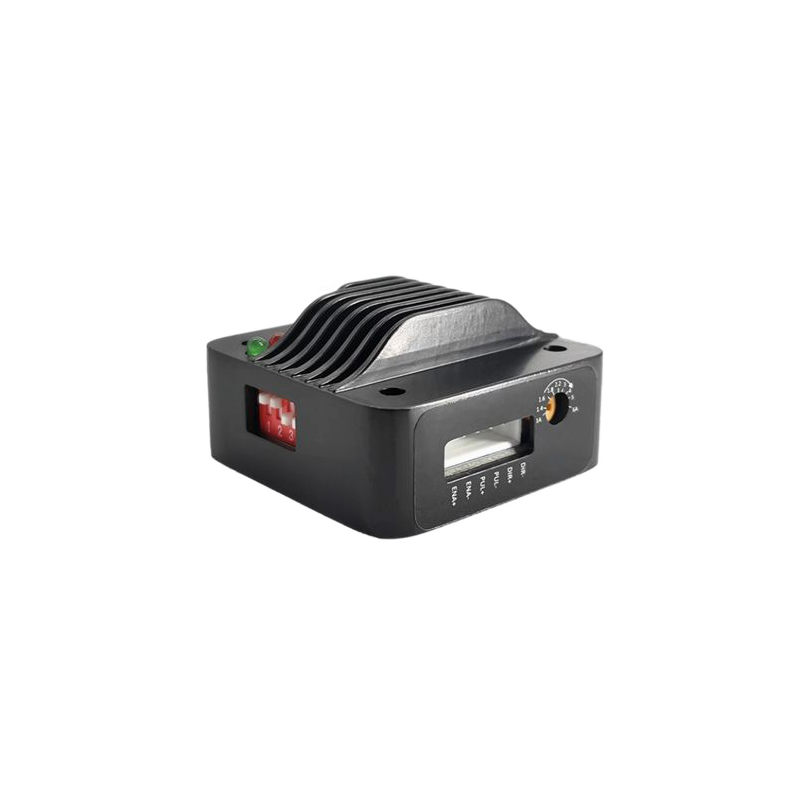

Interface form: 6P integrated interface.
Product features: Continuous adjustable idle current, high torque.
Industrial grade: yes.
Input voltage: 12-48V.
Input current: 0-6A.
Output current: 0.1-6A.
Applicable motors: 42/57/86 motors.
Maximum subdivision: 1/16.
Maximum pulse frequency: 250K.
Application scope: Open loop medium and high-speed scenarios.
TSD, ULVO, OCP protection functions: yes.
Wiring methods: co positive, co negative, differential, dual pulse, pulse direction, etc.
1×PMD006P6 6A
