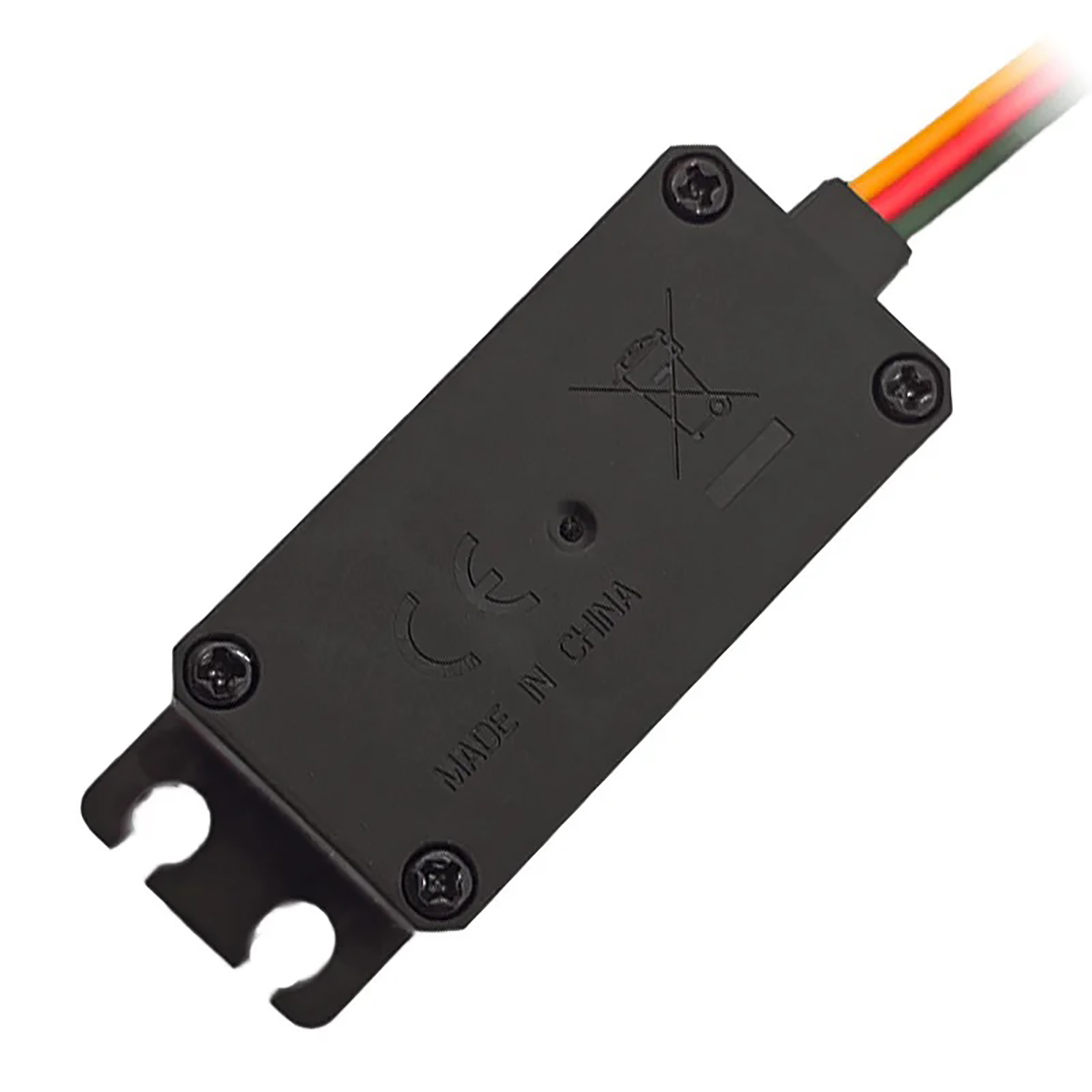

PTK 6820 MG-D Metal Gear 20kg HV High Torque Digital Servo for RC Car Truck Fixed Wing Aircraft Robot DIY
PTK 6820 MG-D Metal Gear 20kg HV High Torque Digital Servo for RC Car Truck Fixed Wing Aircraft Robot DIY
PTK 6820 MG-D Metal Gear 20kg HV High Torque Digital Servo for RC Car Truck Fixed Wing Aircraft Robot DIY

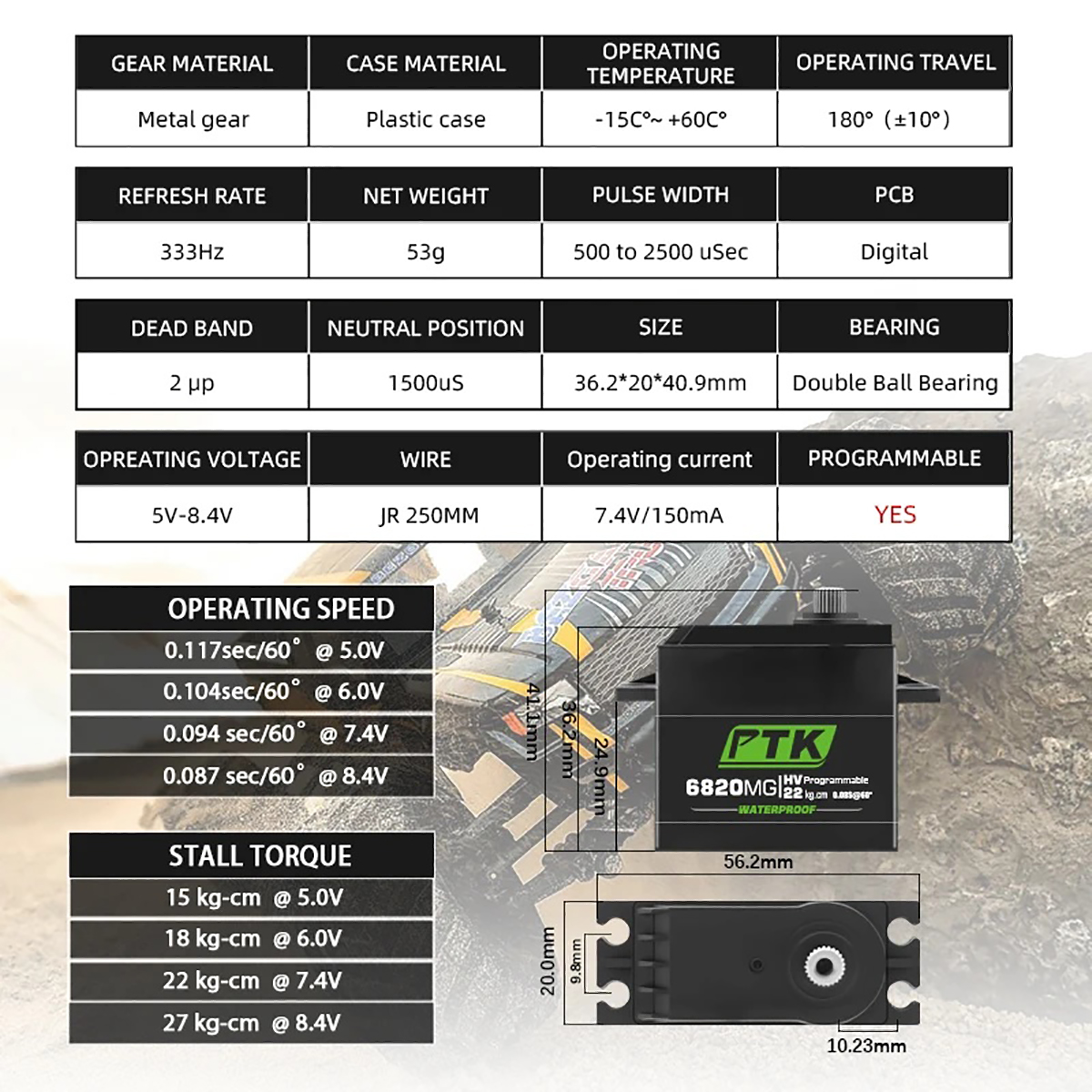

Model: 6820 MG-D

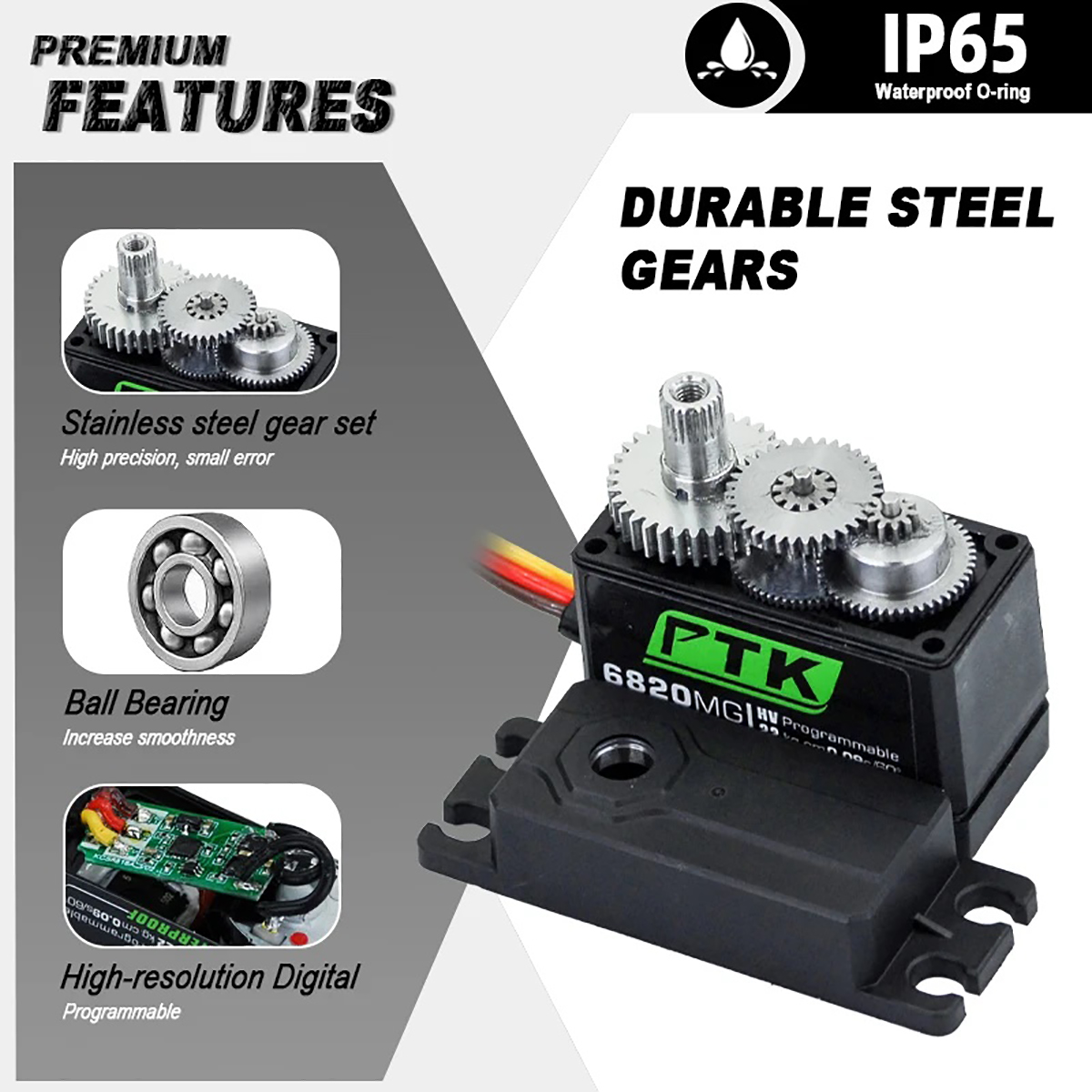

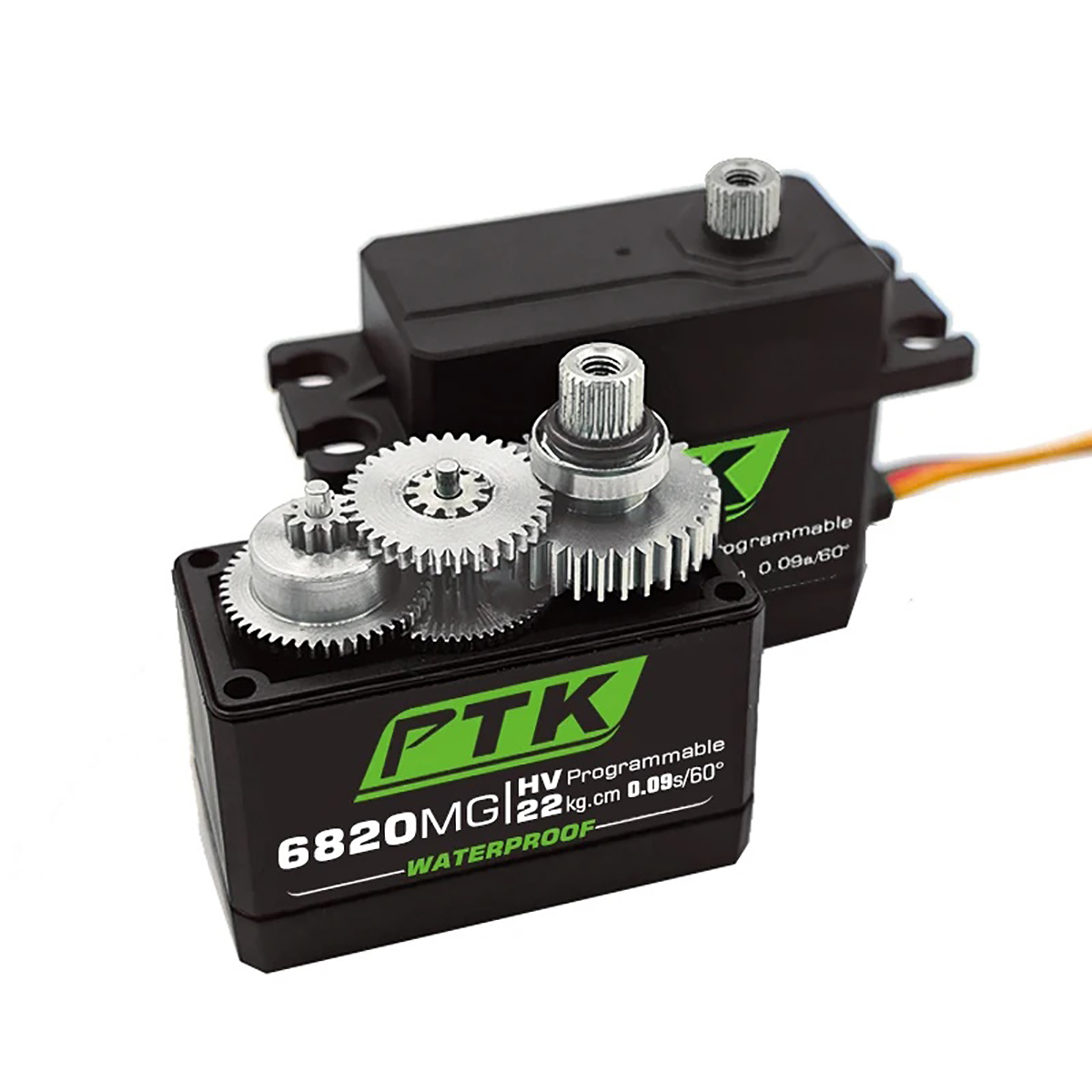

Gears: Stainless Steel Gear
Motor: Core
Ball bearings: 2
Weight: 53g
Dimensions: 40*20*35.5 mm
Working frequency: 1520μs/333hz

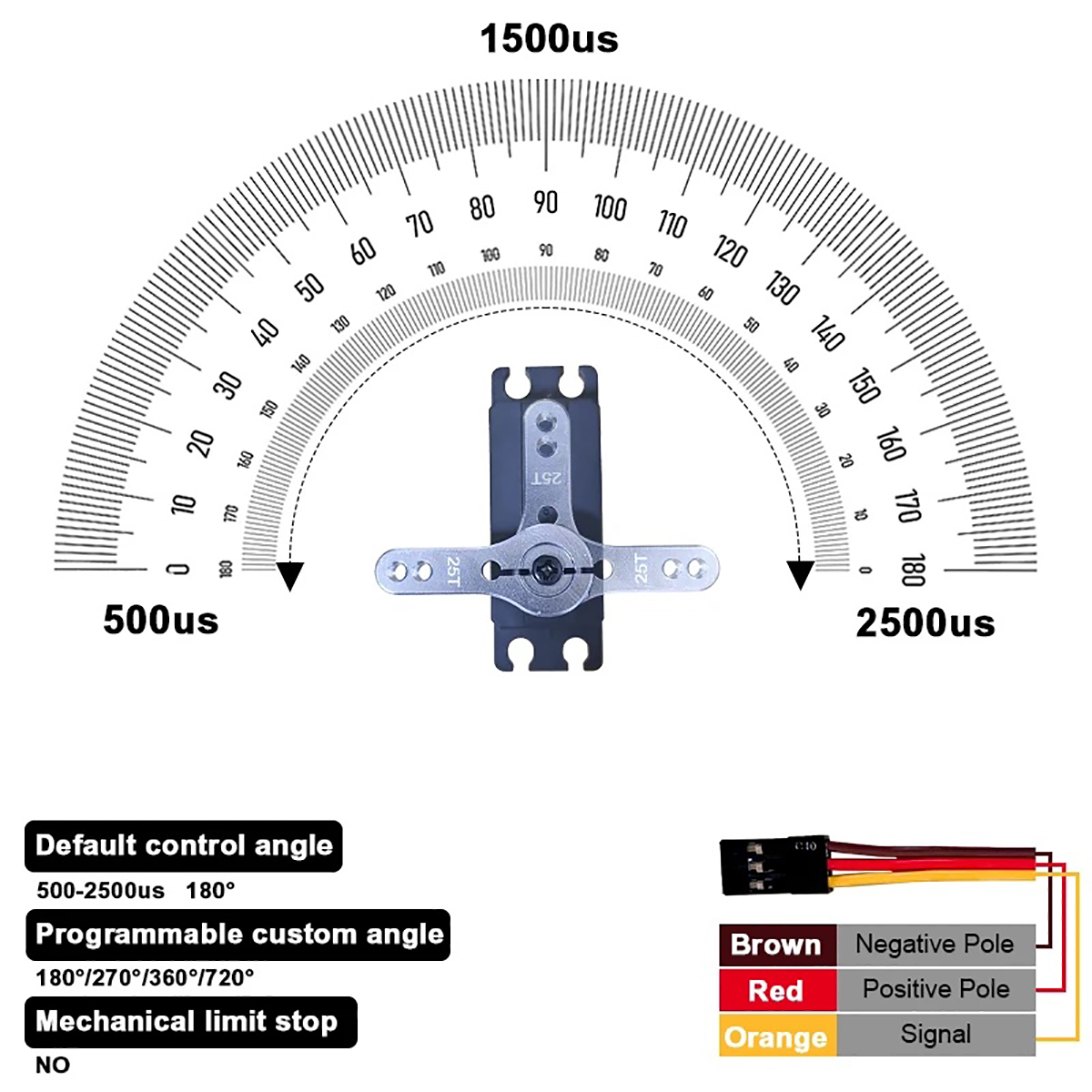

Default Travel Angle: ±45°@1000us-2000us
Speed/Stall Torque@ 6.0V: 18kg.cm – 0.104s/60°
Speed/Stall Torque@ 7.4V: 22kg.cm – 0.94s/60°
Speed/Stall Torque@ 8.4V: 27kg.cm – 0.87s/60°
Rated working Torque : 6kg.cm@7.4V
Input voltage: 4.8V – 8.4V
harness length: 300mm

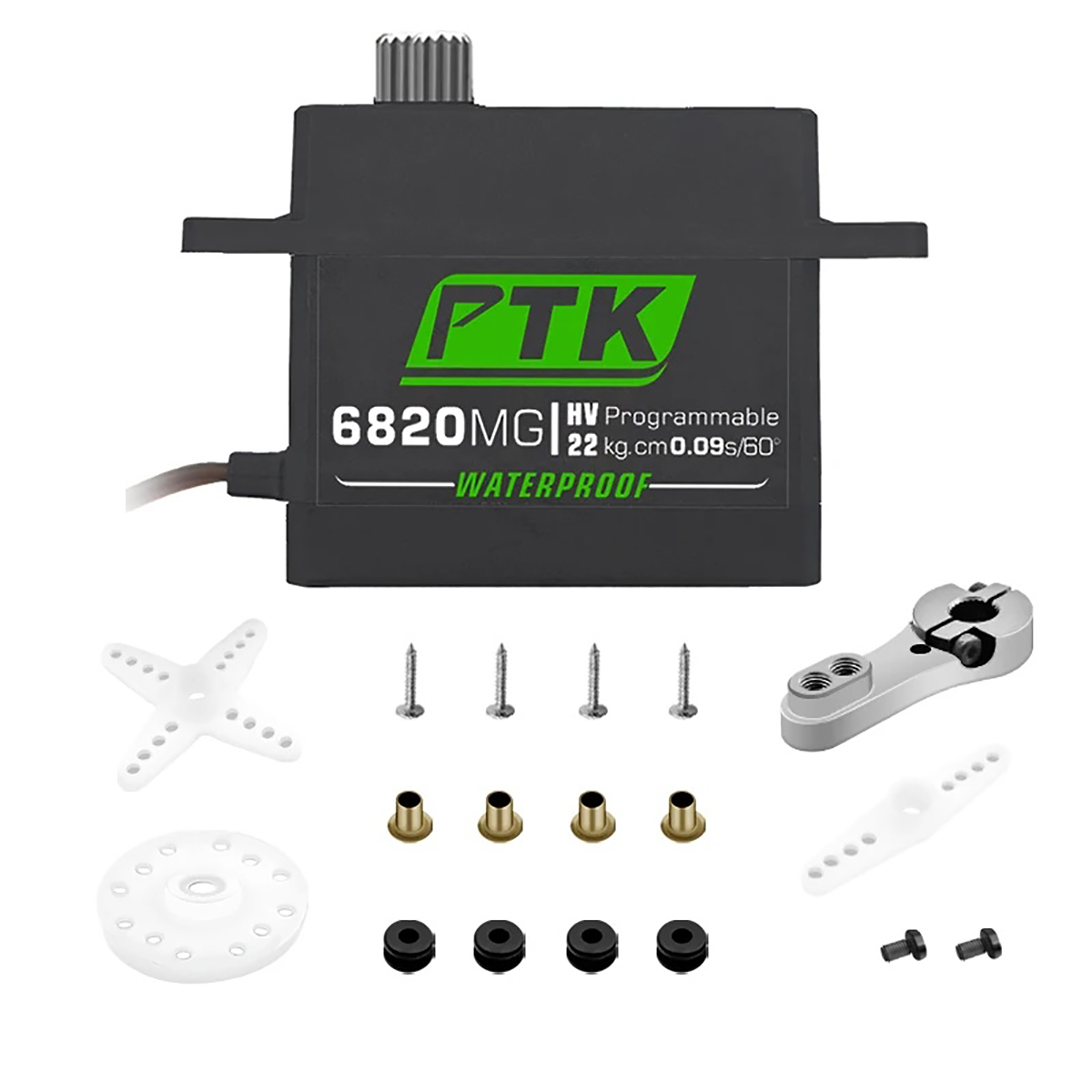

6820 MG-D Servo x1
