PTK 7306 MG-D 7g All Metal Coreless Motor Digital Servo for F5L F3D Glider Fixed Wing RC Model Accessories
PTK 7306 MG-D 7g All Metal Coreless Motor Digital Servo for F5L F3D Glider Fixed Wing RC Model Accessories
PTK 7306 MG-D 7g All Metal Coreless Motor Digital Servo for F5L F3D Glider Fixed Wing RC Model Accessories

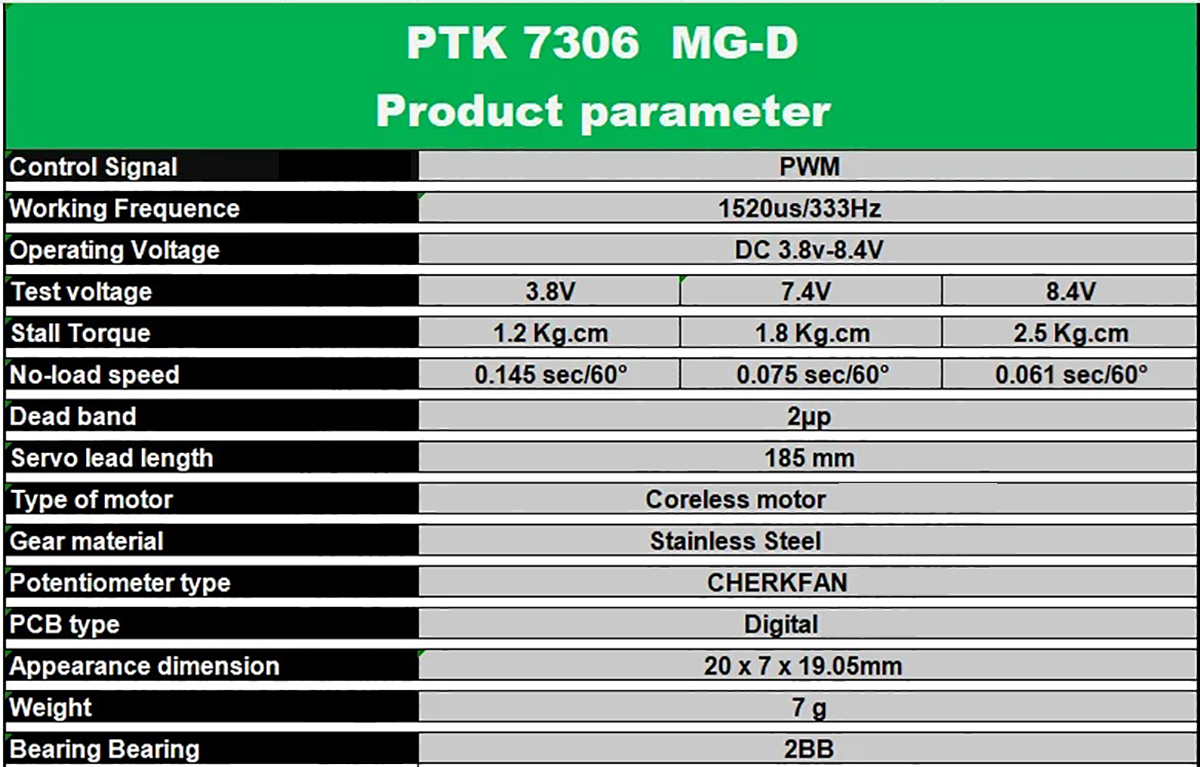

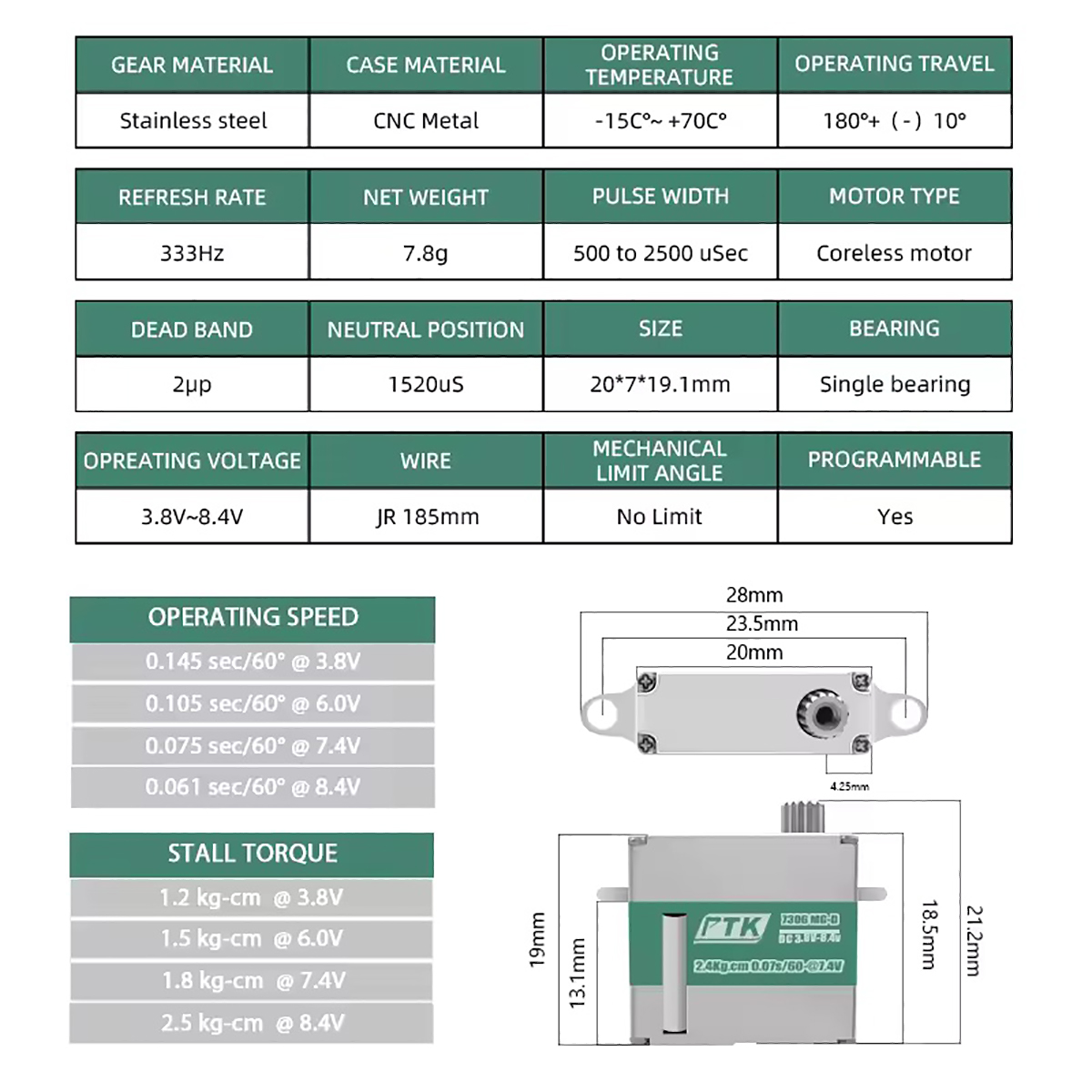

Model: 7306 MG-D
Gears: Metal
Motor: Coreless
Ball Bearing: 1
Weight: 7.8g

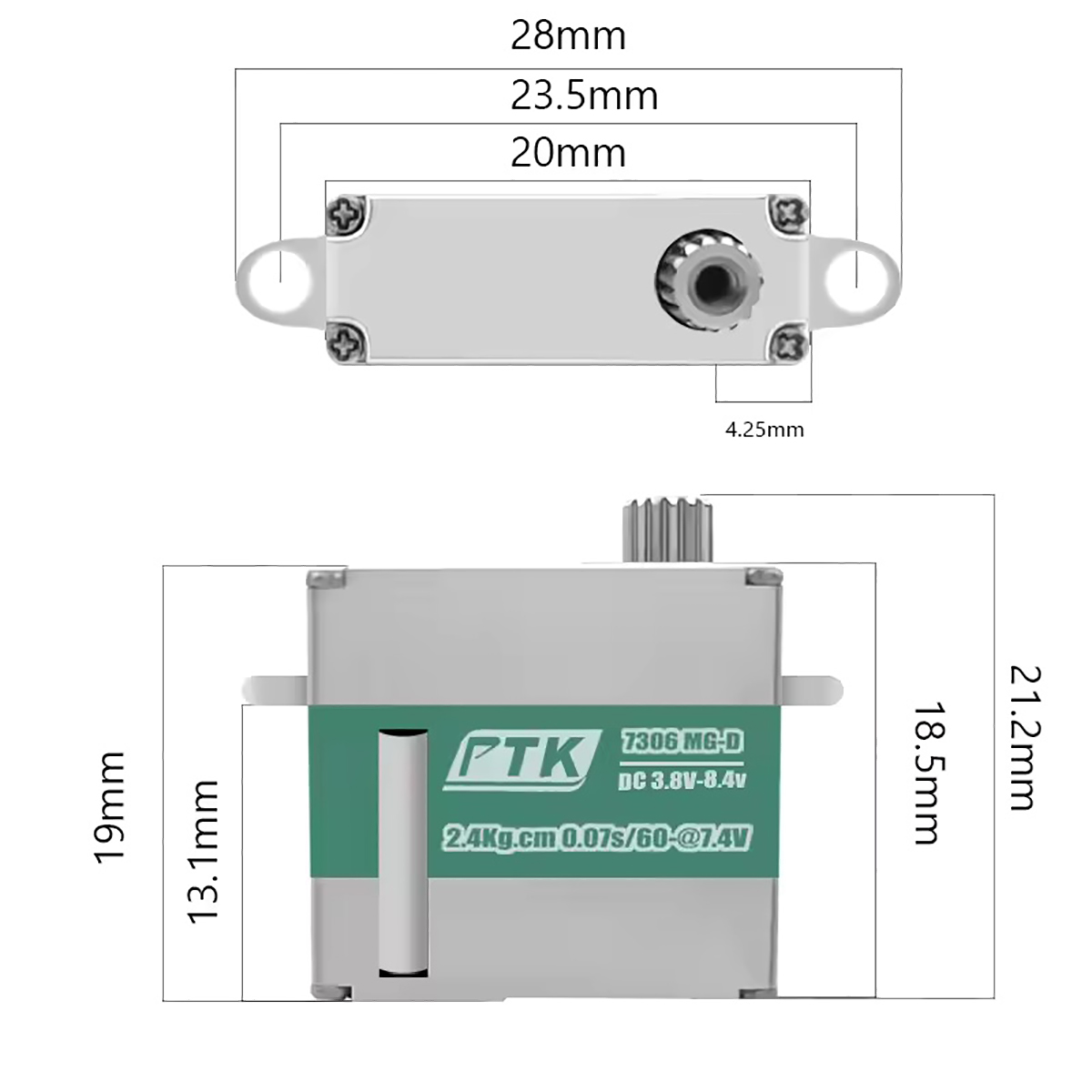

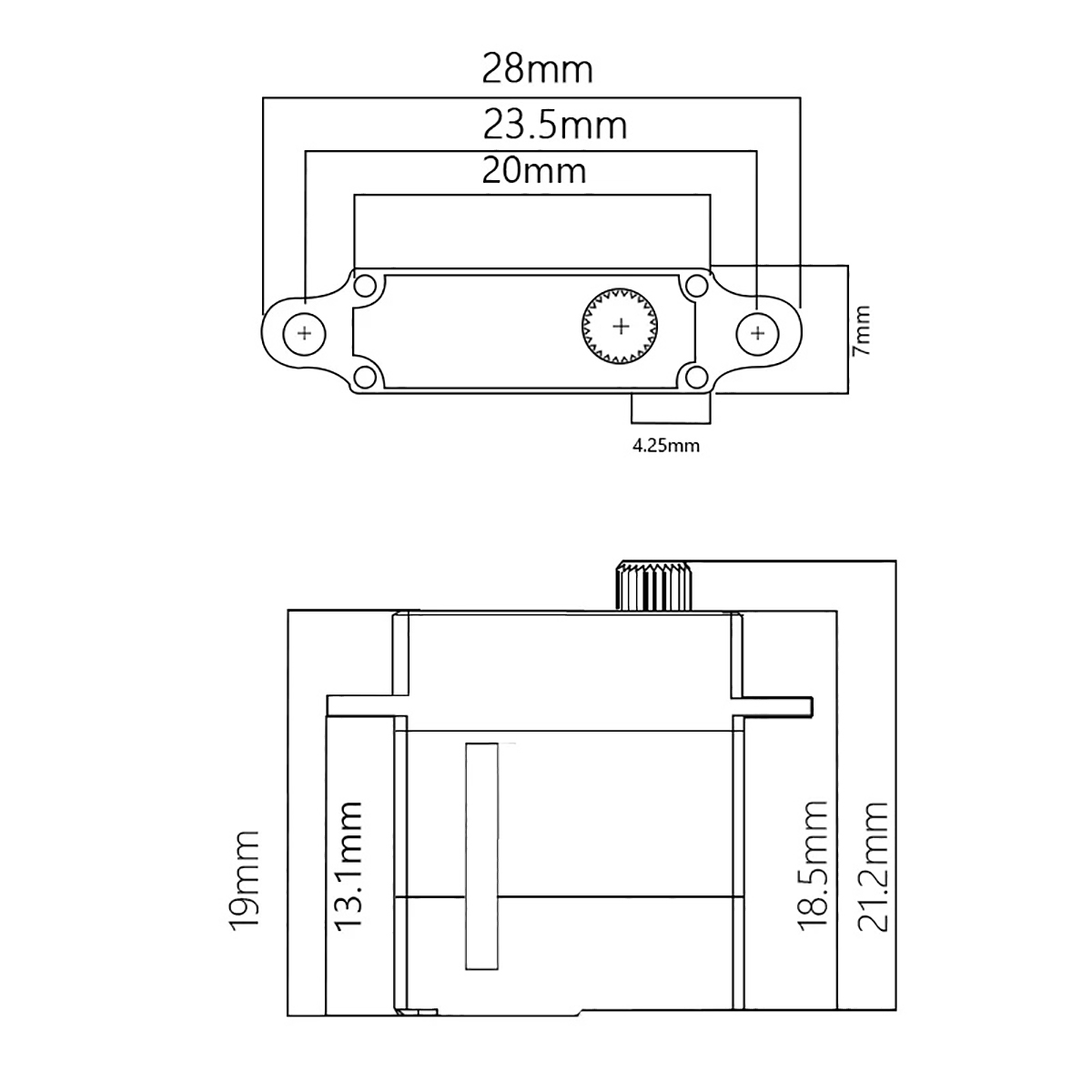

Dimensions: 20x7x19.1mm
Working frequency：1520μs/333hz

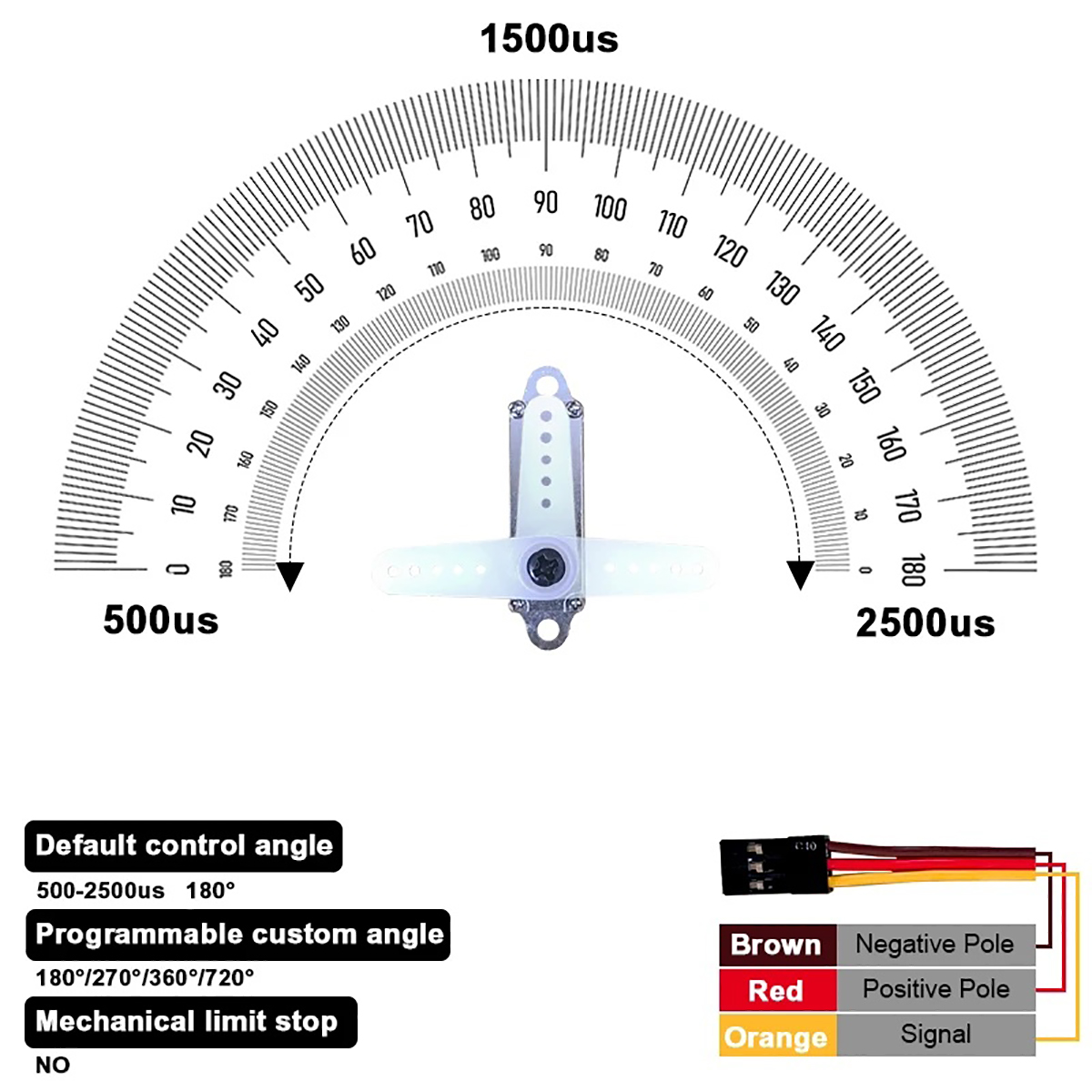

Default Travel Angle: ±60°@1000us-2000us
Speed/Stall Torque@ 3.8V: 0.145 sec / 60° 1.2Kg.cm
Speed/Stall Torque@ 7.4V: 0.075 sec / 60° 1.8 Kg.cm
Speed/Stall Torque@ 8.4V: 0.061sec / 60° 2.5 Kg.cm
Rated working Torque: 0.6kg.cm@8.4V
Input Voltage: 3.8V – 8.4V
Harness length: 185mm JR
Dead band: 2μs

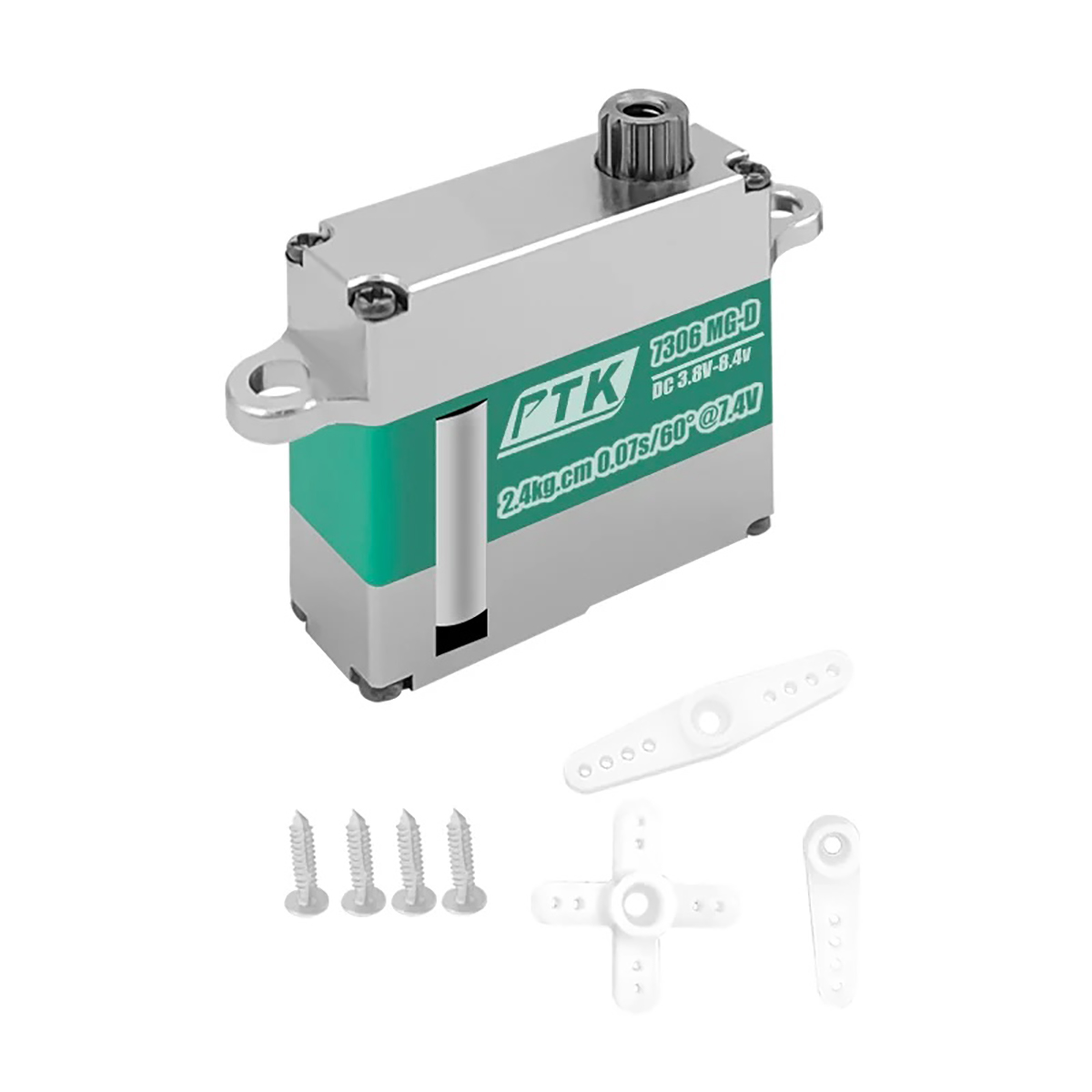

7306 MG-D Servo x1
