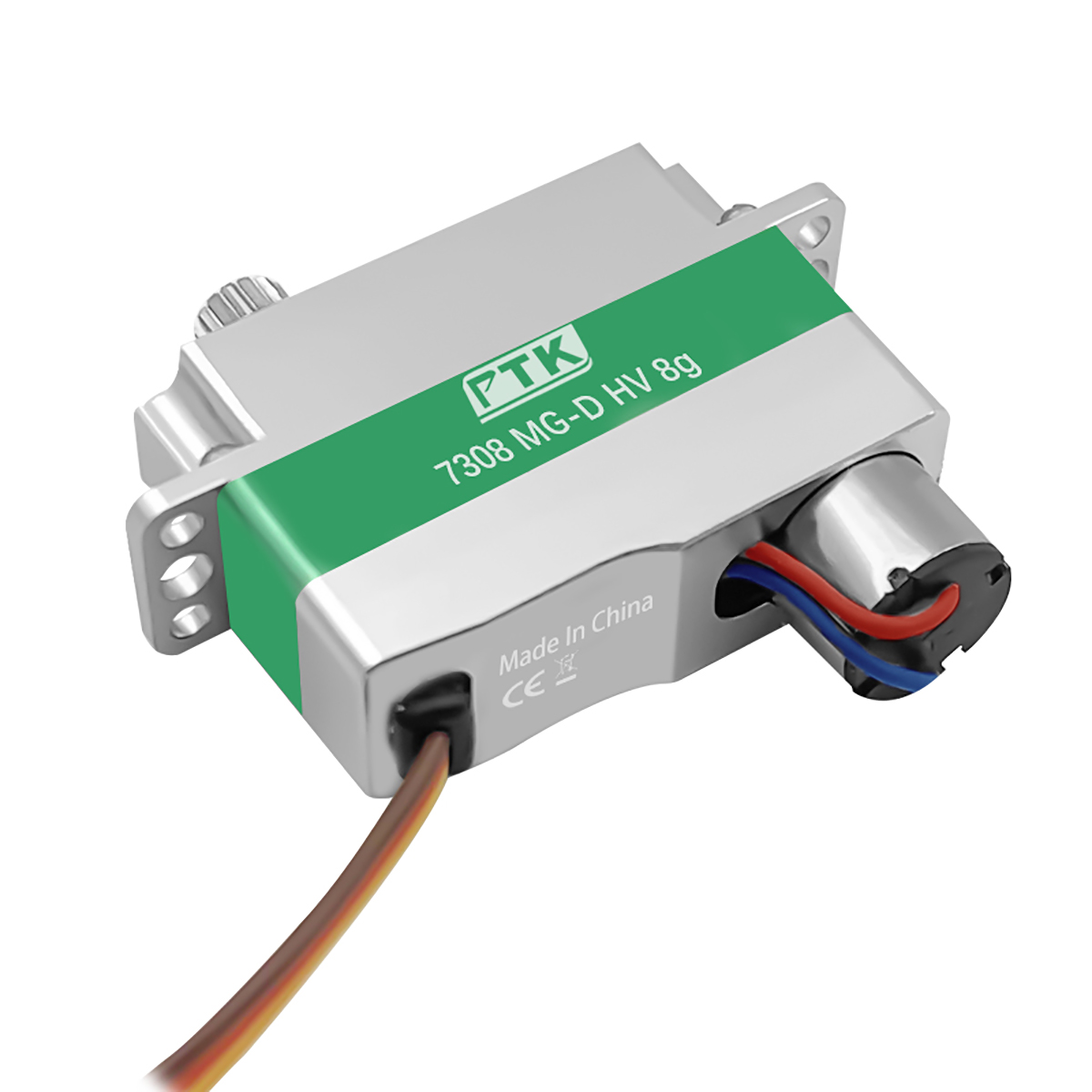

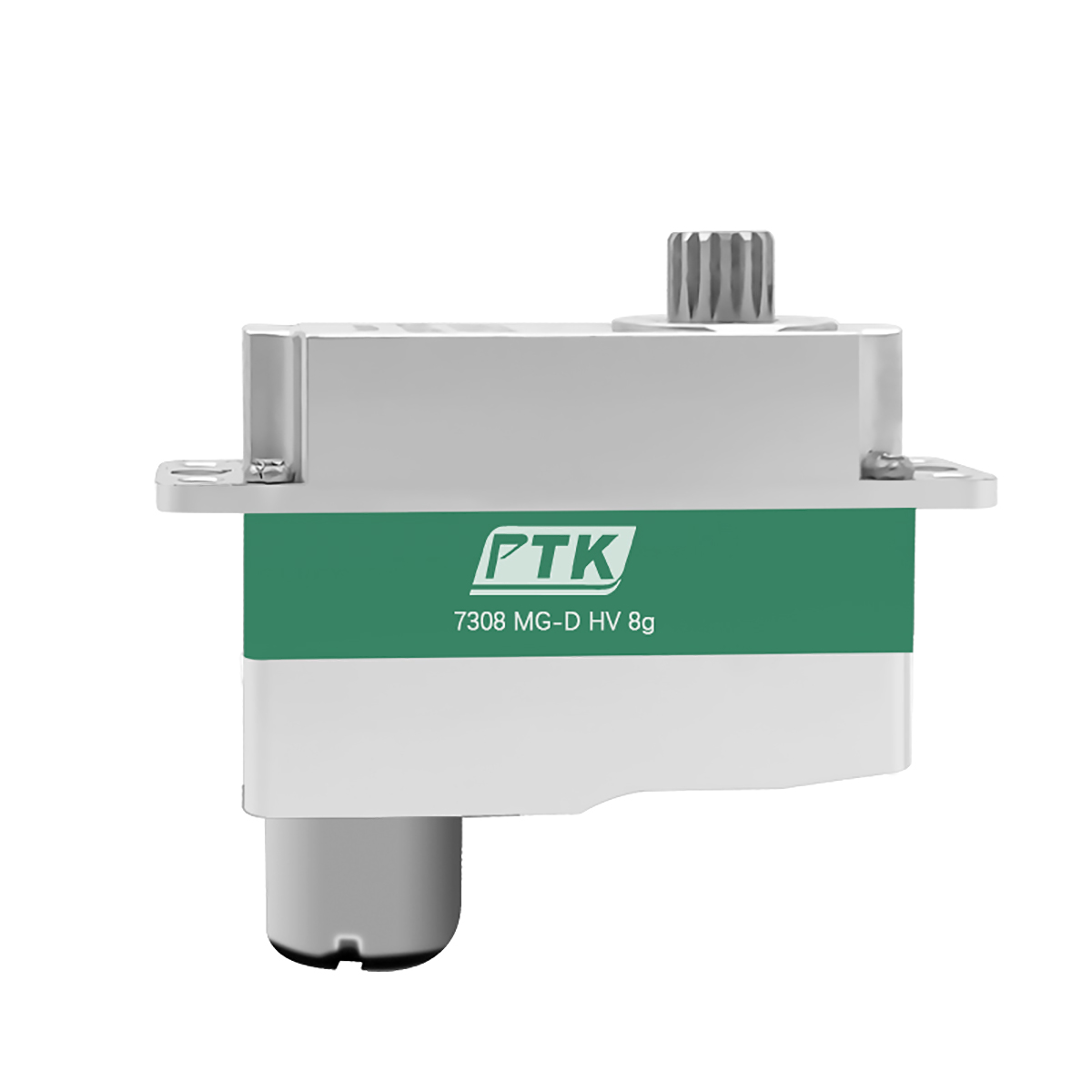

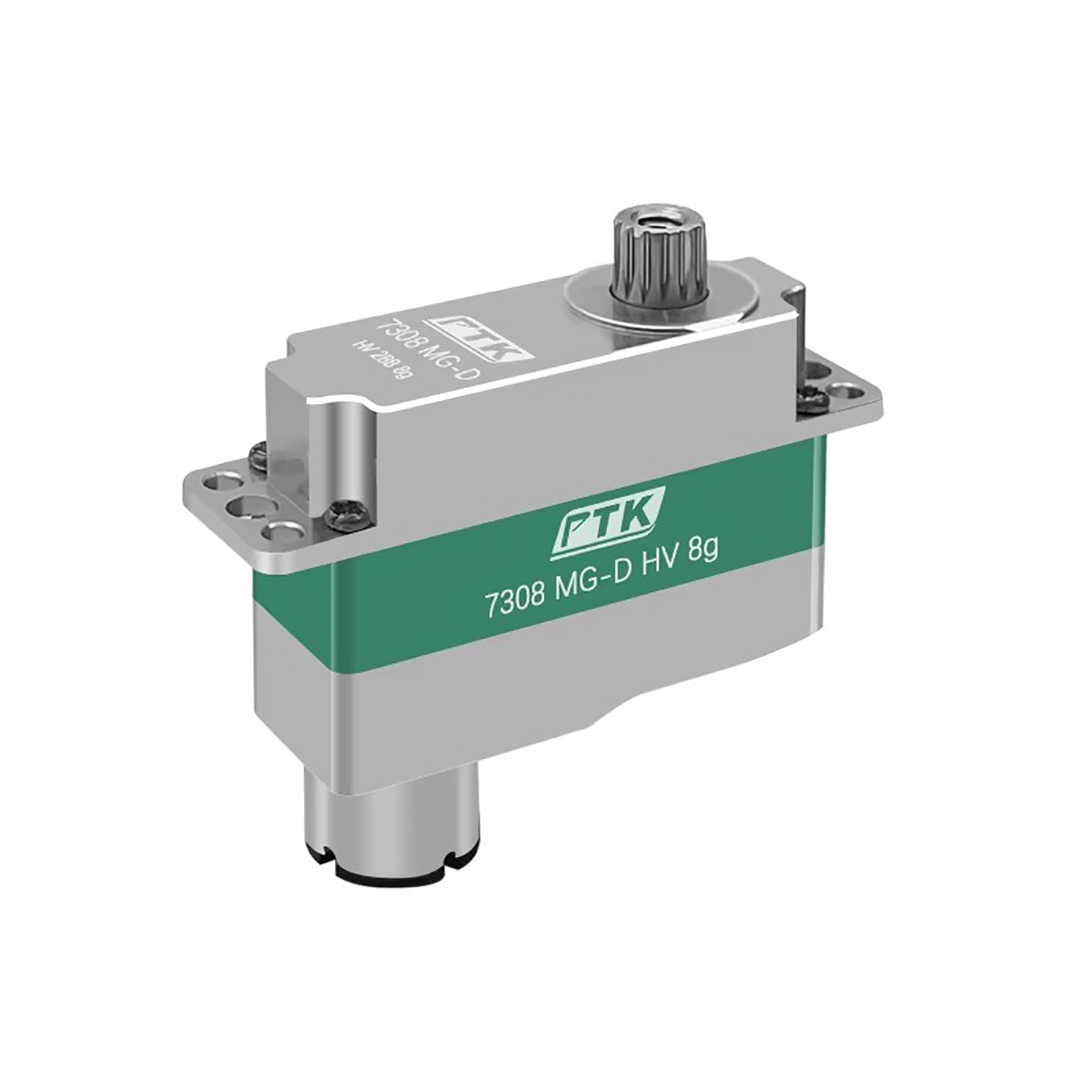

PTK 7308 MG-D Metal Gear Coreless Motor Micro Digital Servo for RC Cars Glider Model Airplane
PTK 7308 MG-D Metal Gear Coreless Motor Micro Digital Servo for RC Cars Glider Model Airplane
Fast and precise: The PTK 7308MG-D servo provides quick response and accurate positioning for smooth and precise control.

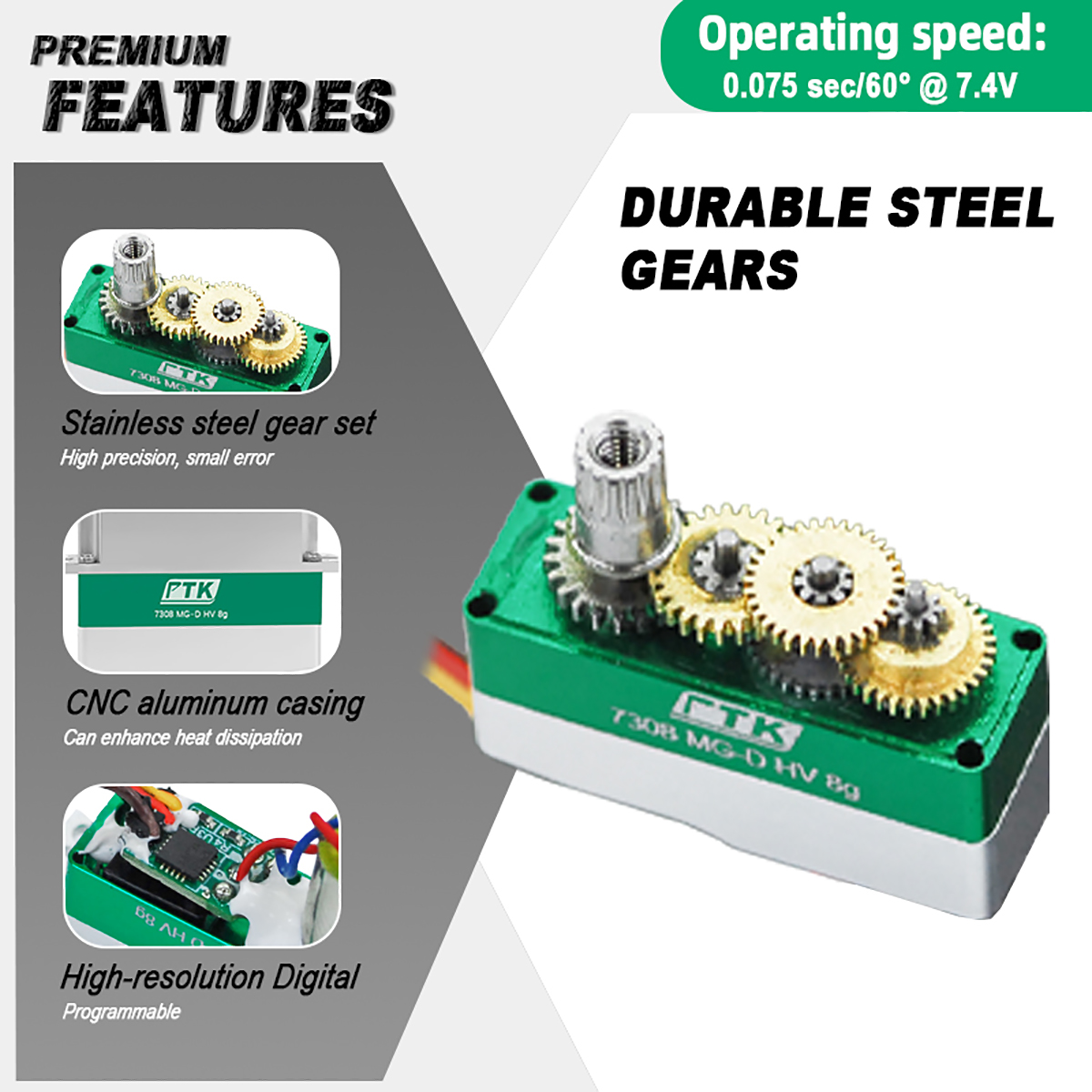

Durables construction: With its metal gears, this servo is built to withstand the rigors of RC flying and driving, ensuring long-lasting performance.
Versatile compatibility: This servo is suitable for various models, including glider planes, RC cars, and helicopters, making it a versatile choice for enthusiasts.

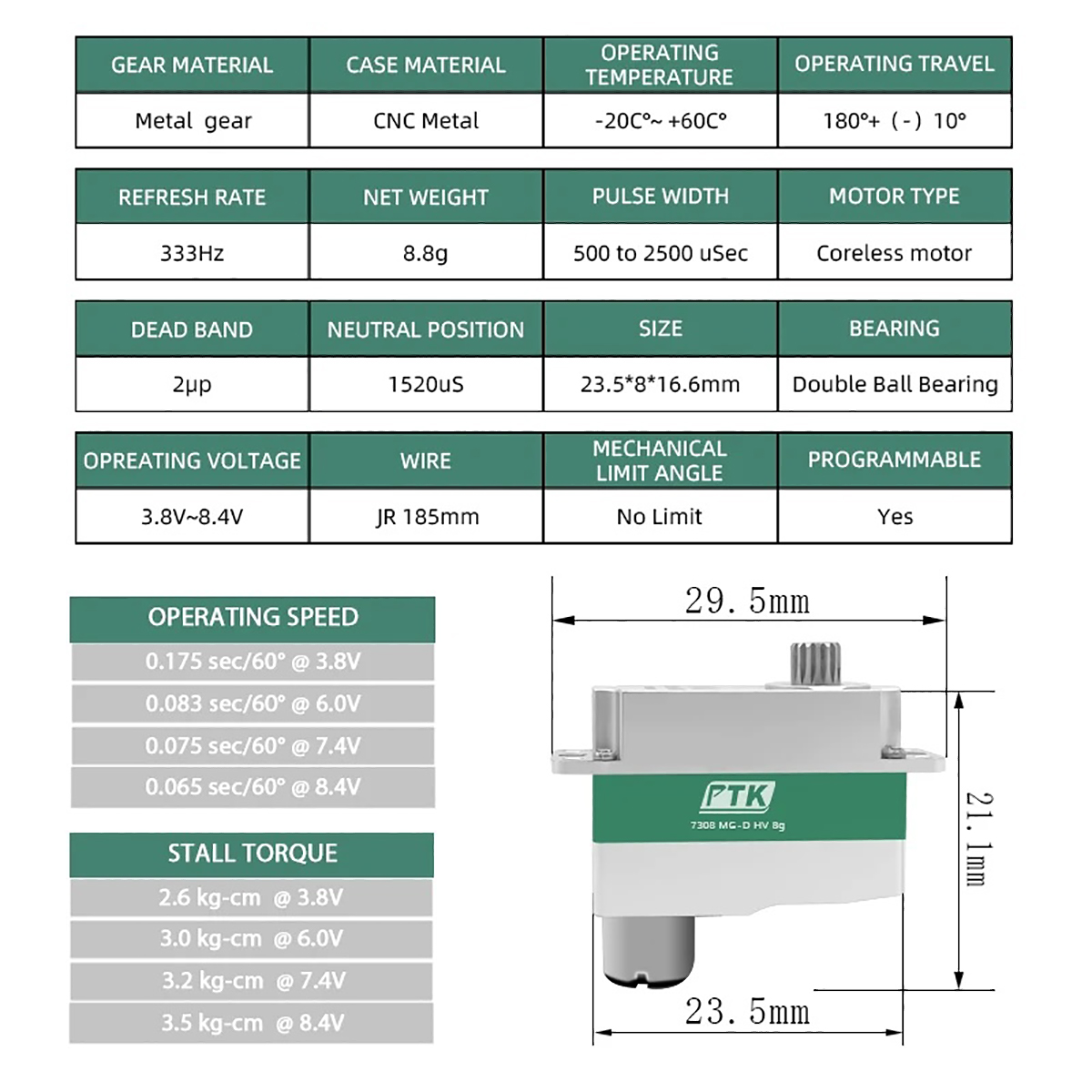

Model: 7308 MG-D
Gears: Metal
Motor: Coreless
Ball Bearing: 2
Weight: 8.8g

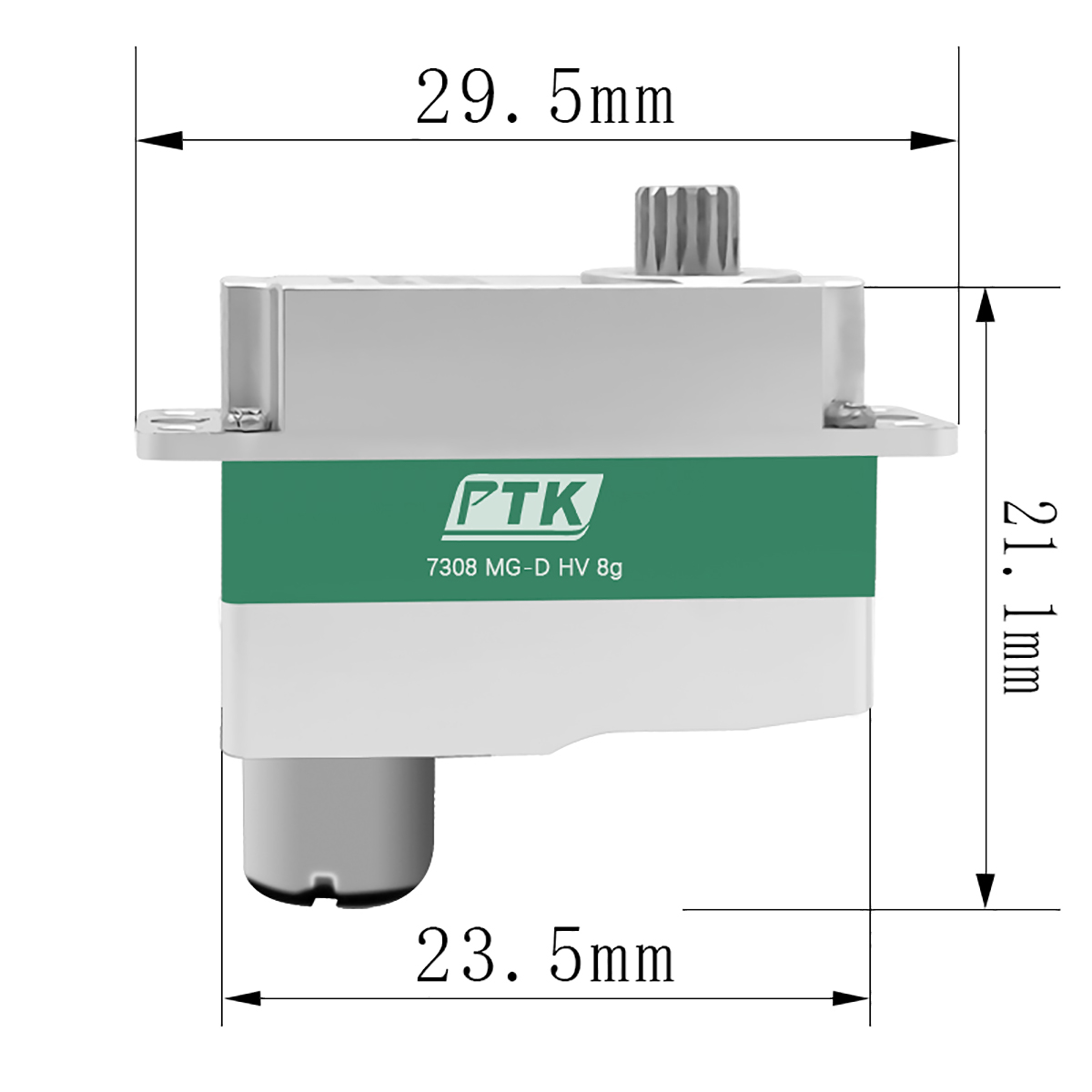

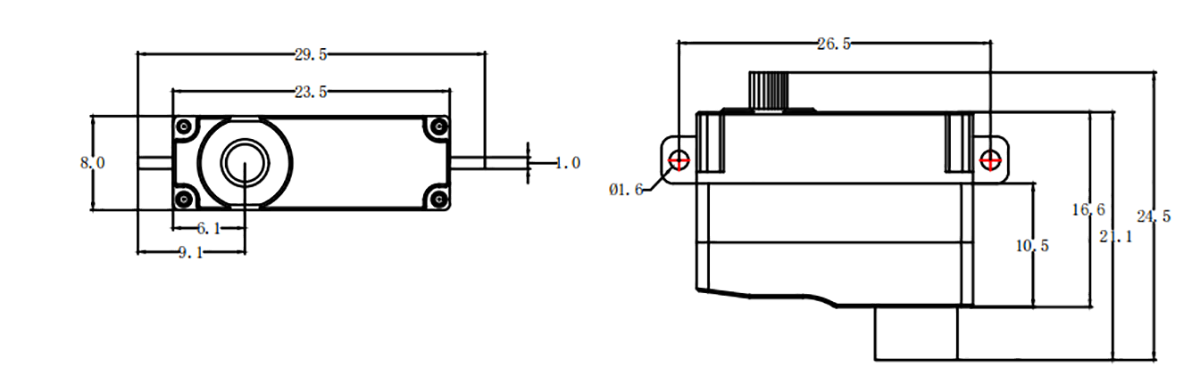

Dimensions: 23.5*8*16.6mm
Working frequency： 1520μs/333hz

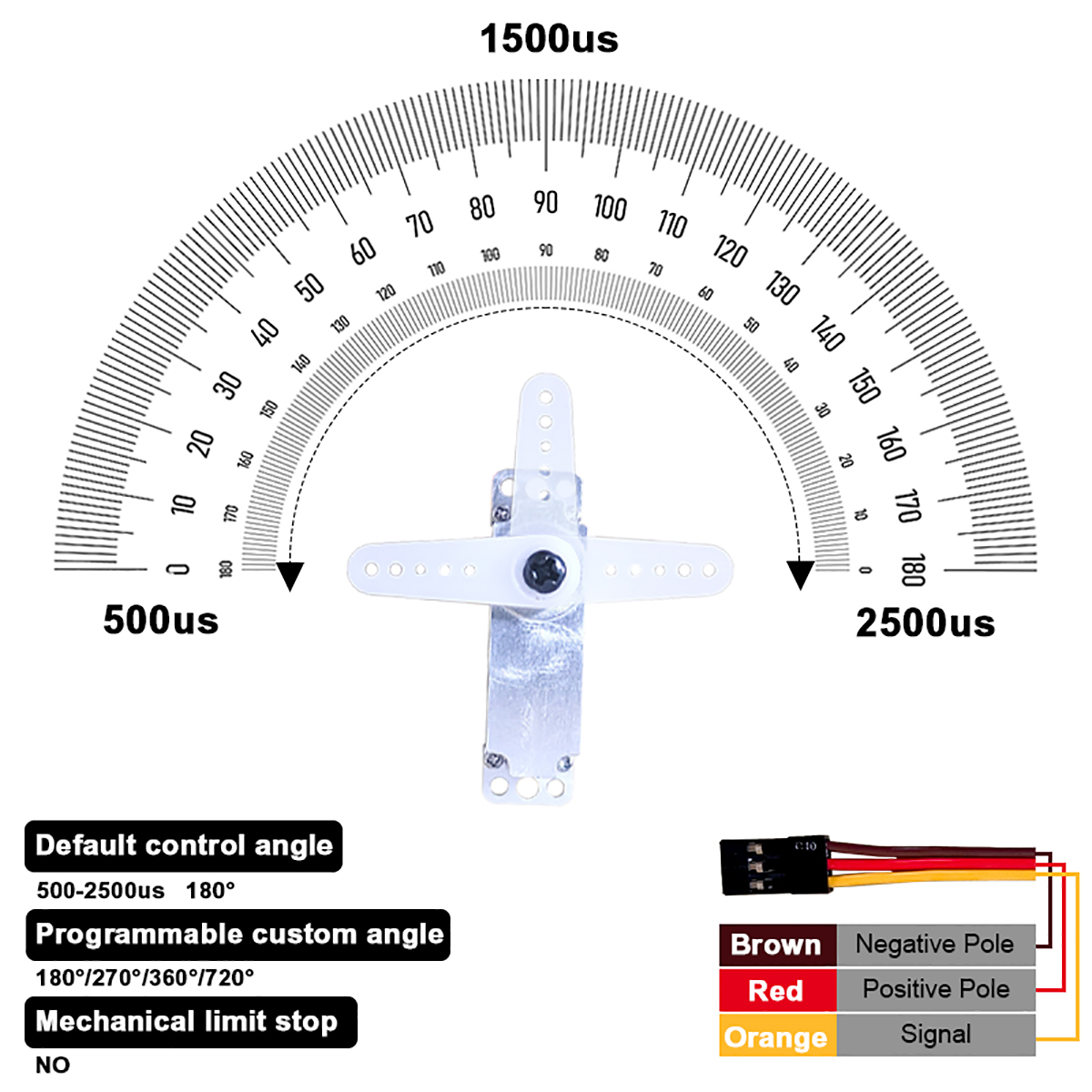

Default Travel Angle: ±60°@1000us-2000us
Speed/Stall Torque@ 3.8V: 0.175 sec / 60° 2.6 Kg.cm
Speed/Stall Torque@ 6.0V: 0.083 sec / 60° 3.0 Kg.cm
Speed/Stall Torque@ 8.4V: 0.065sec / 60° 3.5 Kg.cm
Rated working Torque: 0.9kg.cm@8.4V
Input Voltage: 3.8V-8.4V

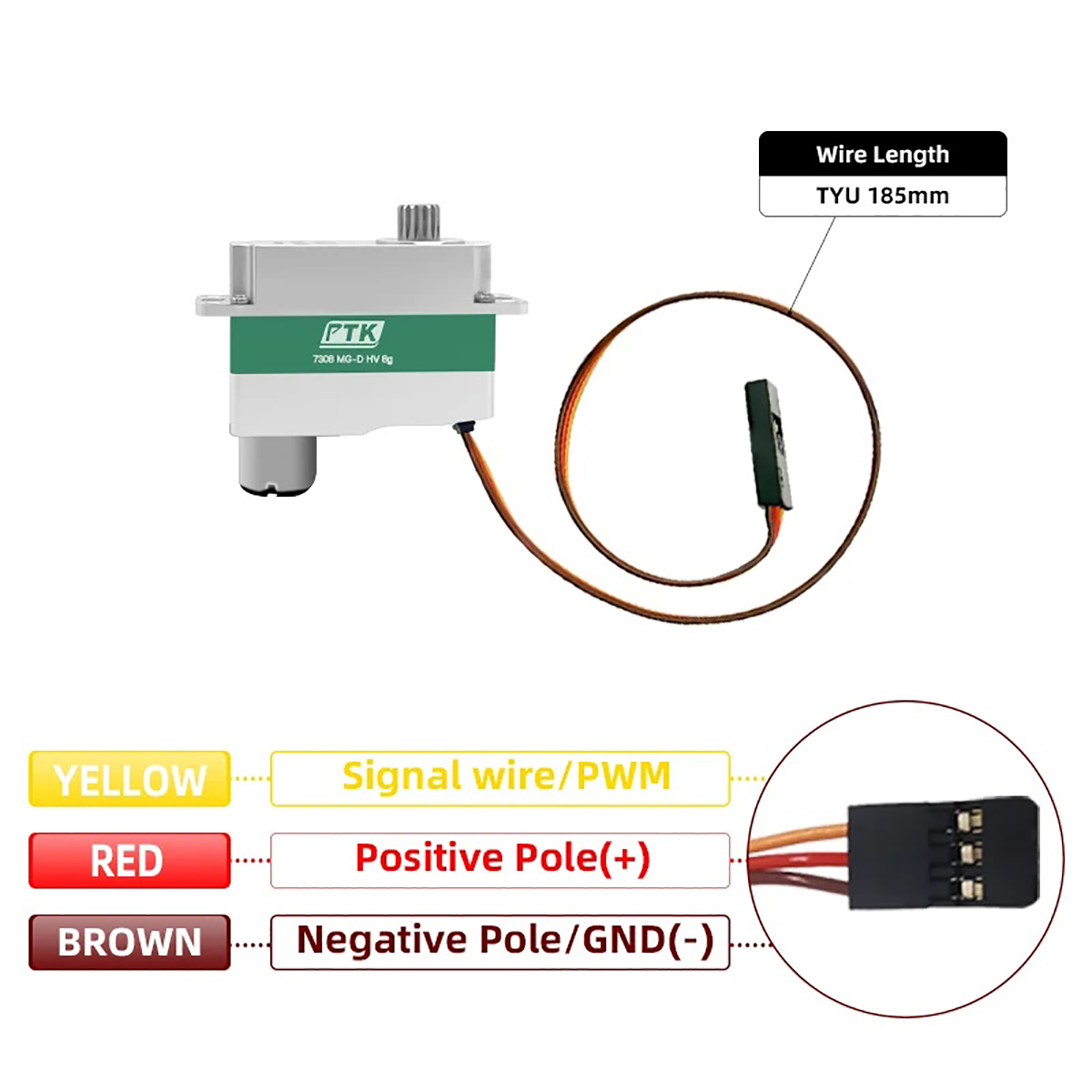

Harness length: 185mm JR
Dead band: 2μs

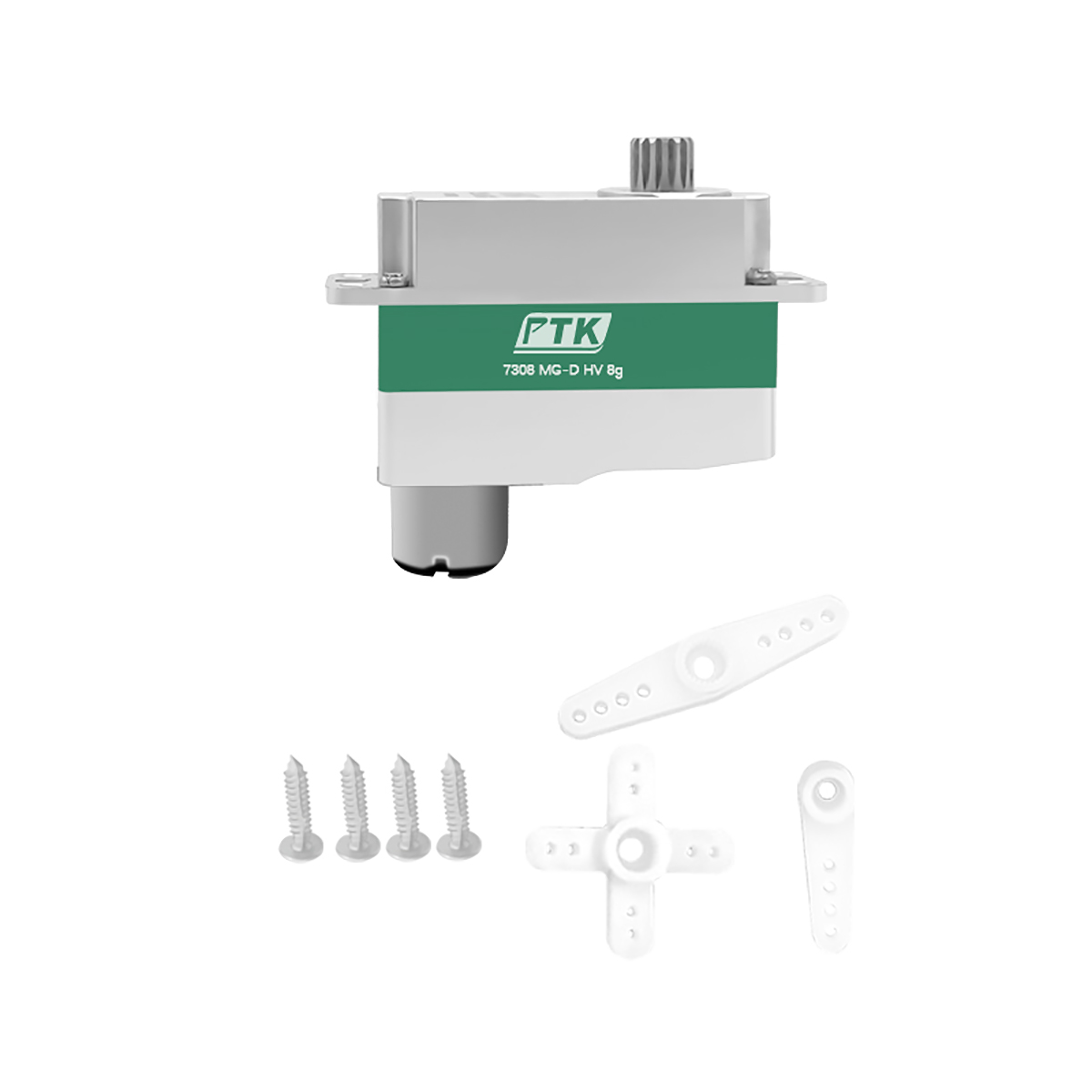

7308 MG-D Servo x1
