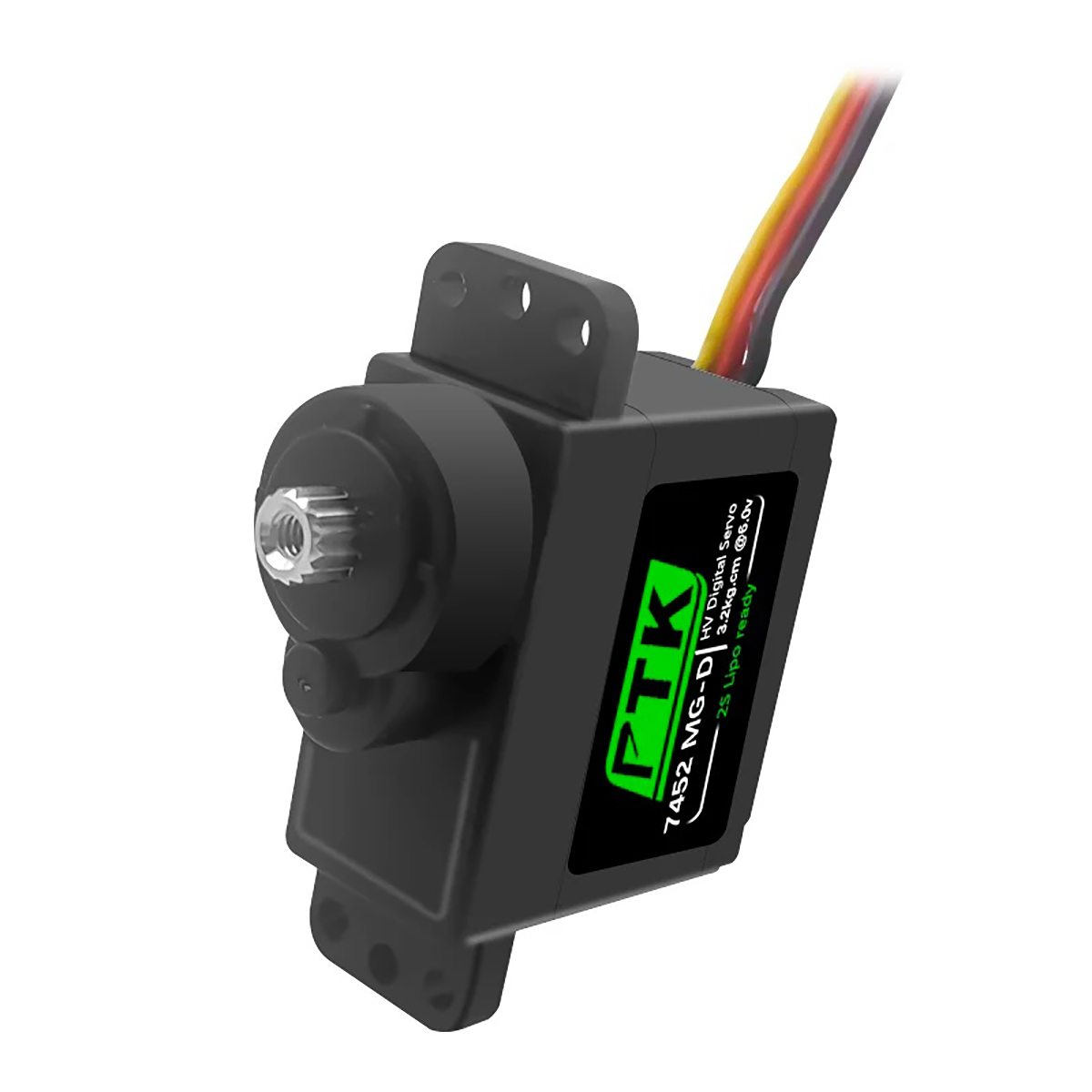

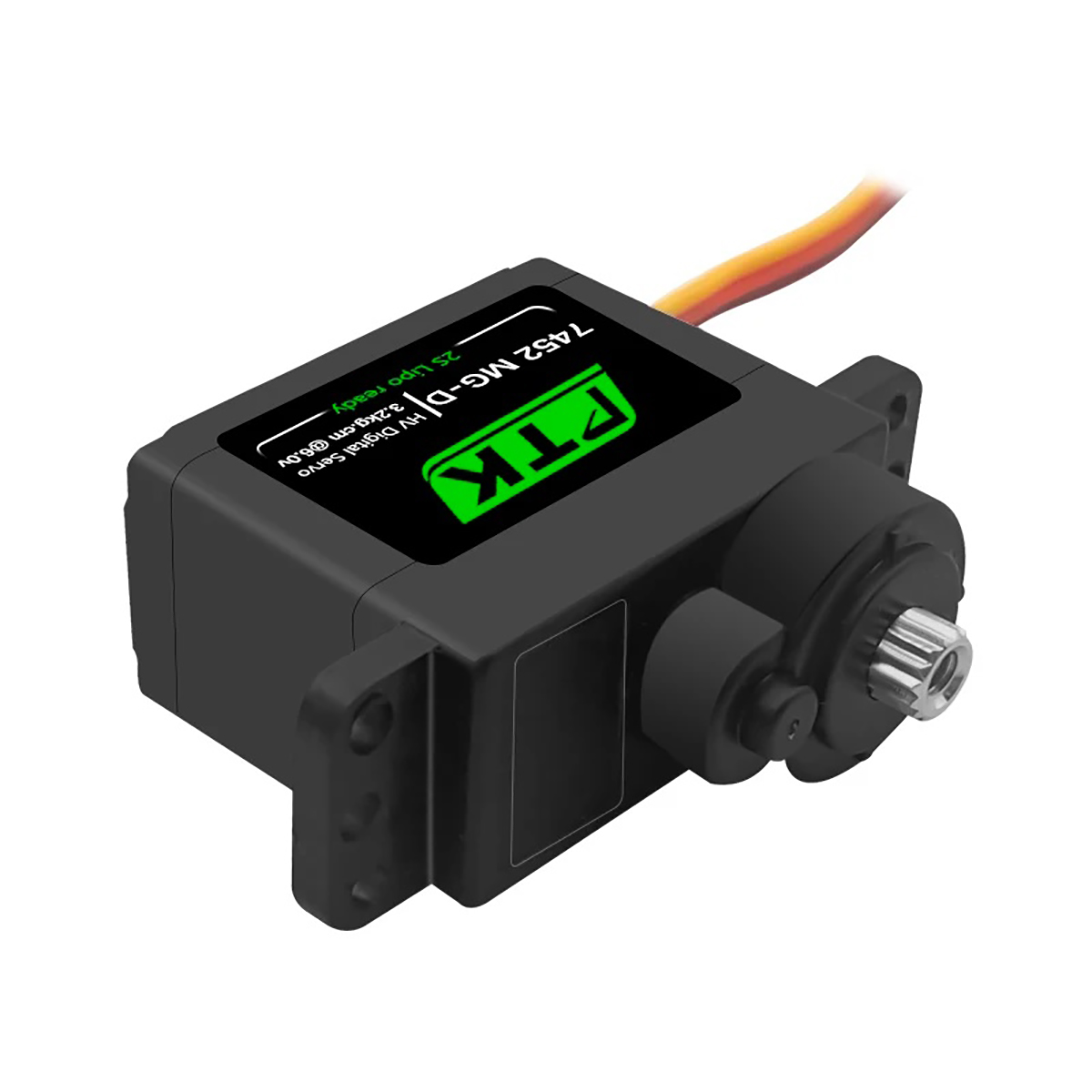

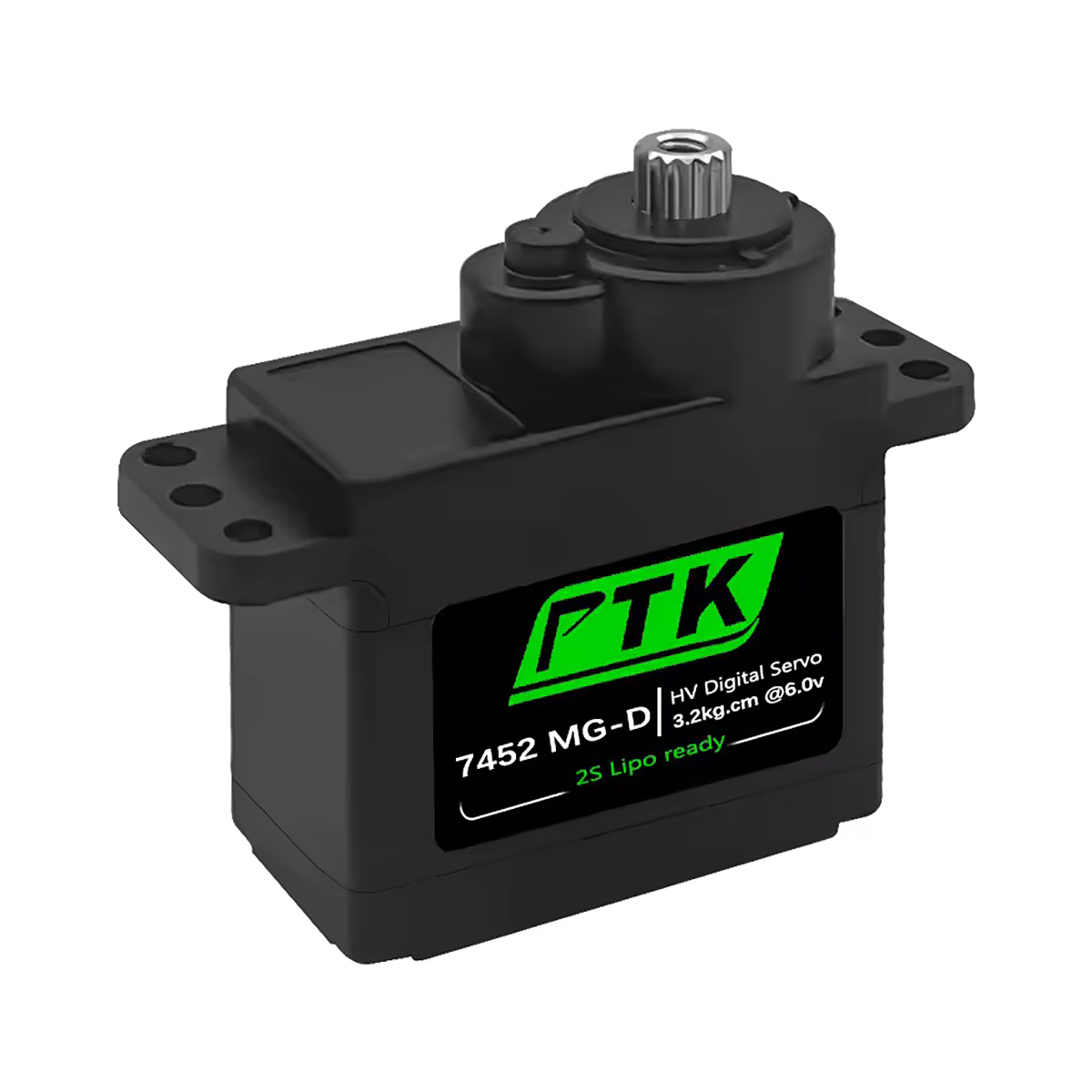

PTK 7452 MG-D 7.4V 4.5Kg Metal Gear 9g Digital Servo for F3P Glider Fixed Wing Helicopter RC Model Car
PTK 7452 MG-D 7.4V 4.5Kg Metal Gear 9g Digital Servo for F3P Glider Fixed Wing Helicopter RC Model Car
PTK 7452 MG-D 7.4V 4.5Kg Metal Gear 9g Digital Servo for F3P Glider Fixed Wing Helicopter RC Model Car

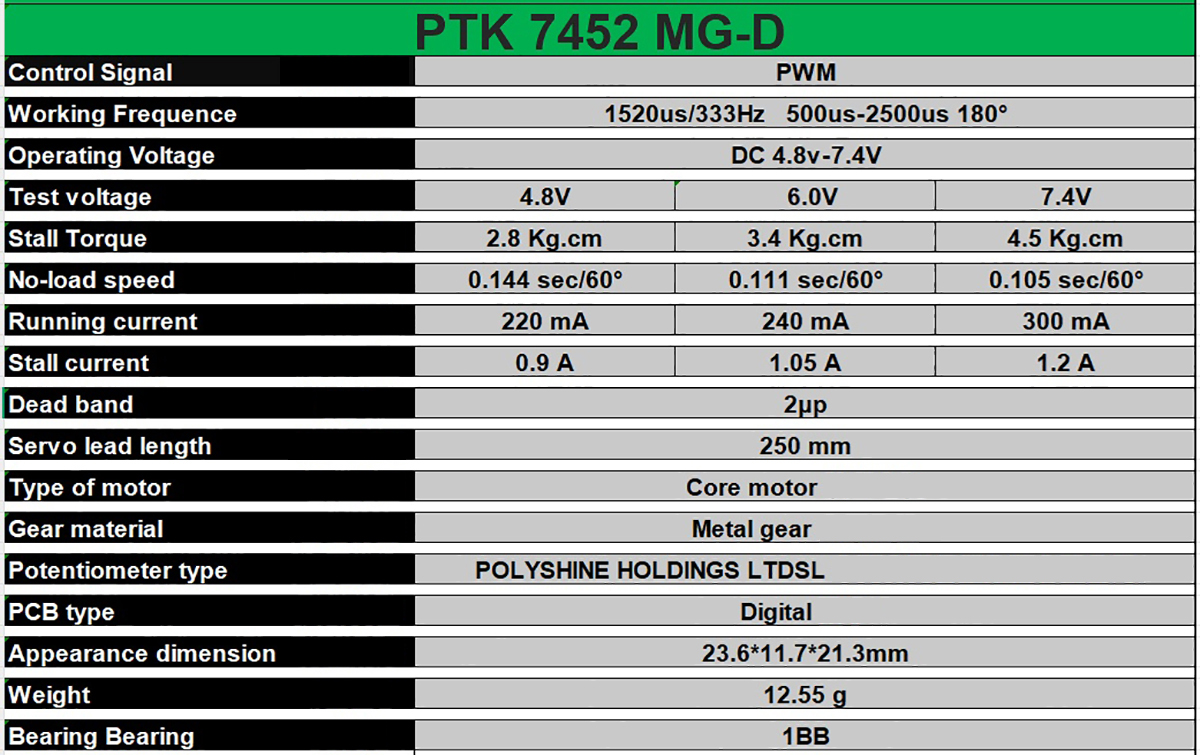

Model: 7452 MG-D

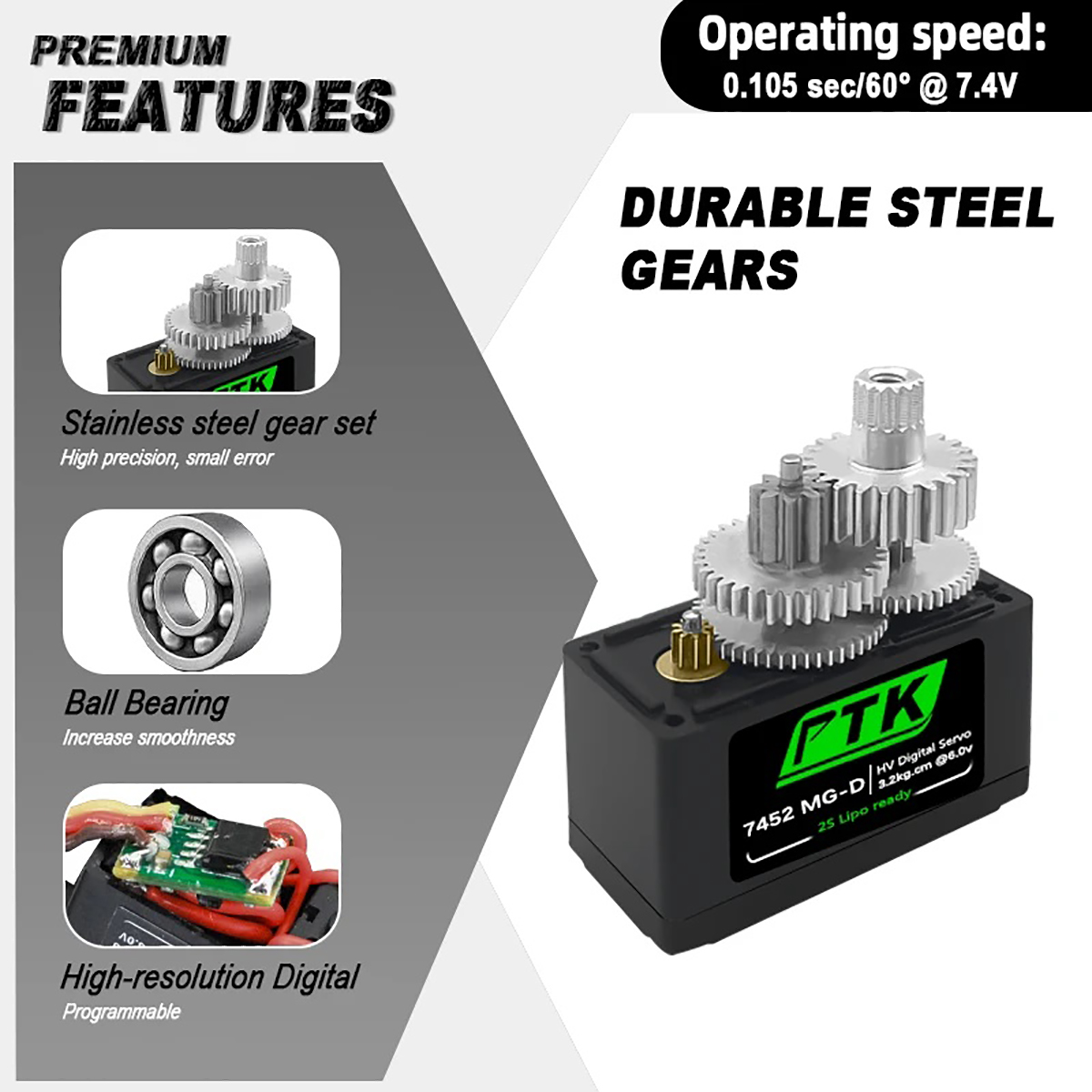

Gears: Metal
Motor: DC Core
Ball Bearing: 1
Weight: 12.55g

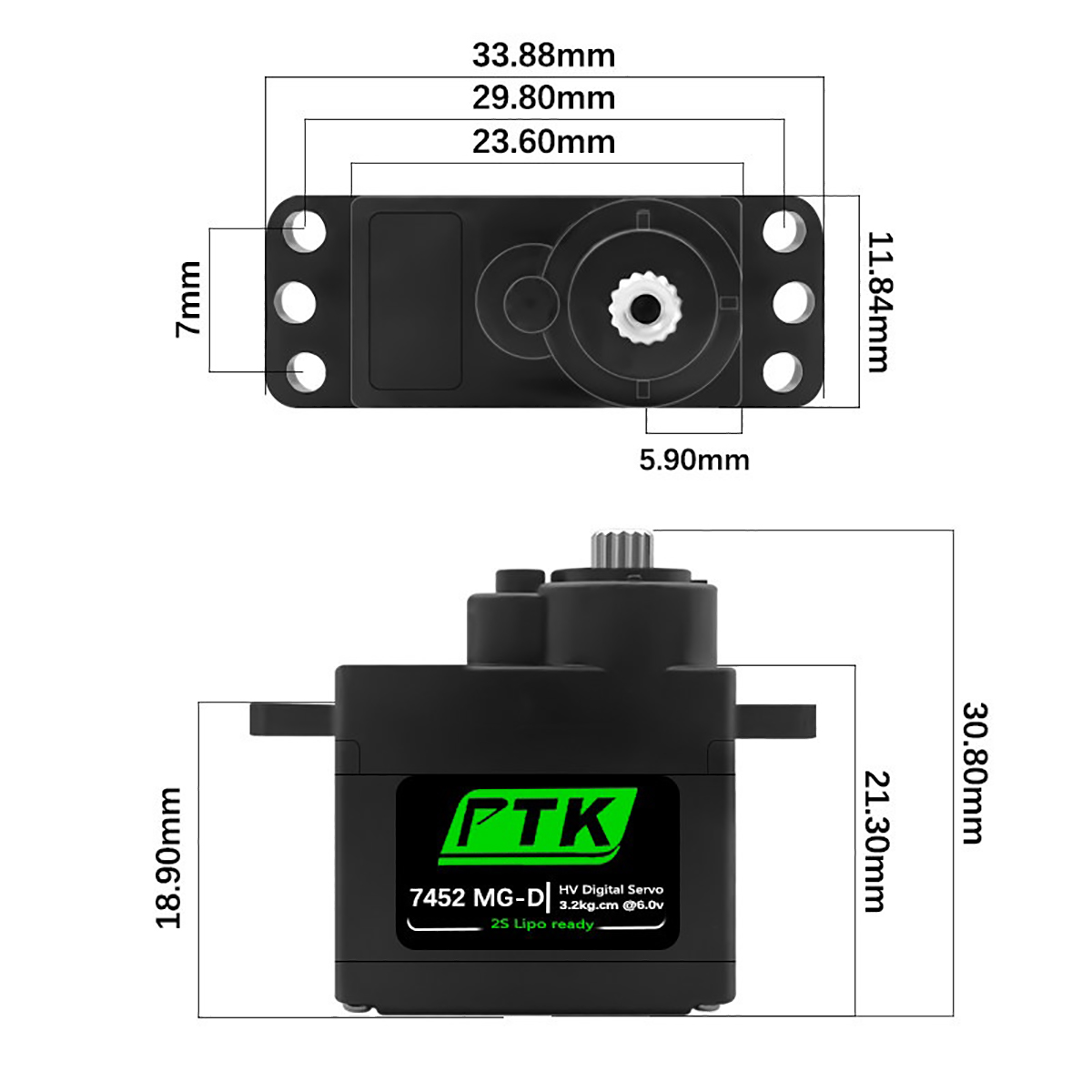

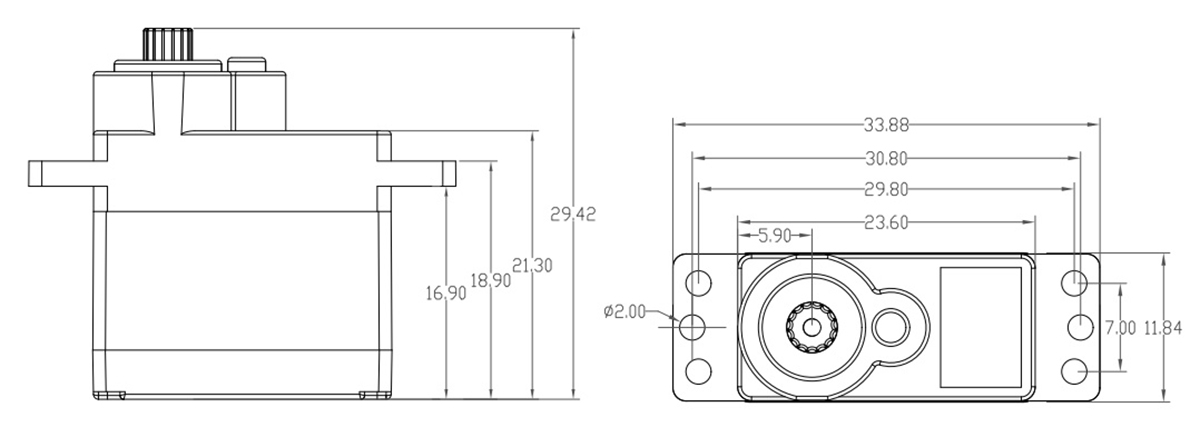

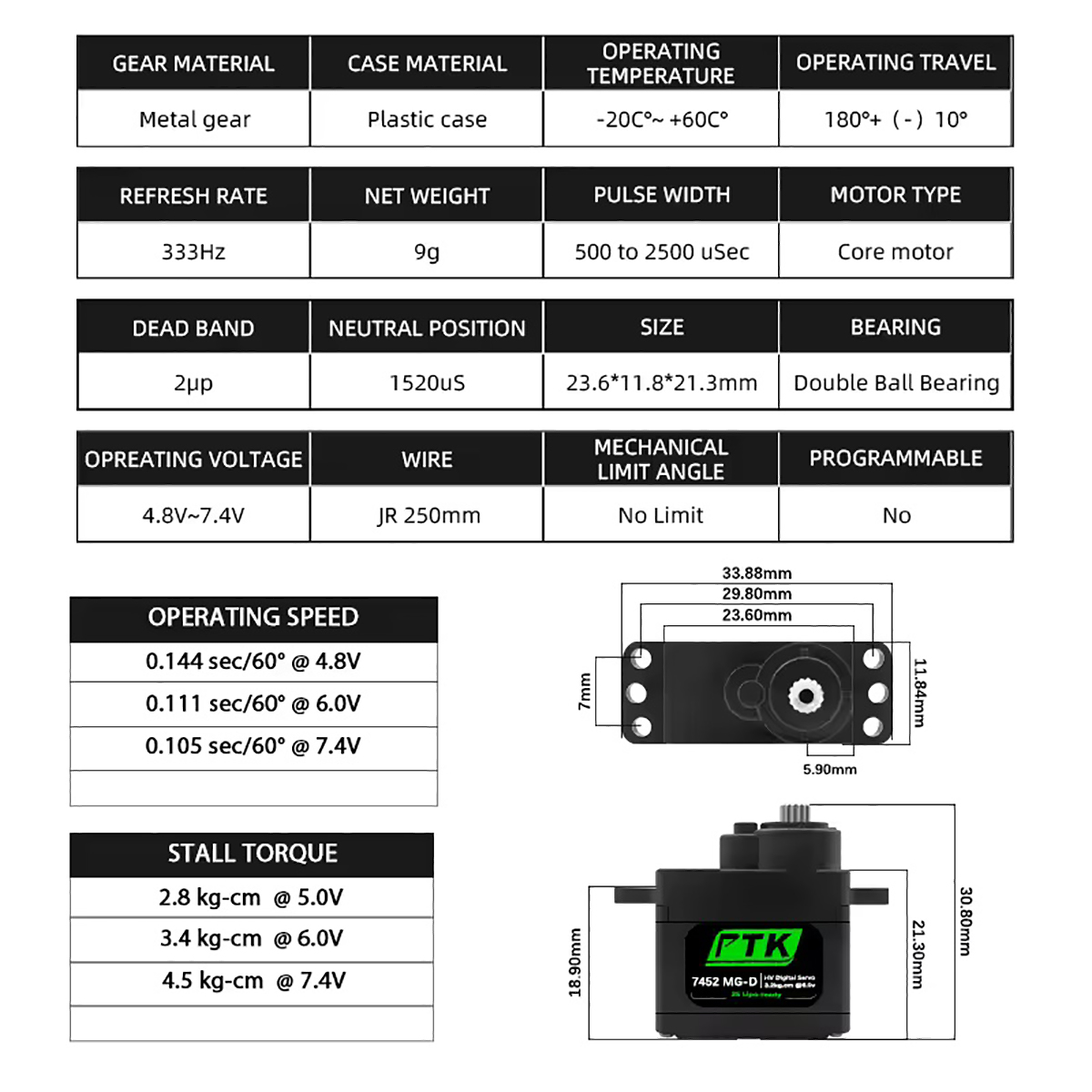

Dimensions: 23.6*11.7*21.3mm
Working frequency：1520μs/333hz
Default Travel Angle: ±45°@1000us-2000us
Speed/Stall Torque@ 4.8V: 0.144 sec/60° 2.8kg.cm
Speed/Stall Torque@ 6.0V: 0.111 sec/60° 3.4kg.cm
Speed/Stall Torque@ 7.4V: 0.105 sec/60° 4.5kg.cm
Rated working Torque: 1.2kg.cm@7.4V
Input Voltage: 4.8V – 8.4V
Harness length: 250mm JR
Dead band: 3

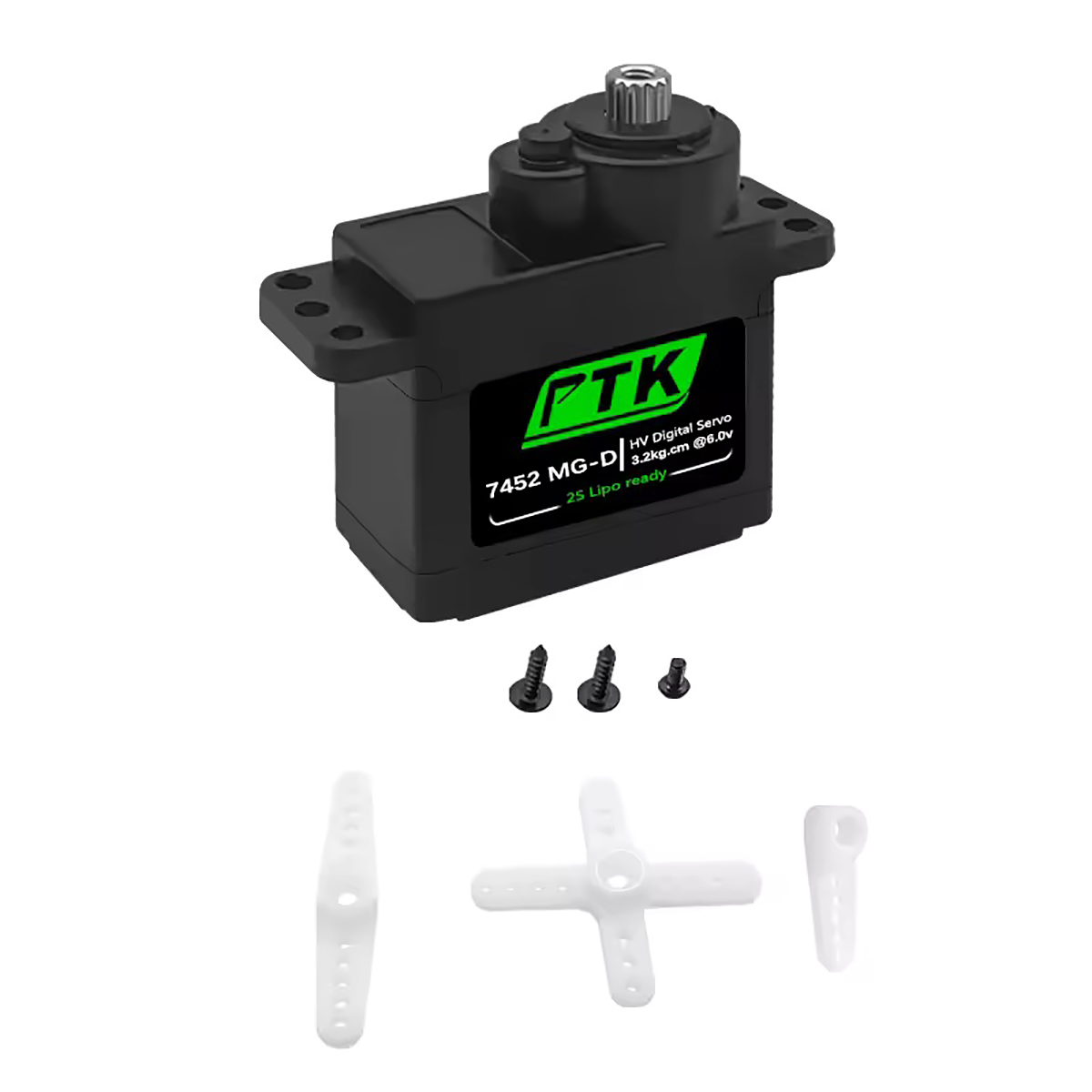

7452 MG-D Servo x1
