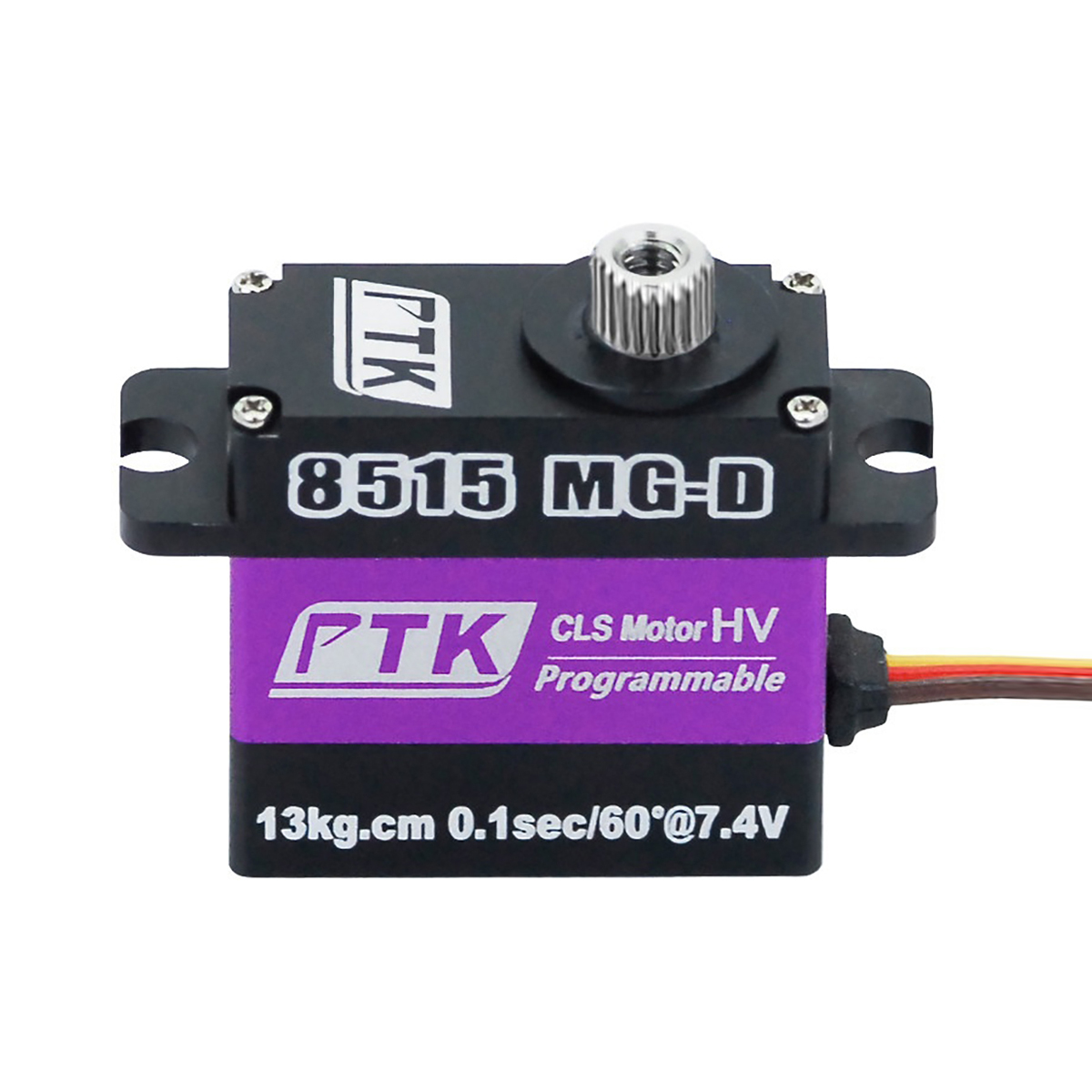

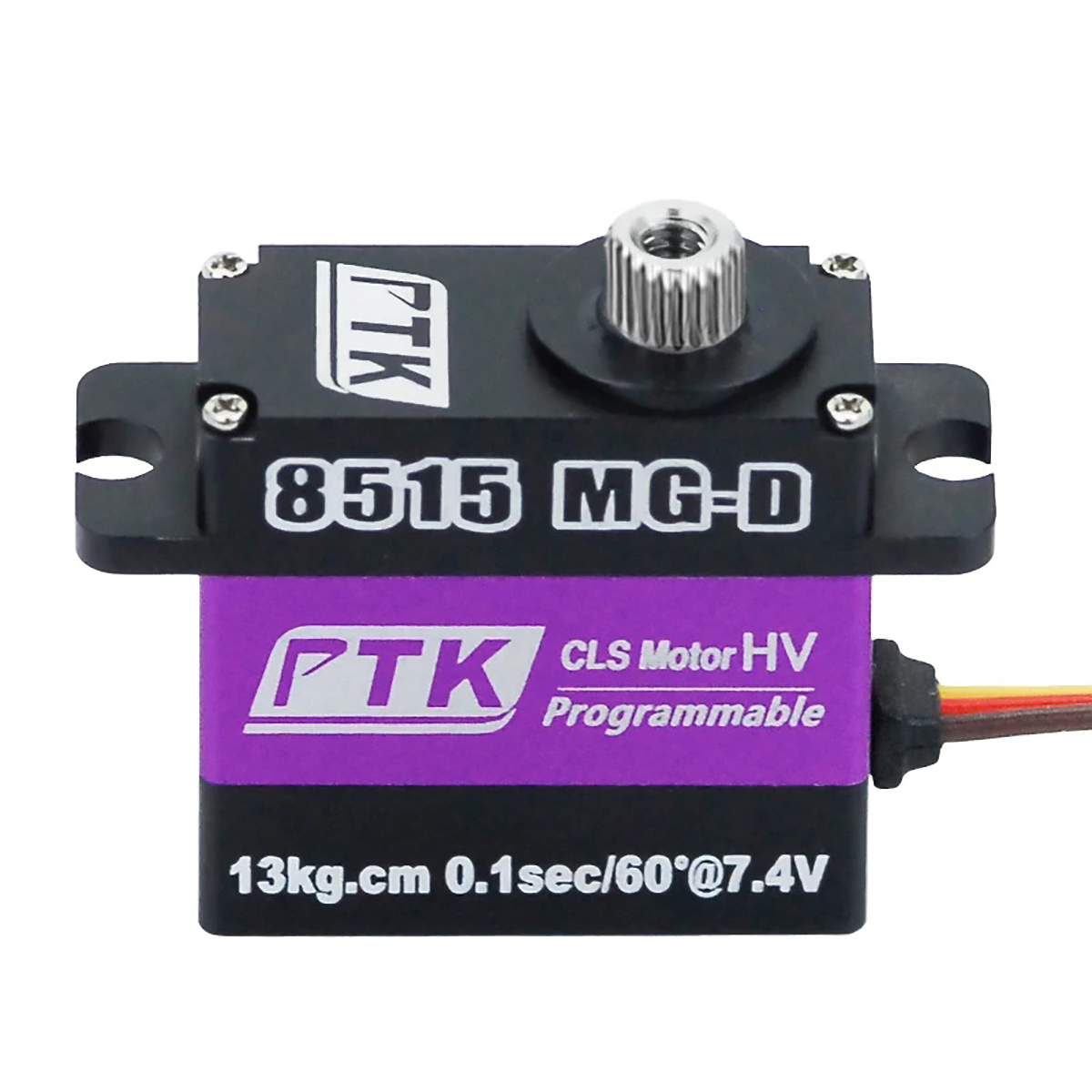

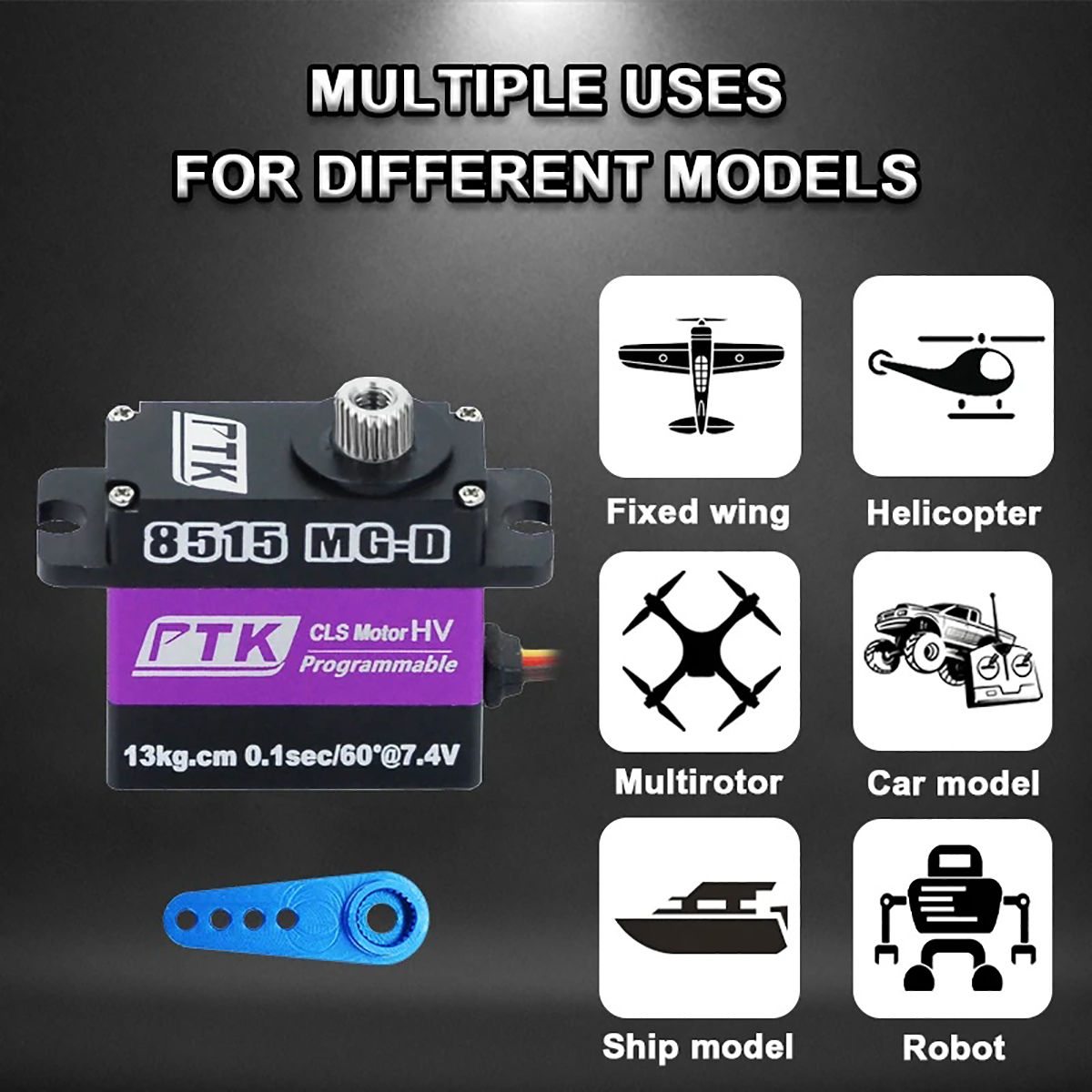

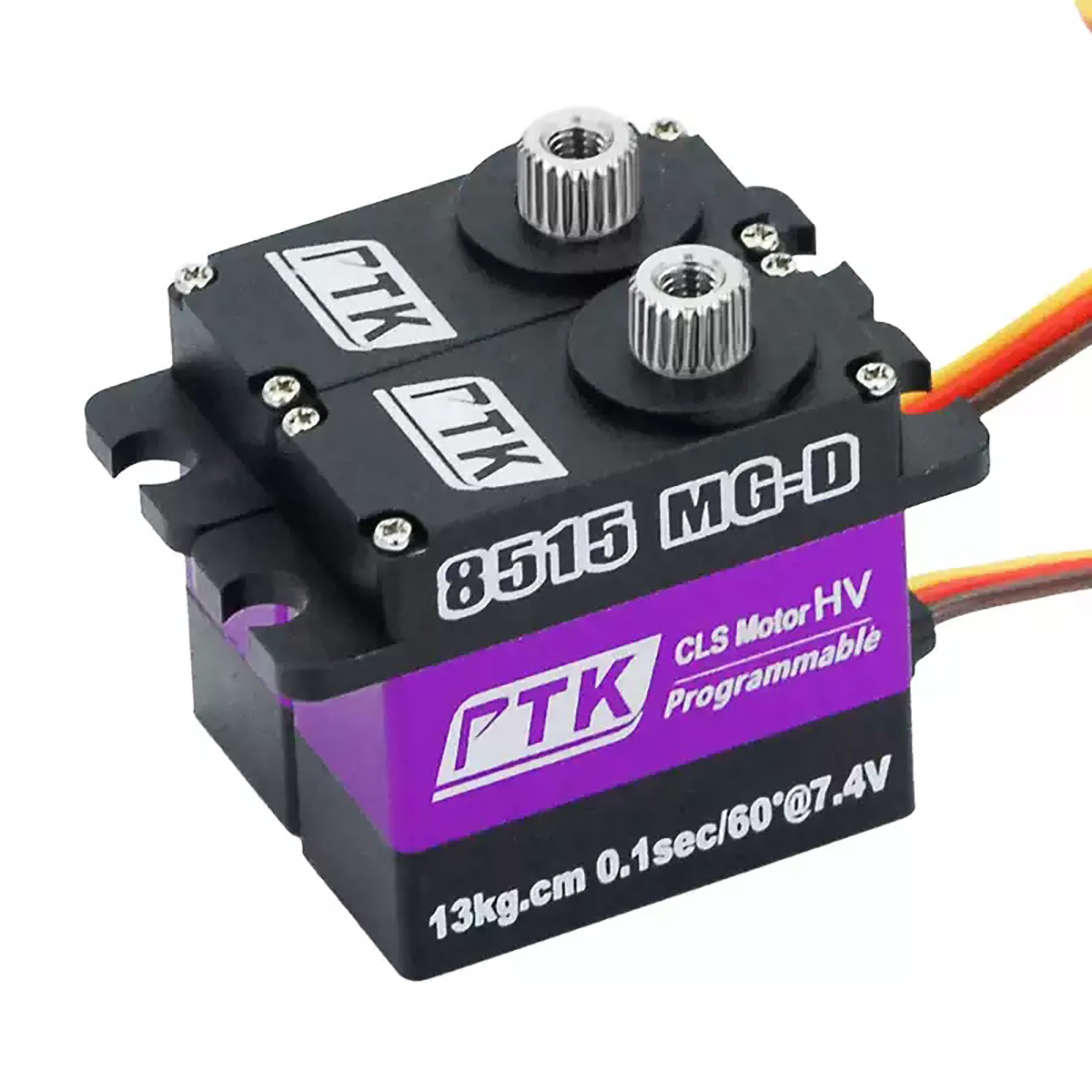

PTK 8515 MG-D All Metal High Voltage 17g Micro Digital Servo for RC Model Fixed Wing Aircraft RC Car Truck
PTK 8515 MG-D All Metal High Voltage 17g Micro Digital Servo for RC Model Fixed Wing Aircraft RC Car Truck
PTK 8515 MG-D All Metal High Voltage 17g Micro Digital Servo for RC Model Fixed Wing Aircraft RC Car Truck

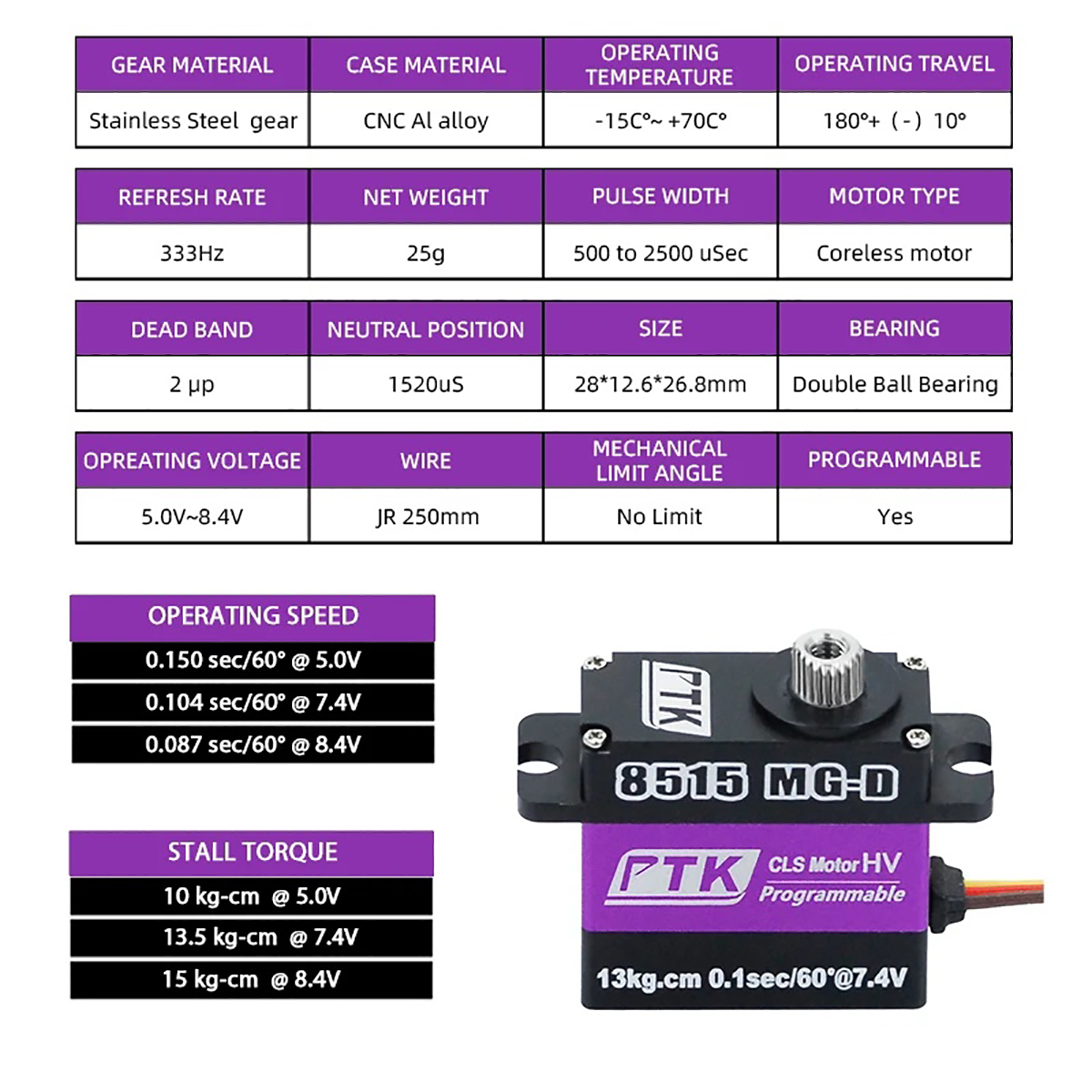

Model: 8515 MG-D
Motor: Coreless

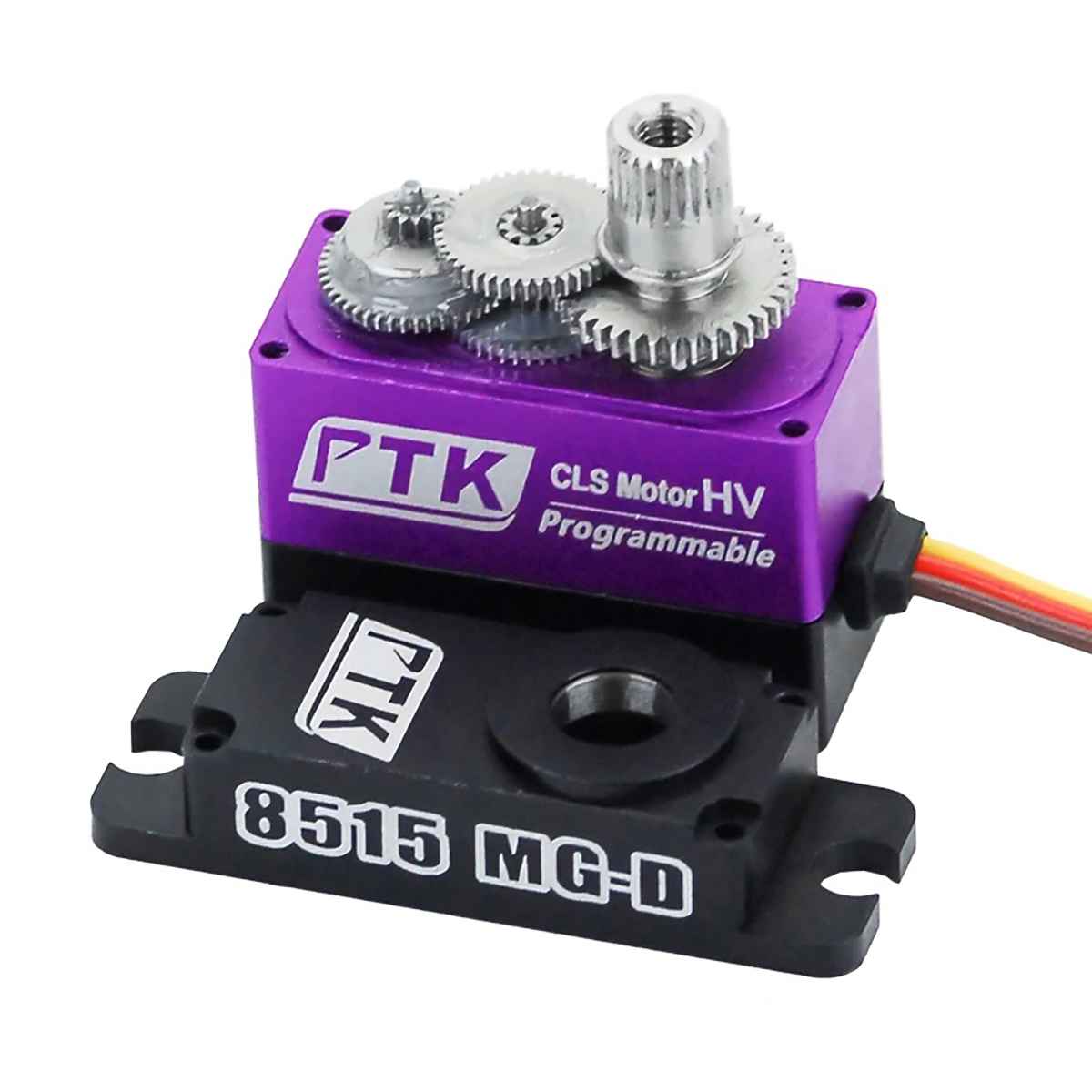

Gears: Stainless Steel Gear
Ball Bearing: 2
Weight: 25g

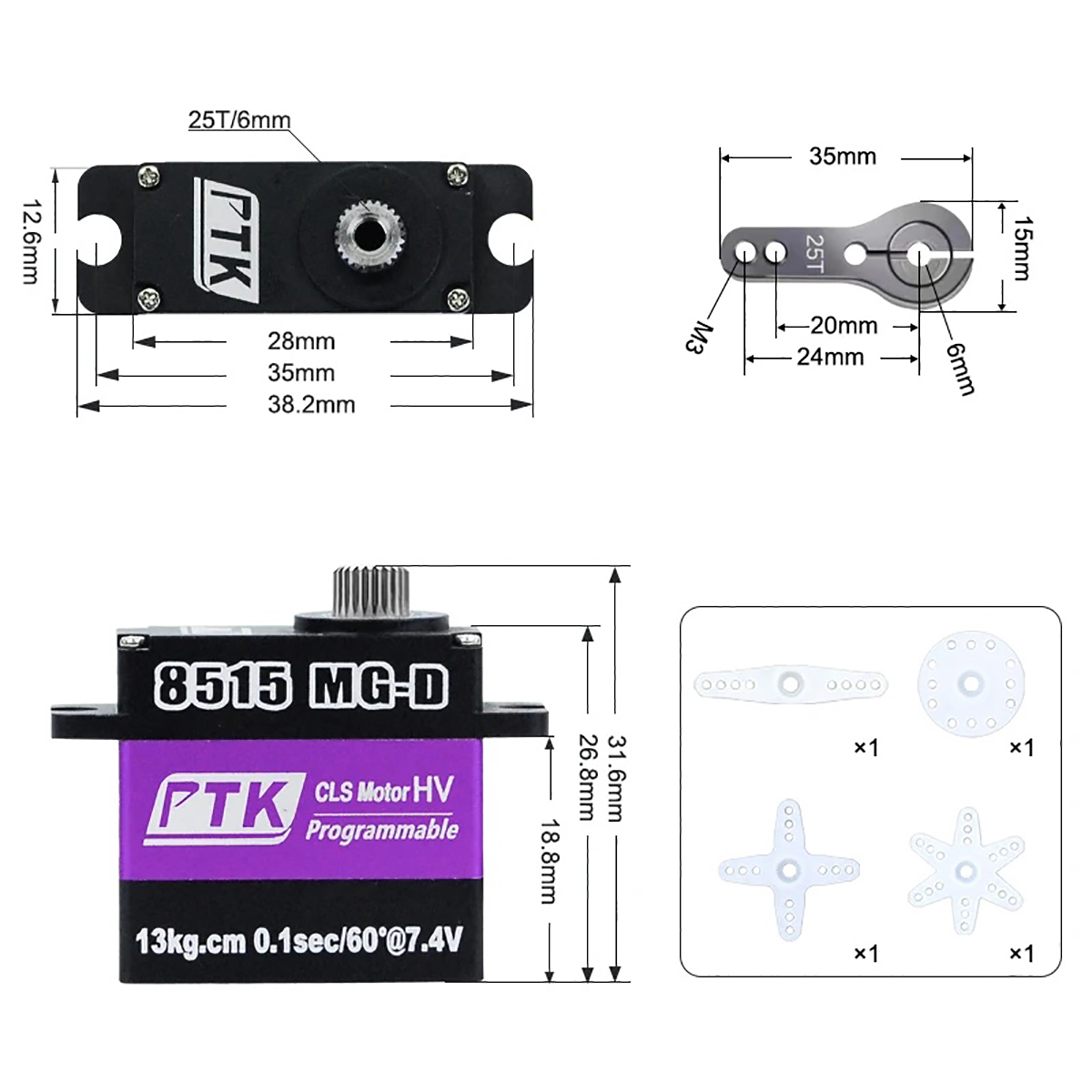

Dimensions: 28*12.6*26.8mm
Working frequency: 1520μs/333hz
Default Travel Angle: ±45°@1000us-2000us
Speed/Stall Torque@5.0V: 10kg.cm – 0.150s/60°
Speed/Stall Torque@7.4V: 13.5kg.cm – 0.104s/60°
Speed/Stall Torque@8.4V: 15kg.cm – 0.087s/60°
Rated working Torque: 4.5kg.cm@8.4V
Input Voltage: 5.0V – 8.4V
Harness length: 300mm JR
Dead band: 2μs

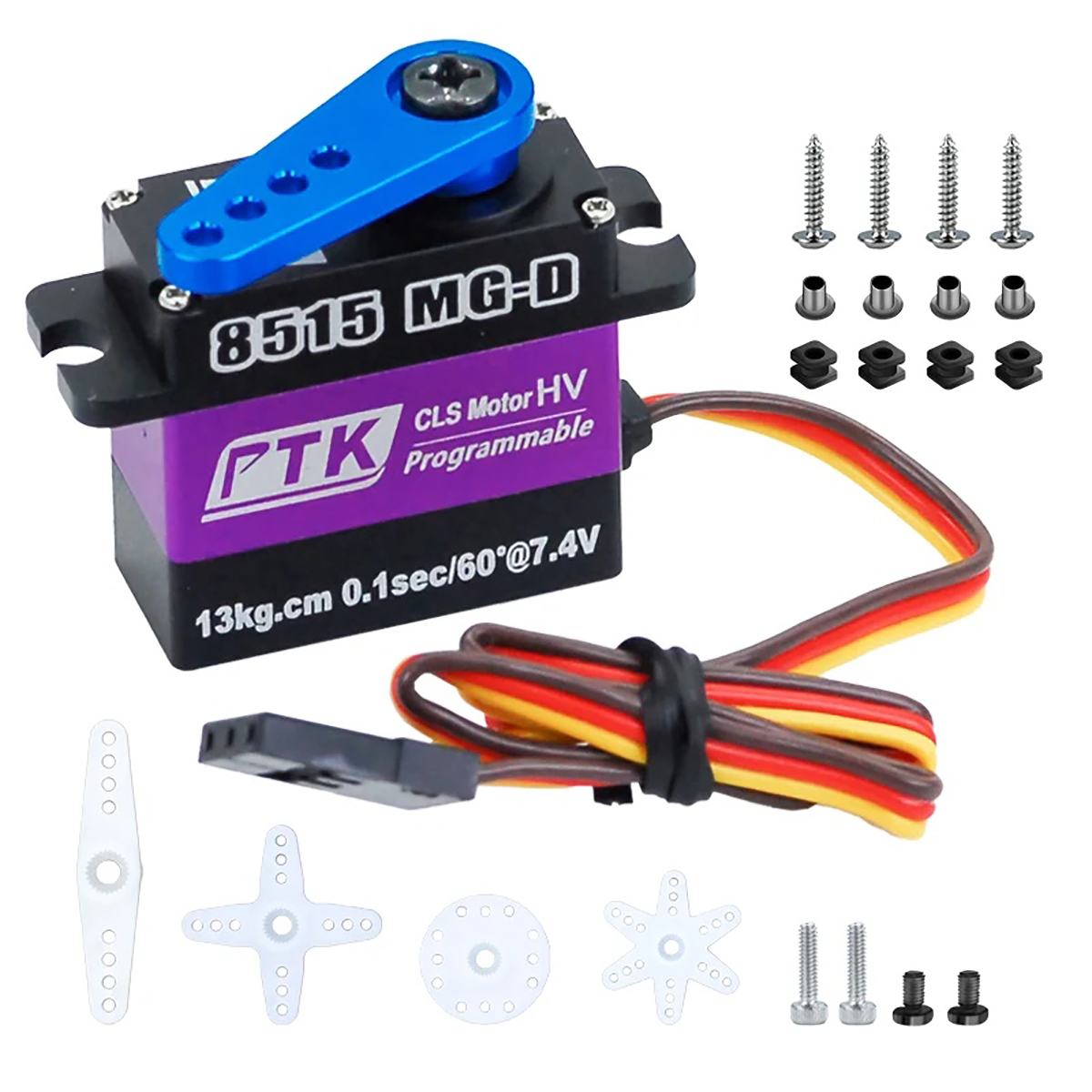

8515 MG-D Servo x1
