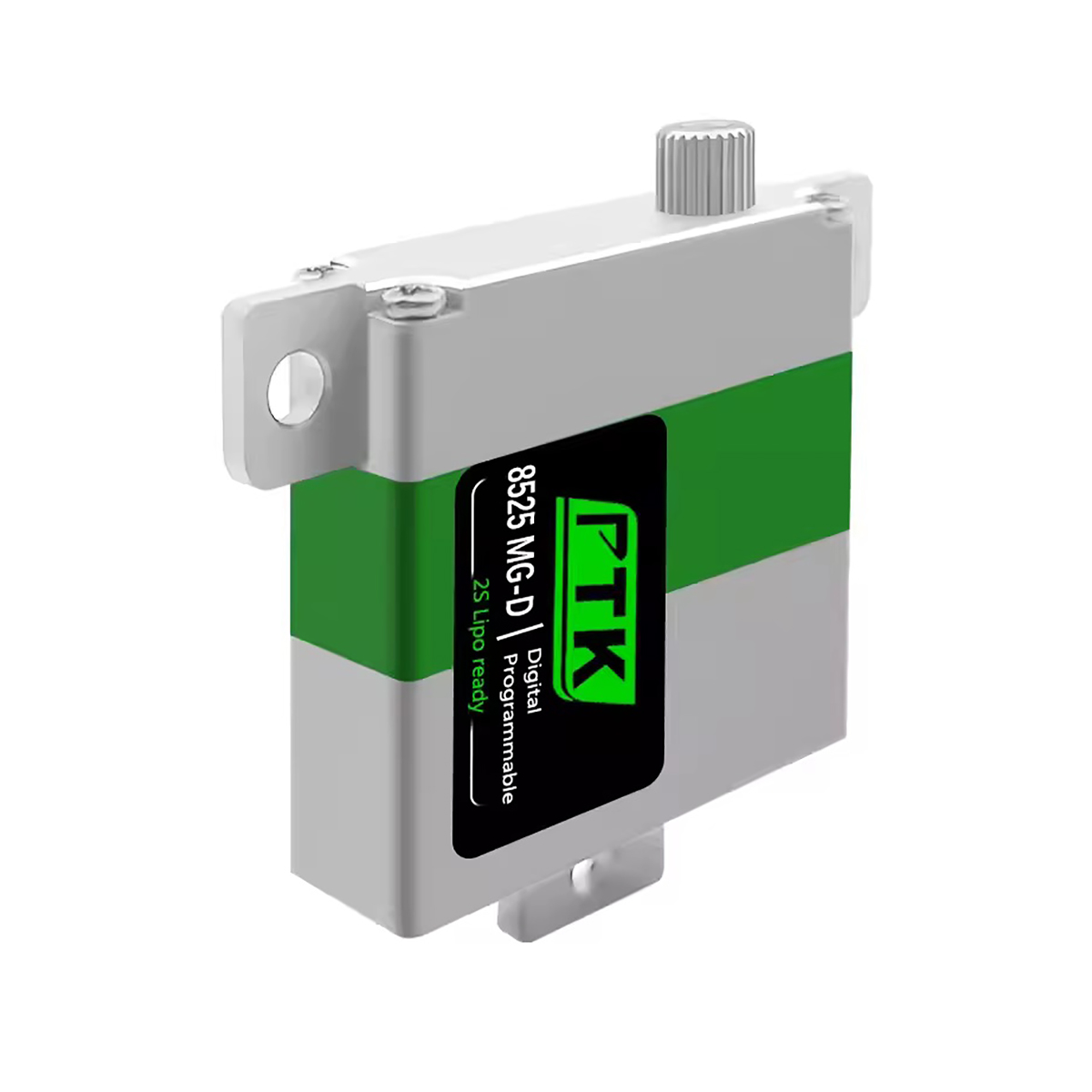

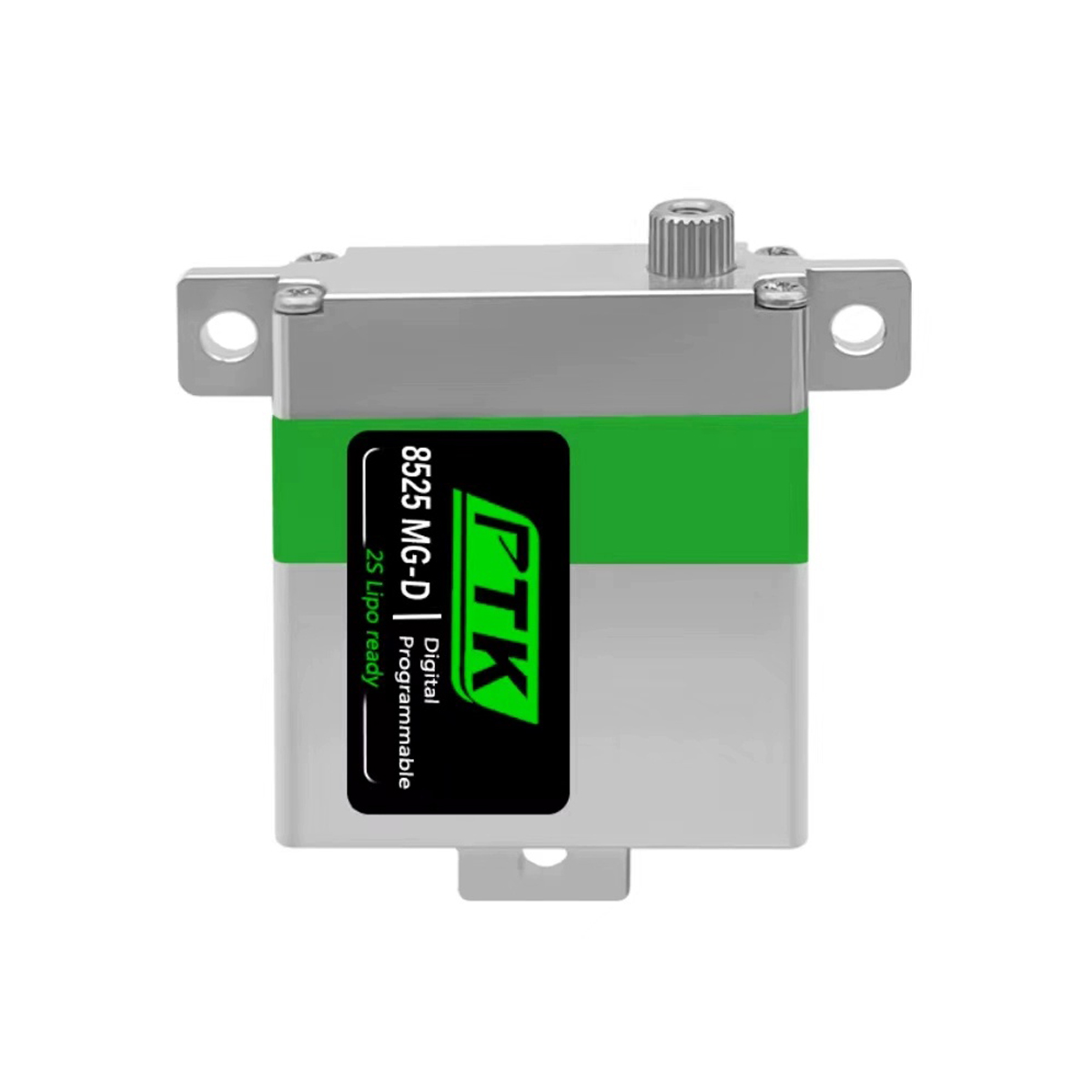

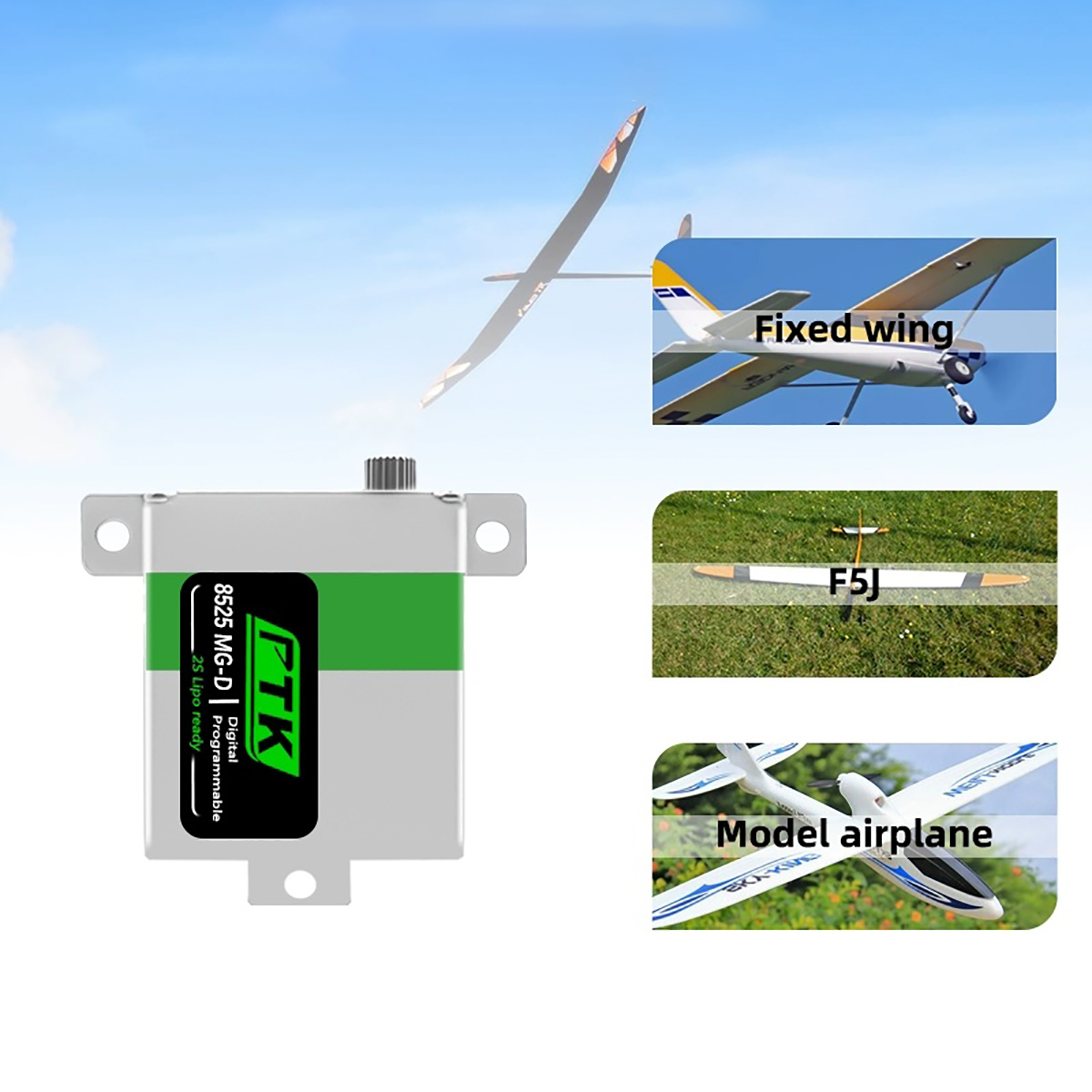

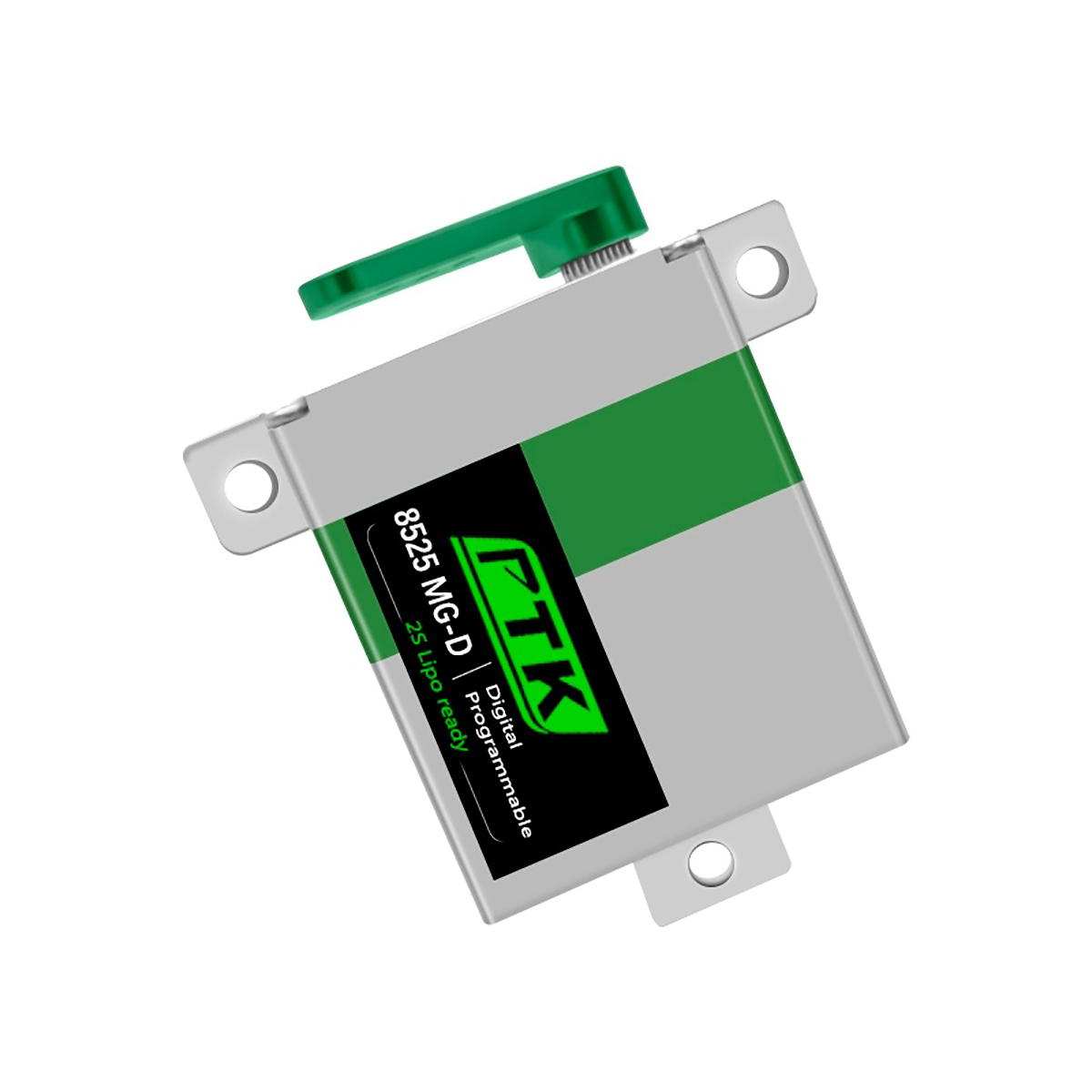

PTK 8525 MG-D Metal Gear Aluminium Case Programmable Digital Servo for Glider Fixed wing
High end technology servo specially designed to be mounted in g’llider wings or every other demanding application
Its small thickness allow it to be mounted in g’llider wings

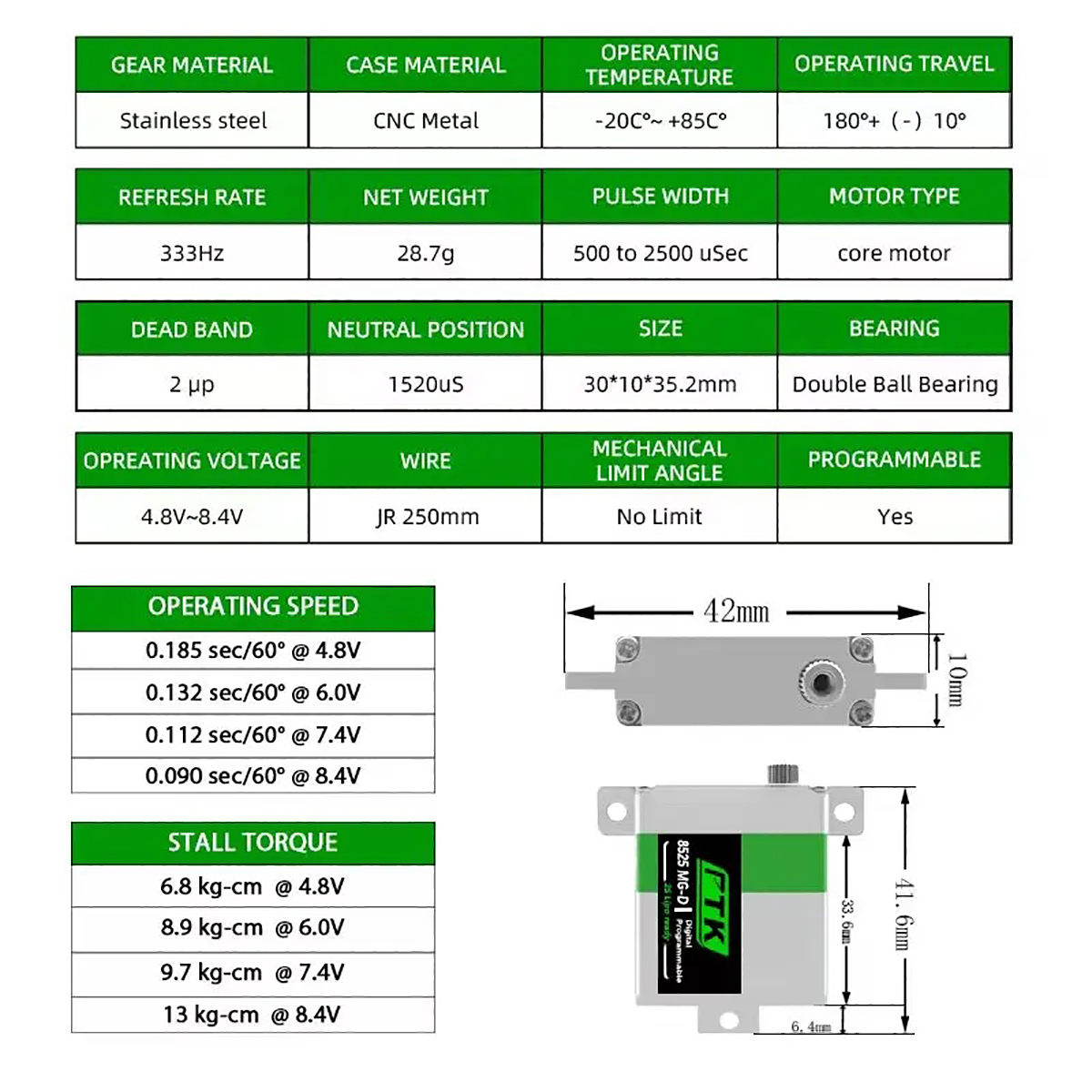

Model: 8525 MG-D

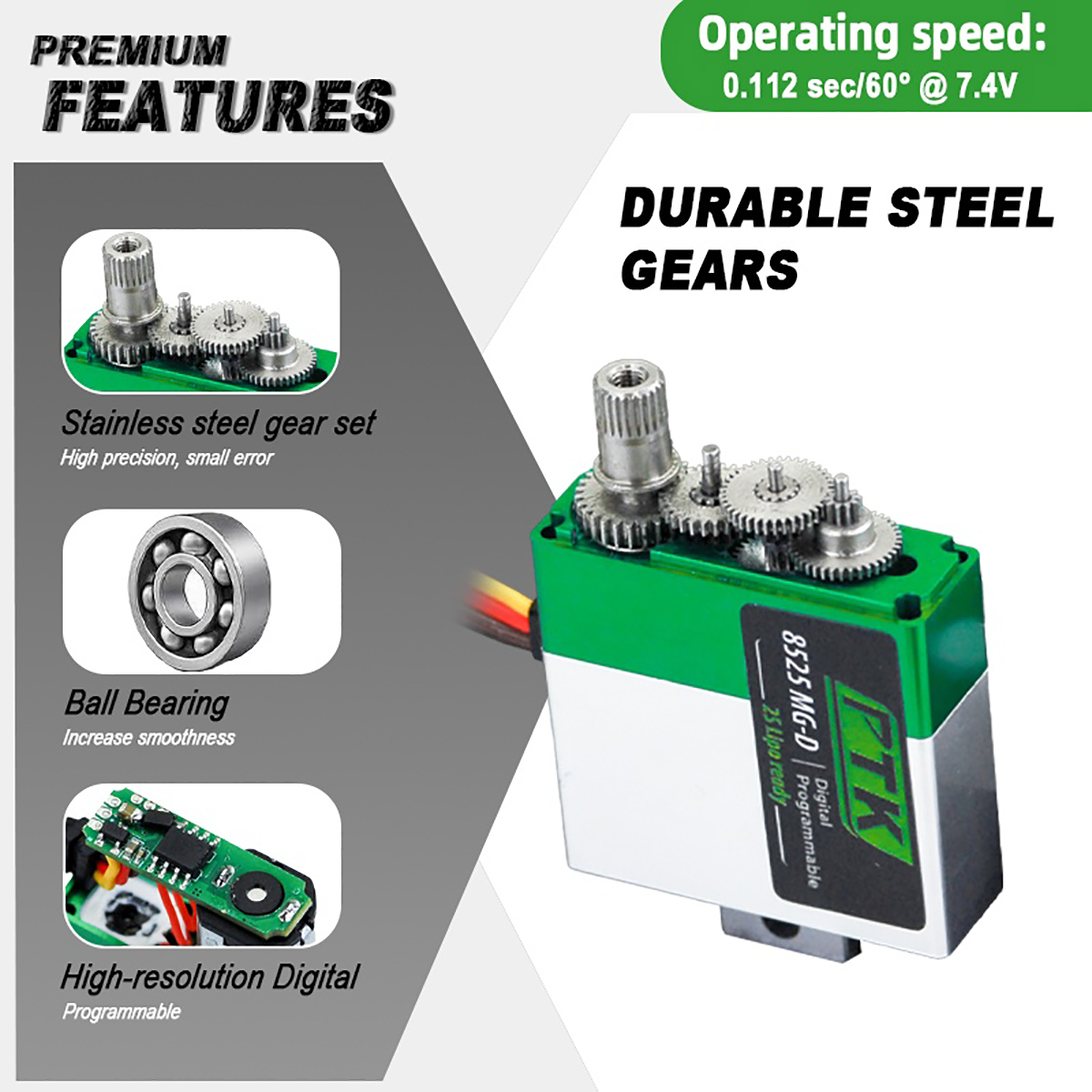

Gears: Metal
Motor: DC Core
Ball bearings: 2
Weight: 28.7g

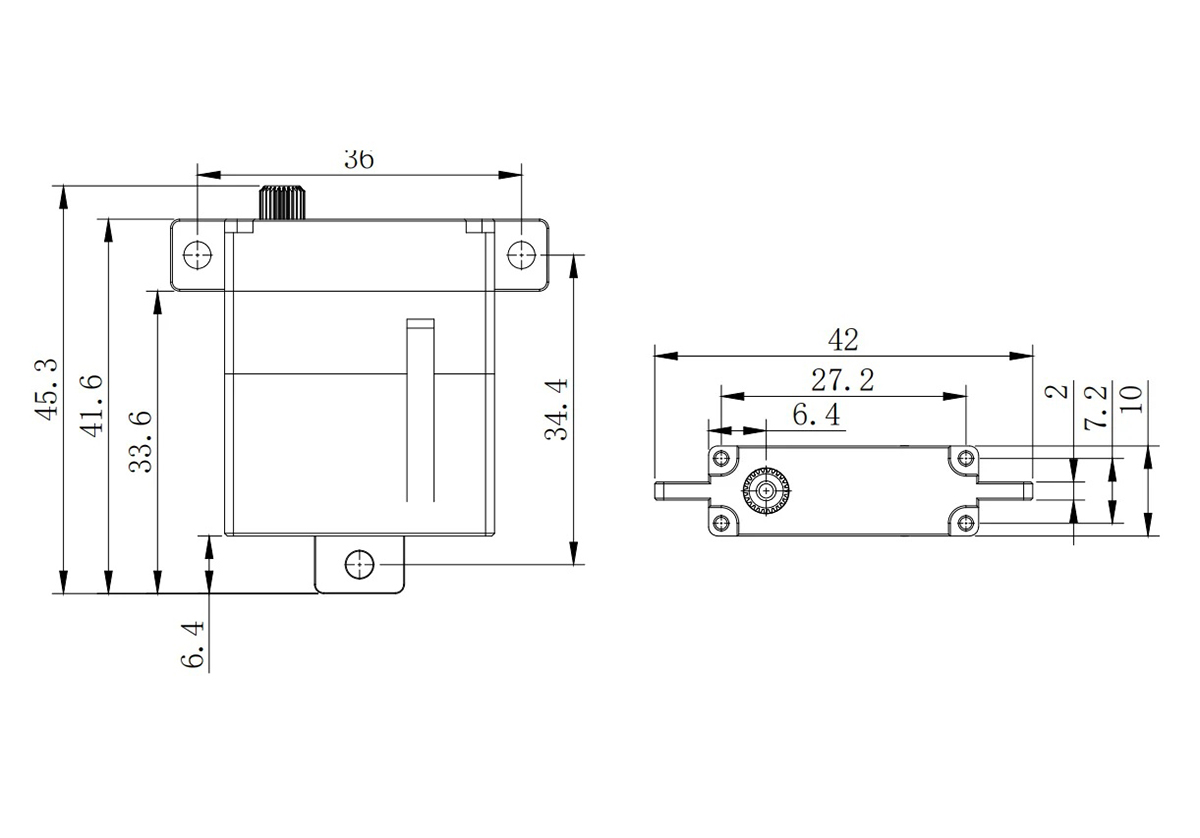

Dimensions: 30*10*35.2mm
Working frequency：1520μs/333hz

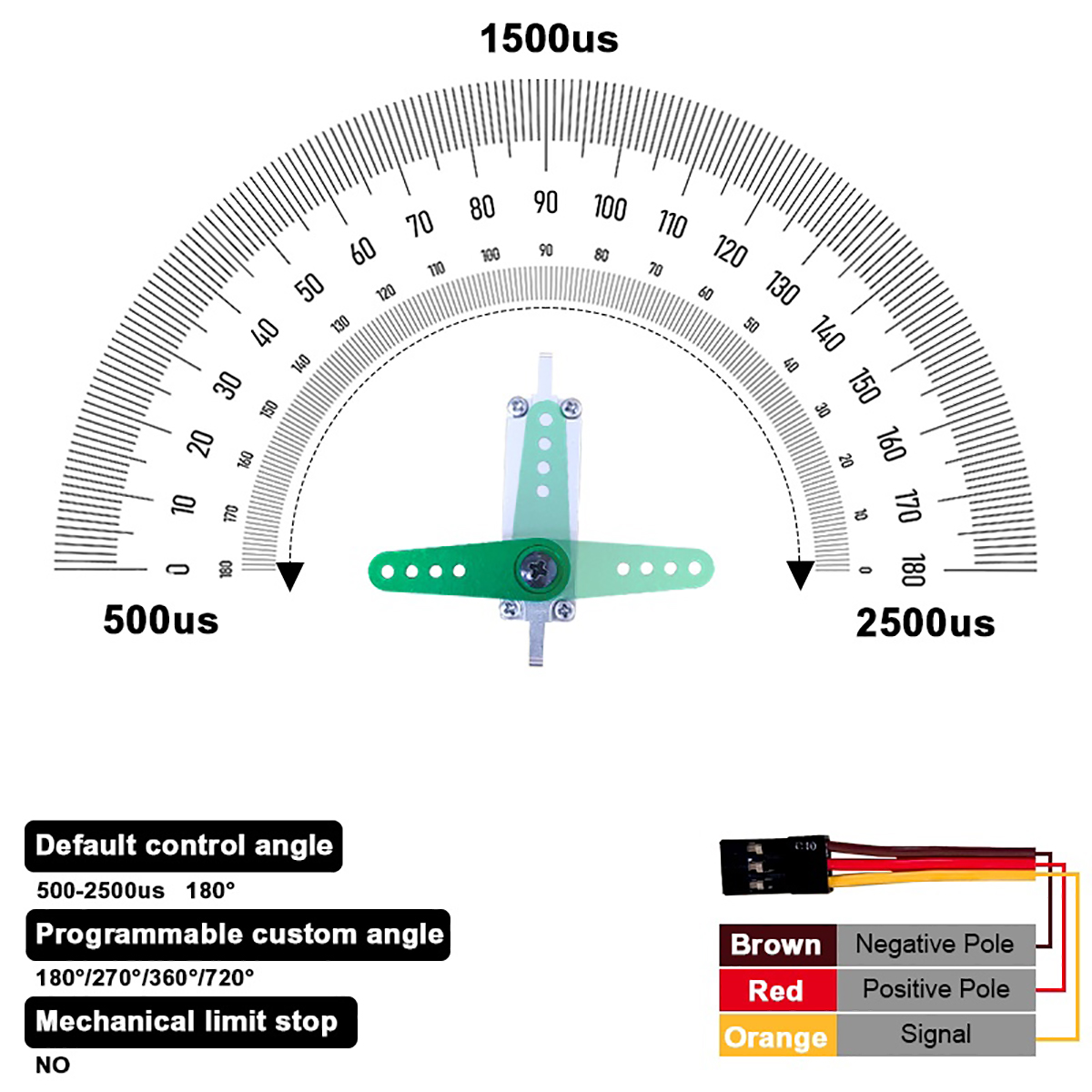

Default Travel Angle: ±45°@1000us-2000us
Speed/Stall Torque@ 4.8V: 6.8kg.cm-0.185sec/60°
Speed/Stall Torque@ 6.0V: 8.9kg.cm-0.132 sec/60°
Speed/Stall Torque@ 7.4V: 9.7kg.cm-0.112 sec/60°
Speed/Stall Torque@ 8.4V: 13kg.cm-0.09 sec/60°
Rated working Torque: 4.0kg.cm@8.4V
Input Voltage: 4.8V-8.4V
Harness length: 250mm
8525 MG-D Servo x1
