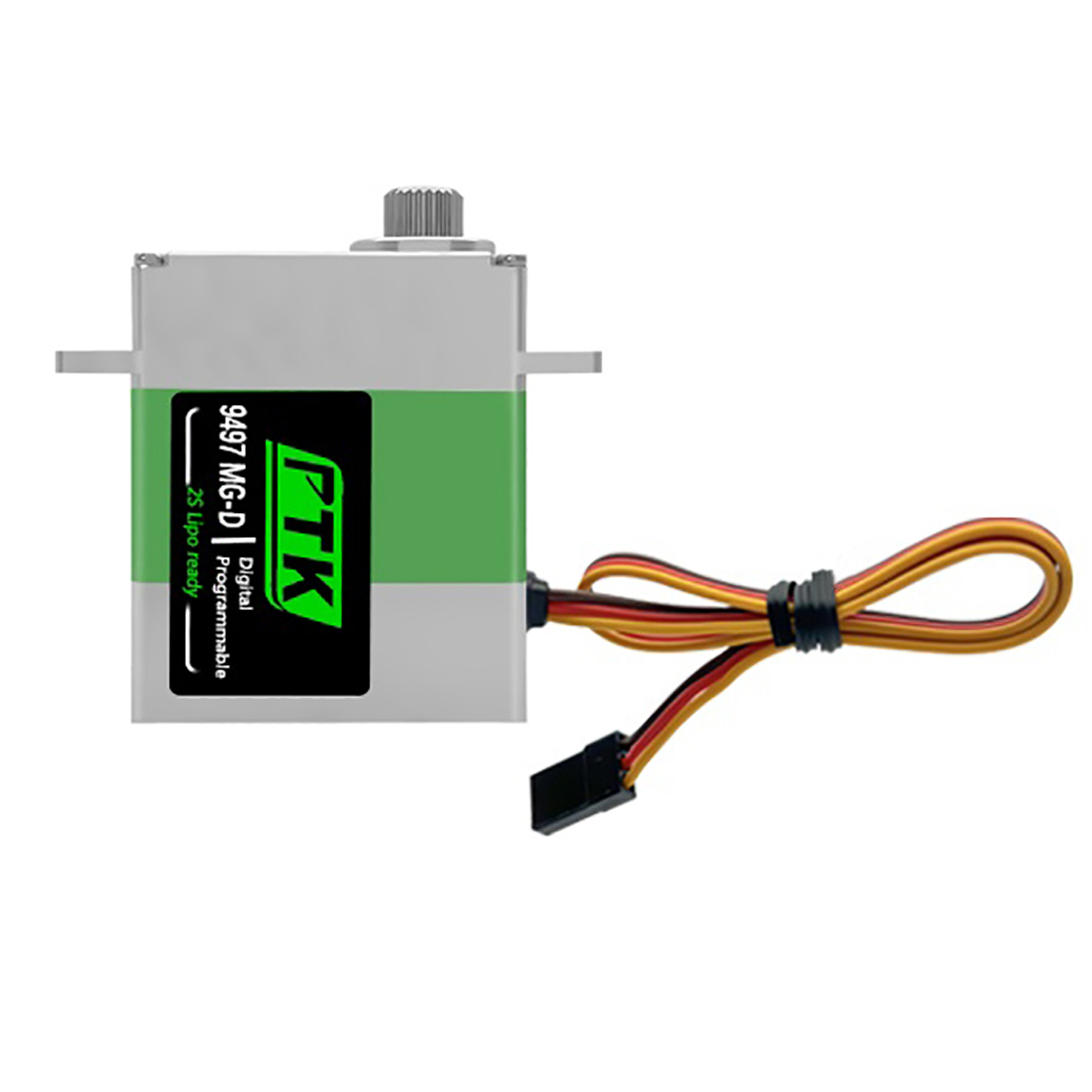

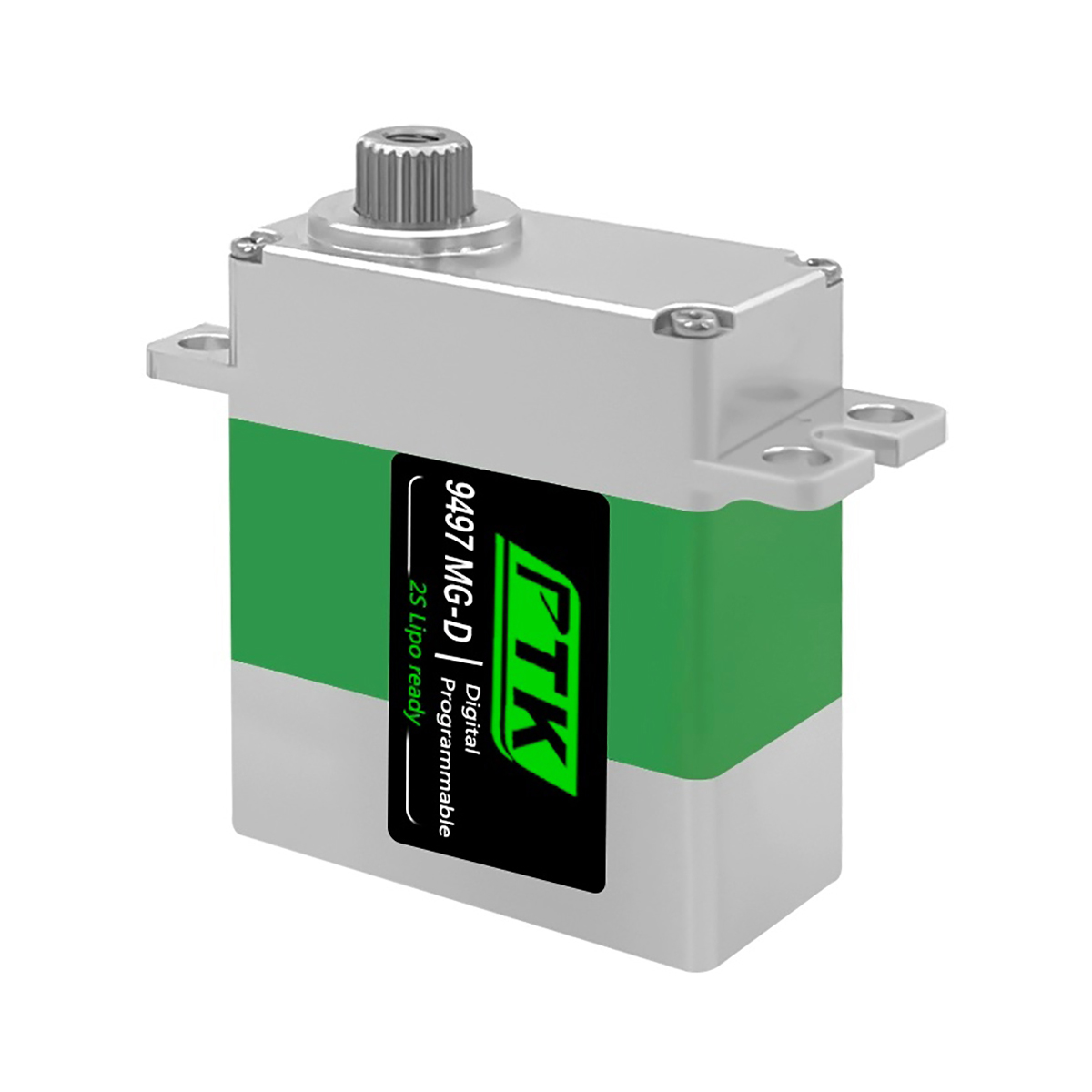

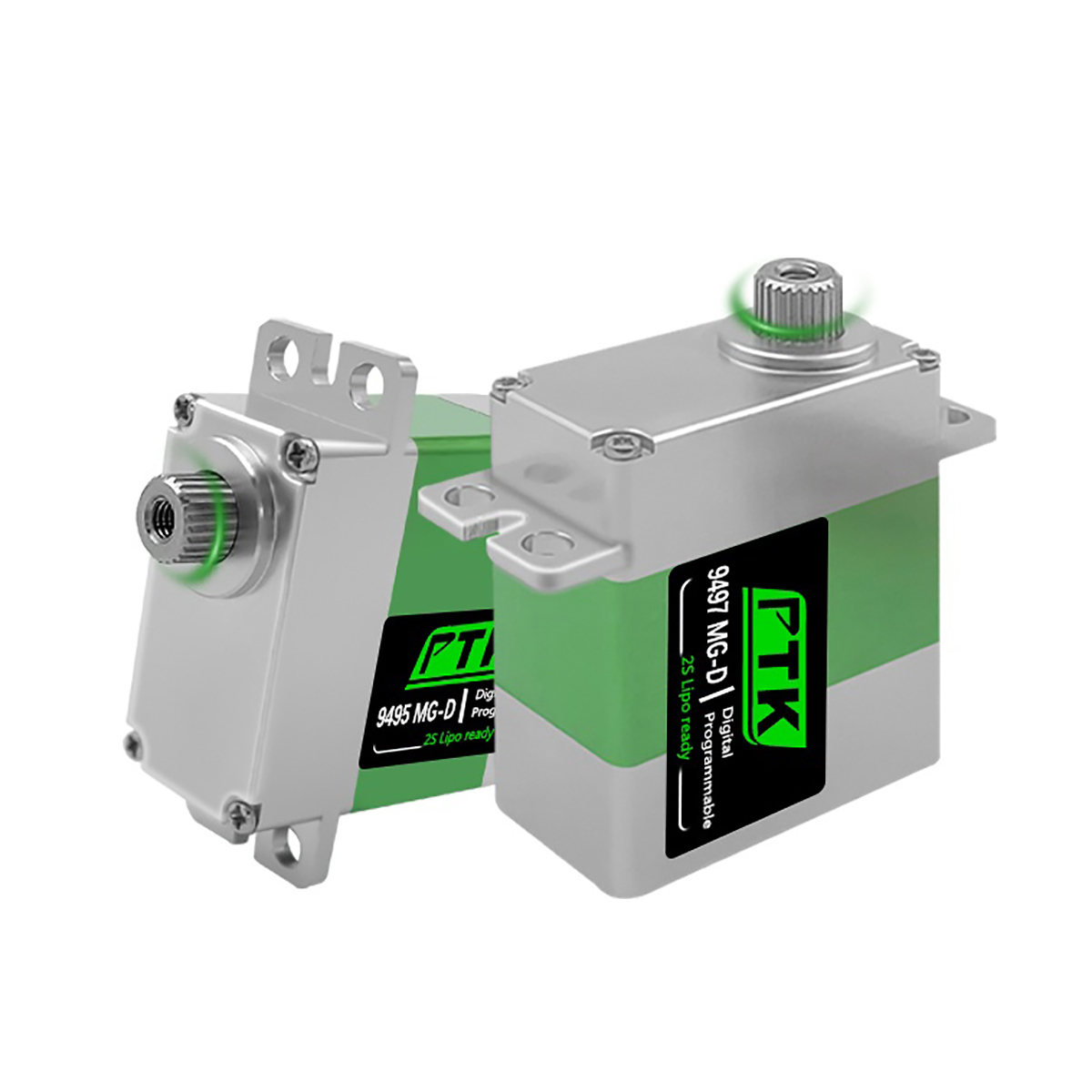

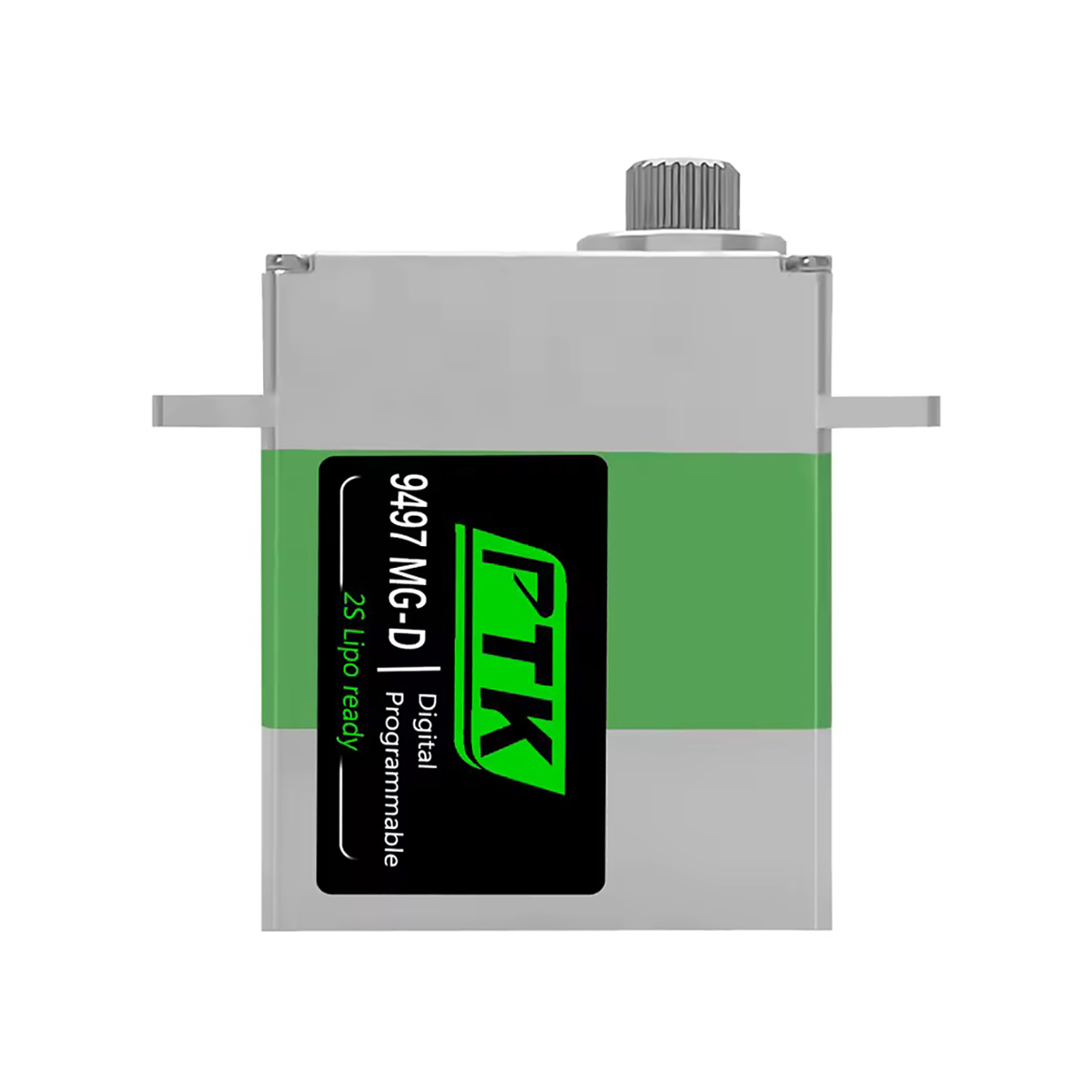

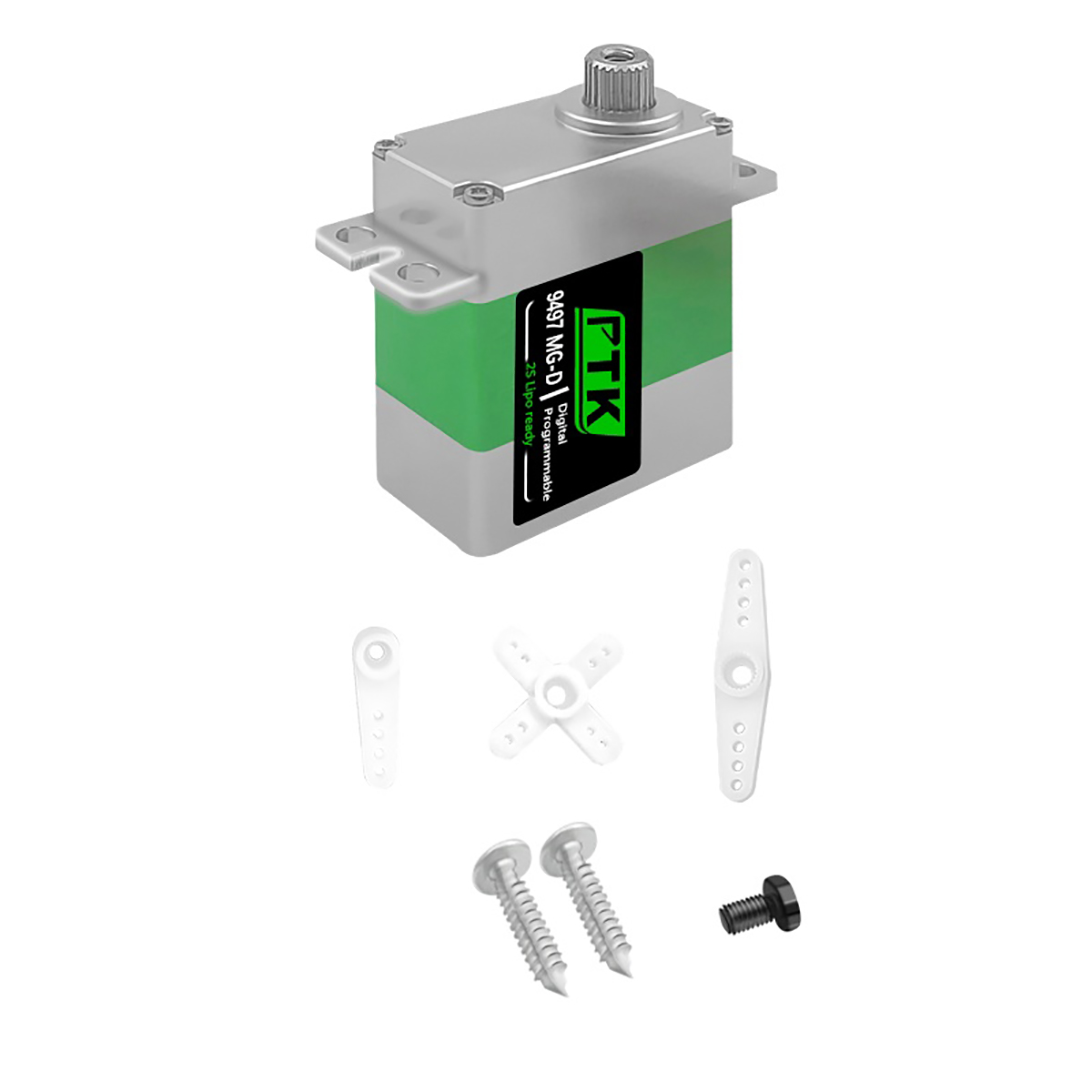

PTK 9497 MG-D All Metal Coreless Motor Programmable Digital Servo for RC Car Helicopter

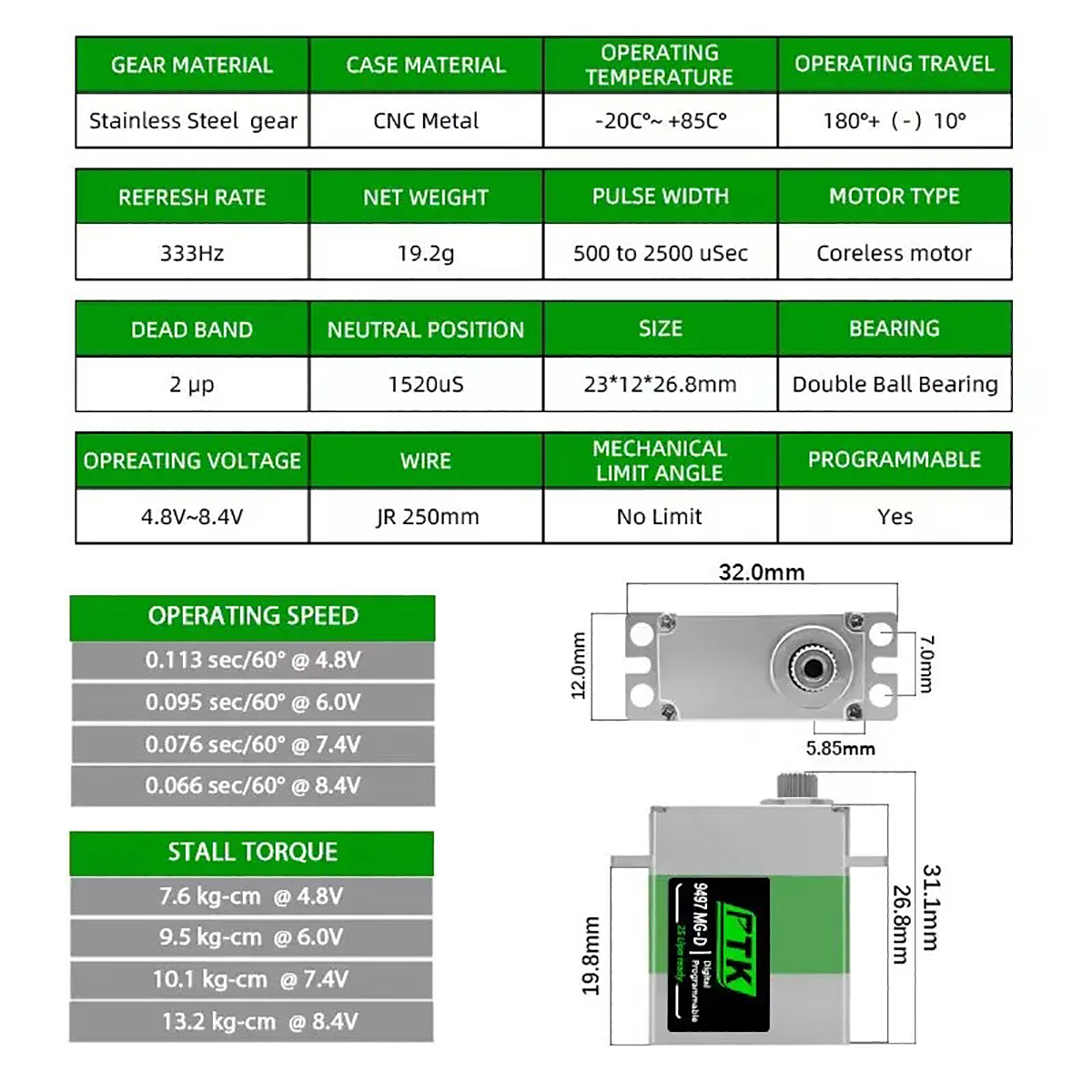

Model: 9497 MG-D
Motor: Coreless

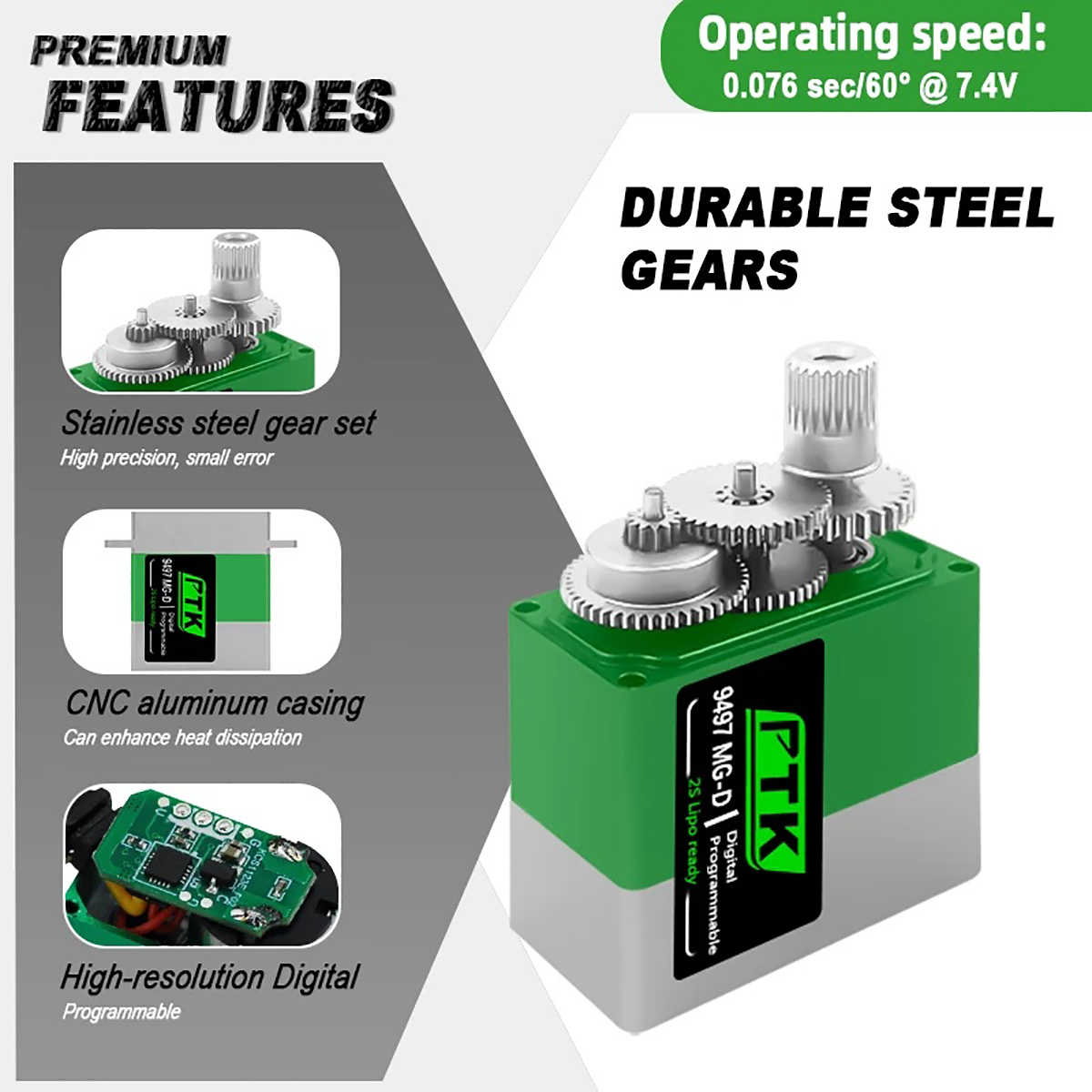

Gears: Stainless Steel Gear
Ball Bearing: 2
Weight: 19.2g

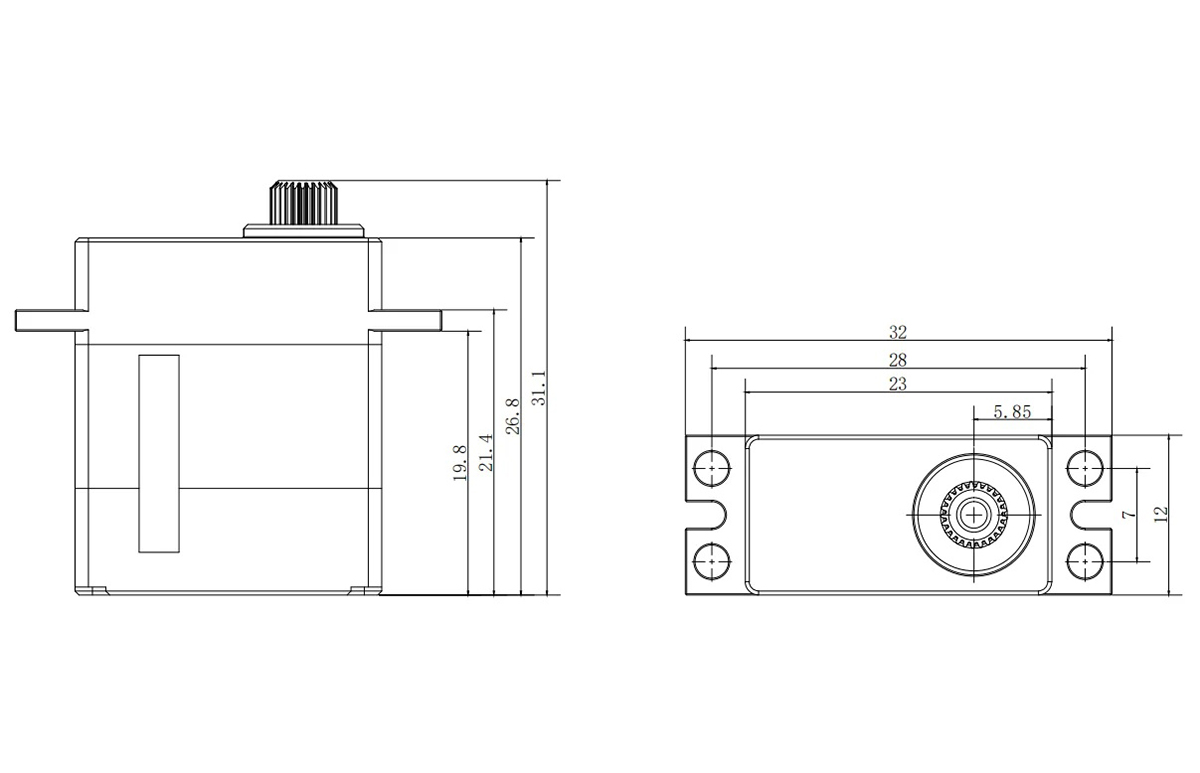

Dimensions: 23*12*26.8mm
Working frequency： 1520μs/333hz

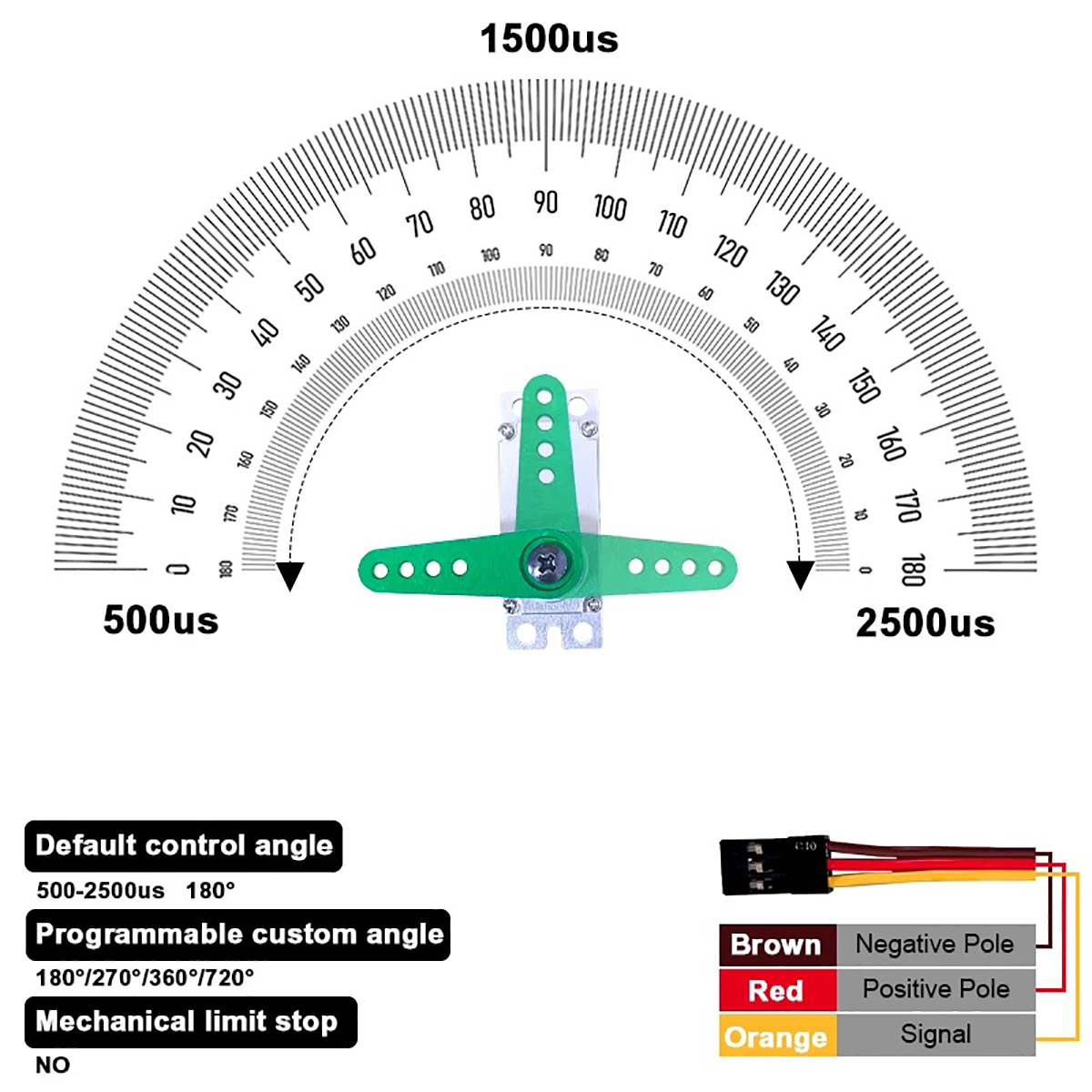

Default Travel Angle: ±45°@1000us-2000us
Speed/Stall Torque@ 4.8V: 7.6kg.cm – 0.113s/60°
Speed/Stall Torque@6.0V: 9.5kg.cm – 0.095s/60°
Speed/Stall Torque@ 7.4V: 10.1kg.cm – 0.076s/60°
Speed/Stall Torque@ 8.4V: 13.2kg.cm – 0.066s/60°
Rated working Torque: 3.5kg.cm@7.4V
Input Voltage: 4.8V-8.4V
Harness length: 250mm JR
Dead band: 2μs
