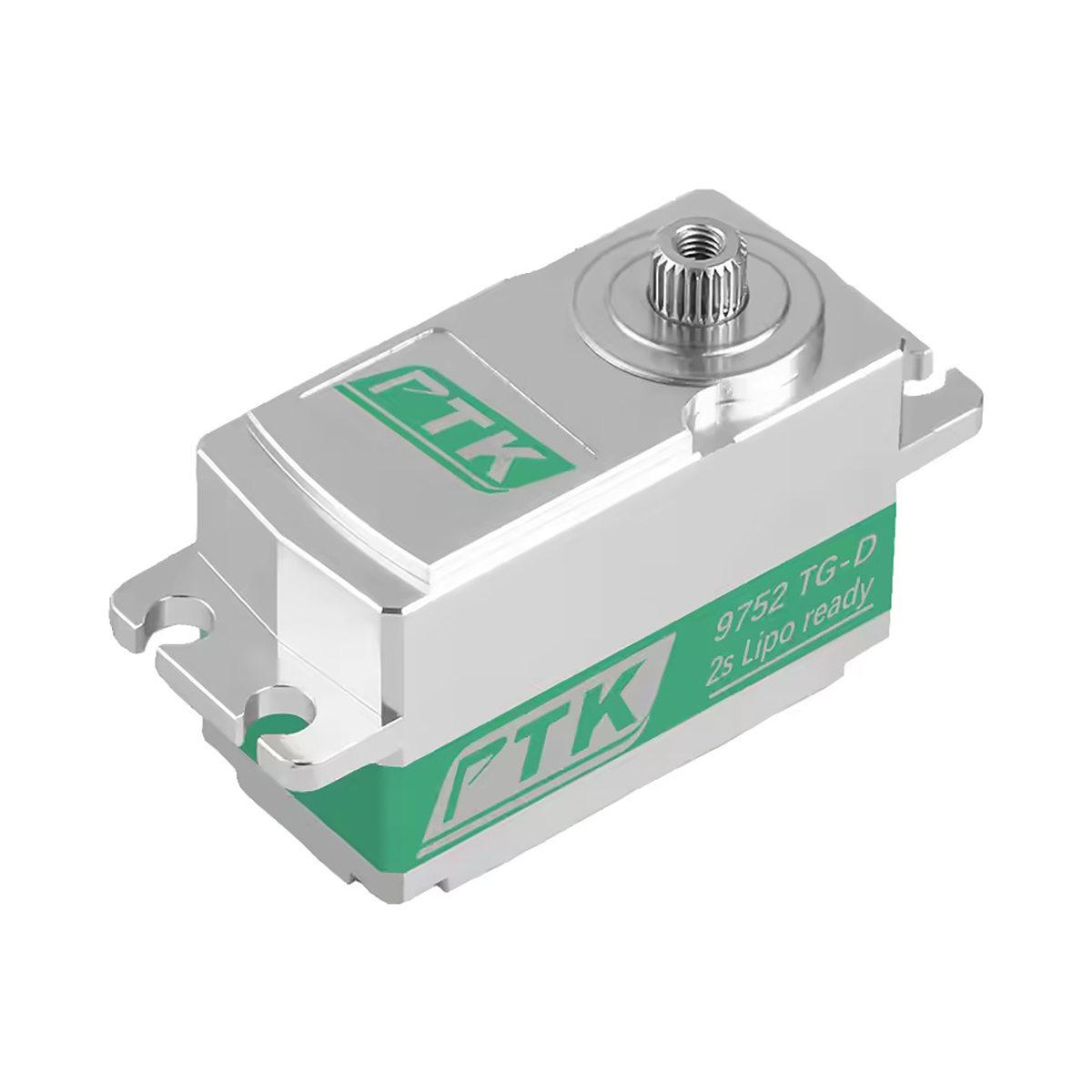

PTK 9752TG-D Metal Gear High Speed Low Profile Digital Servo for 1/8 1/10 RC Drift Car Flat Sports Car
PTK 9752TG-D Metal Gear High Speed Low Profile Digital Servo for 1/8 1/10 RC Drift Car Flat Sports Car
High-Speed High-Voltage HV Titanium-Plated Metal Gear Water-Resistant Programmable Digital Servo!

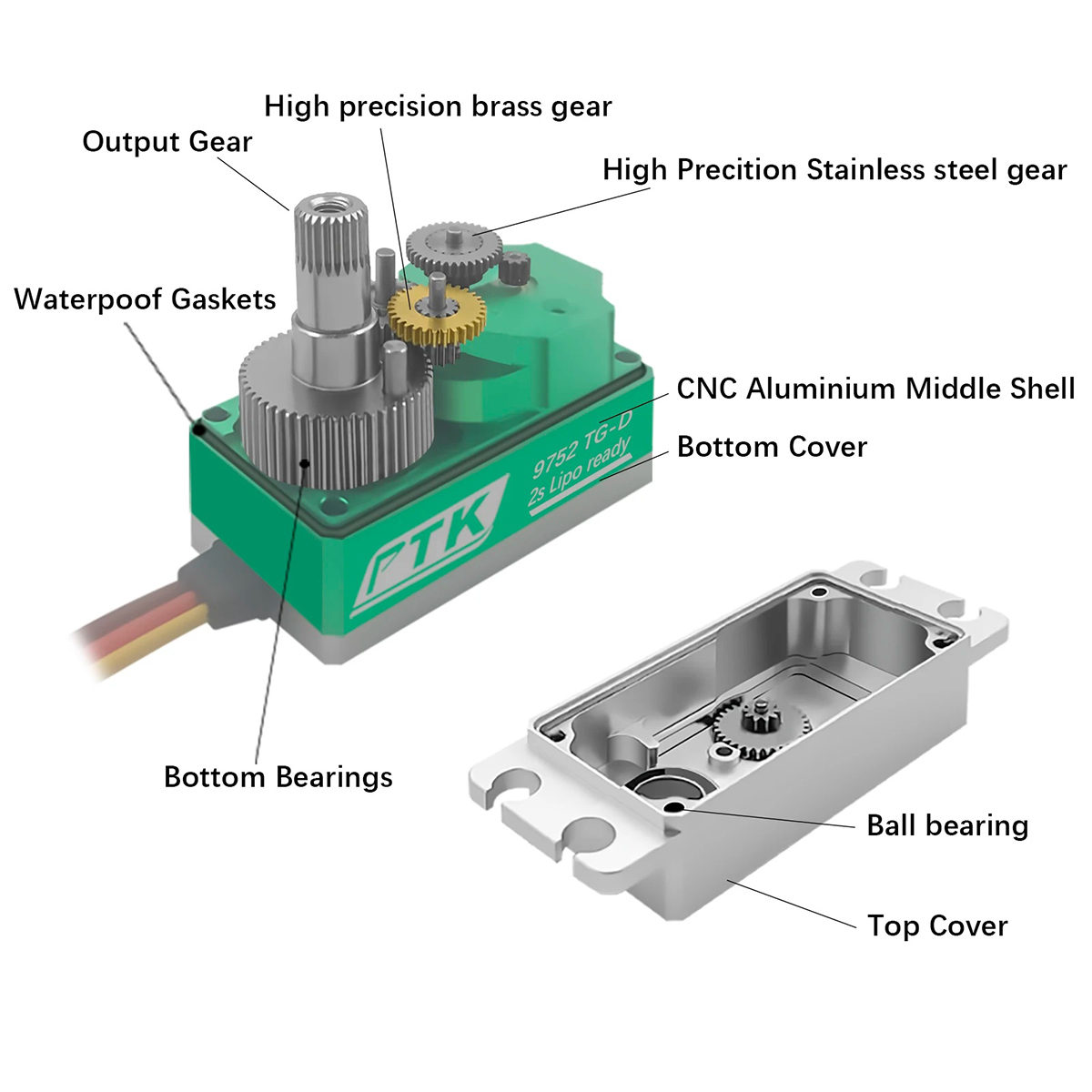

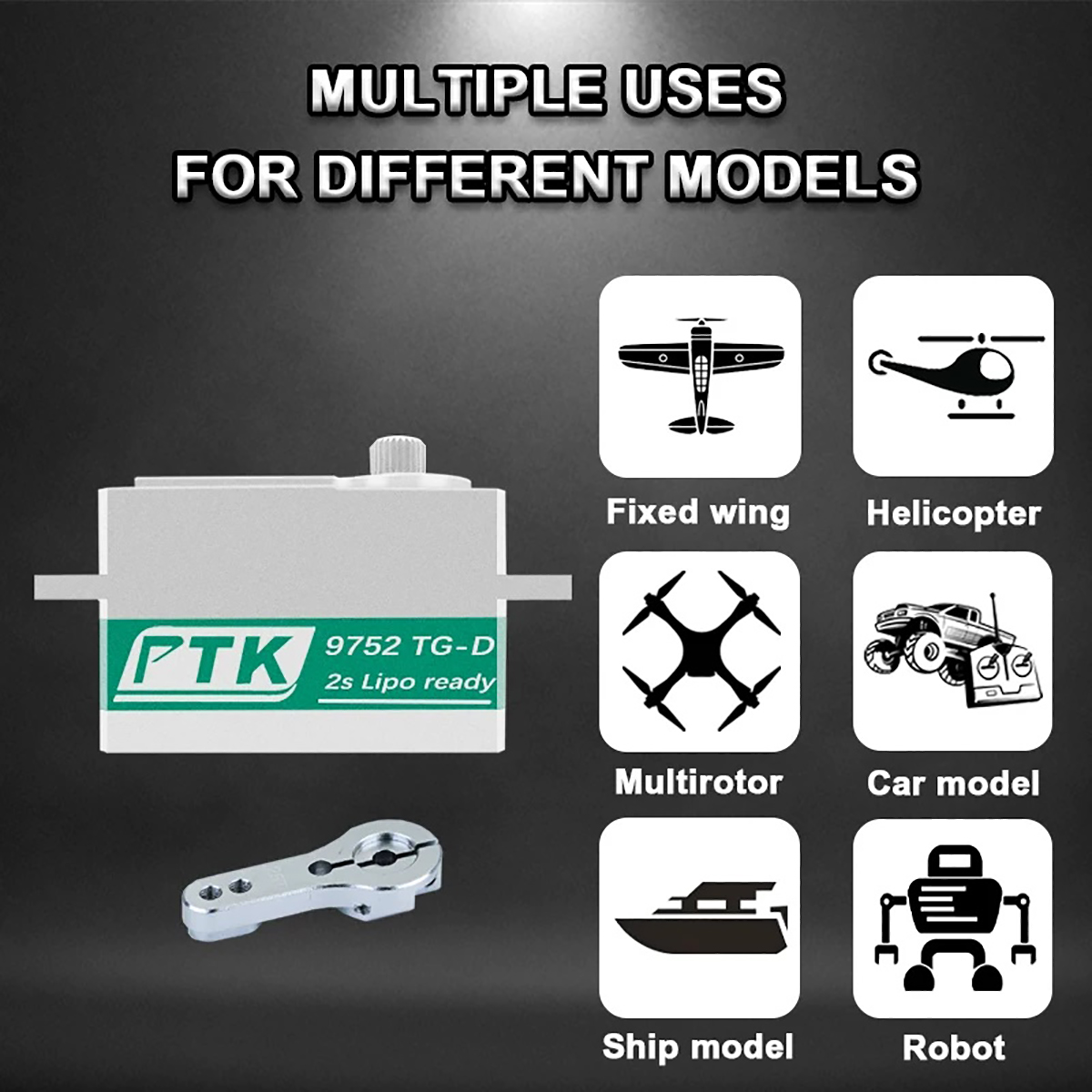

Titanium-plated gears; dual-bearing design; water-resistant design. Full metal shell. Thickened and reinforced arm! Suitable for 1/10 & 1/8 RC cars, on-road cars, and drift cars. Beyond the appearance upgrade, the PTK 9752TG-D low-profile servo also excels in performance. With high-torque output at 8.4V, it can respond to various control signals quickly and accurately, providing precise and reliable steering control for your model or device.

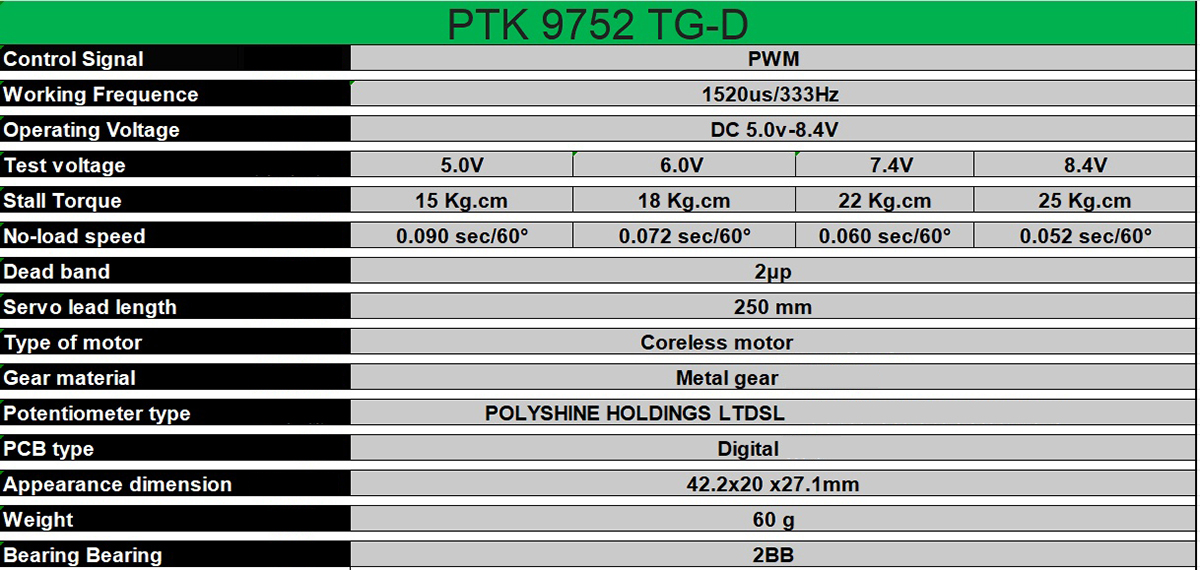

Model: 9752 TG-D
Gears: Metal
Motor: Coreless
Ball Bearing: 2

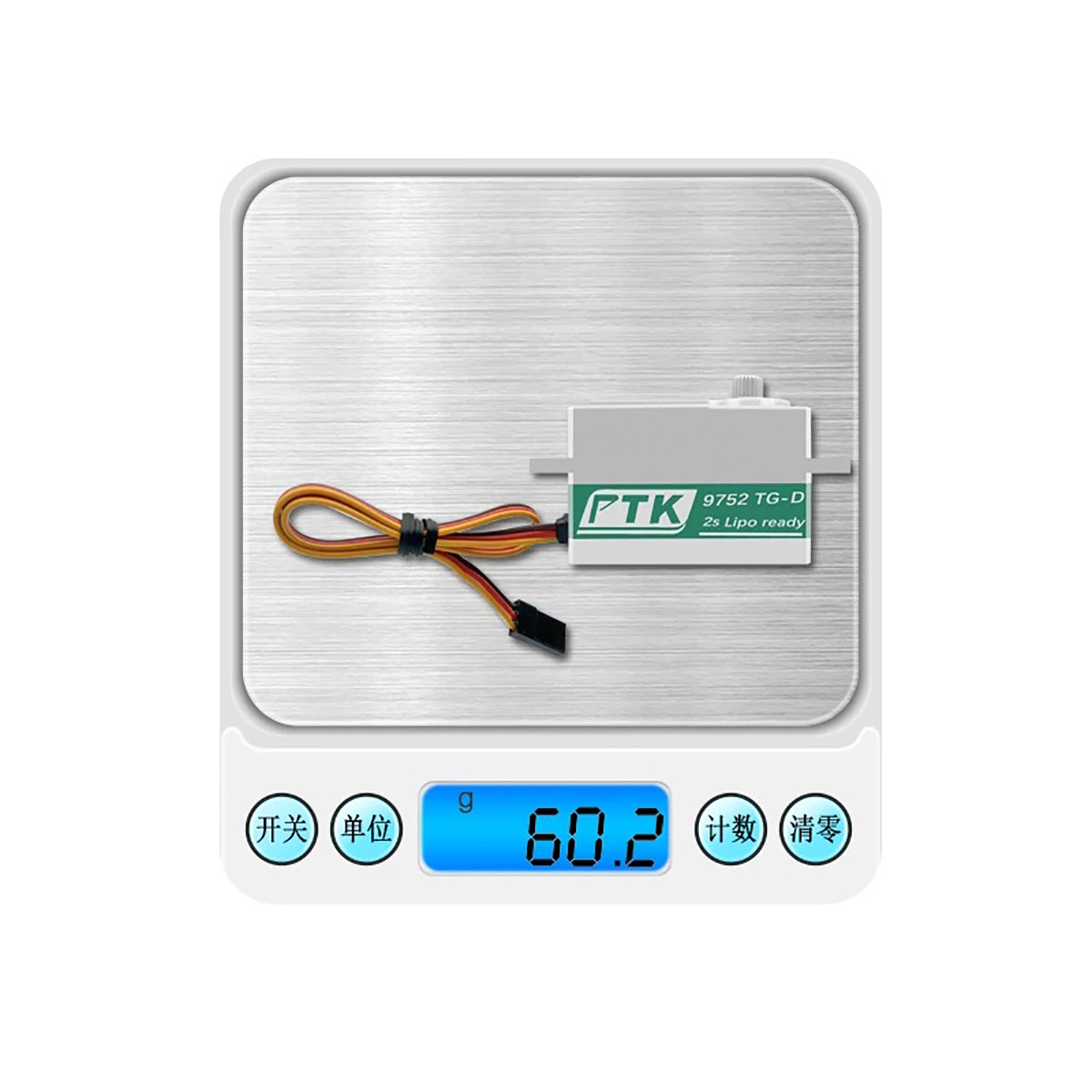

Weight: 60.2g

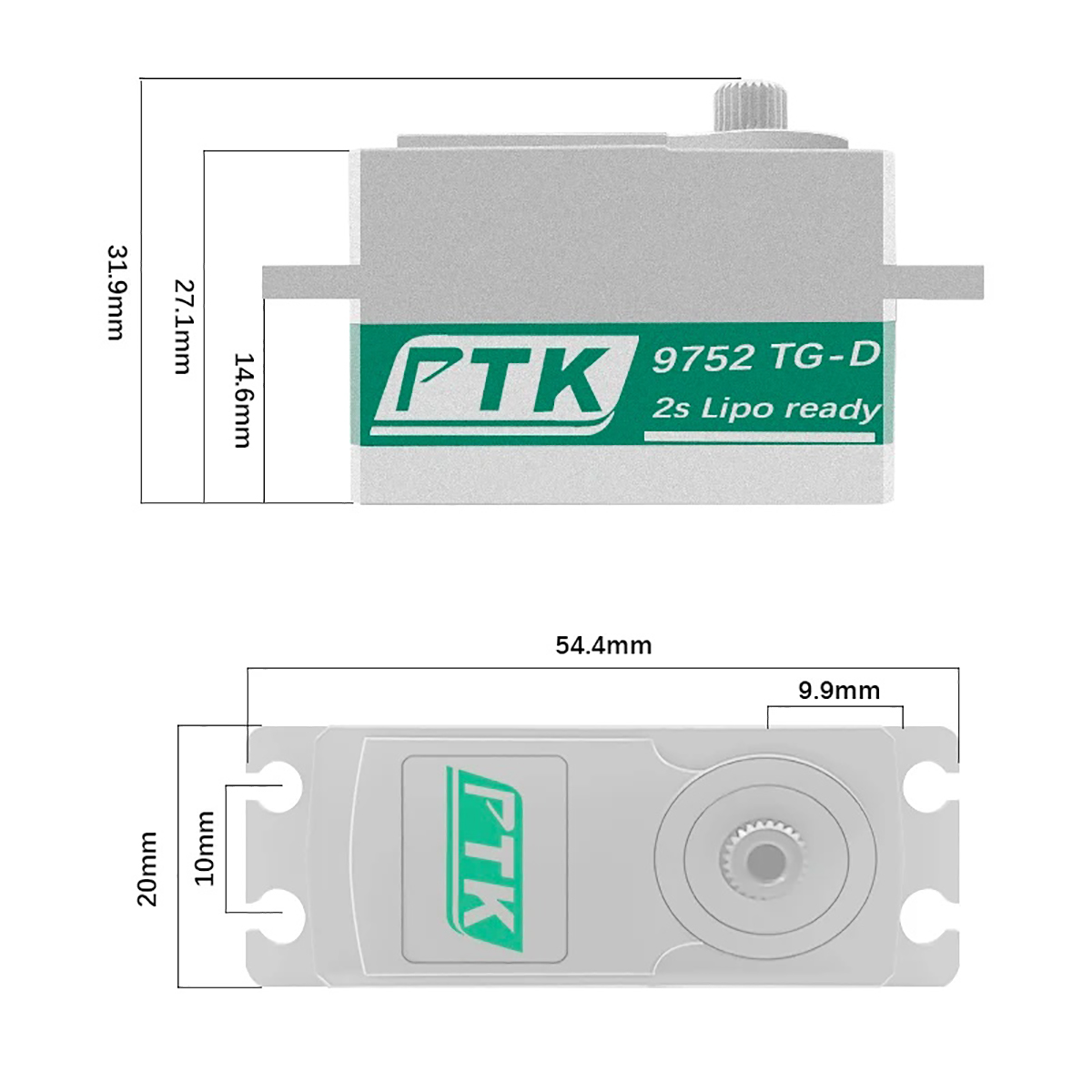

Dimensions: 42.2*20*27mm
Working frequency: 1520μs/333hz
Default Travel Angle: ±50°@1000us-2000us
Speed/Stall Torque@ 5.0V: 15kg.cm – 0.090 sec/60°
Speed/Stall Torque@ 6.0V: 18kg.cm – 0.072 sec/60°
Speed Stall Torque@ 7.4V: 22kg.cm – 0.060sec/60°
Speed Stall Torque@ 8.4V: 25kg.cm – 0.052sec/60°
Rated working Stall Torque: 7.5kg.cm@8.4V
Operating voltage: 5.0V – 8.4V
Cord lenght: 300mm
Dead band: 2μs

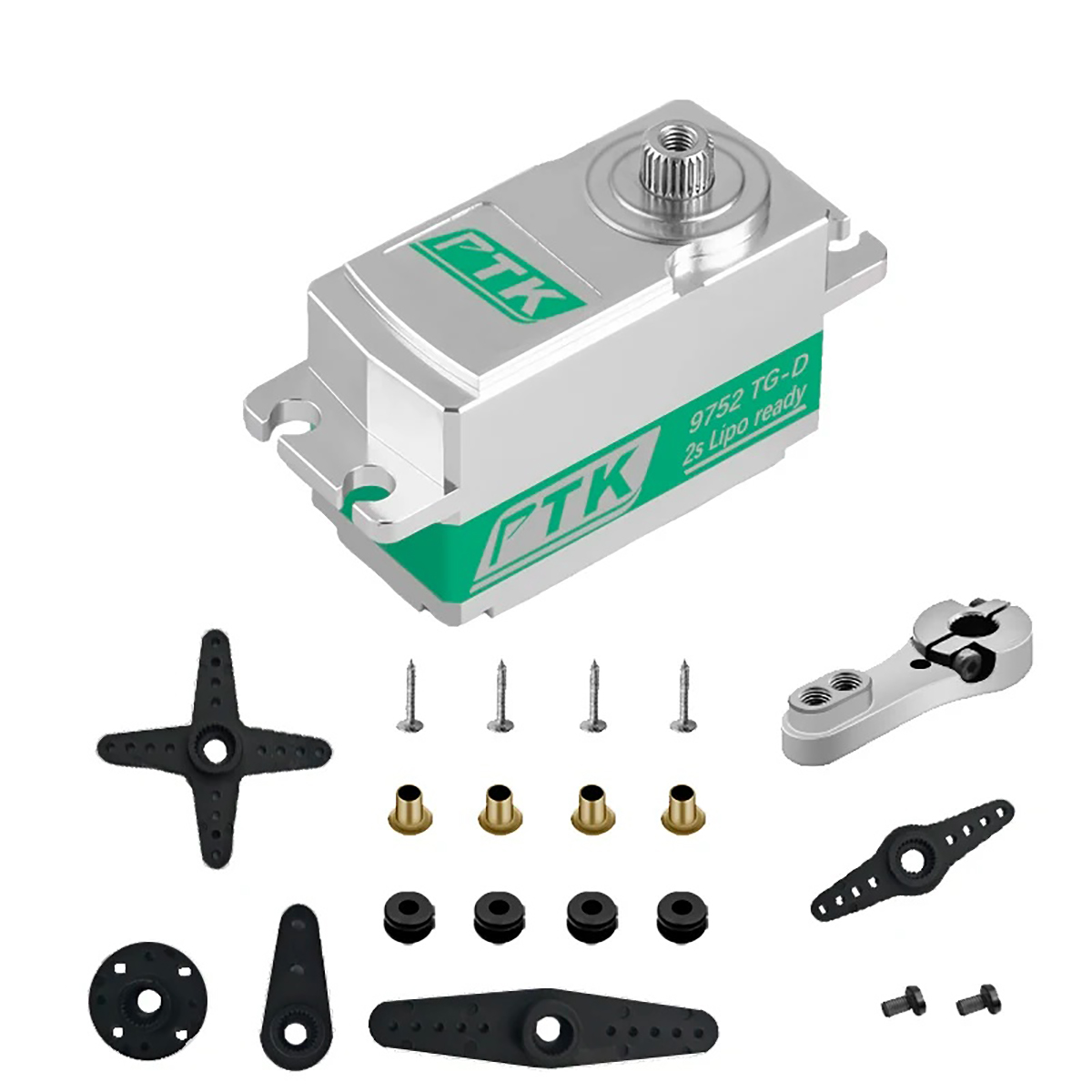

9752 TG-D Servo x1
