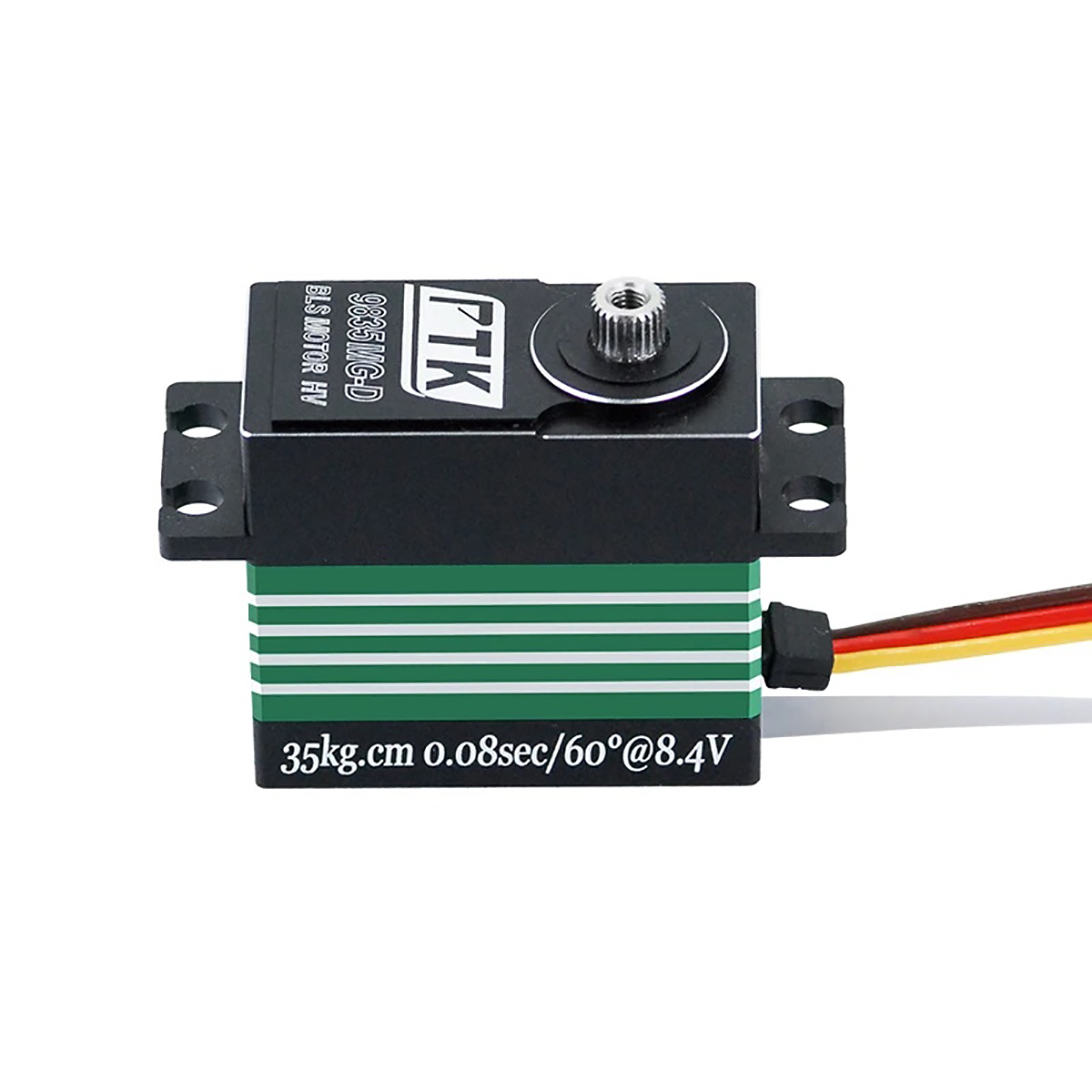

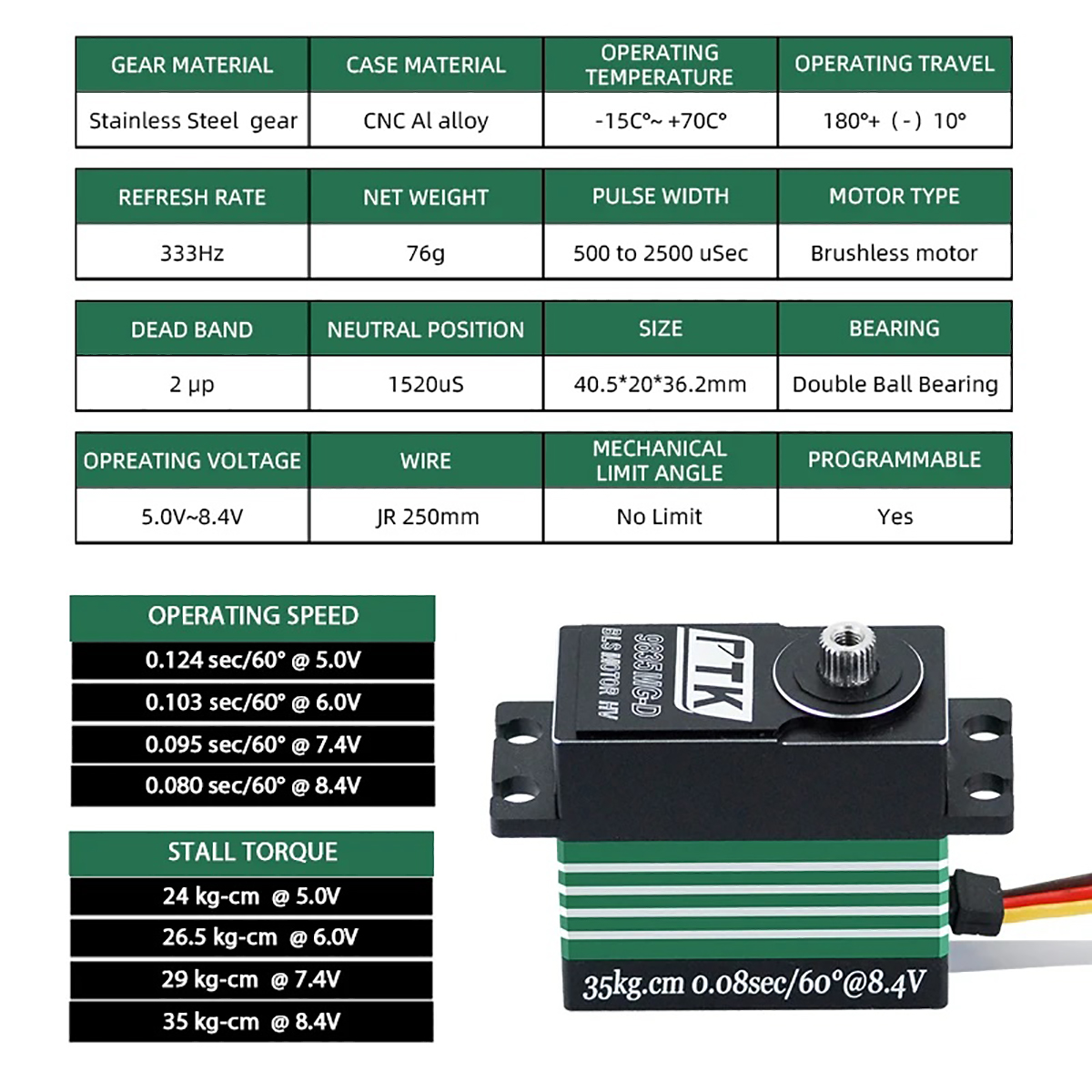

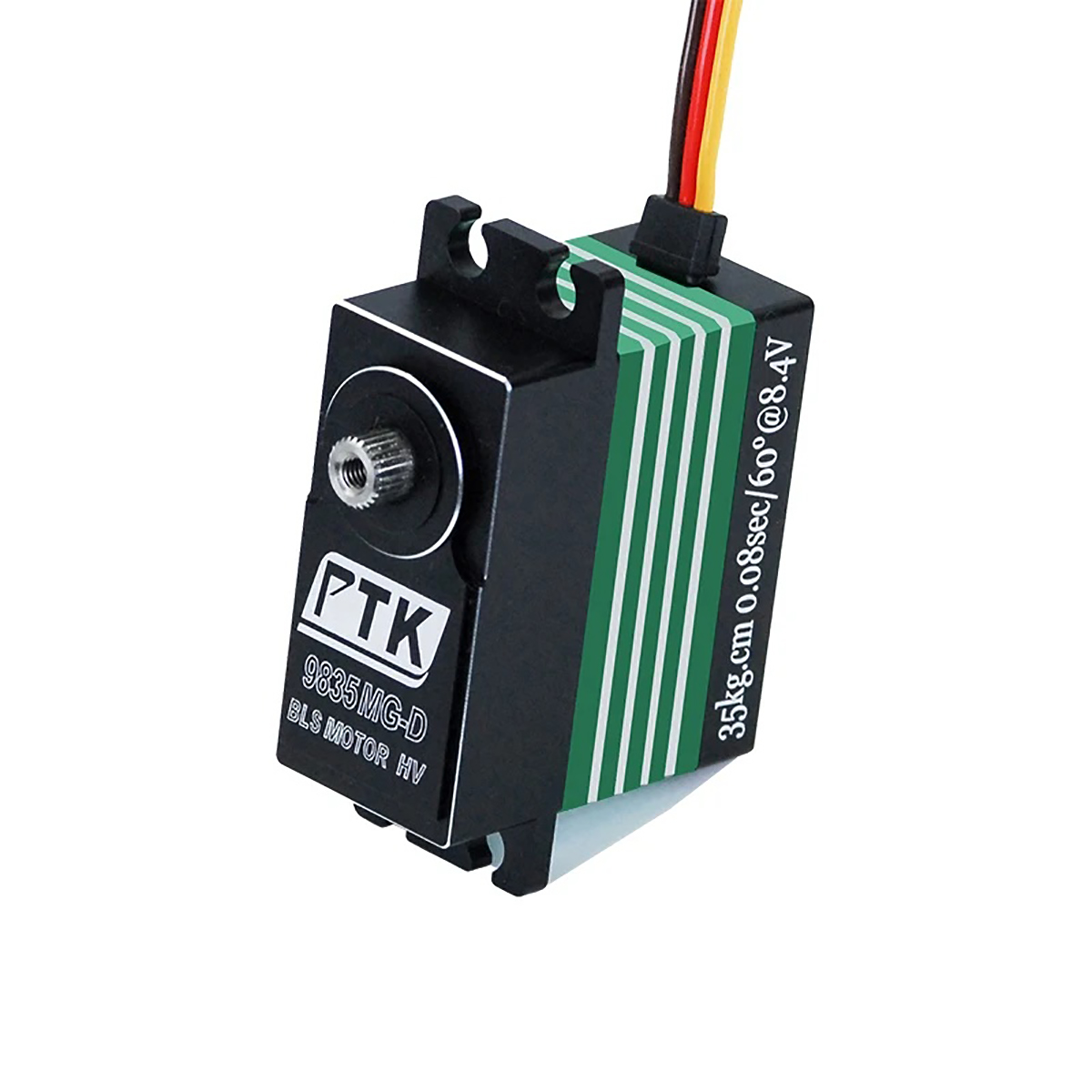

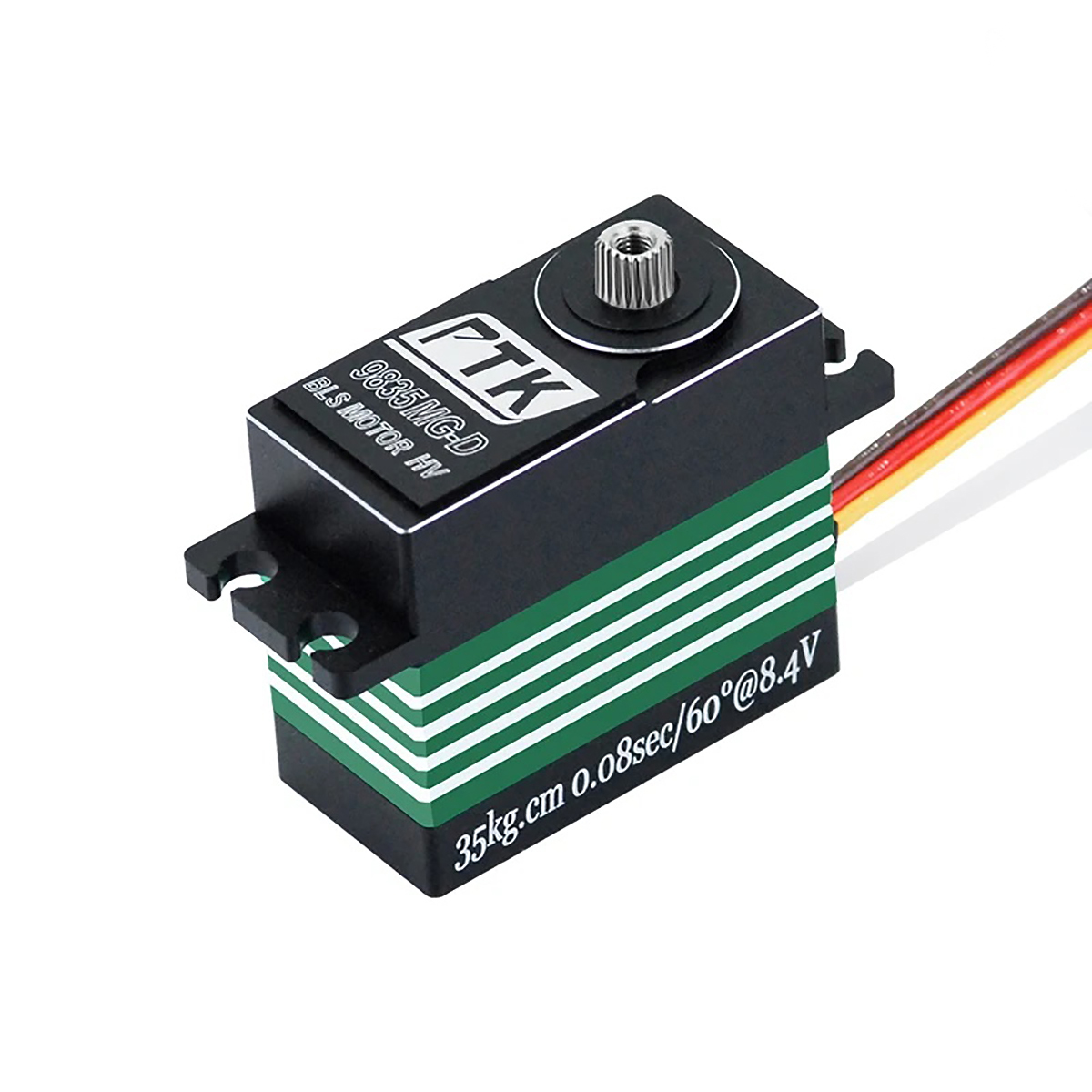

Model: 9835 MG-D

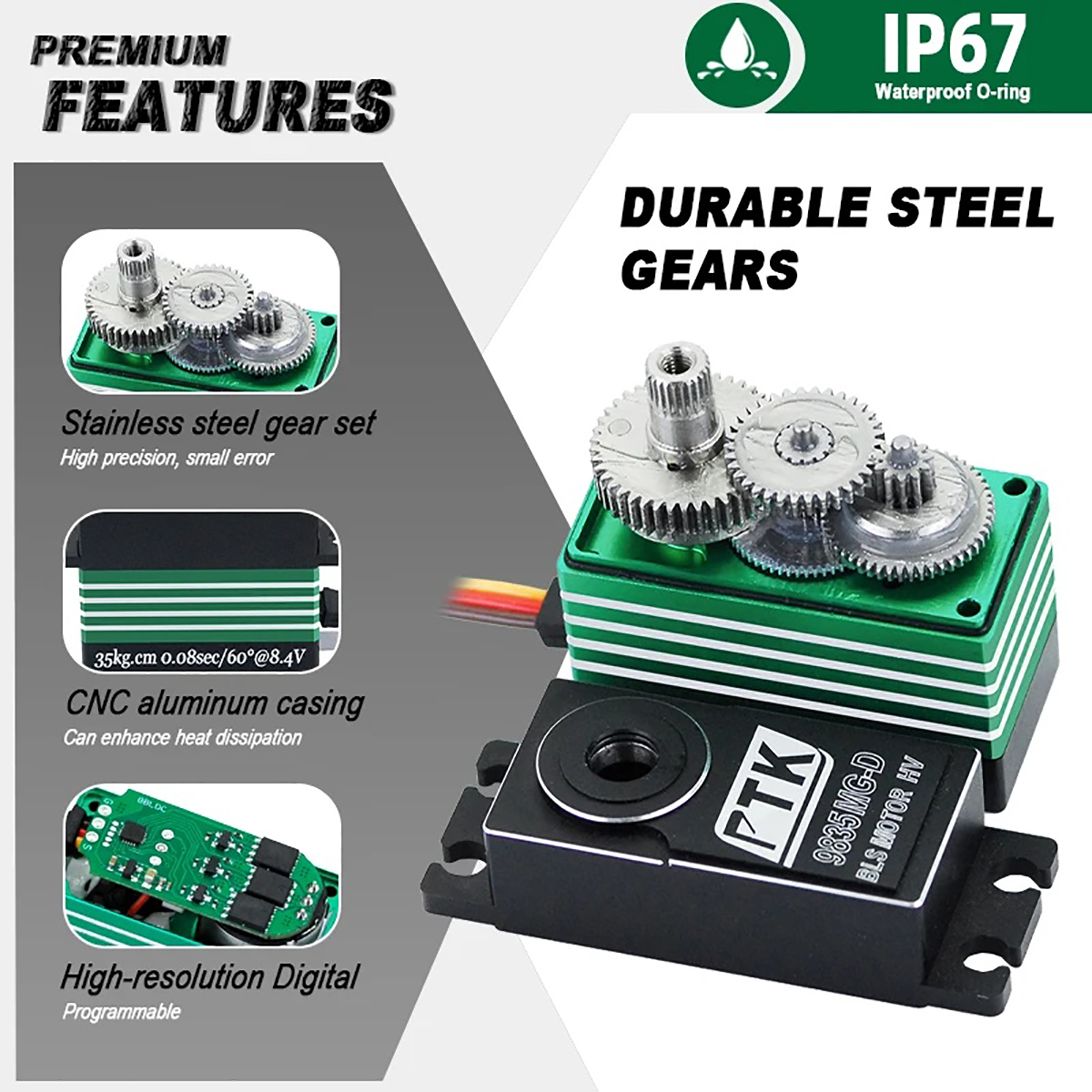

Gears: Stainless Steel Gear
Ball Bearing: 2
Motor: Brushless
Weight: 76g

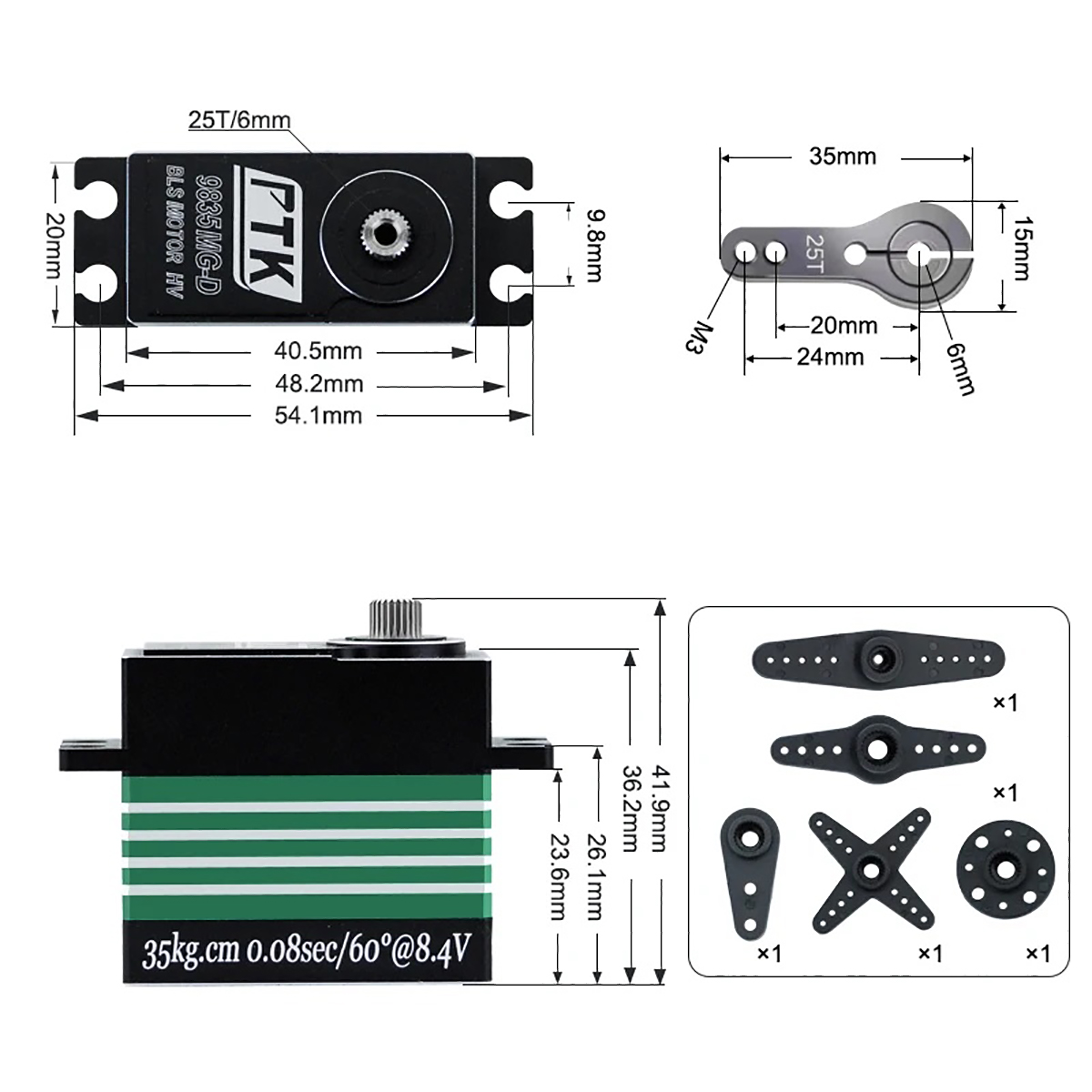

Dimensions: 40*20*35.7mm
Working frequency: 1520μs/333hz

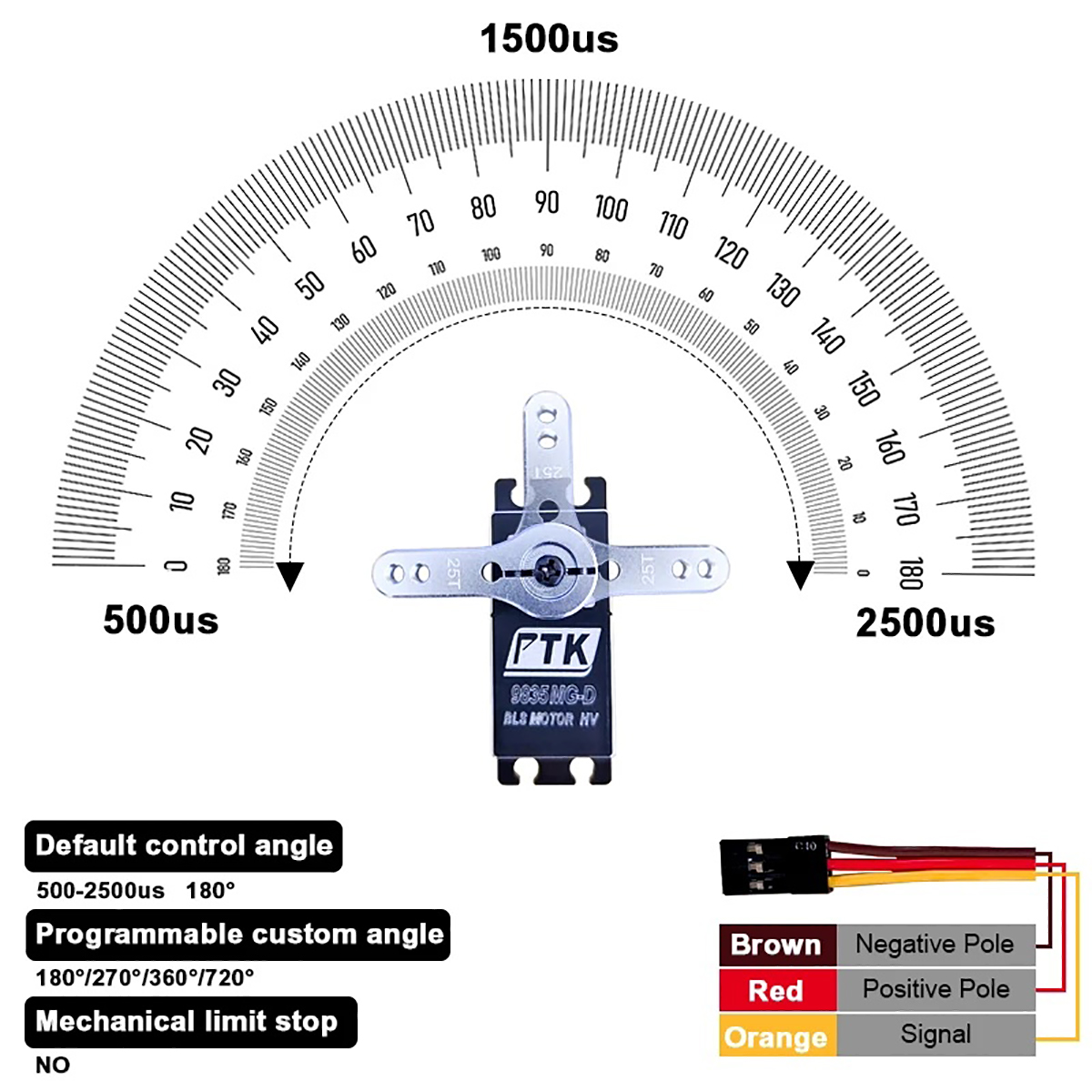

Default Travel Angle: ±45°@1000us-2000us
Speed/Stall Torque@ 5.0V: 24kg.cm – 0.124 sec/60°
Speed/Stall Torque@ 7.4V: 30kg.cm – 0.084 sec/60°
Speed Stall Torque@ 8.4V: 36kg.cm – 0.074 sec/60°
Rated working Torque: 17kg.cm@7.4V
Operating voltage: 4.8V – 8.4V

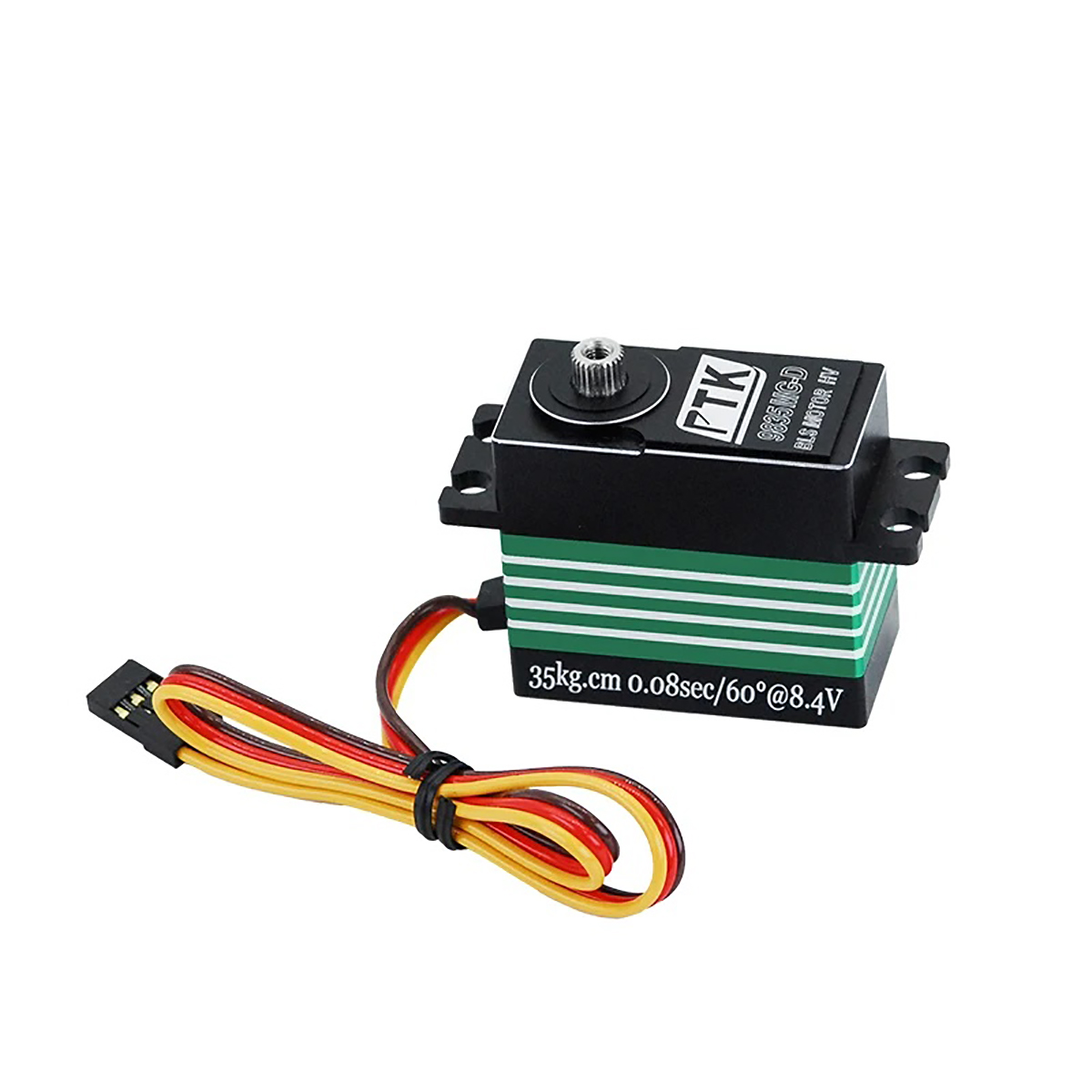

Cord lenght: 300mm
Dead band: 2μs
