Radiolink CrossRace Pro High-Speed At PosHold Flight Controller OSD Integrated XRotor 60A 4-in-1 Lite 2-8 for Axis Multirotor
Radiolink CrossRace Pro High-Speed At PosHold Flight Controller OSD Integrated XRotor 60A 4-in-1 Lite 2-8 for Axis Multirotor
*Fusion of Autonomous Flight and Professional Manual Mode
*High-Speed At PosHold Mode

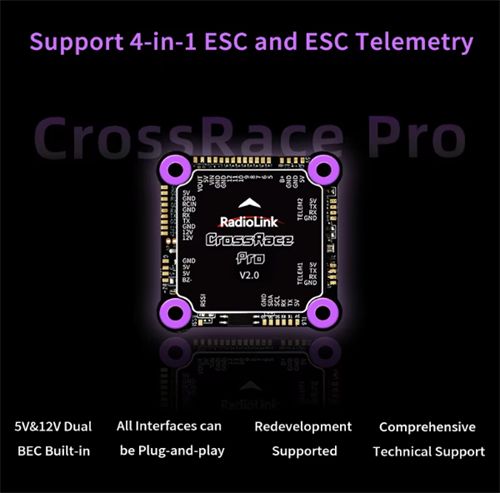

*Support 4-in-1 ESC and ESC Telemetry
*OSD Module Integrated
*Built-in 5V&12V Dual BEC
*12 Channels Output
*ESC Telemetry Supported
*Vibration Damping by Software as stable as Mini Pix
*Automation Software Testing System

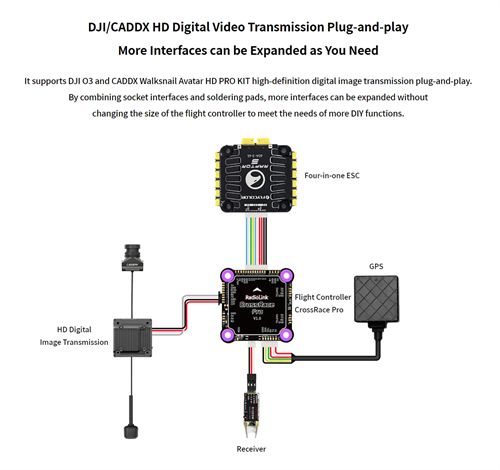

*Support DJI/CADDX HD Digital Video Transmission
*All Interfaces can be Plug-and-play without Soldering
*Support Multiple Mission Planner
Size: 37*37mm (Mounting hole spacing: 30.5*30.5mm).
Weight: The total weight of 3 with connecting wires is 42.8g, and the single CrossRace Pro flight controller is only 12.2g.
Hardware Parameters:
Main processor: STM32H743.
Flight control operating frequency: 1000HZ.
Chip main frequency: 480MHZ.
Gyroscope & accelerometer: BMI270.
Barometer: SPL06.
Flash memory: 128M built-in storage. For multi-axis models, up to 2617 waypoints can be stored.
Buzzer: 1.
Safety switch: None.
Interfaces:
Interface type: Combination of socket interface and pad.
ESC interface: 10PIN ESC interface, supporting voltage and current monitoring and ESC feedback.
BEC: Built-in dual-channel BEC of 5V&12V.
Output channels: 12 channels of output.
Mavlink UART serial port: 2 (without hardware flow control).
USB interface: 1 (Type-C).
GPS UART serial port/12C port: 1.
Remote control signal (RCIn port): PPM/SBUS.
Digital video transmission direct plug: Supports DJIO3 and Snail high-definition video transmission direct plug.
RSSI signal lead-out: Supported.
Video transmission OSD: Supported. Built-in video transmission OSD module.
Supported ESC protocols: PWM/DShot protocol/OneShot protocol.
RTK: Supported.
Secondary development: Supported.
Input Voltage: 2 – 6S.
Input Current: 5A.
Relay (12VBEC control): Supports RC channel control of 12VBEC on/off.
Supported Models: 2 – 8 axis rotorcraft.
Working Environment and Physical Parameters:
USB voltage: 5V±0.3V.
Operating temperature: -30~85°C.
1×Flight Controller CrossRacePro
1×Four-in-one ESC
1×GPS
