Dimension:174.3*206.9*106.9mm(6.86″*8.15″*4.21″)
Battery Case Dimension:114.4*35.4*32mm(4.5″*1.39″*1.26″)
Antenna Length:90mm(3.54″)
Weight:536g(18.9oz)
Channels:12 fully proportional channels, 5-12 channels can be programmed
Output Frequency:2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum:FHSS 67 channels pseudo-random frequency hopping
Operating Systems: freeRTOS+LVGL GUI

Long-range Module:it fully supports ELRS, TBS Crossfire, and other mainstream long-range modules
Menu Customized:Setting Menu, font, desktop, system theme, etc, can be customized
Response Latency:3ms, 4ms, 14ms can be selected
Channel Resolution:4096 with regular jitter of 0.5us
Modulation Mode:GFSK
Channel Band Width:400KHz
Channel Pacing:1200KHz
Transmitter Power:<100mW(20dBM)
Adjacent Channel Rejection:>36dBM
Transmission Rate:38kbps
Reception Sensitivity:-104dBM
PWM Output Range:1.0ms~2.0ms
Cycle:15ms/per frame
Operating Voltage:7.4-18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery)
Type-C Port Input Voltage:5V(T16D also can powered by computer or mobile power bank via Type-C cable)
Type-C Port Input Current:500mA
Type-C Port Output Voltage:4.6V-5.0V
Voltage:Maximum 1A
Type-C Port Output Current:100mA(±10mA)@8.4VDC
Operating Current:① FHSS:4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
② CRSF: Depends on the RX and TX of the long-range module

Control Distance:Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot
Adaptable Models:PWM&SBUS&PPM
Signal Output:Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized
Low Voltage Alarm:100
Storage Model Quantity:15
Simulator Mode:Support
Trainer Function:Support
Screen:2.8 inches 16 colorful screens, 320*240 pixels

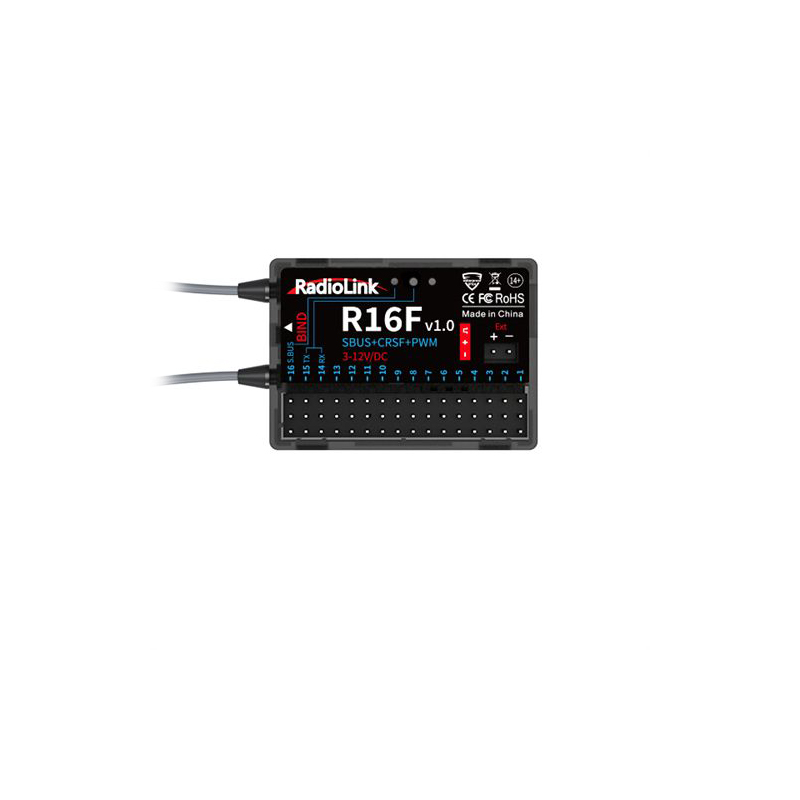

Compatible Receivers:R16F(Std), R8EF，R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F
Operating Temperature:-30°to 85°C
Compatible Control Board Hardware Models:Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal
