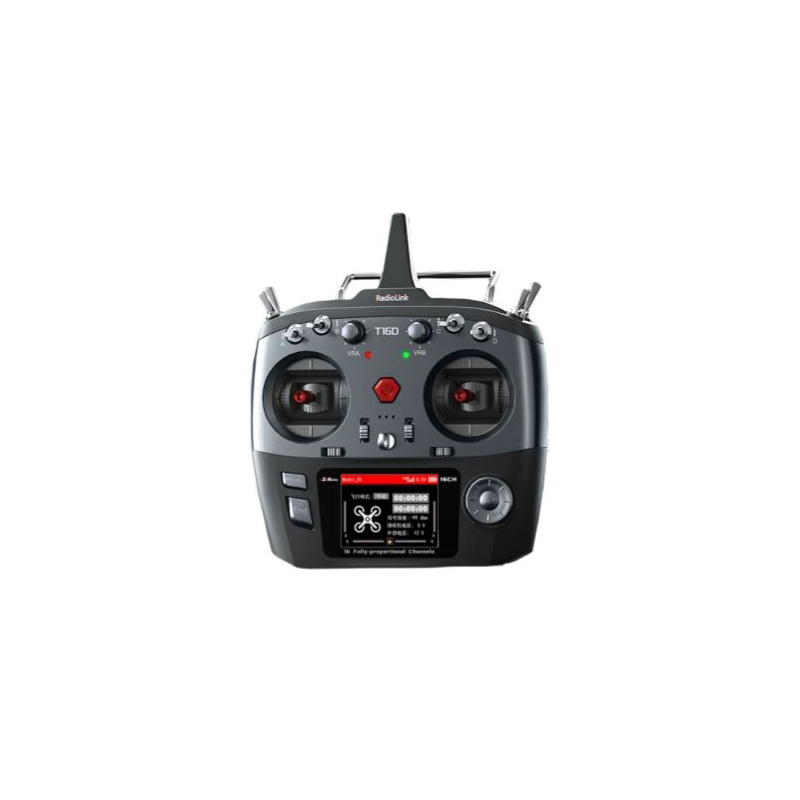

RadioLink T16D 16 Channels RC Transmitter 2.4GHz with R16F Receiver Dual Stick Remote Controller for UAV FPV Remote Car
RadioLink T16D 16 Channels RC Transmitter 2.4GHz with R16F Receiver Dual Stick Remote Controller for UAV FPV Remote Car
*With eight switches and four knobs, the user experience is uncompromised from electronics to construction.
*16 channels respond simultaneously in 3ms, providing accurate response without delay.
*The mainstream embedded system freeRTOS can synchronize with the latest needs anytime and provide unlimited upgrades.
*The T16D has upgraded and optimized the original communication technology,improving the response speed and fault tolerance rate.
*Relying on its pioneering communication algorithms, the Radiolink remote controllers are widely used in robotics,automotive, security, and other fields.
Dimension:174.3*206.9*106.9mm(6.86″*8.15″*4.21″)
Battery Case Dimension:114.4*35.4*32mm(4.5″*1.39″*1.26″)
Antenna Length:90mm(3.54″)
Weight:558g(19.68oz)
Channels:16 fully proportional channels, 5-16 channels can be programmed
Output Frequency:2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum:FHSS 67 channels pseudo-random frequency hopping
Operating Systems:freeRTOS+LVGL GUI
Long-range Module Script:LUA script
Long-range Module:it fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D
Voice Broadcast:unique personalized and humanized voice broadcast customization
Menu Customized:Setting Menu, font, desktop, system theme, etc., can be customized
Response Latency:3ms, 4ms, 14ms can be selected
Channel Resolution:4096 with regular jitter of 0.5us
Modulation Mode:GFSK
Channel Band Width:400KHz
Channel Pacing:1200KHz
Transmitter Power:<100mW(20dBM)
Adjacent Channel Rejection: >36dBM
Transmission Rate:38kbps
Reception Sensitivity:-104dBM
PWM Output Range:1.0ms~2.0ms
Cycle:15ms/per frame
Operating Voltage:7.4-18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery)
Type-C Port Input Voltage:5V(T16D also can powered by computer or mobile power bank via Type-C cable)
Type-C Port Input Current:500mA
Type-C Port Output Voltage:4.6V-5.0V
Voltage:Maximum 1A
Type-C Port Output Current:100mA(±10mA)@8.4VDC
Operating Current:
① FHSS:4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
② CRSF: Depends on the RX and TX of the long-range module
Control Distance:Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot
Adaptable Models:PWM&SBUS&PPM
Signal Output:Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized
Low Voltage Alarm:100
Storage Model Quantity:15
Simulator Mode:Support
Trainer Function:Support
Screen:2.8 inches 16 colorful screens, 320*240 pixels
Compatible Receivers:R16F(Std), R8EF，R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F
Operating Temperature:-30°to 85°C
Compatible Control Board Hardware Models:Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal
1×T16D(Transmitter)
1×R16F(Receiver)
