RadioMaster ER4 2.4GHz ELRS PWM Receiver 4 Channel High Performance for RC Car Small Aircraft Boats














RadioMaster ER4 2.4GHz ELRS PWM Receiver 4 Channel High Performance for RC Car Small Aircraft Boats

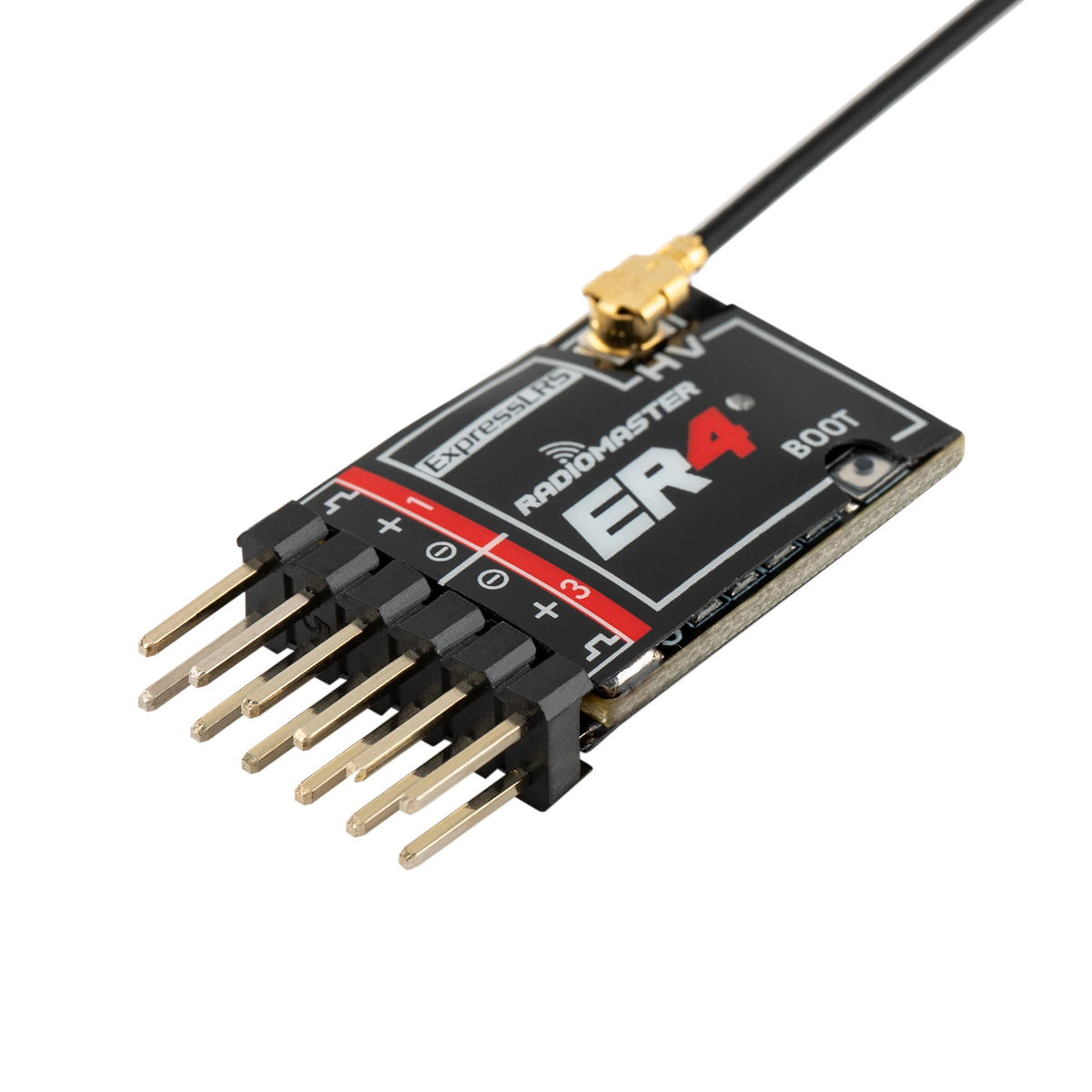

The ER4 PWM receiver can drive 4 servos simultaneously. Designed with a very small volume, it is suitable for small aircraft models, ship models, car models and other models that require a small or lightweight receiver while still providing full range.

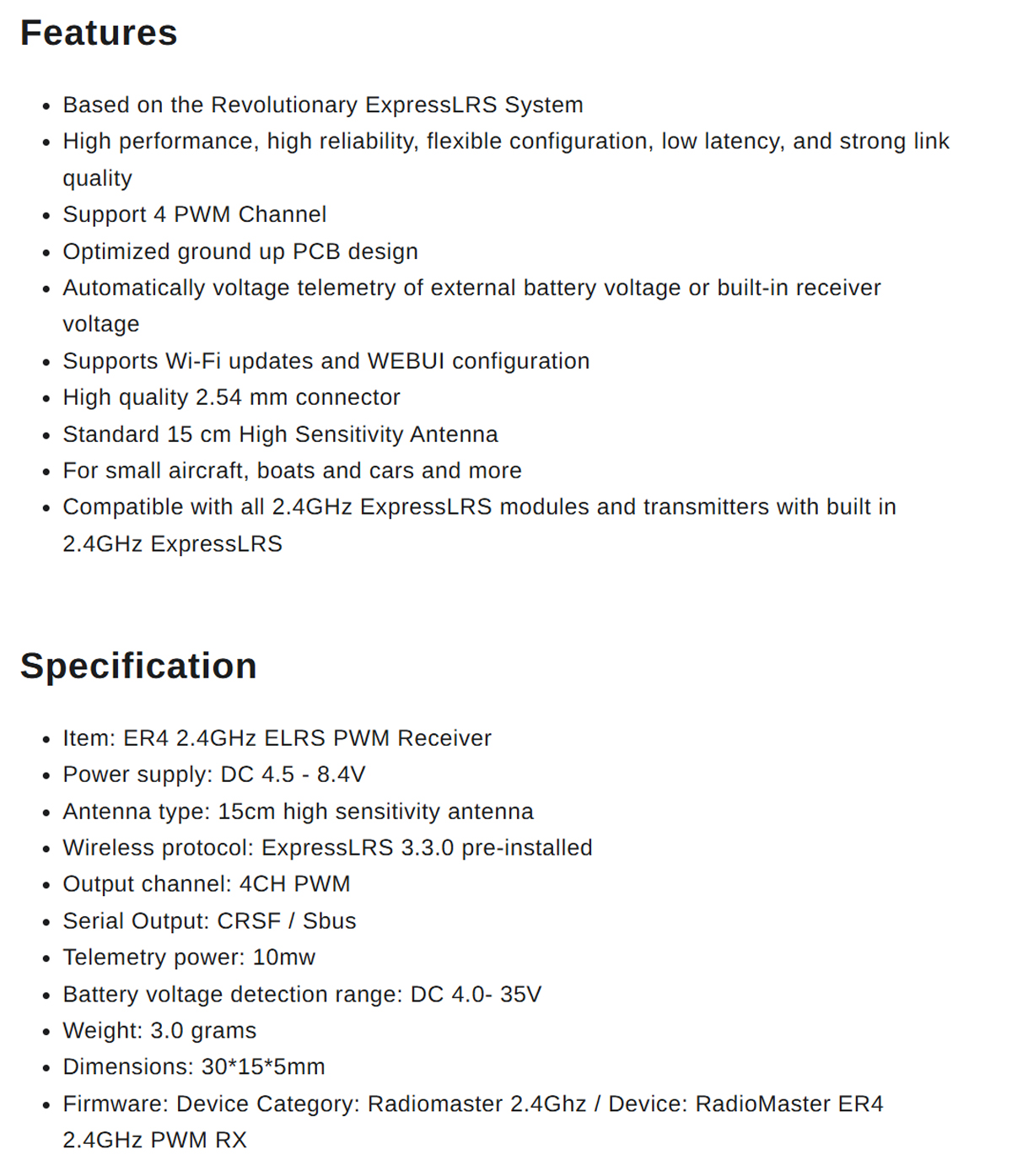

Features
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, low latency, and strong link quality

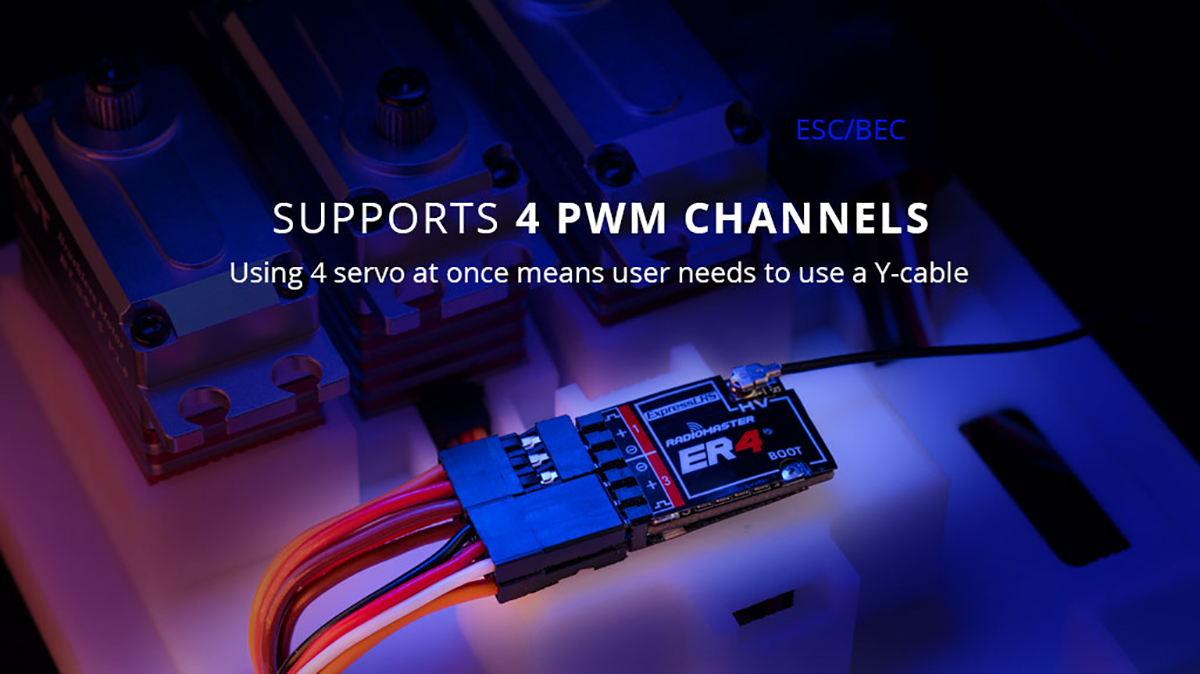

Support 4 PWM Channel

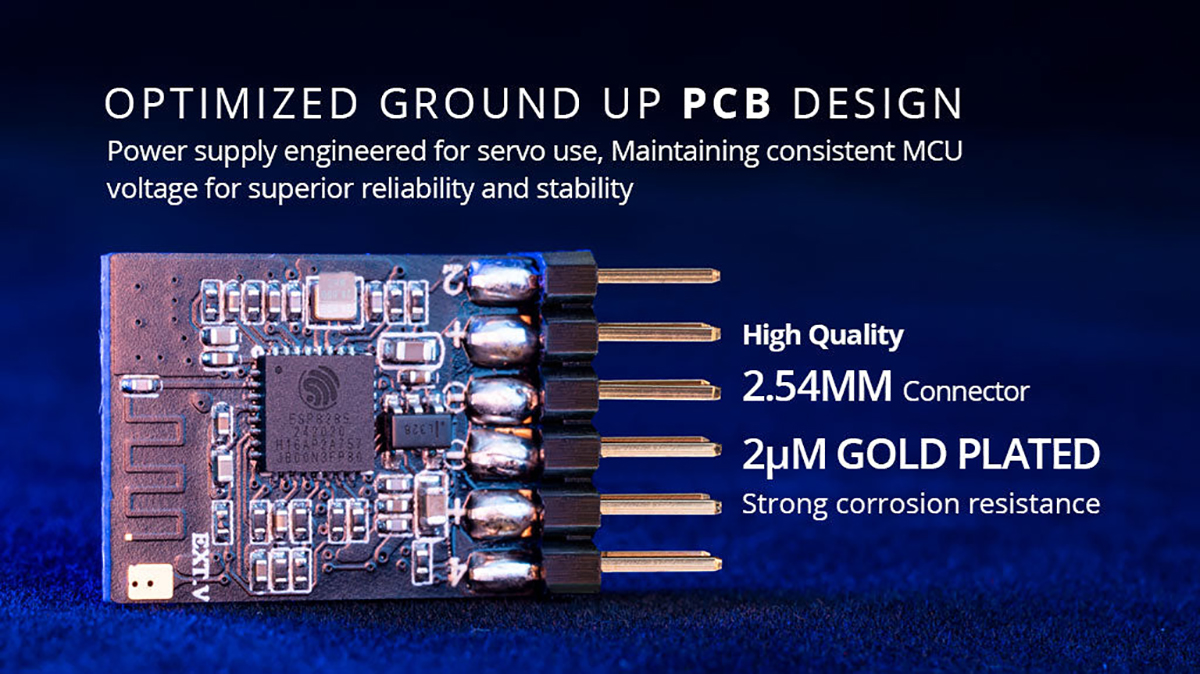

Optimized ground up PCB design

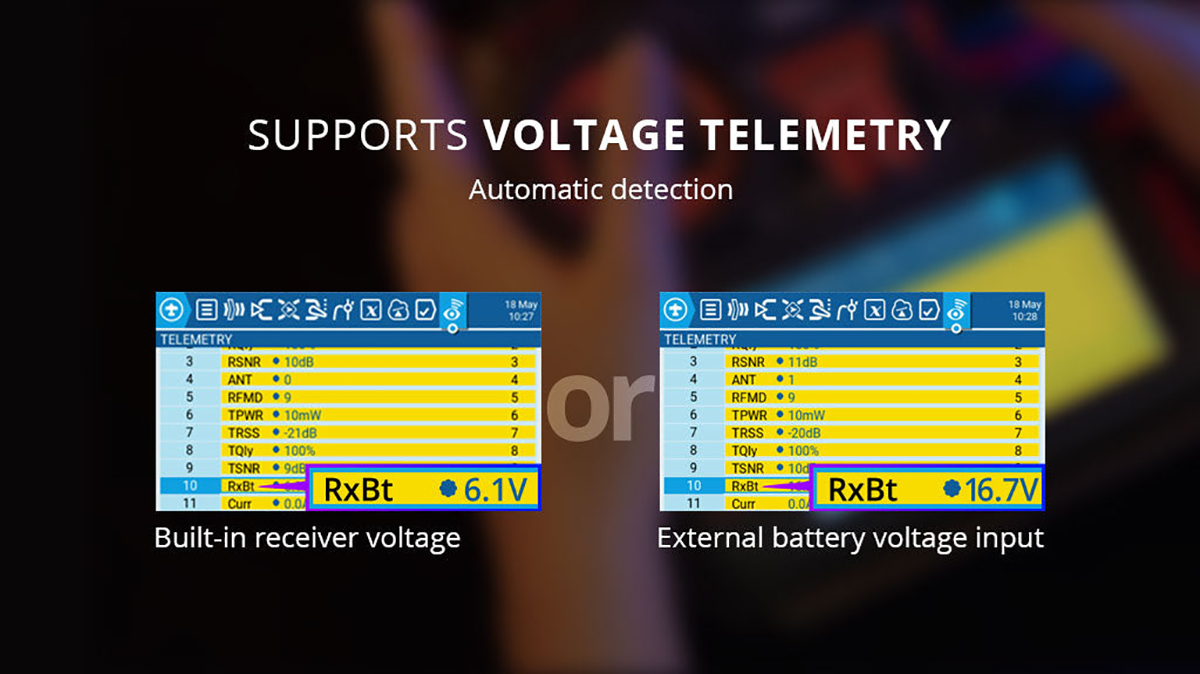

Automatically voltage telemetry of external battery voltage or built-in receiver voltage
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector

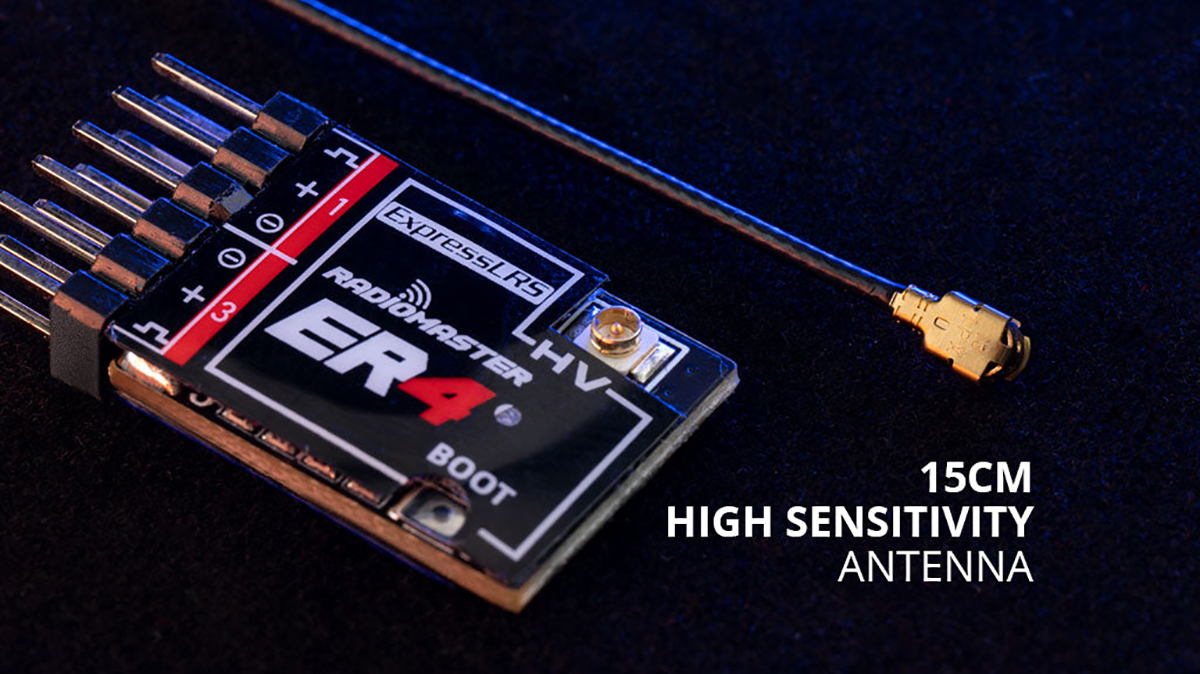

Standard 15 cm High Sensitivity Antenna

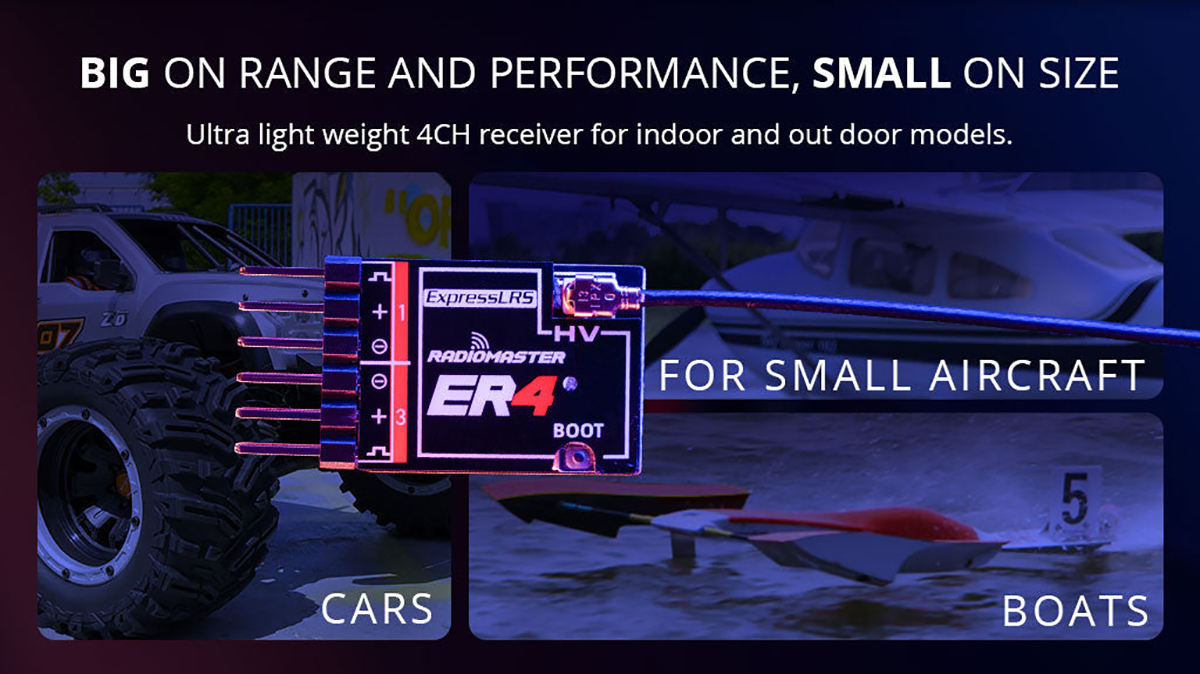

For small aircraft, boats and cars and more
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Model: ER4 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 – 8.4V

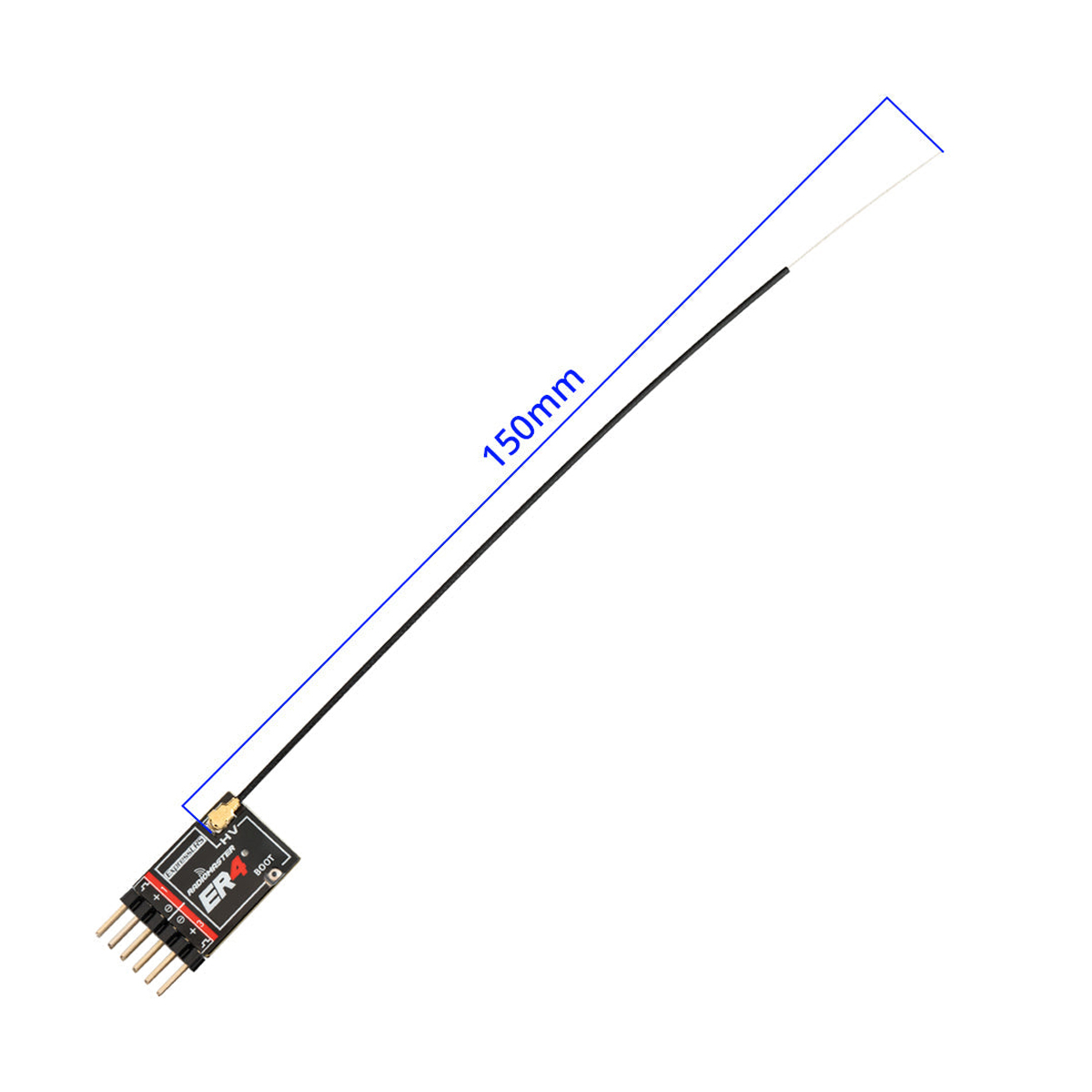

Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 4CH PWM
Serial Output: CRSF / Sbus
Telemetry power: 10mw
Battery voltage detection range: DC 4.0- 35V
Weight: 3.0 grams

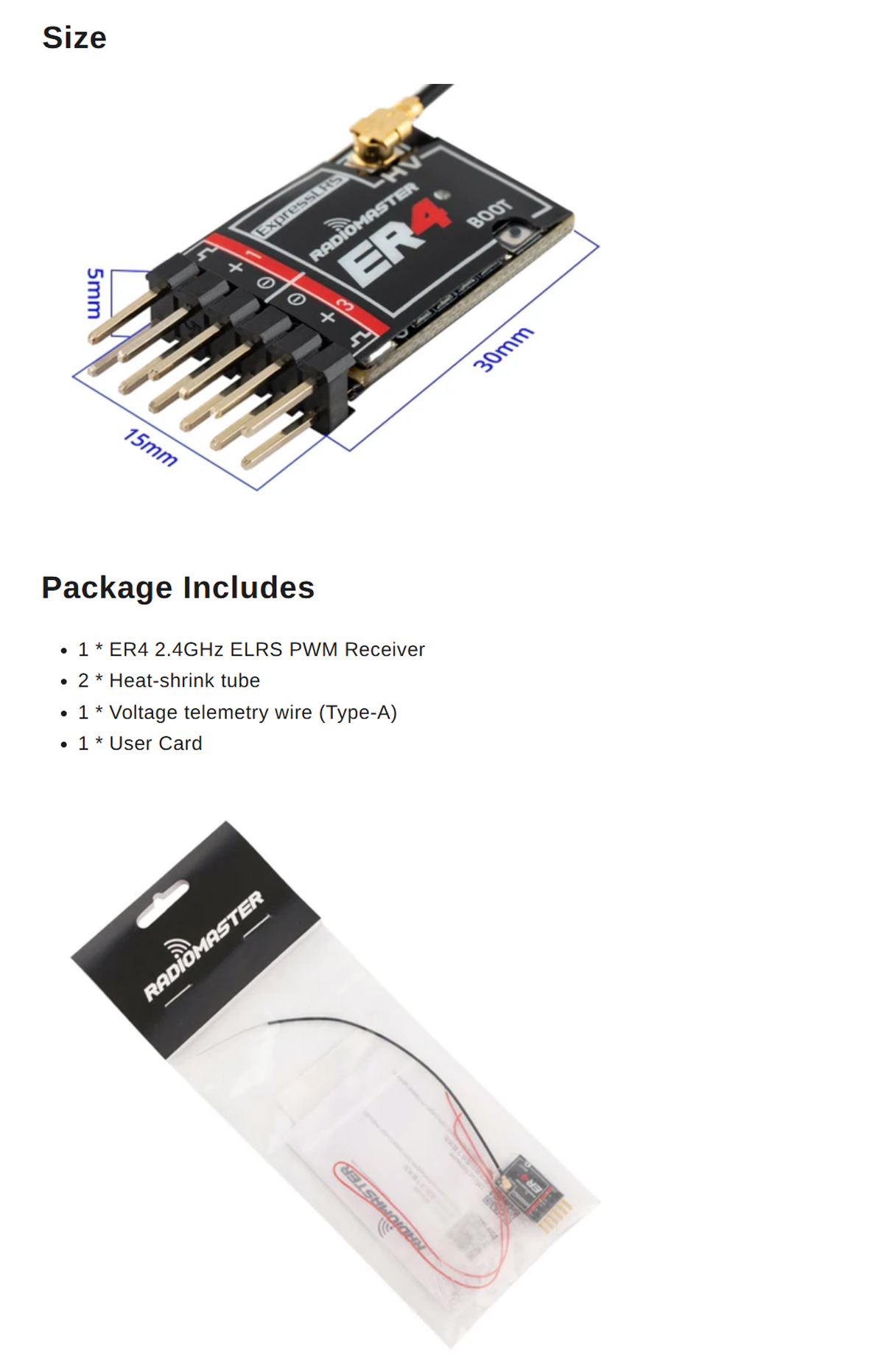

Dimensions: 30*15*5mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2.4GHz PWM RX
ER4 2.4GHz ELRS PWM Receiver x1
Heat-shrink tube x2
Voltage telemetry wire (Type-A) x1
User Card x1
