Radiomaster MT12 Surface Radio Controller 2.4G 4in1 Multiprotocol With R85C Receiver for RC Car Boat
Radiomaster MT12 Surface Radio Controller 2.4G 4in1 Multiprotocol With R85C Receiver for RC Car Boat

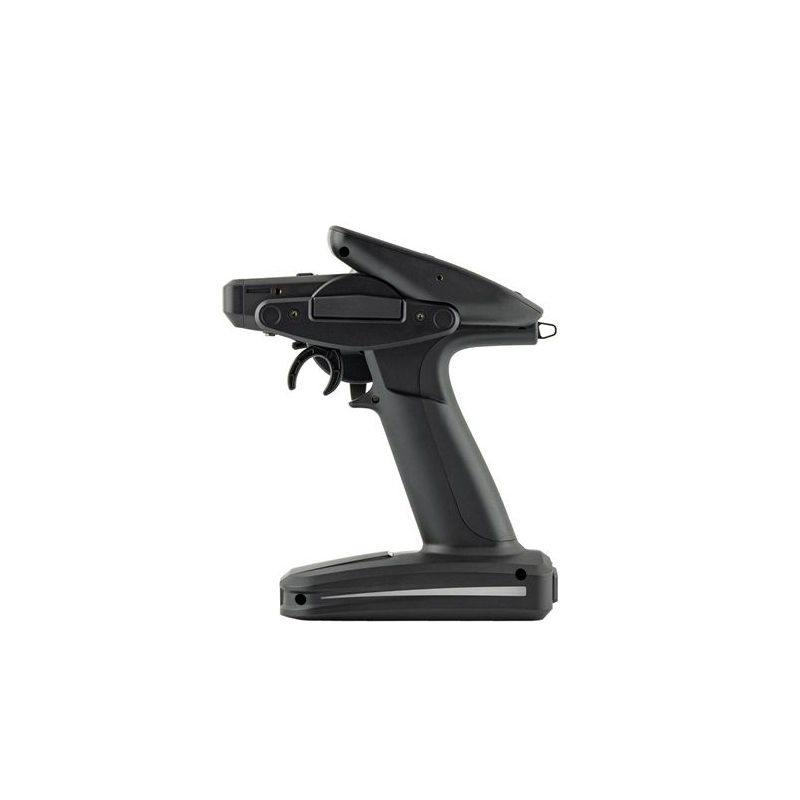

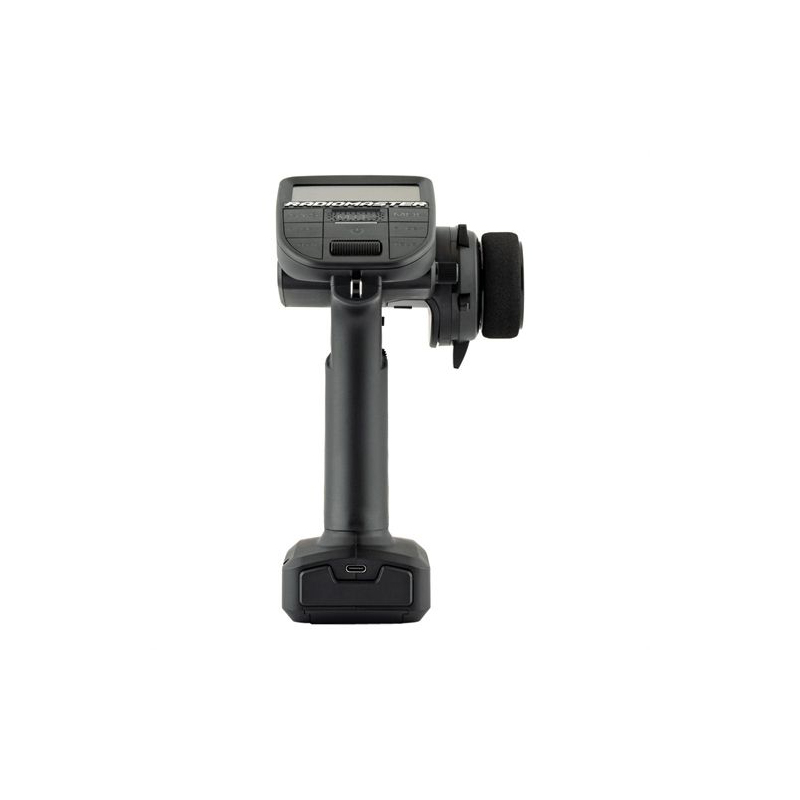

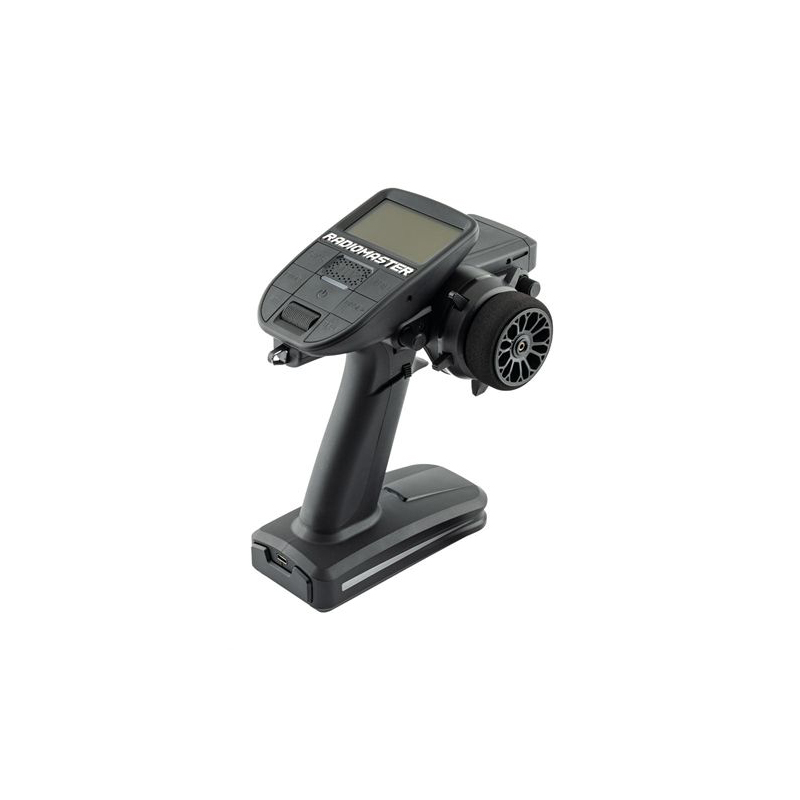

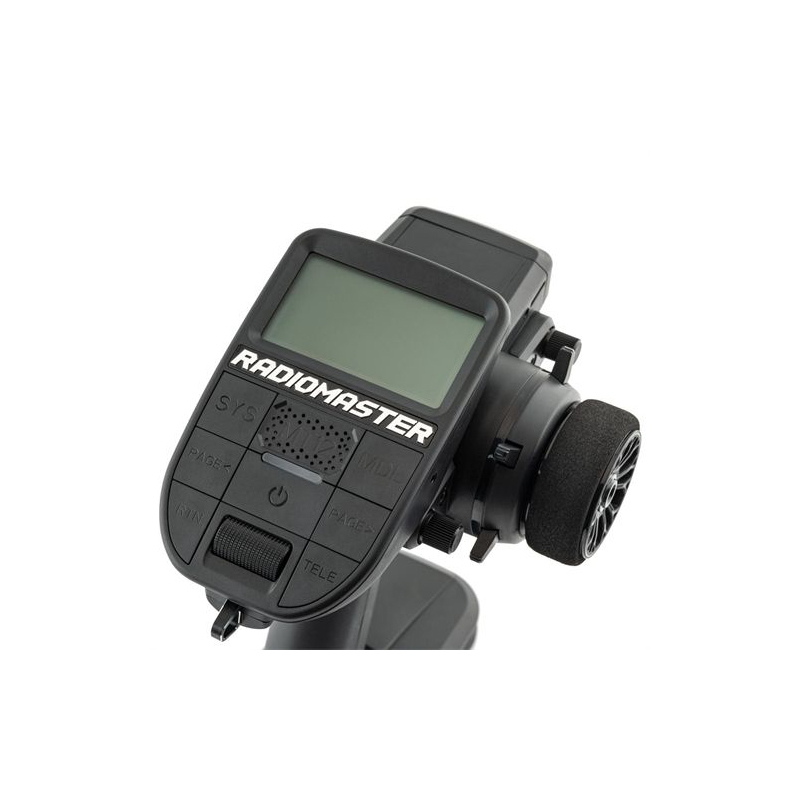

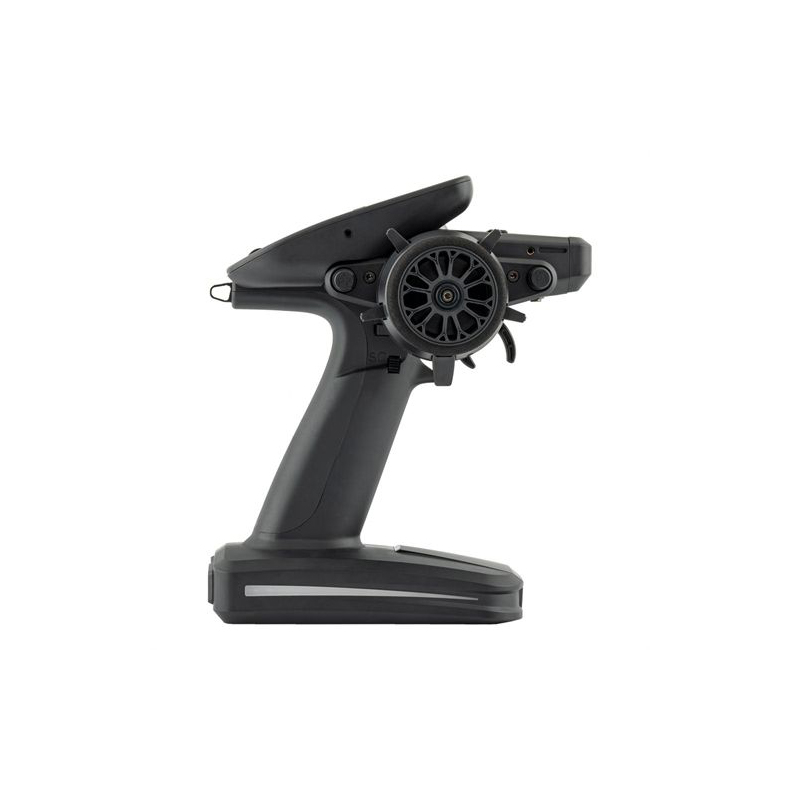

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.
* Available with built-in 4in1 MPM RF modules
* Featuring a powerful STM32F407VGT6 with 1MB Flash
* Preinstalled EdgeTX firmware
* QC3.0 fast charging supporting 2.0A MAX
* Compact design with excellent ergonomics
* Oversized battery compartment – 2 x 18650 cells or a 2s 7.4v * 5000mah battery pack (Batteries not included)
* Standard Nano module compartment
* RadioMaster standardized button layout
* Rotatable antenna
* Customizable base switches or 4 way joystick included
Item: MT12 Surface Radio
Physical dimensions: 177.8*118.4*207.8mm
Weight: 480 grams
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 multi-protocol
Supported protocols: Module dependent
Operational current: 160mA for 4in1 / 320mA for ELRS
Operational voltage: DC 6.6-8.4V
Operating system: EdgeTX
Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
Display: 128*64 Monochrome LCD
Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
Charging: Built in USB-C Charging
Firmware Upgrade method: Via USB or SD card
Wheel and Trigger sensor: Hall-effect
Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)
*32 channels requires a 4in1 radio and additional 4in1 RF module along with compatible receivers
Specification R85C (Included with 4in1 version)
Item: R85C Receiver
Power supply: DC 4.5 – 8.4V
Frequency range: 2400-2483.5Mhz
Support protocol: D8/D16/SFHSS
Output channel: 5CH PWM
Antenna type: high-sensitivity 2.4G antenna
Telemetry power: 100mw / 20dbm
Weight: 5.7 grams
Dimensions: 31.0*18.5*13.0 mm
1 * MT12 Surface Radio 4in1 Version
1 * R85C Receiver
1 * Dual Switch Expansion module
1 * 4 Way Joystick Expansion module
1 * Nano Adapter
1 * USB-C Cable
1 * Leather Lanyard
1 * Custom RadioMaster signature carry case
1 * 18650 Battery Tray
1 * Screen Protector
1 * Stickers
1 * Manual
