RadioMaster RP3-H ELRS 2.4G Dual Antenna Receiver Farhang Aeromodelling Fixed Wing Helicopter
RadioMaster RP3-H ELRS 2.4G Dual Antenna Receiver Farhang Aeromodelling Fixed Wing Helicopter
*Perfect for helicopters and any application that needs a rugged cased serial receiver
*Plug’n’play solder free RP3-H ExpressLRS receivers compatible with NEXUS Heli flight controller
*Optimized PCB design for better heat dissipation
*LNA for better receiver range
*PA for better telemetry range
*Antenna Diversity for improved signal stability and range
*Built-in a TCXO (temperature compensated crystal oscillator)
*Automatically detects voltage telemetry of external battery voltage or receiver battery/ESC BEC voltage
*Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Brand: Radiomaster
Item: RP3-H ExpressLRS 2.4GHz Nano Receiver
Type: ISM
MCU: ESP8285
RF Chip: SX1281
Telemetry RF power: Max 100mW
Antenna: 150mm 2.4GHz Antenna x2
Frequency Range: 2.404 – 2.479 GHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: DC 4.5 – 8.4V
Battery voltage detection range: DC 4.0 – 35V

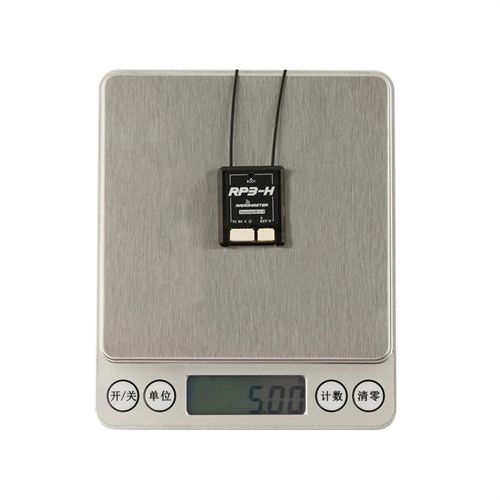

Weight: 5.1g (Including two antenna)
Dimension: 28mm*24mm*8mm
Firmware Version: ExpressLRS v3.3.1 pre-installed
FW Target: RadioMaster RP3-H Diversity 2400 RX
Bus interface: CRSF/S.Bus
1× RP3-H ExpressLRS 2.4GHz Nano Receiver
1× JST-GH CRSF 4 wire Pigtail
1× JST-GH 4 wire to JST-GH CRSF cable
1× JST-GH 4 wire to single Servo pin (single dupont connectors)
1× Voltage telemetry wire
