RadioMaster TX16S MK3 MAX Radio Controller 2.4GHz 900MHz AG02 CNC Hall Gimbal 5-inch IPS Touchscreen for RC Drone






























RadioMaster TX16S MK3 MAX Radio Controller 2.4GHz 900MHz AG02 CNC Hall Gimbal 5-inch IPS Touchscreen for RC Drone
High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

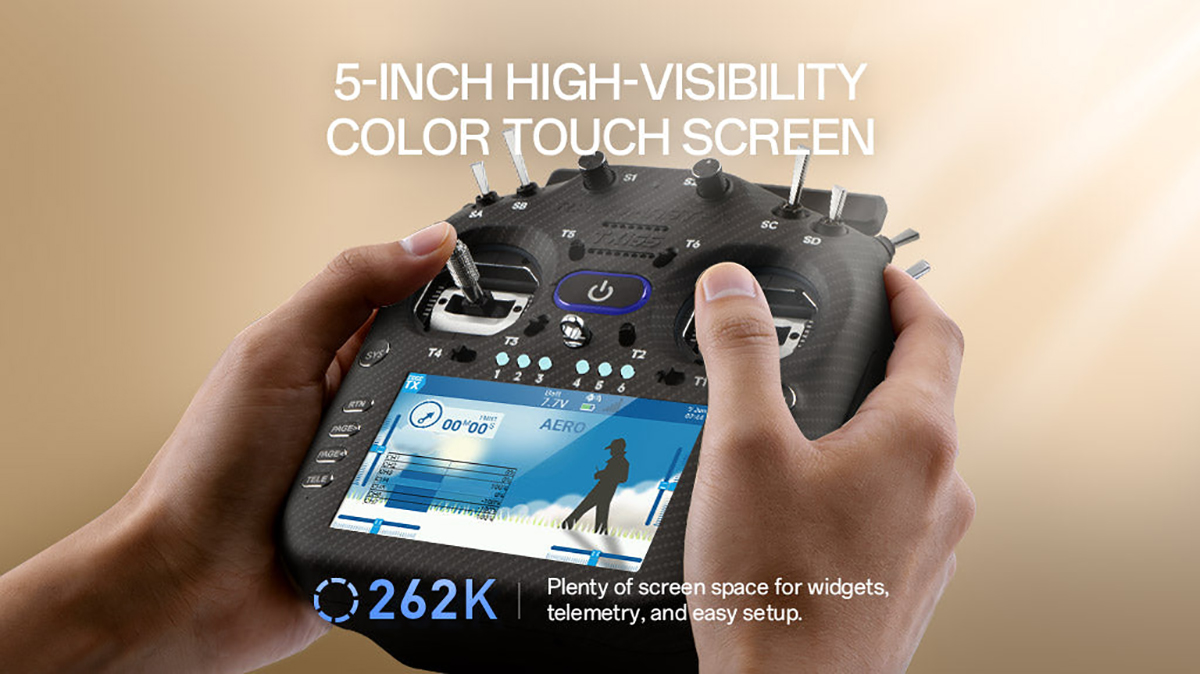

Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

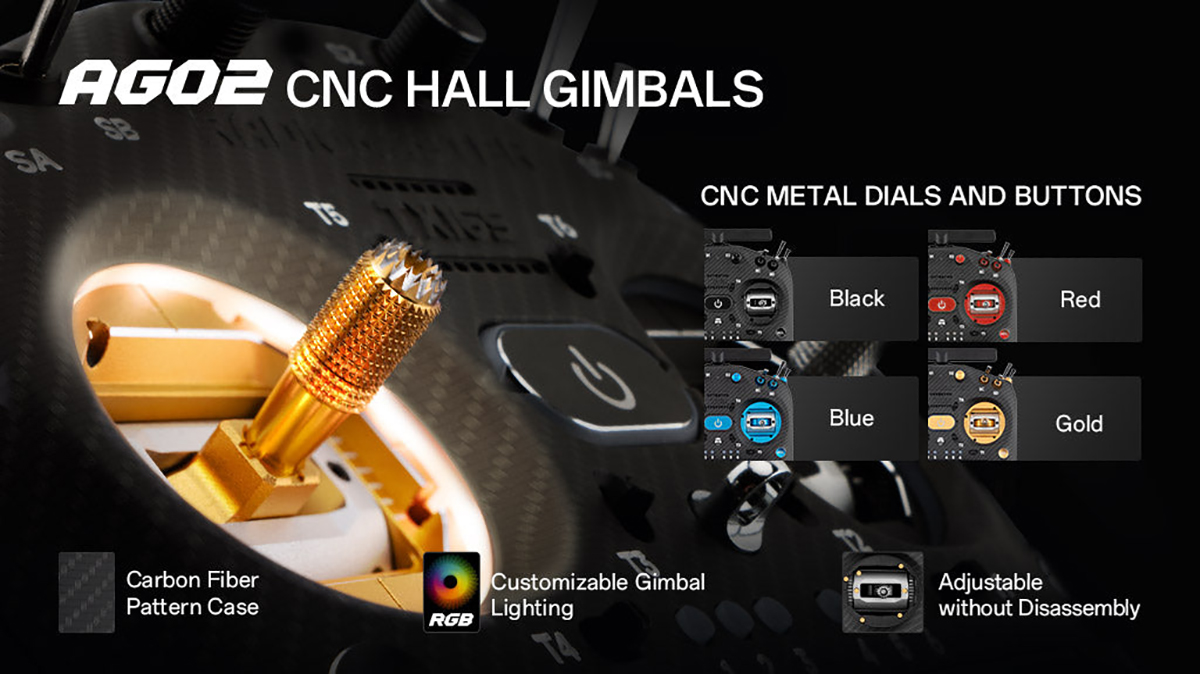

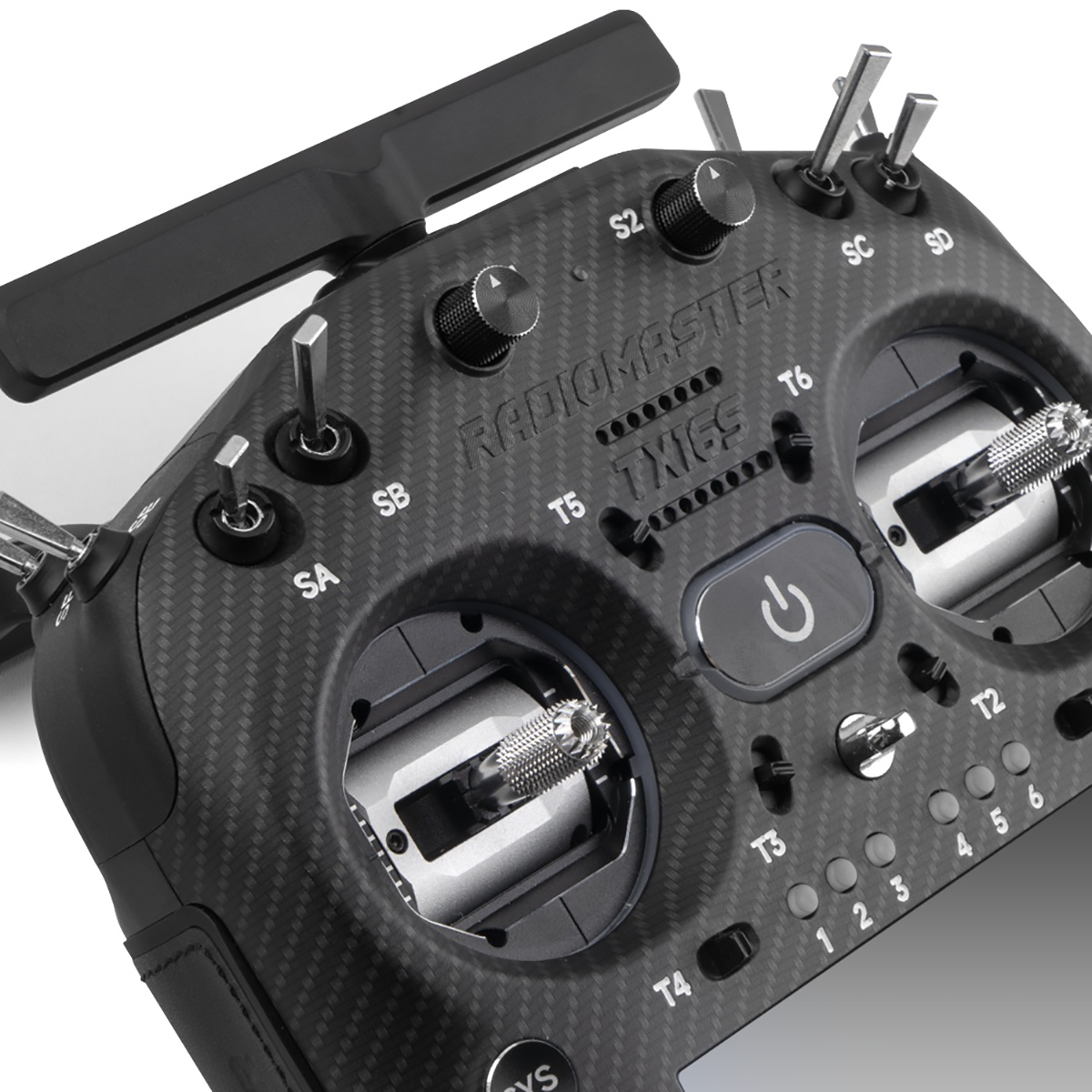

Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent).
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

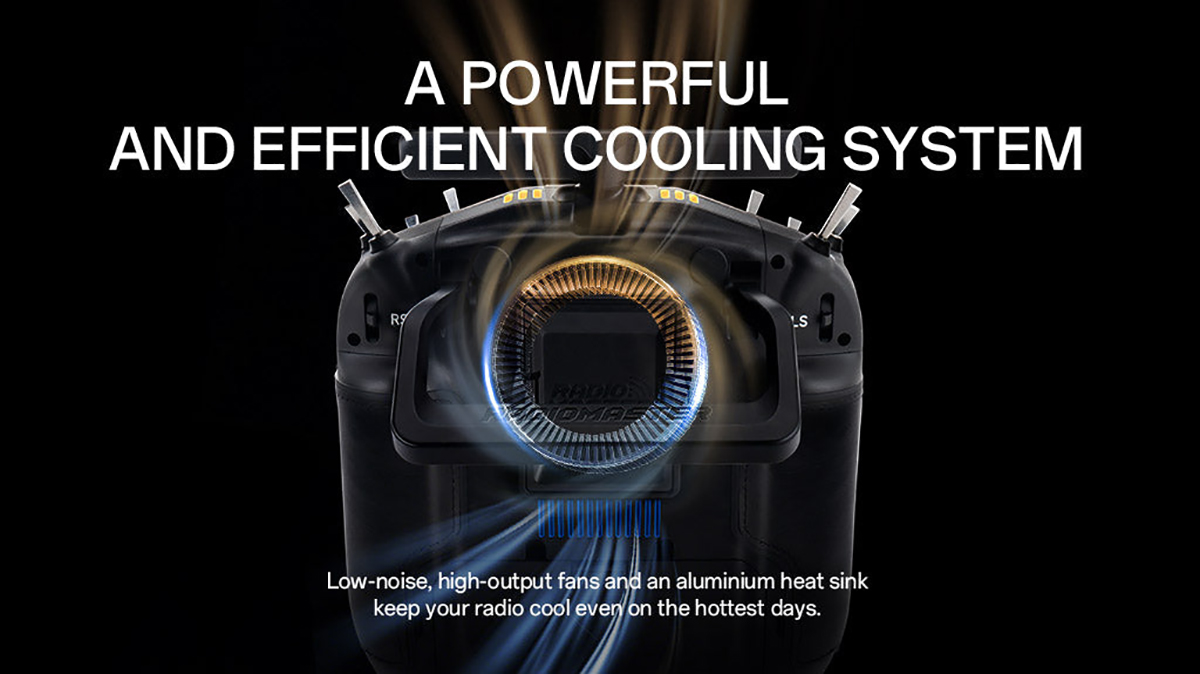

Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.

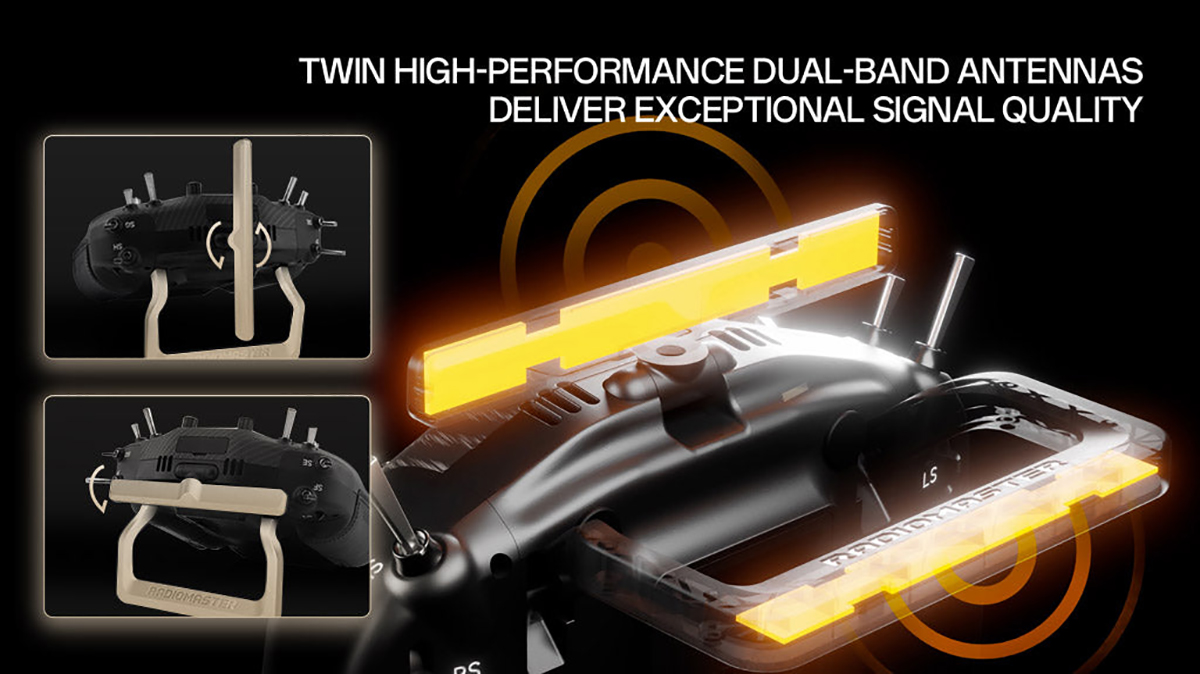

Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment: Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

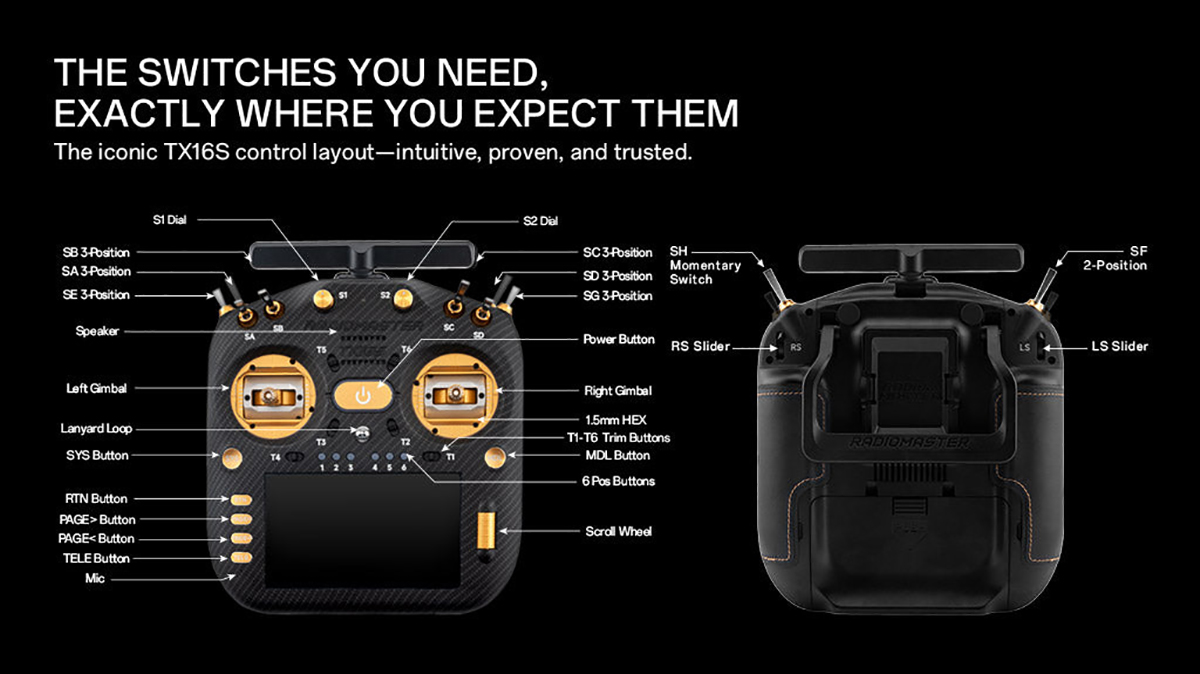

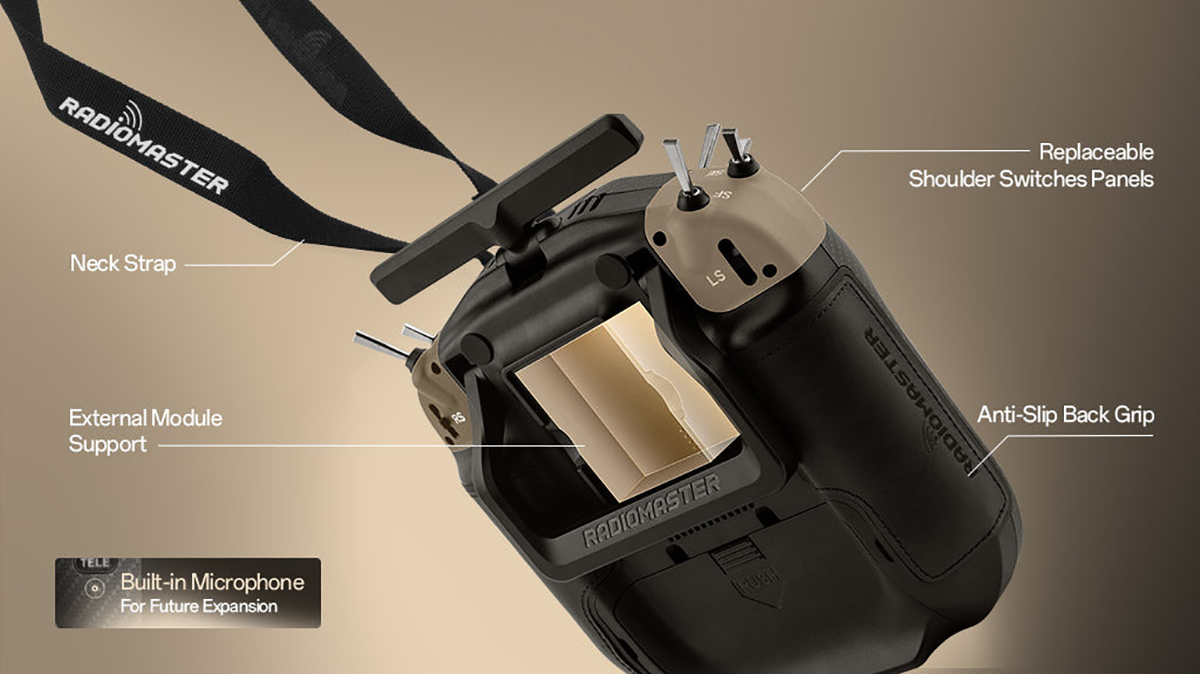

Removable shoulder switch panels: Customize your setup with modular switch panels.

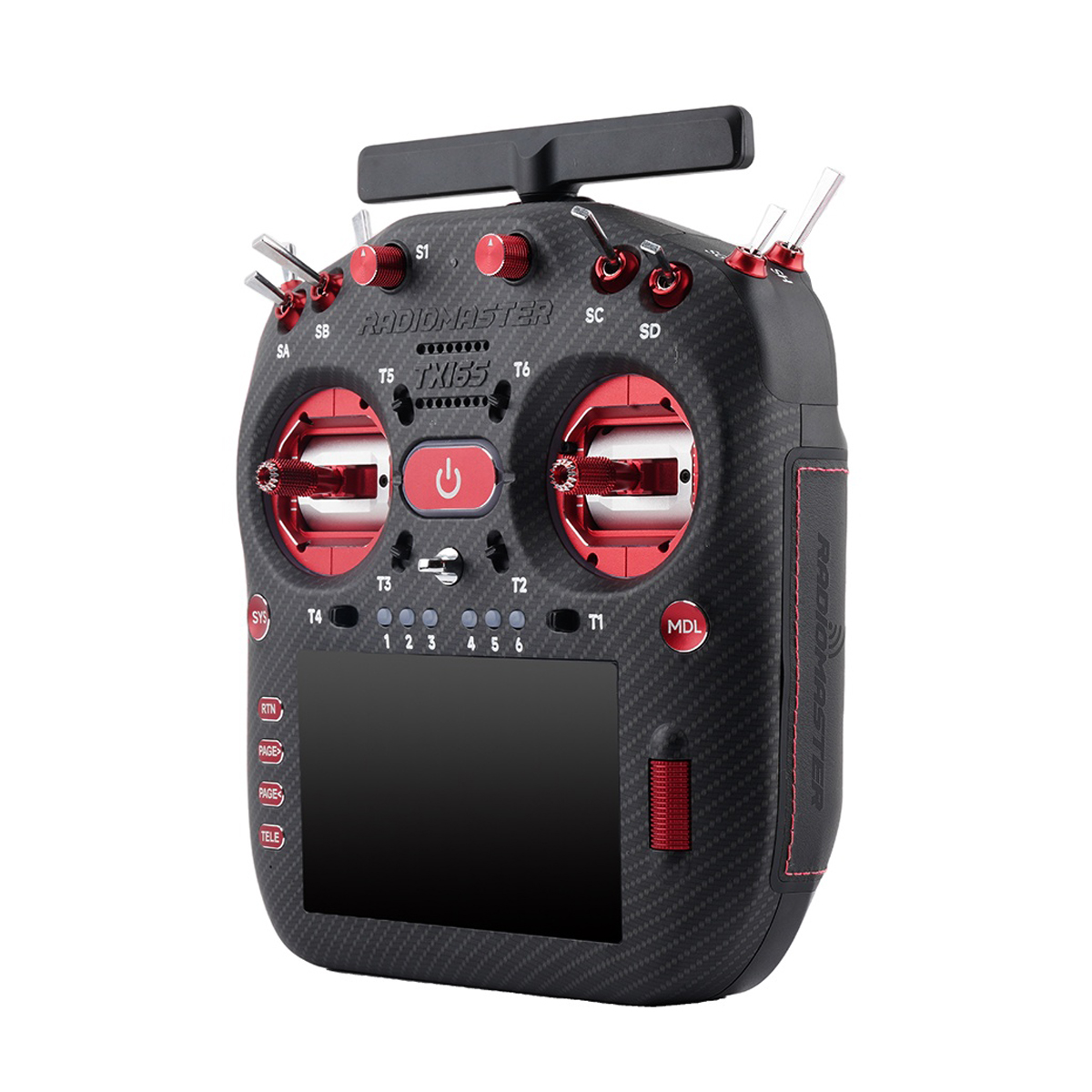

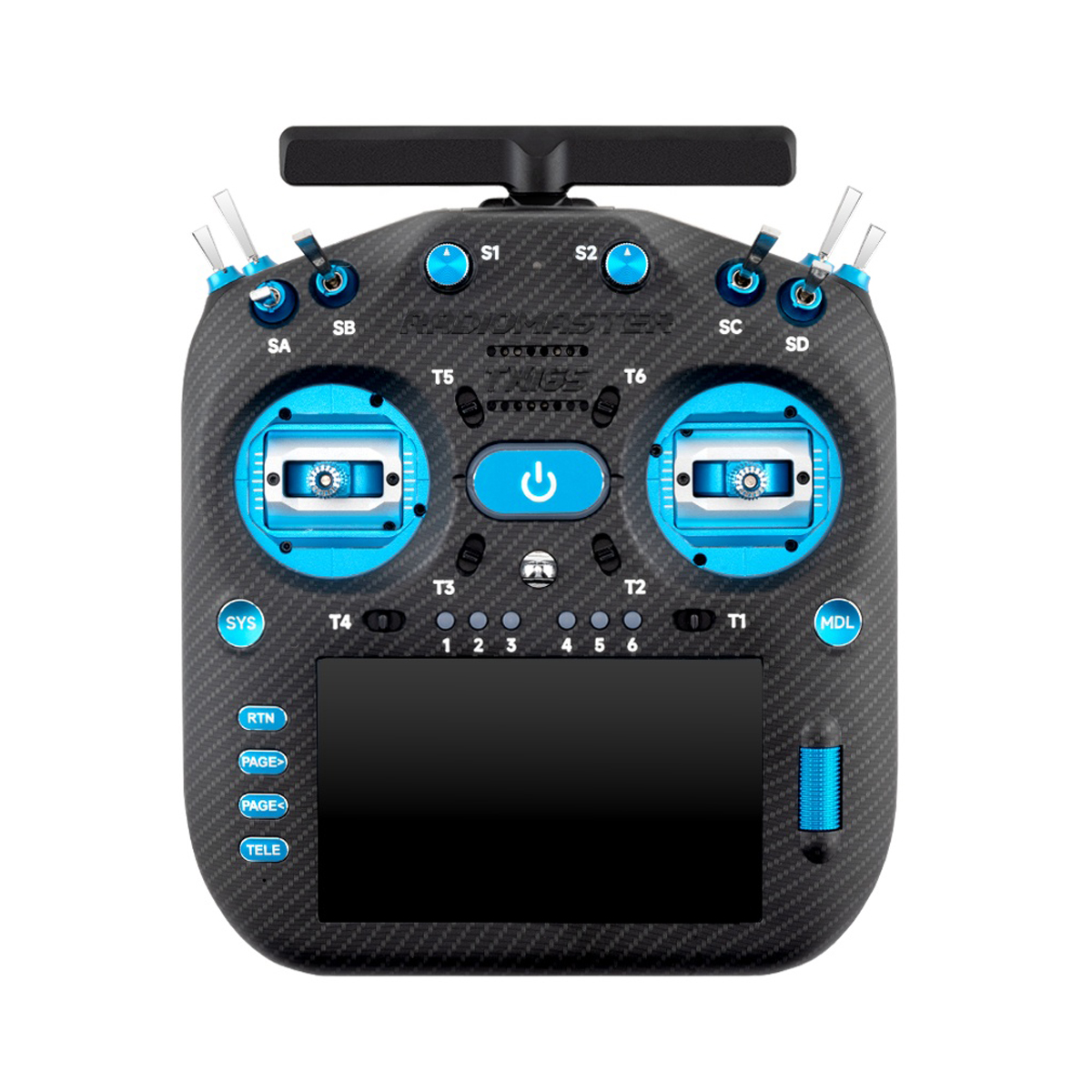

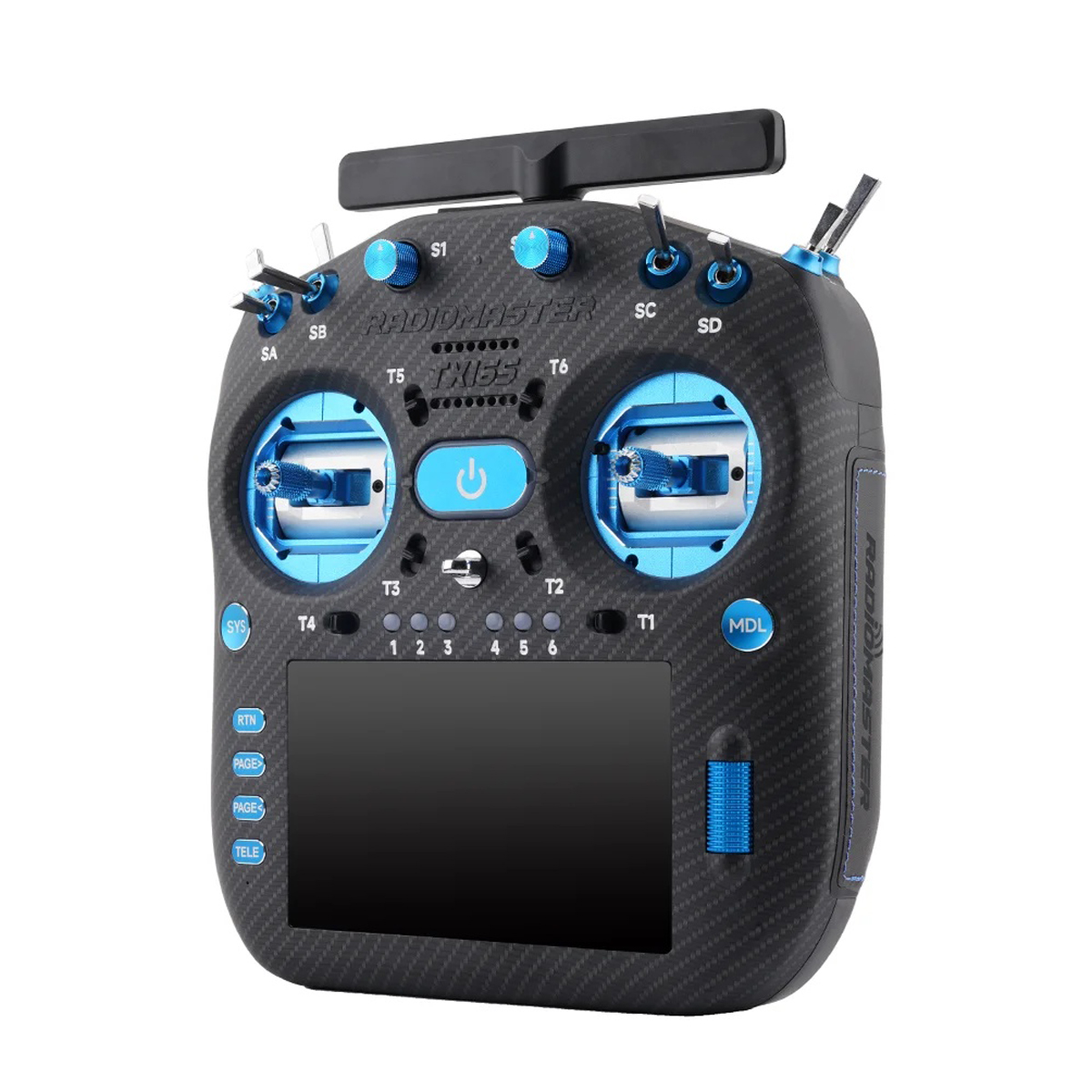

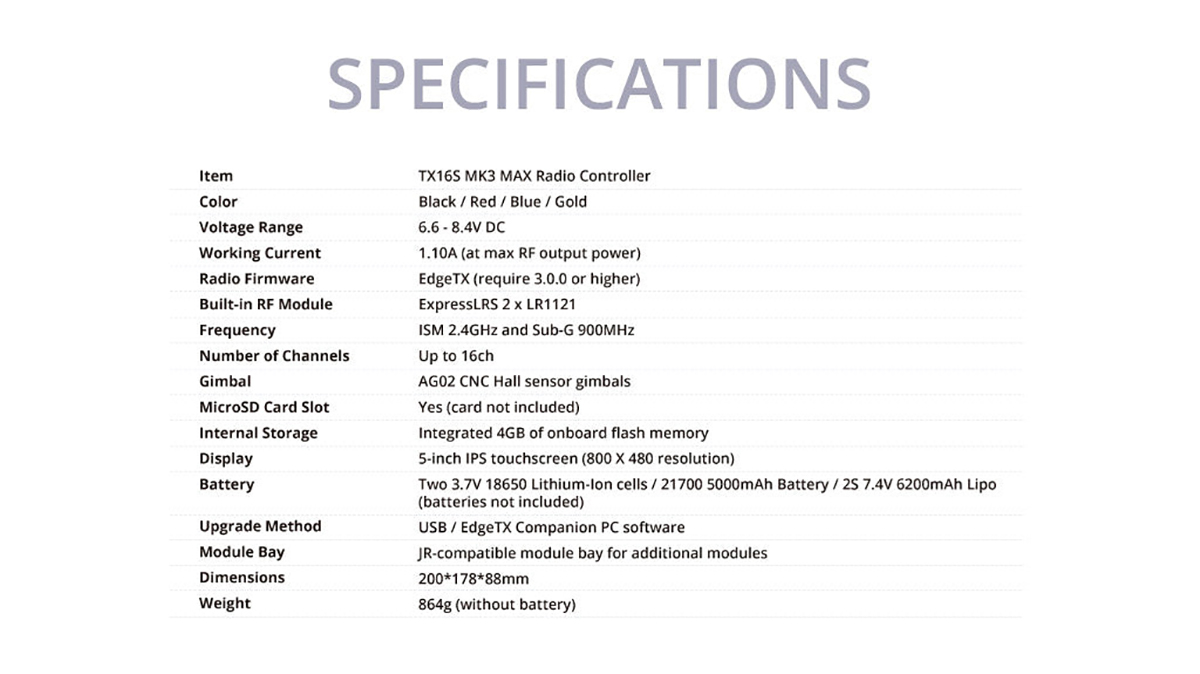

Model: TX16S MK3 MAX Radio Controller

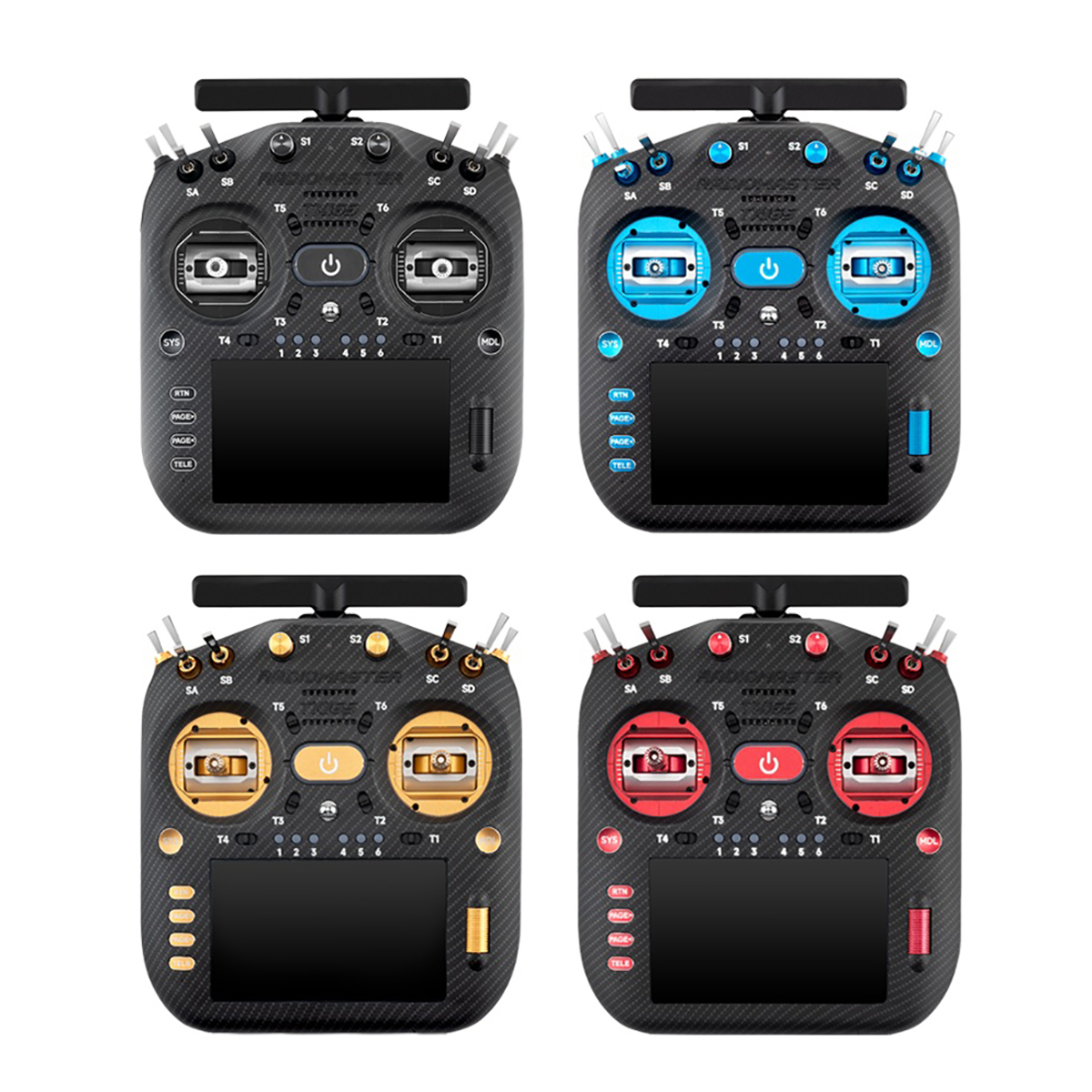

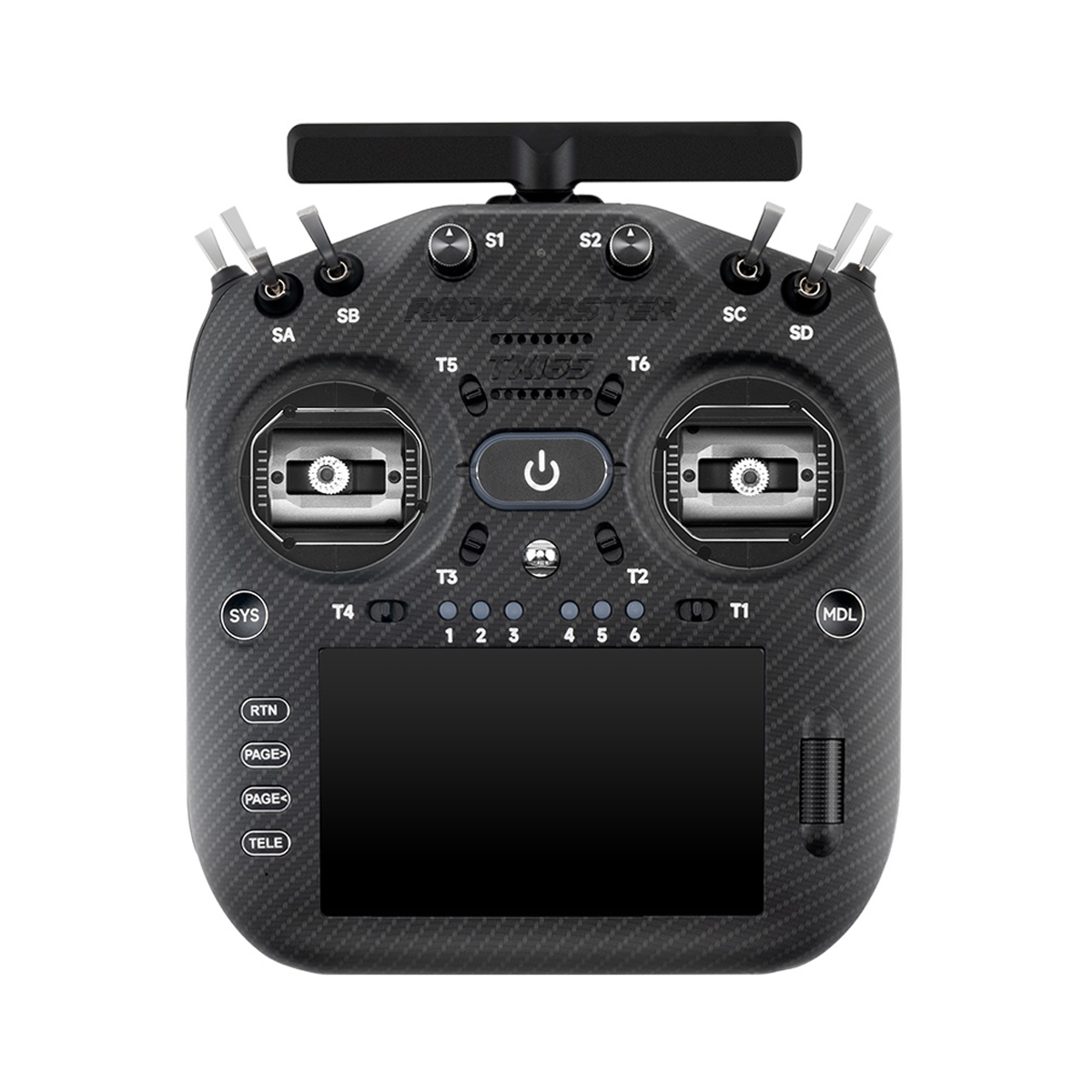

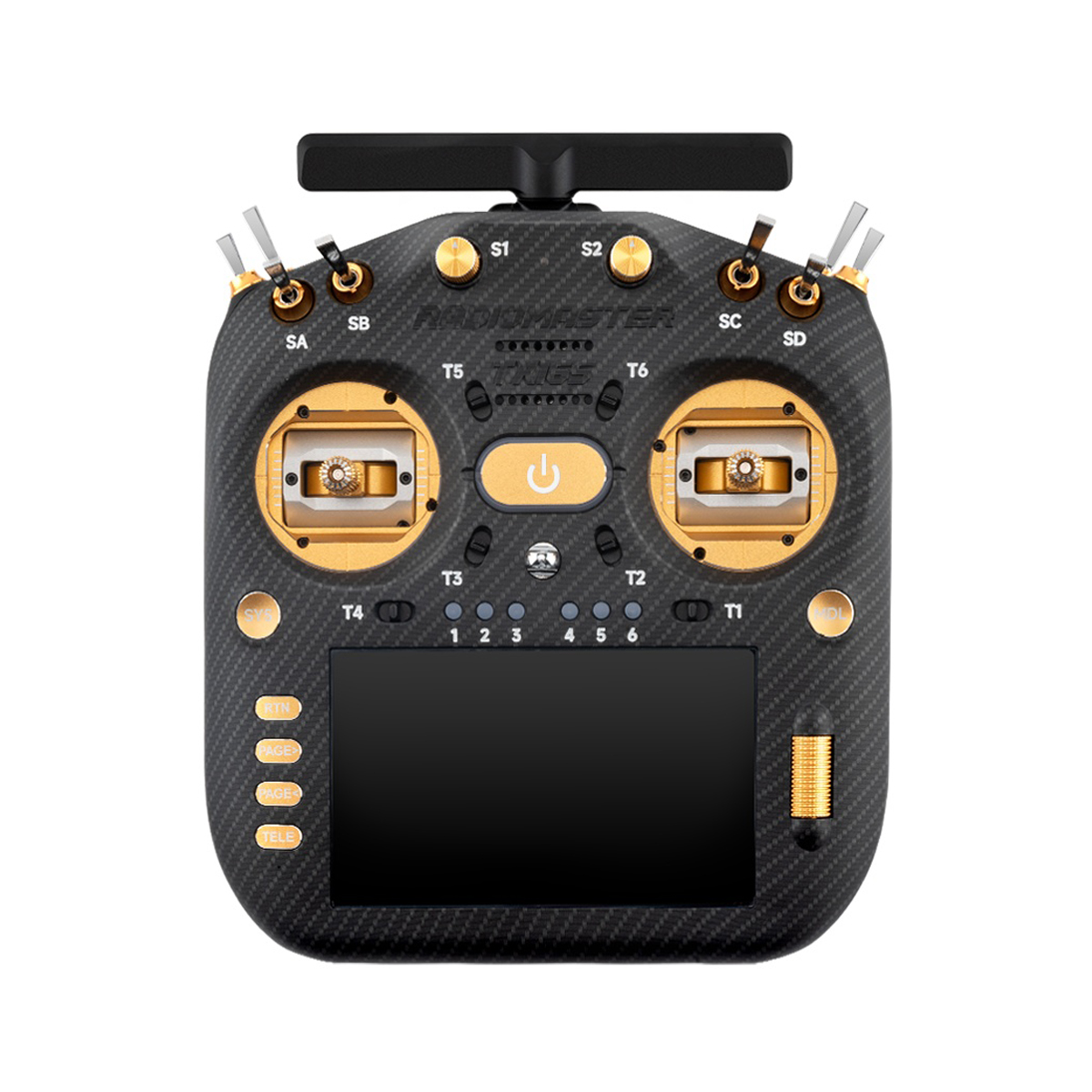

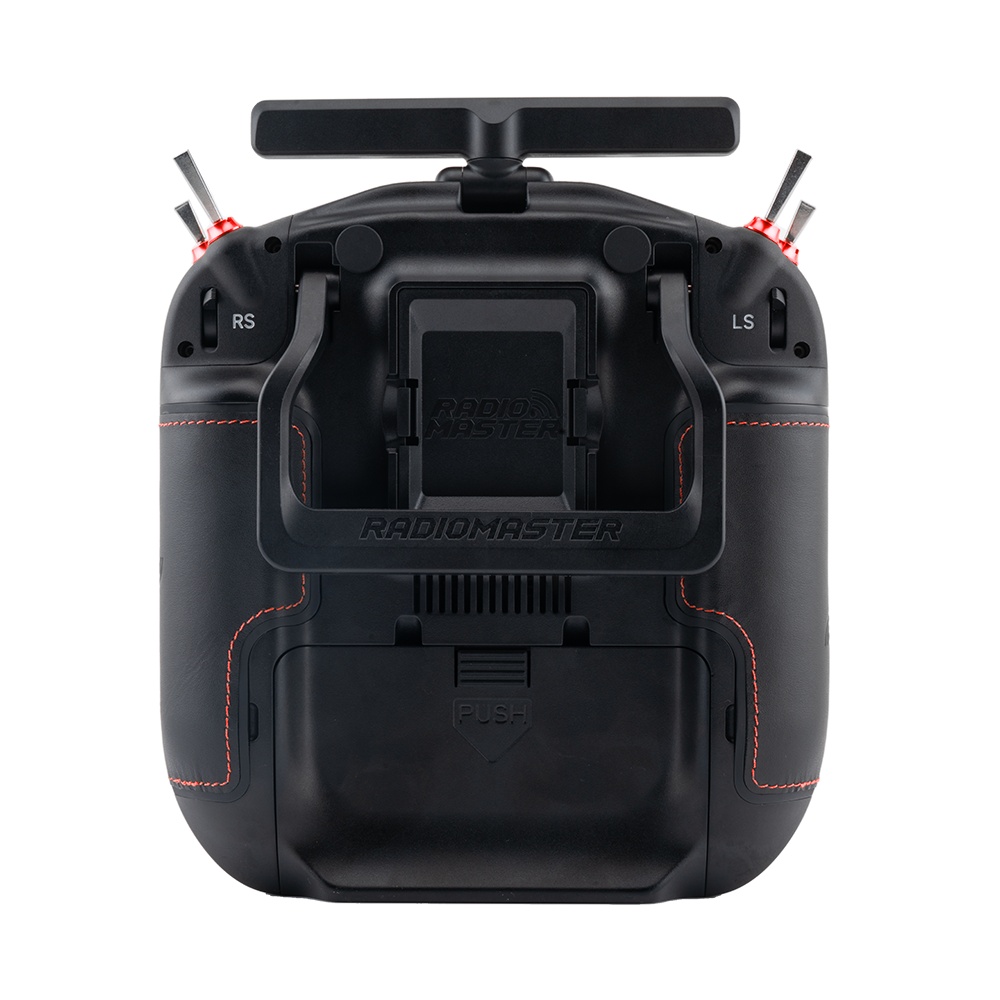

Color: Black / Red / Blue / Gold
Voltage Range: 6.6 – 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: AG02 CNC Hall sensor gimbals

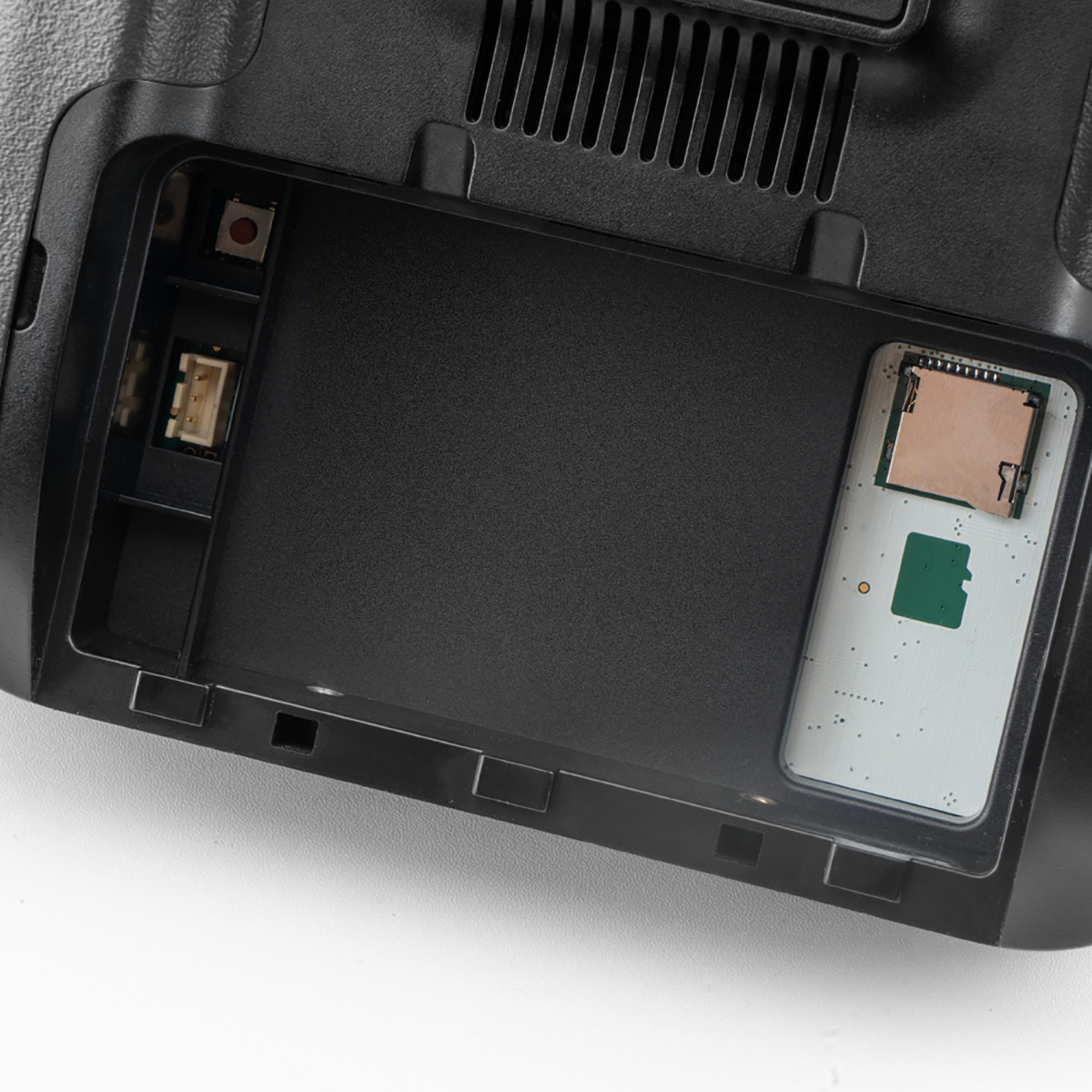

MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 4GB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules

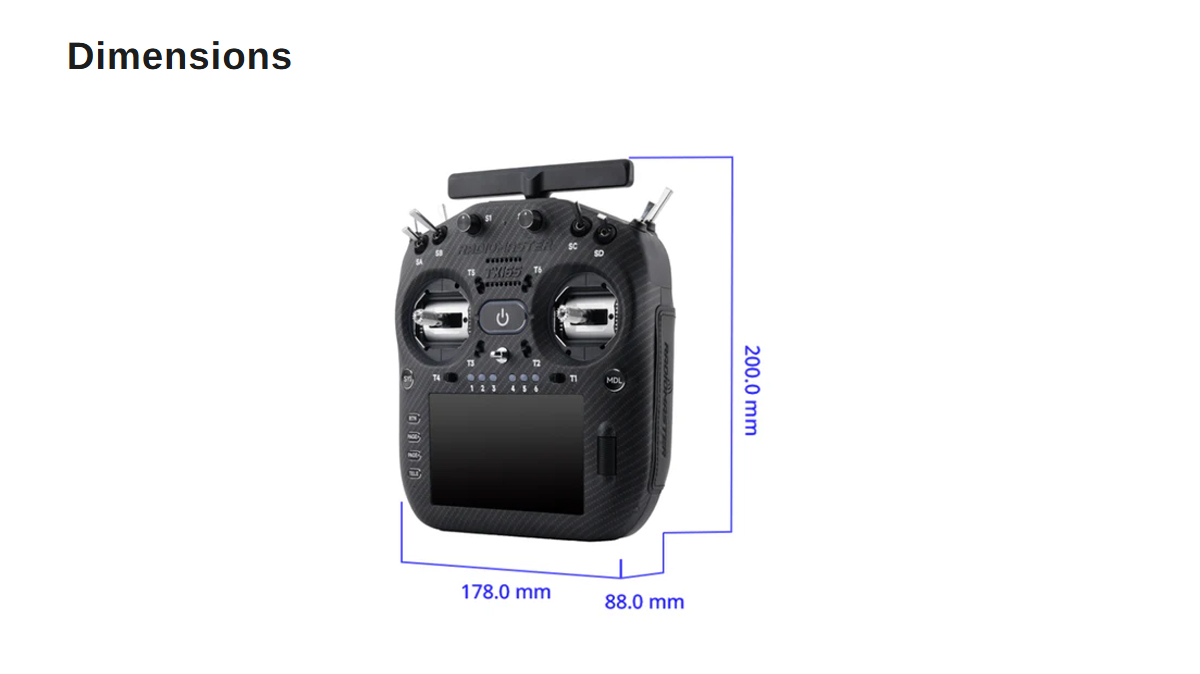

Dimensions: 200*178*88mm
Weight: 864g (without battery)

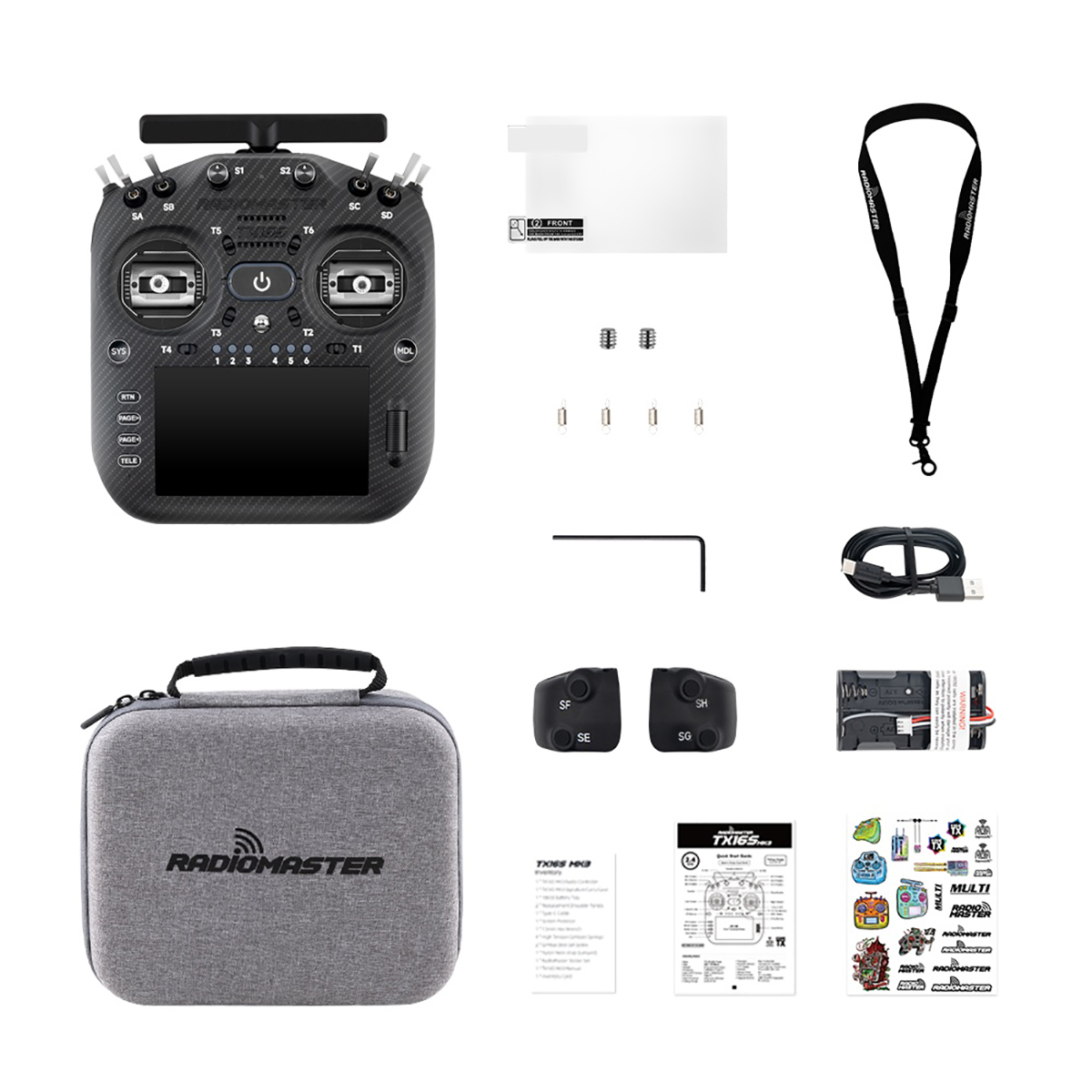

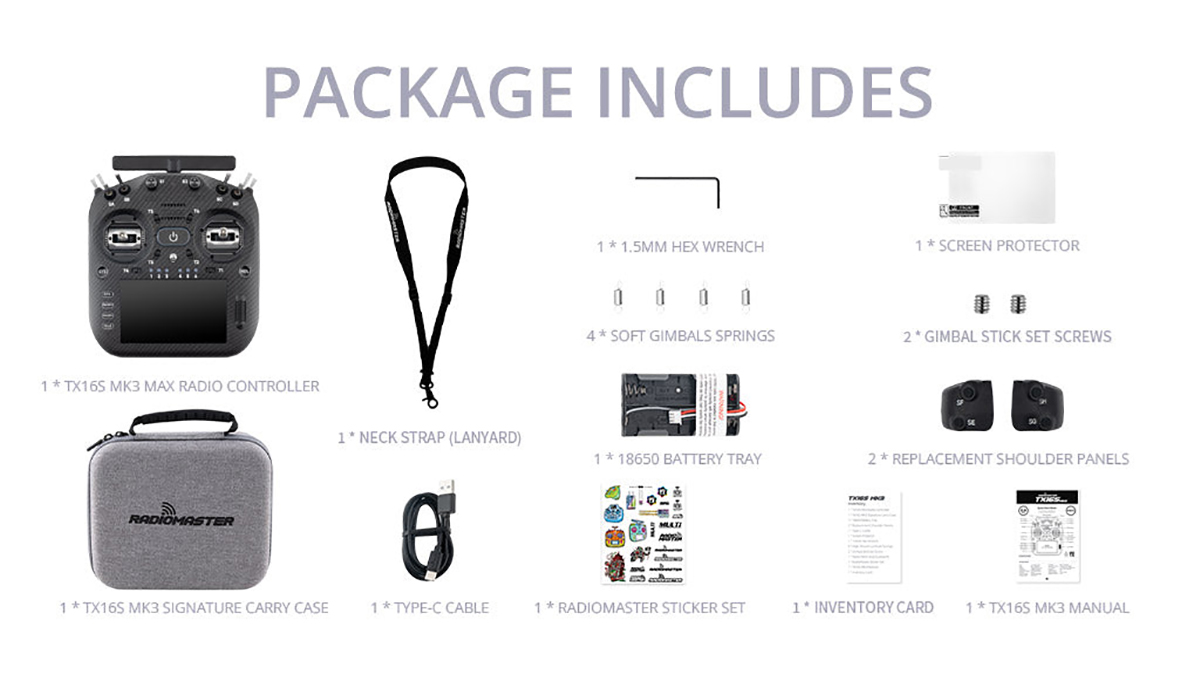

TX16S MK3 MAX Radio Controller x1

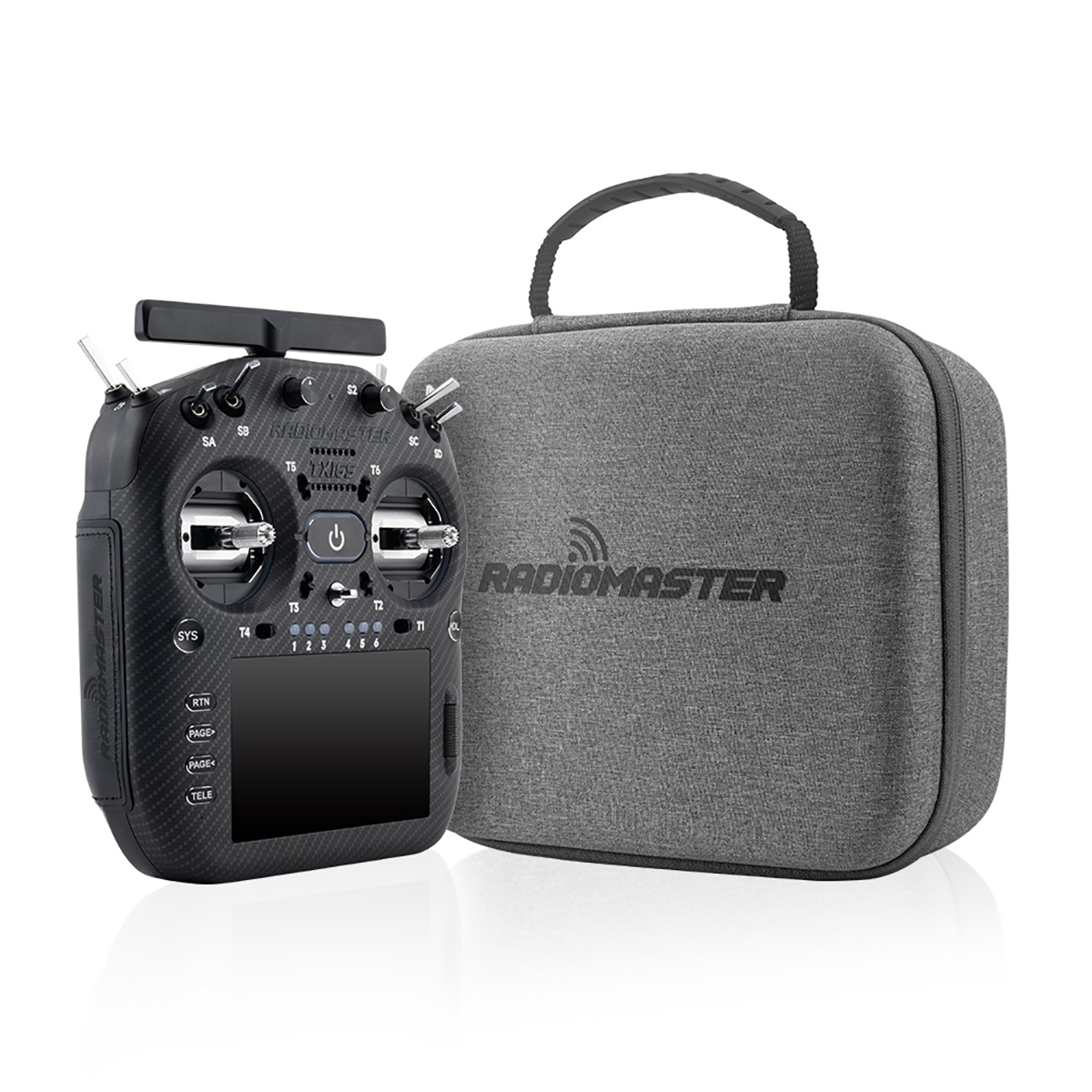

TX16S MK3 Signature Carry Case x1
18650 Battery Tray x1
Replacement Shoulder Panels x2
Type-C Cable x1
Screen Protector x1
1.5mm Hex Wrench x1
Low Tension Gimbals Springs x4
Gimbal Stick Set Screws x2
Nylon Neck Strap (Lanyard) x1
RadioMaster Sticker Set x1
TX16S MK3 Manual x1
Inventory Card x1
