RadioMaster ZORRO Multi-protocol Hall Gimbal OpenTX Radio Transmitter
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
ELRS
Physical Dimensions：170*159*108mm
Weight：350 grams
Operating Frequency：2.400GHz-2.480GHz
Internal RF Options：ELRS
Supported Protocols: ELRS
RF Power：TBA (CE and FCC Version will be available)
Antenna Gain：Folding 2db
Operational Current：160mA@8.4V
Operational Voltage：6.6-8.4v DC
Control Distance: TBA

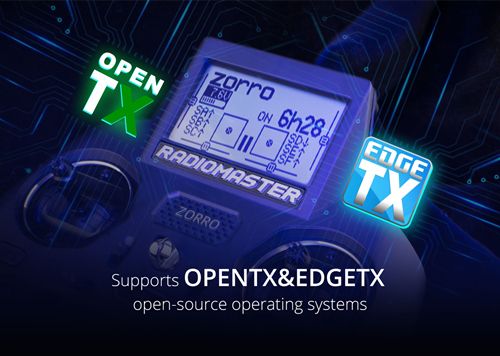

Operating System：OpenTX / EdgeTX Compatible
Control Channels：Maximum 16CH (Rx dependent)
Display ：128*64 Monochrome LCD

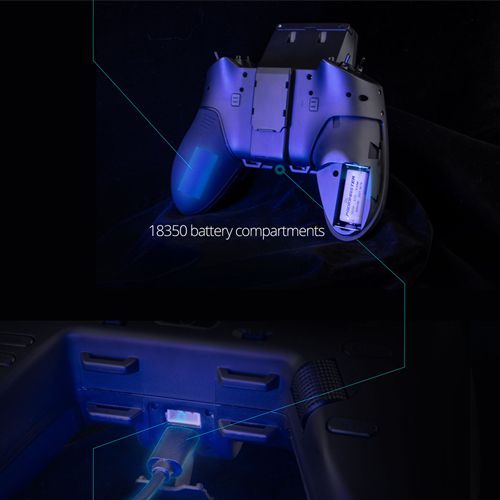

Battery ：2 x 18350 (Not included)

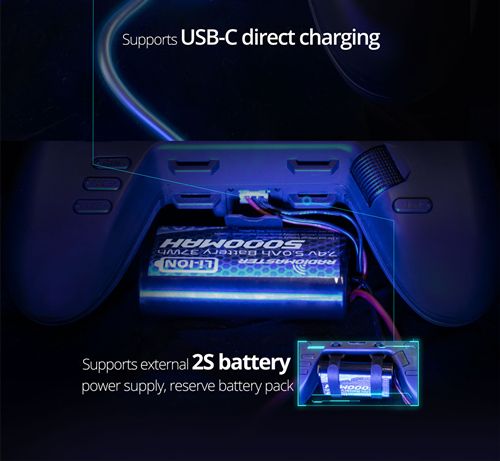

Charging ：Built in USB-C Charging
Gimbal：Hall-effect

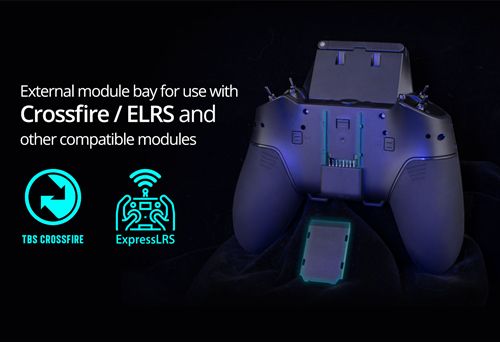

Module Bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method：Via USB or SD card (SD Not included)
4-in-1
Physical Dimensions：170*159*108mm
Weight：350 grams
Operating Frequency：2.400GHz-2.480GHz
Internal RF Options：4-in-1 Multi protocol
Supported Protocols: module dependent
RF Power：4in1 Maximum 20dBm
Antenna Gain：Folding 2db
Operational Current：160mA@8.4V
Operational Voltage：6.6-8.4v DC
Control Distance: > 2km@20dbm
Operating System：OpenTX / EdgeTX Compatible
Control Channels：Maximum 16CH (Rx dependent)
Display ：128*64 Monochrome LCD
Battery ：2 x 18350 (Not included)
Charging ：Built in USB-C Charging
Gimbal：Hall-effect
Module Bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method：Via USB or SD card (SD Not included)
CC2500
Physical Dimensions：170*159*108mm
Weight：350 grams
Operating Frequency：2.400GHz-2.480GHz
Internal RF Options：CC2500 Multi protocol
Supported Protocols: module dependent
RF Power：CC2500 Maximum 20dBm
Antenna Gain：Folding 2db
Operational Current：160mA@8.4V
Operational Voltage：6.6-8.4v DC
Control Distance: > 2km@20dbm
Operating System：OpenTX / EdgeTX Compatible
Control Channels：Maximum 16CH (Rx dependent)
Display ：128*64 Monochrome LCD
Battery ：2 x 18350 (Not included)
Charging ：Built in USB-C Charging
Gimbal：Hall-effect
Module Bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method：Via USB or SD card (SD Not included)
Zorro Radio Controlle x 1
