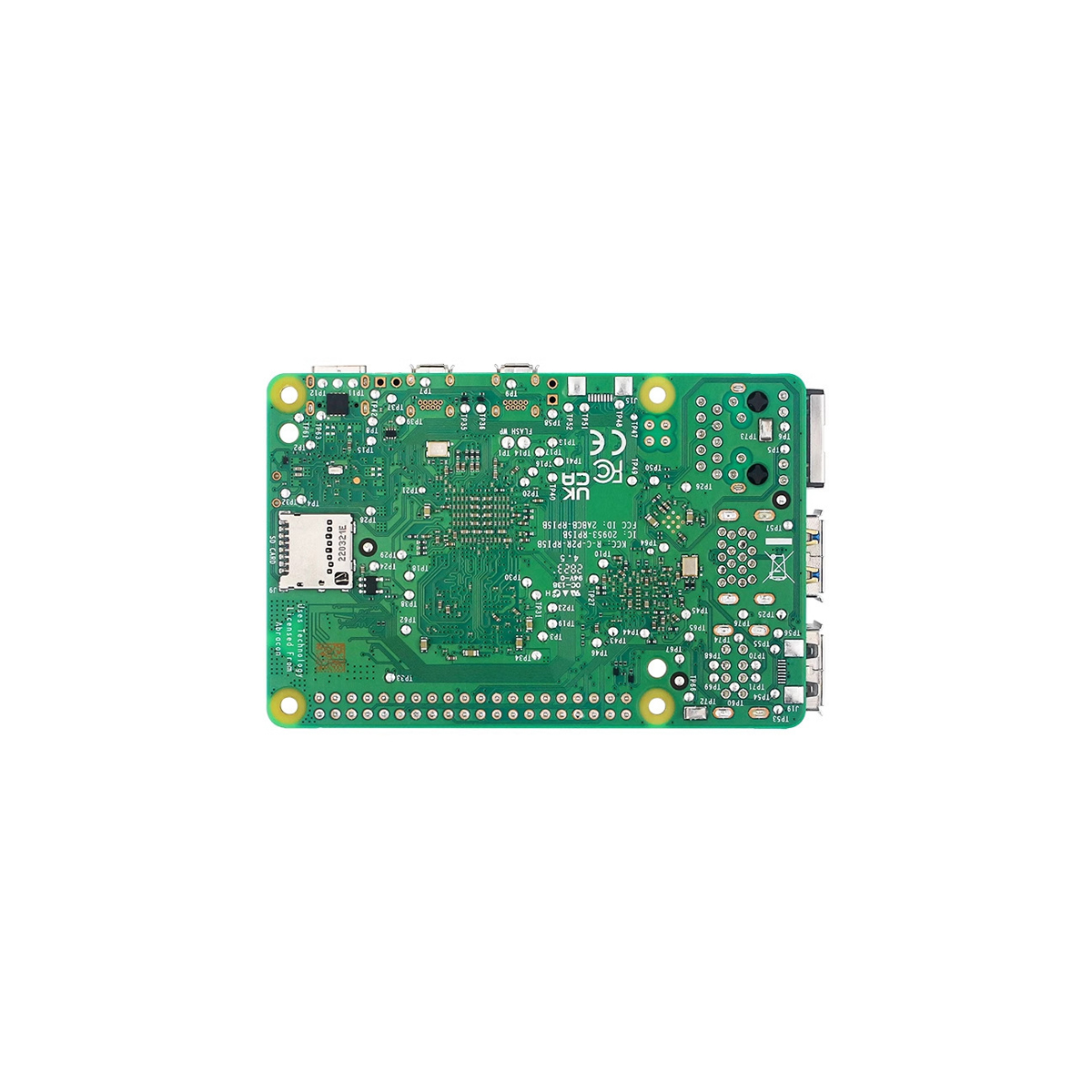

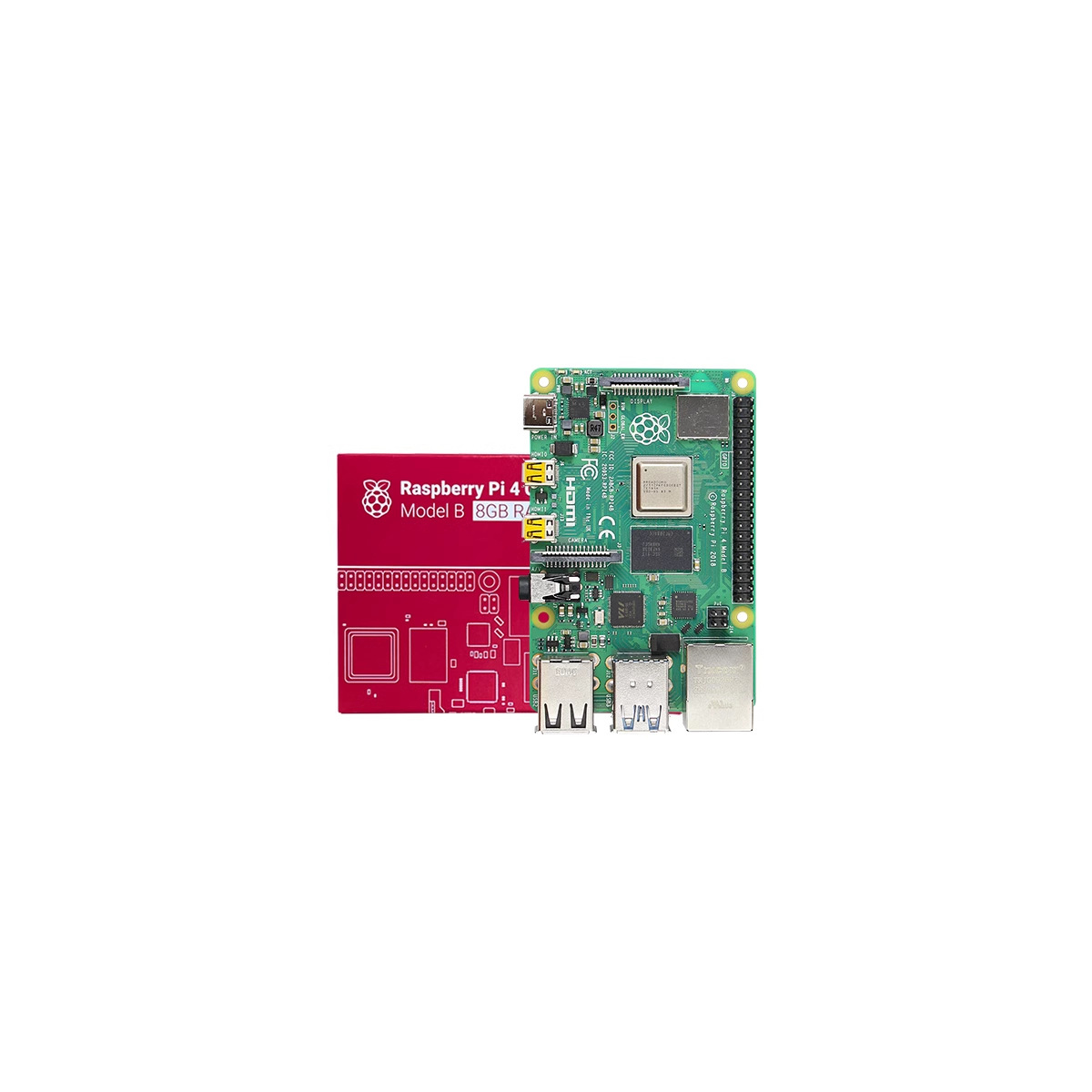

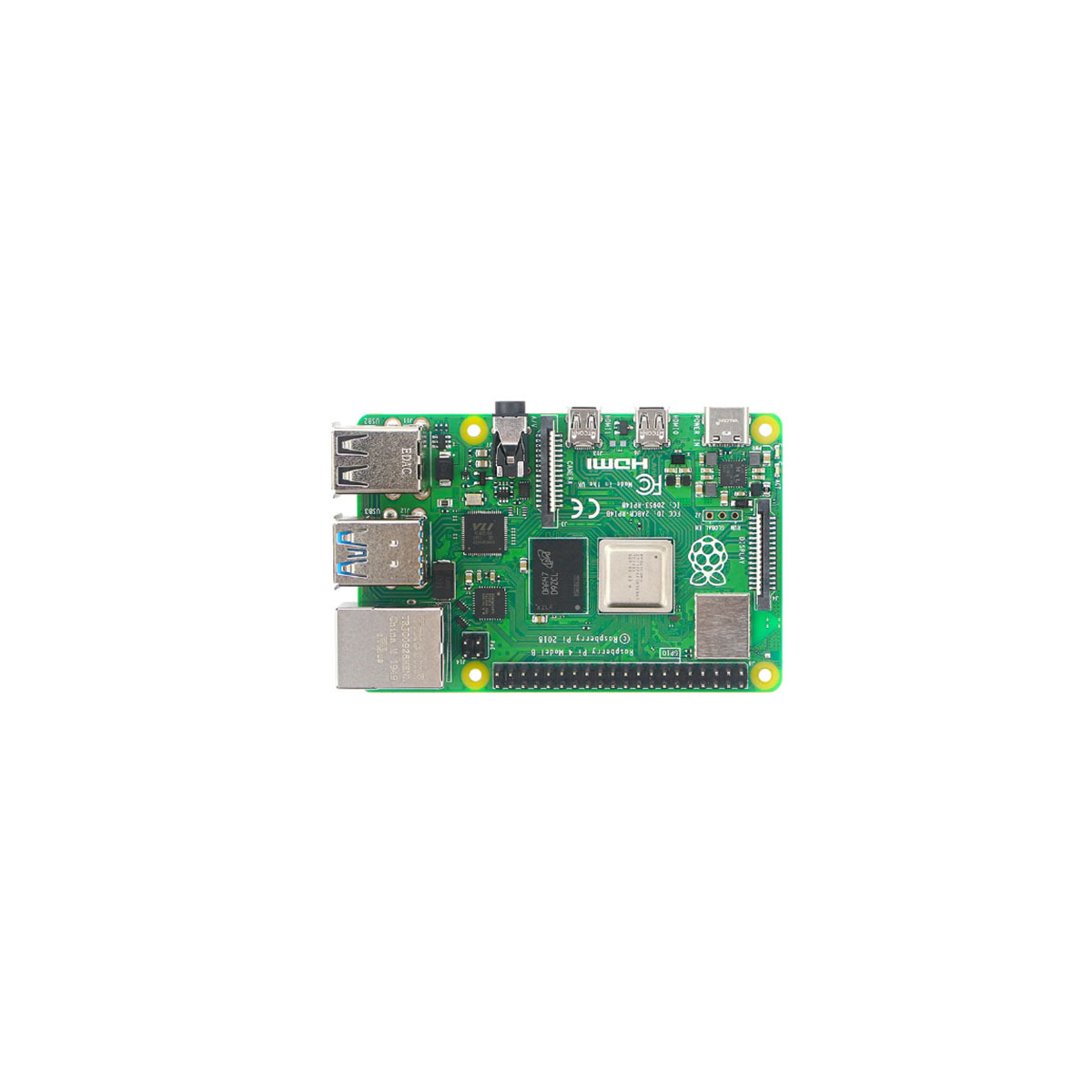

Raspberry Pi 4 Model B 8GB RAM Broadcom BCM271 64-bit 1.5GHz Quad-core Development Board












Raspberry Pi 4 Model B 8GB RAM Broadcom BCM271 64-bit 1.5GHz Quad-core Development Board
QUICK OVERVIEW:
1. Quad-Core 64-bit Broadcom 2711, Cortex A72 Processor
2. WLAN 802.11 b/g/n/ac (2,4 + 5,0 GHz)
3. LAN RJ45 10/100/1000 Mbit (Gigabit LAN over USB 3.0)
4. Operating Power 5V@3A via USB Type-C Port
5. Dual-Display Ports which supports H 265 Decode for 4K Video @60p
Key Features of Raspberry Pi 4 8GB:
Faster processing:
1. With one of latest Broadcom 2711; Quad-Core Cortex A72 (ARM V8-A) 64-bit SoC Clocked at 1.5GHz processor improved power consumption; and thermals on the Pi 4+B means that the CPU on the BCM2837 SoC can now run at 1.5 GHz; a 20% increase on the previous Pi 3 model (which ran at 1.2GHz).
2. Video performance on Pi 4 B is upgraded with dual-display support at resolutions up to 4K via a pair of ports; hardware video decode at up to 4Kp60 which supports H 265 Decode (4Kp60); H.264, and MPEG-4 decode (1080p60).
Faster wireless:
1. A significant change on the Pi 4 B compared to the previous Pi 3 models is the inclusion of a new faster; dual-band wireless chip with 802.11 b/g/n/ac wireless LAN.
2. The dual-band 2.4GHz and 5GHz wireless LAN enables faster networking with less interference and the new PCB antenna technology allow better reception.
3. Latest 5.0 allows you to use a wireless keyboard/trackpad with more range than before without extra dongles; keeping things nice and tidy.
Enhanced Ethernet Connectivity:
1. The Pi 4 B has significantly faster-wired networking with USB 3.0 technology; thanks to an upgraded USB/LAN chip; and you should see speeds that are 10x faster than on previous models of the Pi.
2. The GPIO header remains the same, with 40 pins; fully backwards-compatible with previous boards as on the previous three models of Pi. However; it should note that the new PoE header pins may contact components on the underside of some HATs; like Rainbow HAT. Some standoffs will prevent any mischief from occurring though!
Name: Raspberry Pi 4 Model B
SOC: Broadcom BCM2711
CPU: 64-bit 1.5GHz Quad-core (28nm process)
GPU: Broadcom VideoCore VI@500MHz
USB Ports: USB2.02/USB3.02
HDMI: micro HDMI*2, 4K60 Supported
Power Connector: Type C (5V 3A)
WiFi Network: 802.11AC Wireless; 2.4GHz/5GHz Dual-band WiFi
Wired Network: True Gigabit Ethernet (Achievable via Ethernet Port)
Ethernet Poe: Power Supply via Additional HAT Ethernet (Poe)
Raspberry Pi 4 Model B 8GB x1
Related products
-
Antennas

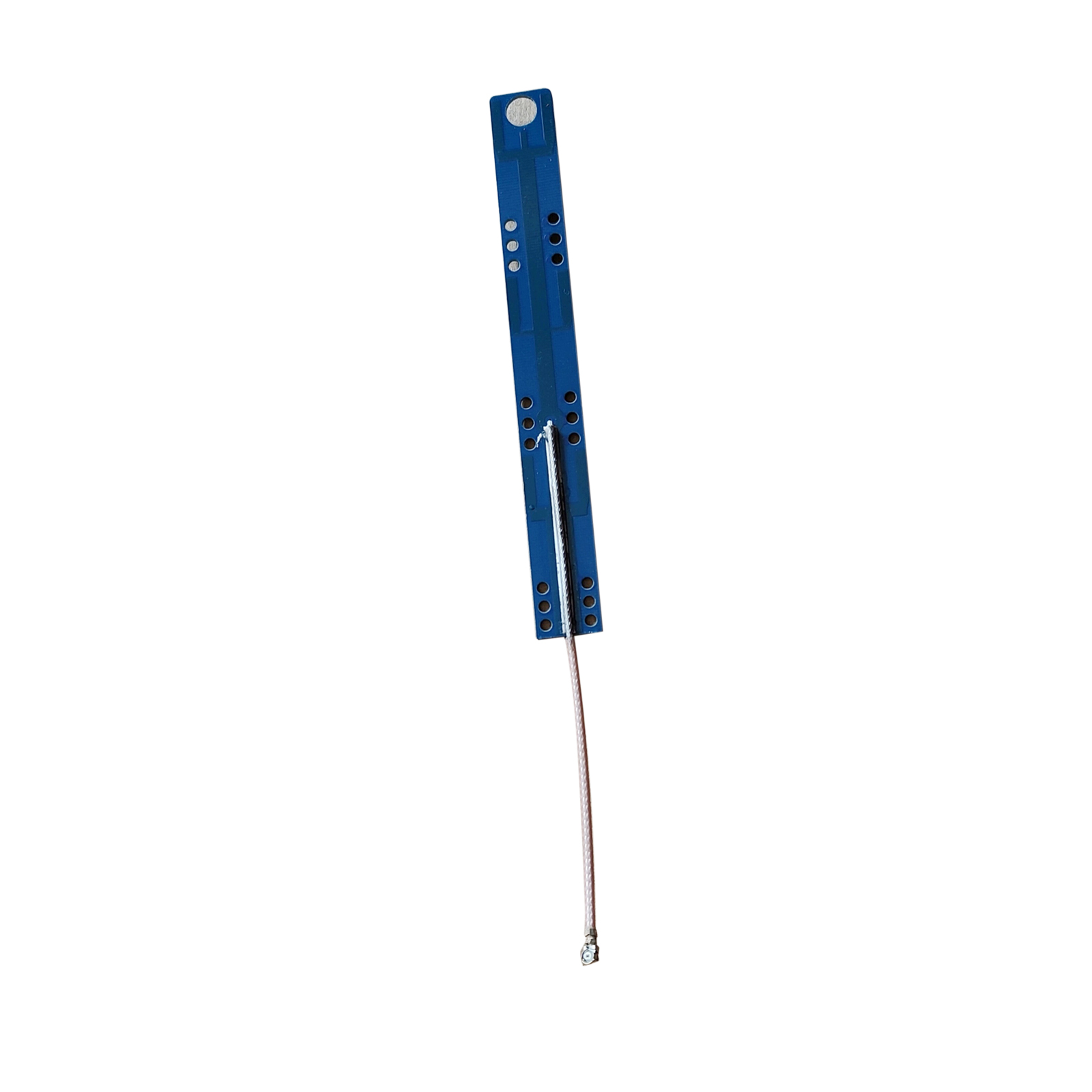

7.5dB Connector Antenna 4.7-5.8GHz Analog FPV Antenna for Raspberry Pi Snail DJI Goggles Fixed-Wing
Rated 0 out of 5 -
Raspberry Pi

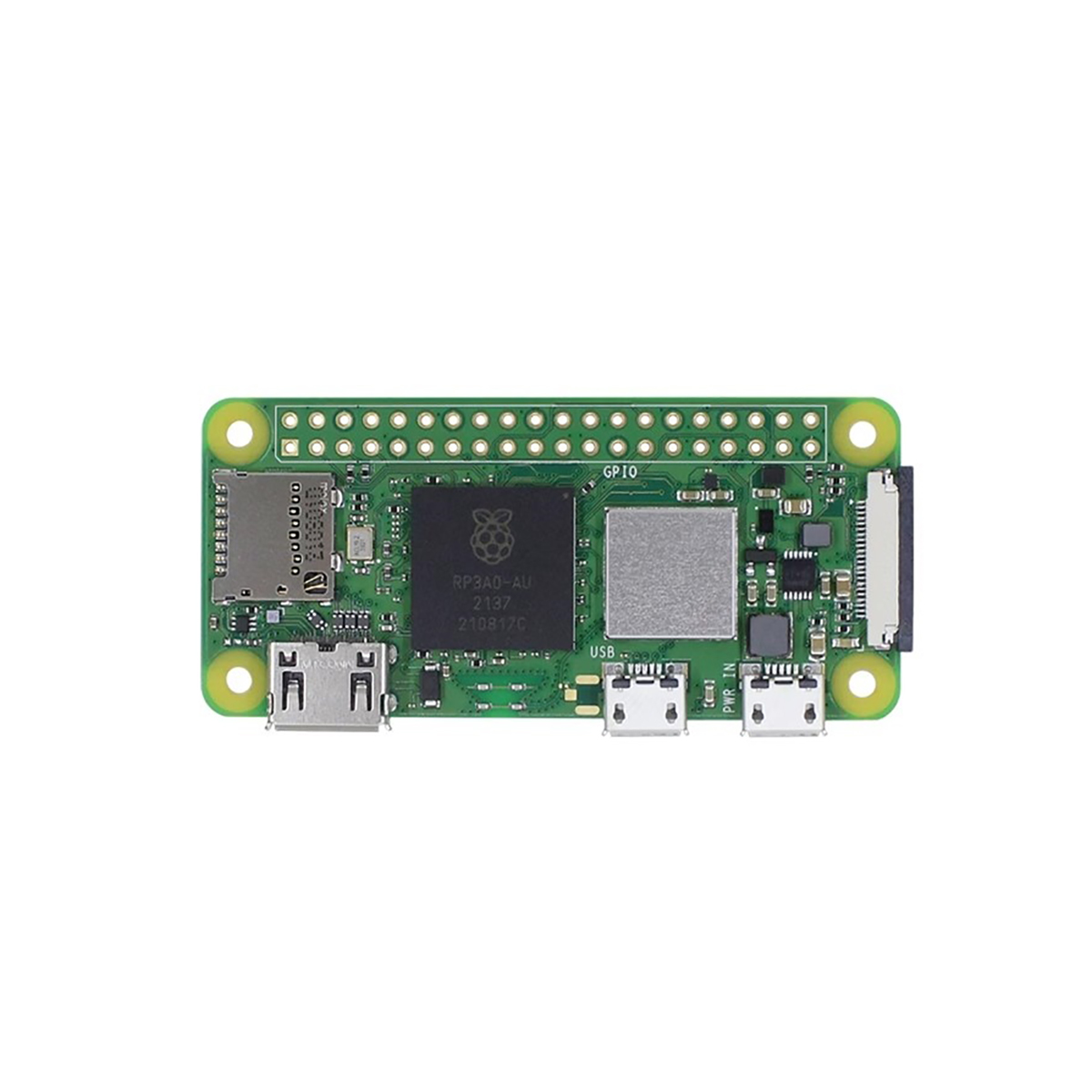

Raspberry Pi Zero 2W Development Board BCM2710A1 Chip Python Learning kit
Rated 0 out of 5 -
Raspberry Pi

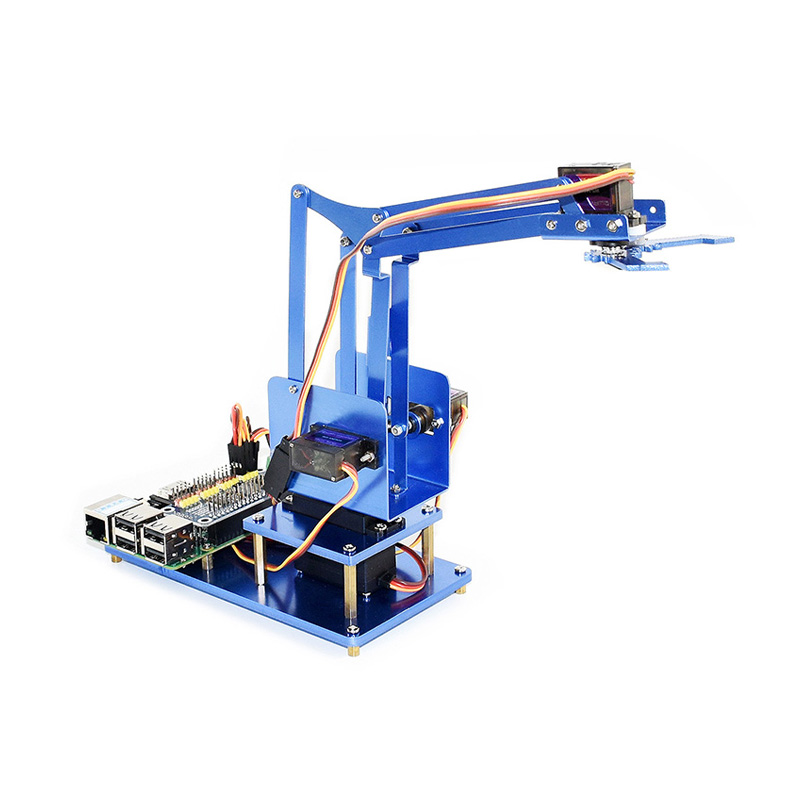

Waveshare 4-DOF Metal Robot Arm Kit Entry level I2C Controlled for Raspberry Pi
