Raspberry Pi 5 8GB Development Board Broadcom BCM2712 Python Programming Linux Kit

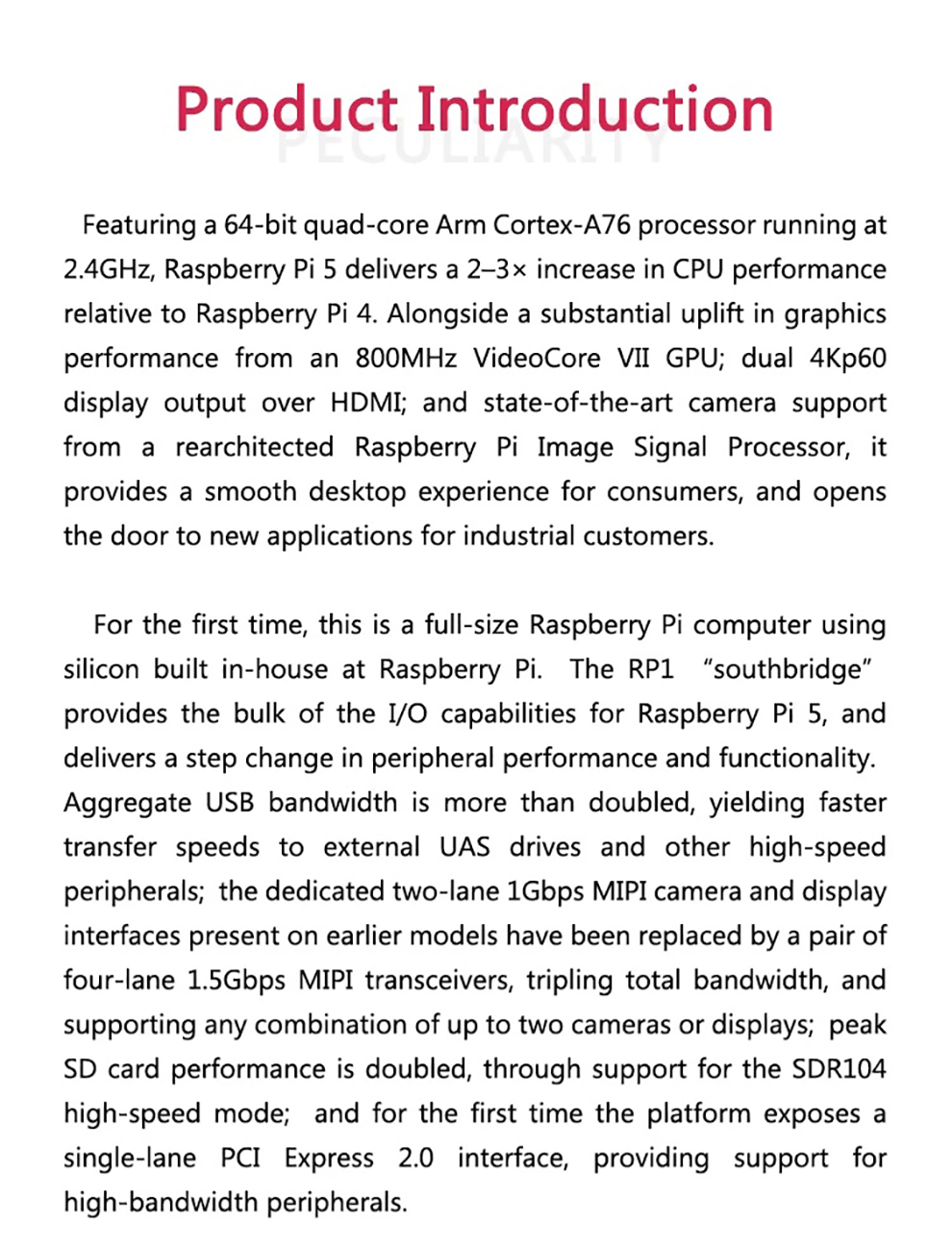

Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.
Key features include:
2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI® display output
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (options for 2GB/4GB/8GB/16GB)
2.4GHz/5GHz dual-band 802.11ac Wi-Fi®
TF card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
2 × 4-lane MIPI DSI/CSI port
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi standard 40-pin header
Real-time clock (RTC), powered from external battery (not included)
Onboard power button for power on/off without disconnecting power adapter
Model: Raspberry Pi 5
CPU (Central Processing Unit): Broadcom BCM2712;Quad-core Cortex-A76 (ARM v8) 64-bit SoC;2.4GHz
Cache: L1 cache: 64KB data+64KB instruction per core; L2 cache: 512KB per-core; L3 cache: 2MB shared
GPU: 800 MHz VideoCore VII, Supports OpenGL ES 3.1, Vulkan 1.2
Memory: LPDDR4X-4267 SDRAM
Memory Model: 1GB, 2GB, 4GB, 8GB Optional
Operating System and Data Storage: Micro SD Card Slot, Supports High-speed SDR104 Mode
WIFI: 2.4GHz and 5.0GHz 802.11ac Wireless Network
Ethernet Port: Gigabit Ethernet (Position Symmetric to Pi4B)
USB Ports: 2×USB 3.0, Supports 5Gbps Simultaneous Operation; 2×USB 2.0 (Position Symmetric to Pi4B)
CSI Port & DSI Port: 2×4lane MIPI Camera Or Display Bidirectional Transport Port, 22pin Small Port
HDMI: Two micro HDMI Ports, Supports Dual 4Kp60, Supports HDR
PCIe: One PCIe 2.0×1 Port FPC Connector
GPIO Port: Standard 40-pin
Audio and Video Composite Output Port: None (Provides a Pair of 0.1 – inch Spacing Pads)
Power Input: 5V/5A DC via USB- C Port (Supports PD); 5V/5A DC via GPIO Port
Other Ports: PoE via Separate New PoE HAT (Ethernet Port Position Changes)
Power Switch: on/off Switch Button
Real-time Clock (RTC): RTC Battery Connector (2-pins JST)
UART: Dedicated UART Port (3-pins JST)
Fan Port: PWM control and tacho Feedback (4-pins JST)
Product Dimensions: 85mm×56mm
Raspberry Pi 5 8GB x1
